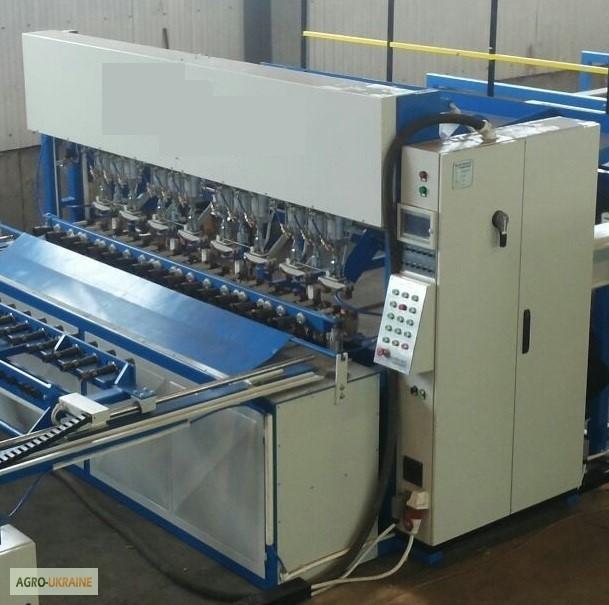

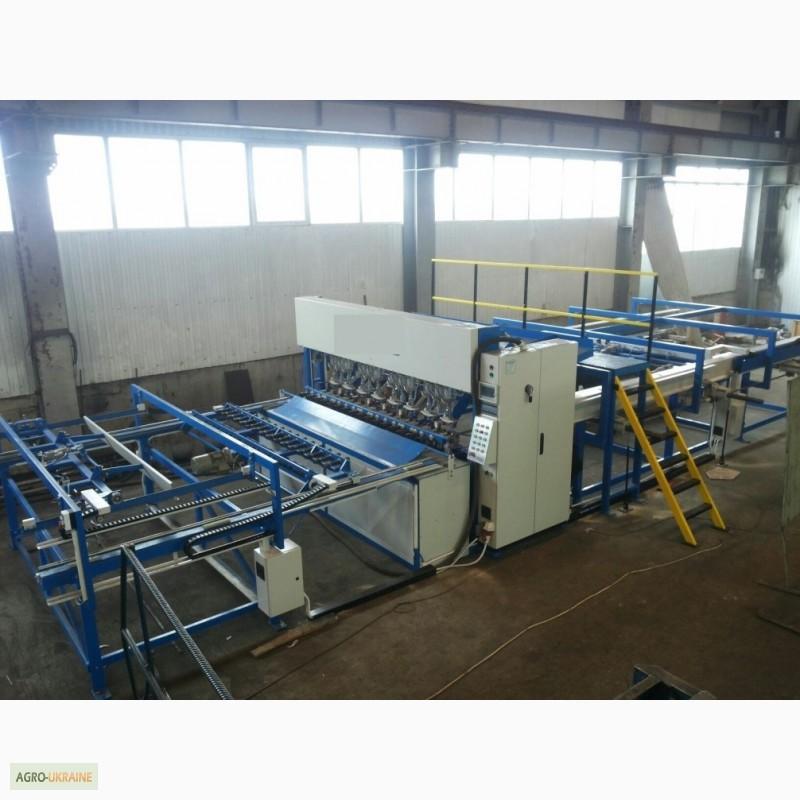

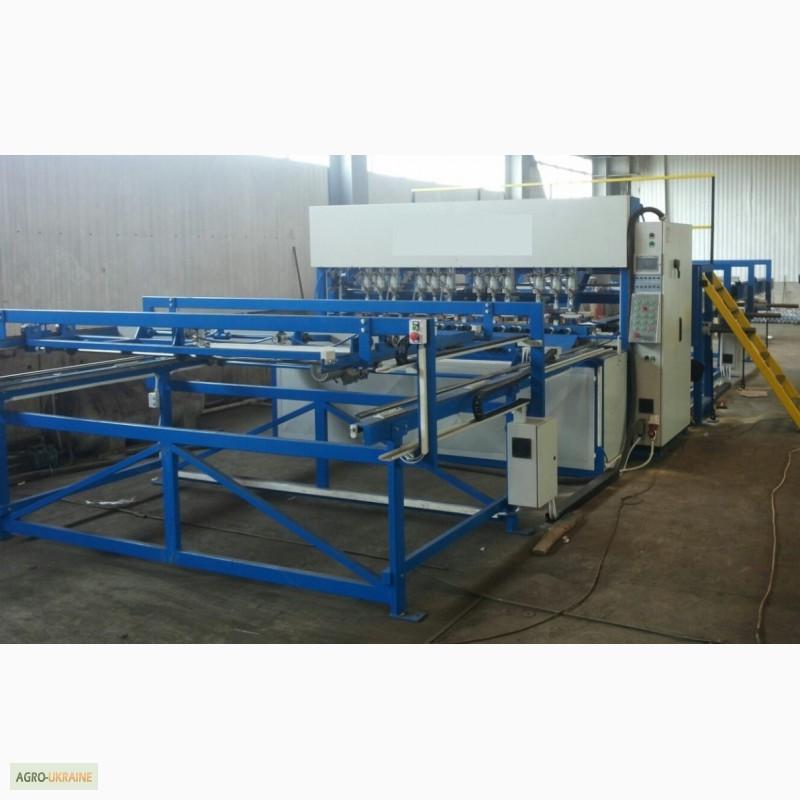

Automatic line for mesh welding, Kyiv

We offer you to familiarize yourself with automatic lines for welding wire mesh.

Fully automatic line for reinforcing mesh.
Adding longitudinal and transverse wire is done automatically, from coils.
The line is equipped with coils for removing the finished net and scissors for cutting.
Additional options can be made at the request of the Client.

Finished products on the machine:

Used for welding wire mesh.
For example: production of masonry mesh for concrete, mesh for 3D fences, mesh for gabion, for concrete blocks, for poured floors.
1) Reinforcing mesh for concrete (construction)
Reinforcing mesh for concrete in a roll, Foundation for a house/house. Reinforcing mesh for construction (large diameter), Special reinforcing mesh for use
in the production of concrete pillars.
Welded reinforcing mesh with a small mesh stroke and diameter, used for the production of poured floor (smoothing floor).

2) Welded fittings for fences.
3D Euro fence, fence with double transverse reinforcement.

3) Welded fittings for cell production

4) Welded mesh for gabion.

Wire mesh welding line: :

1. Part for adding long fittings
• Structure: the structure is made of welded steel.
• Drive: Electric.
• Power: 2.2 kW
• Dimensions: 2400x1800
• Weight: 1000 kg

2. Part for welding:

• Structure: the structure is made of welded steel
• Cylinders: pneumatics
• Number of electrodes: 22-40
• Number of transformers: 8-20
• Power transformer: 5x55 kVA-100 KVA
• Step length: 50 – 400 mm. fixed
• Adding transverse reinforcement: magnets with dispenser, manual

3. Part of the conclusion

• Structure: the structure is made of welded steel.(//tractor-service.com)
• Drive type: servomotor
• Power: 5.5 kW
• Maximum width: 2400 mm
• Maximum length: 6000 mm

Mesh width, mm 2200

Mesh length, mm 60000

Armature diameter, mm 2.2-10

Longitudinal step, mm 50 - 250

The step of the transverse armature, mm 30-400, is adjustable
Machine control Computer (PLC)
Servomotors, actuators Control techniques
Number of transformers 8-40
Transformer power, kVA 55-100, kVA
Max machine power, kVA 55-600
Number of moves 40-60

Types of work mode:
1. All works at once
2. Individual

Power, 3x380
Cooling of electrodes with water
Air flow, m3/min 3.5-5
Air pressure, bar 6-7.5
Water flow, l/min 30-45

Adding longitudinal reinforcement automatically
Adding transverse reinforcement: automatically

Machine dimensions, mm 3200x2200x2000
Dimensions of the line for the production of reinforcing mesh, mm 26000x7000x2000

Coil for reinforcing mesh Length = 45 m of mesh

Scissors for cutting fittings Hydraulic
Electro coil tap.

12-month warranty.

To receive a commercial offer, please send an application to our email address.
