Vibropress automatic line NMB 7042 (800 m2/shift), Kyiv

Vibropress automatic line NMB 7042 (800 m2/shift)

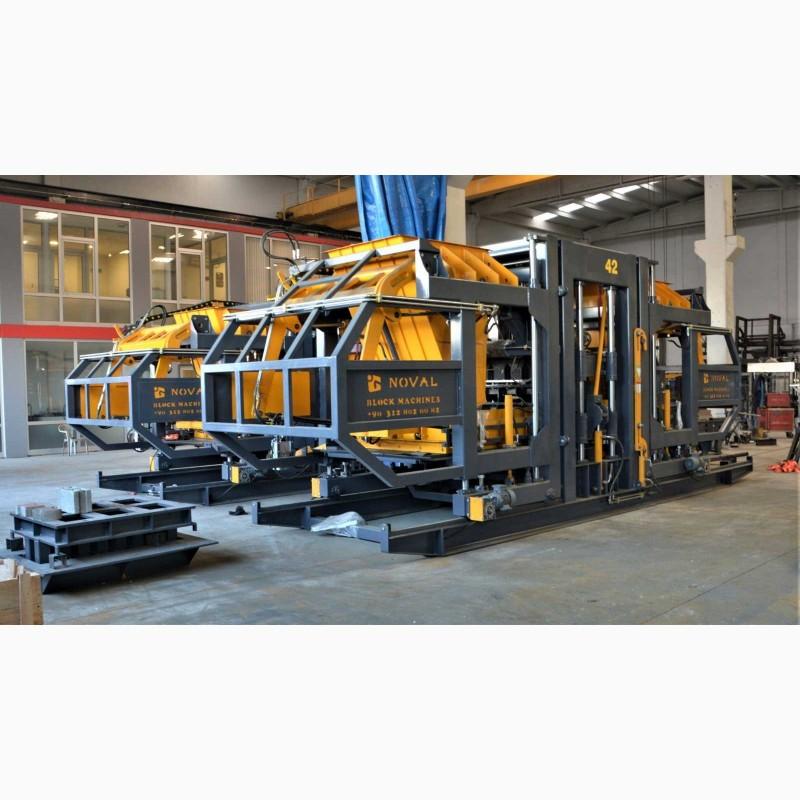

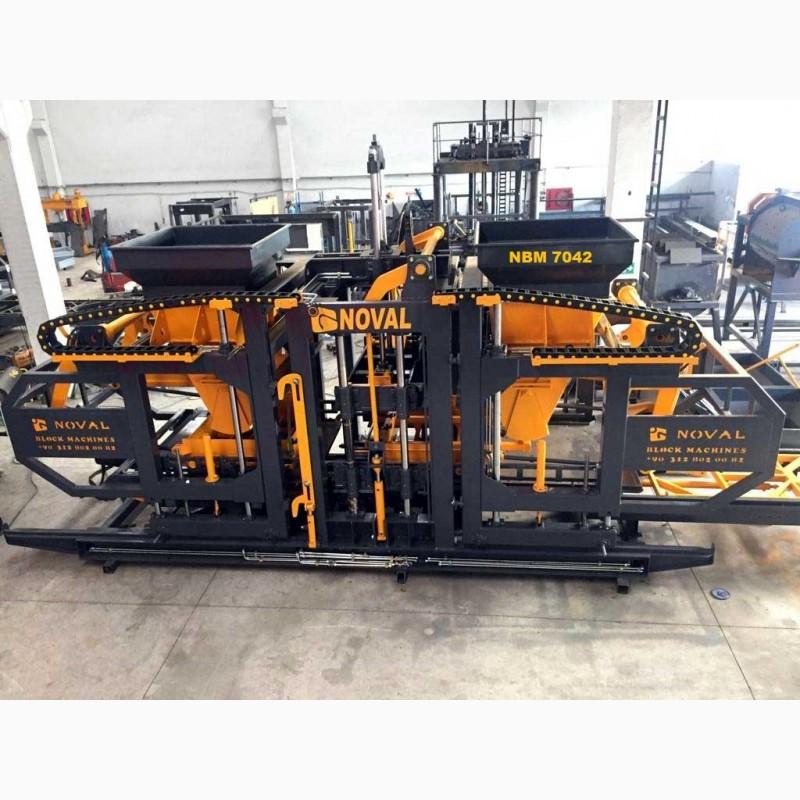

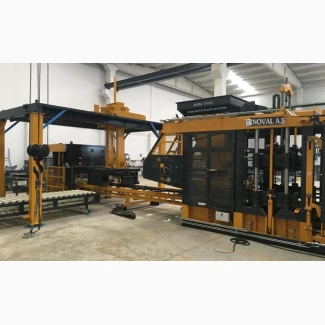

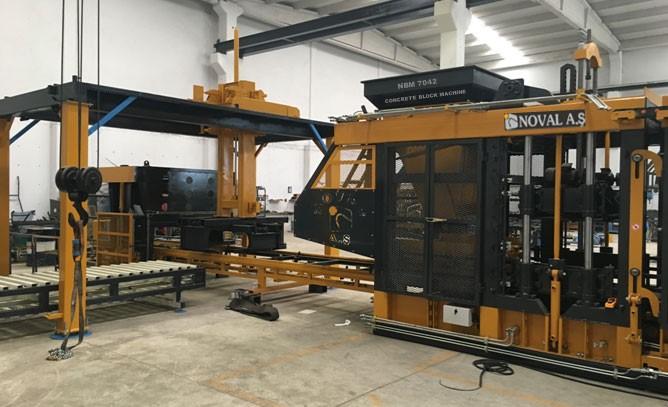

NBM 7042 MACHINES FOR THE PRODUCTION OF PAVEMENT TILES, CURB AND BLOCKS

These are machines working with a hydraulic system in the pressure range of 120-200 bar. Produces 18 pieces of standard briquettes 20*40*20 cm and 42 pieces of paving stones. Production requires working pallets on legs.

Concrete pressed in forms is pressed on pallets.
Products made in the same way are left to dry on work pallets.

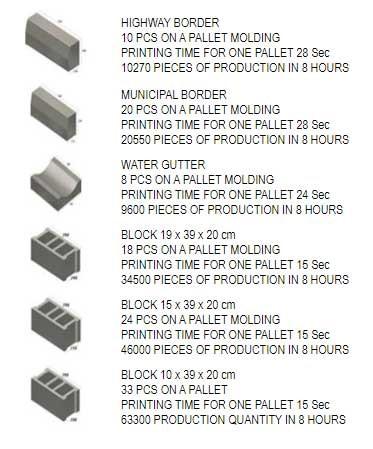

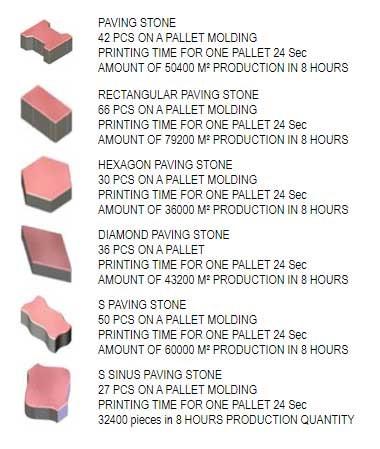

Productivity for a shift of 8 hours:

Paving tiles up to 800 m2

Border 6170 pcs.

Hollow block 40*20*20 cm - 7680 pcs.

The working area of the mold is 130*125 cm.

The size of the pallet is 140*135 cm.

Energy-saving products A+ (A PLUS)
EFF3 class electric motors
Free spare parts with the machine
Warranty - 2 years + 2 years, total warranty up to 4 years.
Compliance with the general quality management system ISO 9001:2008.(//tractor-service.com)
CE declaration of compliance with European standards.
"HIGHLINE" product models with qualified personnel
Fast service and warranty of spare parts.
Use of materials in accordance with DIN and TSEK standards.

Simple program selection
Freedom of automatic/manual selection
Authorization certificate at the end of the training period
Stop, hold and resume
The possibility of transportation by forklift truck.
Internet troubleshooting capability.
Compliance with the Low Voltage Directive.

Warranty 24 months.

The manufacturer conducts the chief installation of equipment and training of personnel.

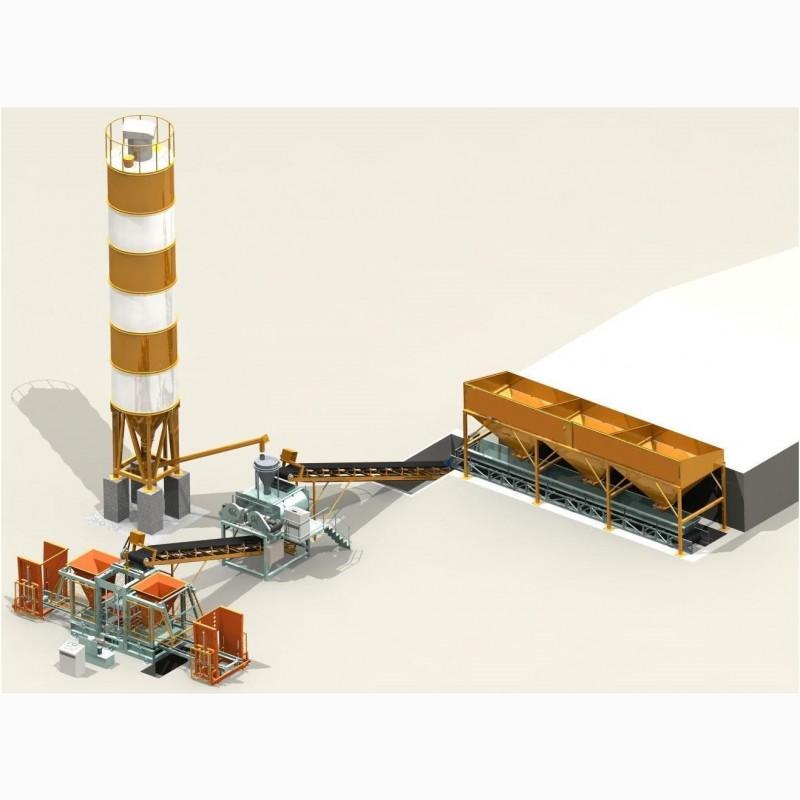

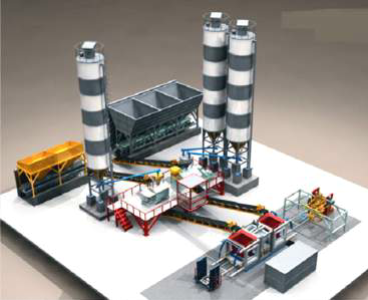

Required plant area in NBM7042:

Minimum 5,500 m² (1,000 m² for machinery and equipment, drying area 1,700 m², dry finished warehouse area 1,300 m², unit storage area 1,200 m², empty pallet area 300 m²).

The total output of the transformer or generator must be set to FULL output. Automation systems must have a capacity of 250 kVA.

The installed capacity is 160 kW.

The number of personnel required for the operation of the vibropressing line of factory fully automatic systems: 2 people (operator and loader driver). + Concrete plant.
