Vibropress automatic line NMB 3012 (190 m2/shift)

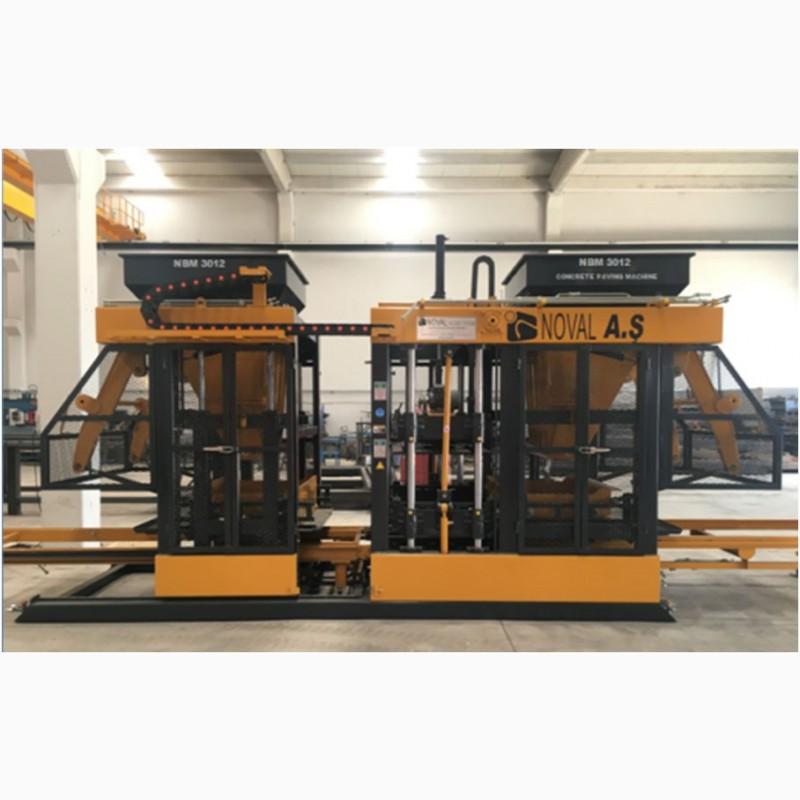

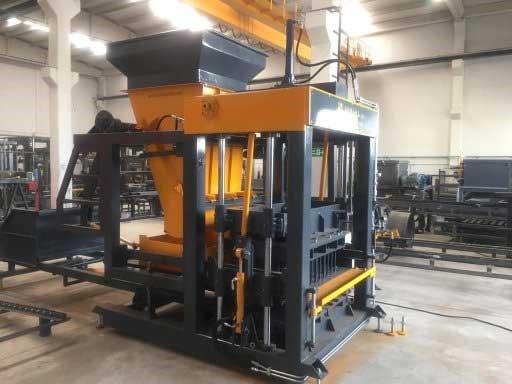

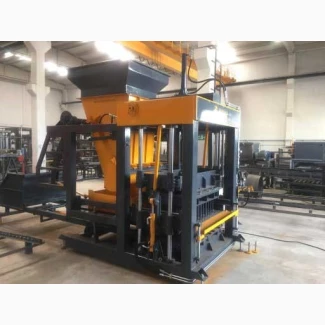

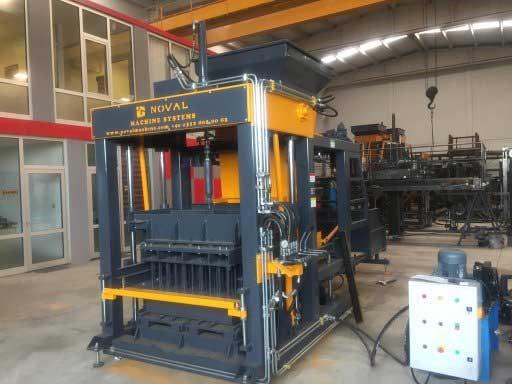

NBM 3012 VIBROPPRESS FOR THE PRODUCTION OF PAVEMENT TILES, CURB AND BLOCKS

These are machines working with a hydraulic system in the pressure range of 120-200 bar. Makes 4 pieces of standard briquettes 20*40*20 cm and 12 pcs. paving stones.

Production requires working pallets on legs.
Concrete pressed in forms is pressed on pallets.
Products made in the same way are left to dry on work pallets.

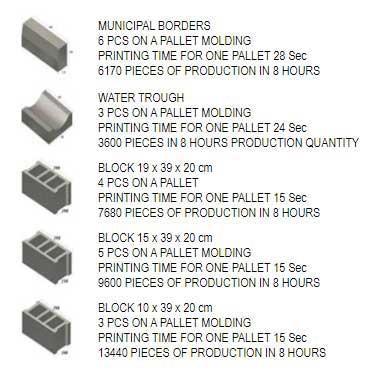

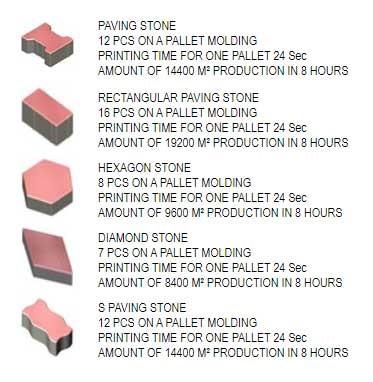

Productivity for a shift of 8 hours:

Paving tiles up to 190 m2

Border 6170 pcs.

Hollow block 39*19*20 cm - 7680 pcs.

The working area of the mold is 65*58 cm.

The size of the pallet is 75*68 cm.

Energy-saving products A+ (A PLUS)
EFF3 class electric motors
Free spare parts with the machine
Warranty - 2 years + 2 years, total warranty up to 4 years.
Compliance with the general quality management system ISO 9001:2008.
CE declaration of compliance with European standards.
"HIGHLINE" product models with qualified personnel
Fast service and warranty of spare parts.
Use of materials in accordance with DIN and TSEK standards.
(//tractor-service.com)
Simple program selection
Freedom of auto/manual selection
Authorization certificate at the end of the training period
Stop, hold and resume
The possibility of transportation by a forklift truck
Internet troubleshooting capability.
Compliance with the Low Voltage Directive.

Warranty 24 months.

The manufacturer conducts the chief installation of equipment and training of personnel.

SEMI-AUTOMATIC Option.

Area required for semi-automatic systems:
Minimum 3000 m2 (300 m2 for machines and equipment, drying area 1500 m2, dry ready warehouse area 700 m2, aggregate storage area 400 m2, empty pallet storage area 100 m2)

The total capacity of the transformer or generator of the installation in semi-automatic systems should be 80 kVA.
The installed capacity is 50 kW.

The number of personnel required to operate the plant in semi-automatic systems: 9 people (2 operators and 1 driver of wooden pallets, 3 carriers of fresh products, 3 devices for supplying inert materials).

FULLY AUTOMATIC Option.

Required installation area in automatic systems: Minimum 3000 m2 (400 m2 for machines and equipment, drying area 1300 m2, dry ready warehouse area 800 m2, aggregate storage area 400 m2, empty pallet storage area 100 m2) installation power in automated systems must be 100 kVA.
The installed capacity is 75 kW.

The number of personnel required to operate the plant in automatic systems: 3 people (2 operators and 1 forklift driver).

GENERAL INFORMATION ABOUT THE PRODUCTION SITE.

It is recommended to install an enclosed area of at least 600 m2 for equipment, empty pallets and fresh produce drying area to protect against bad weather conditions. The buyer must prepare the concrete infrastructure of the territory where the plant will be installed.
