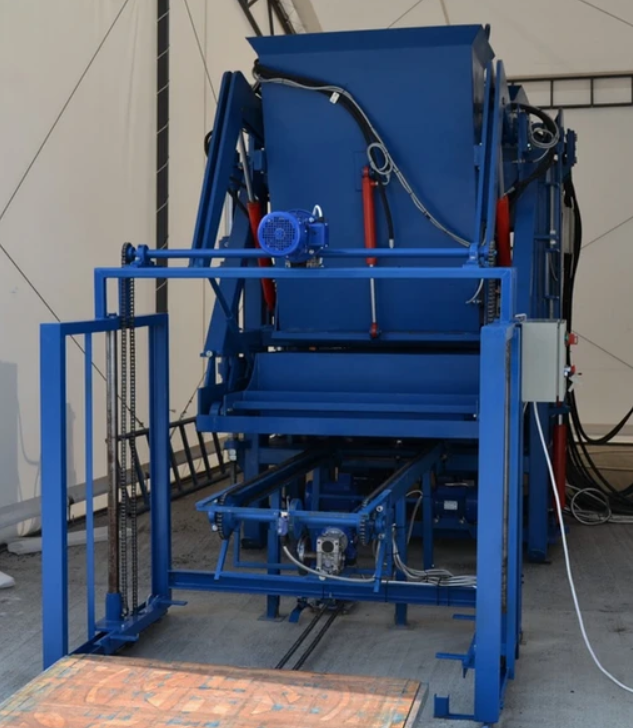

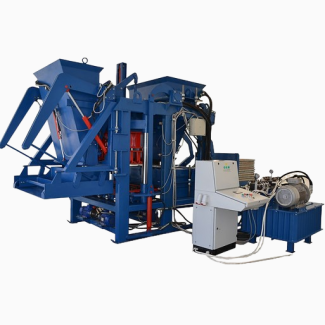

Vibropress Stationary SUMAB SVEMLO 320 m2, Kyiv

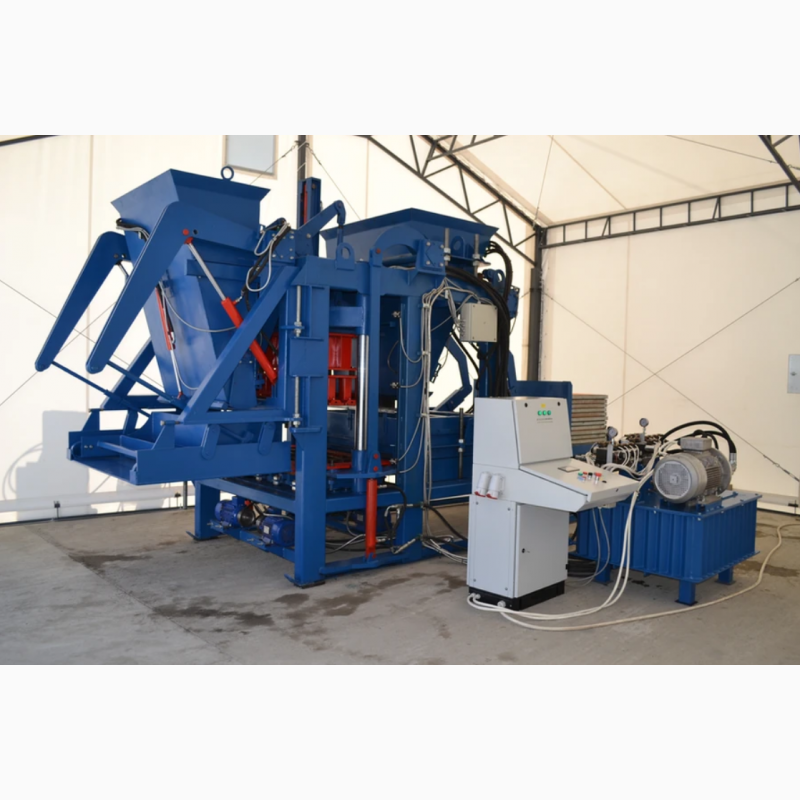

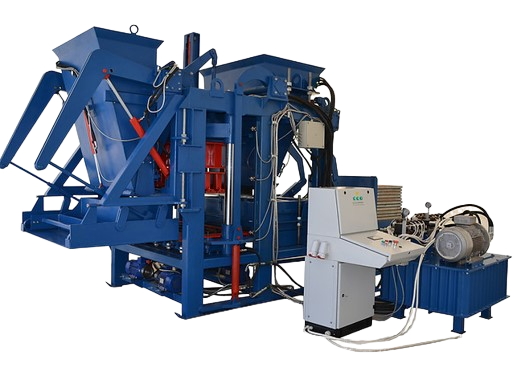

Vibropress Stationary SUMAB SVEMLO 320 m2

Purpose of the equipment:

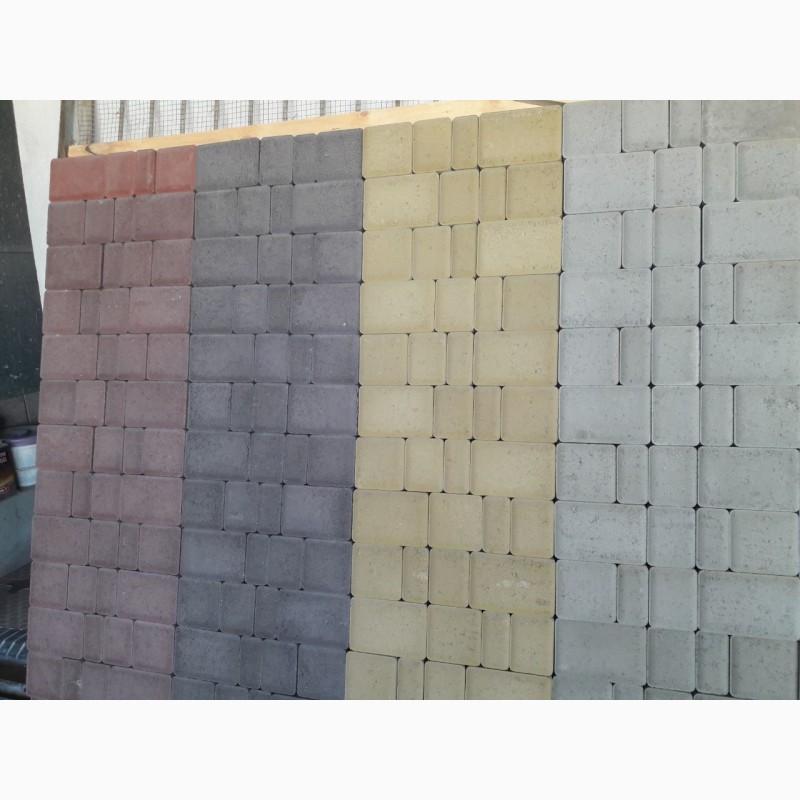

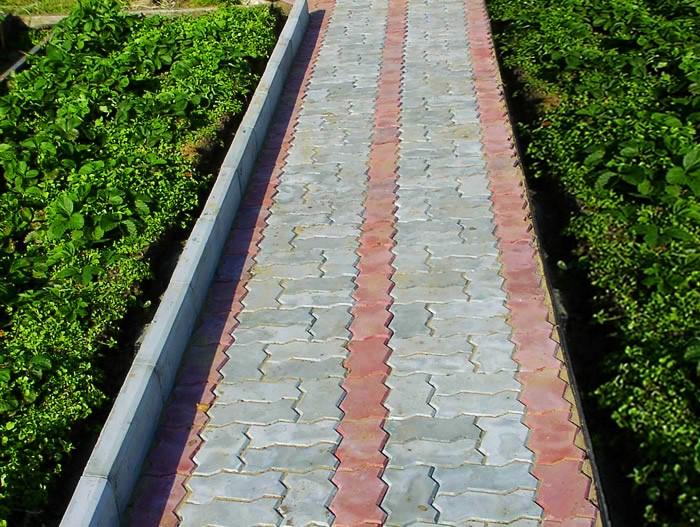

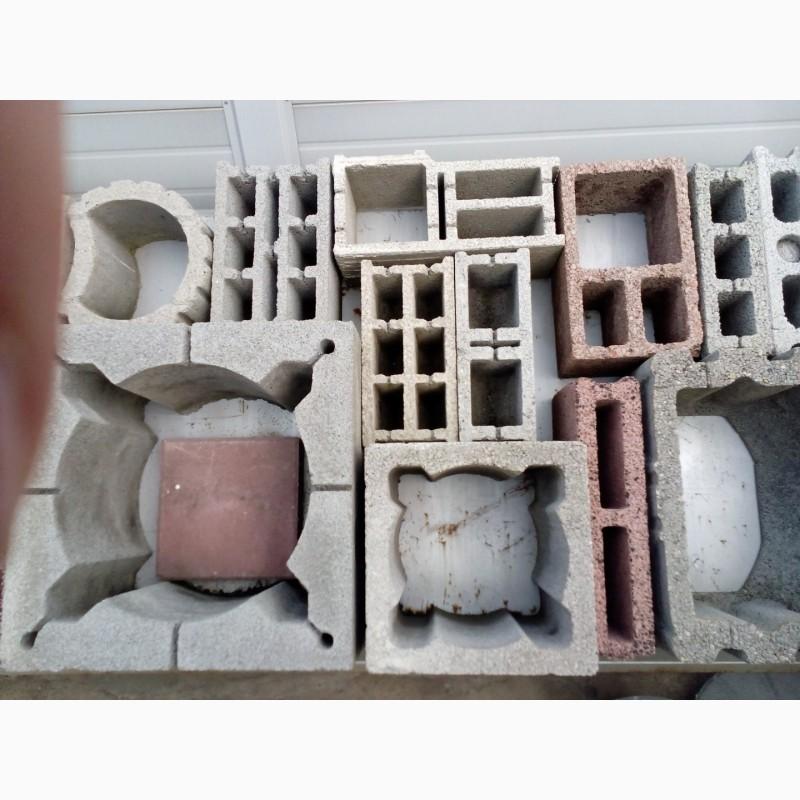

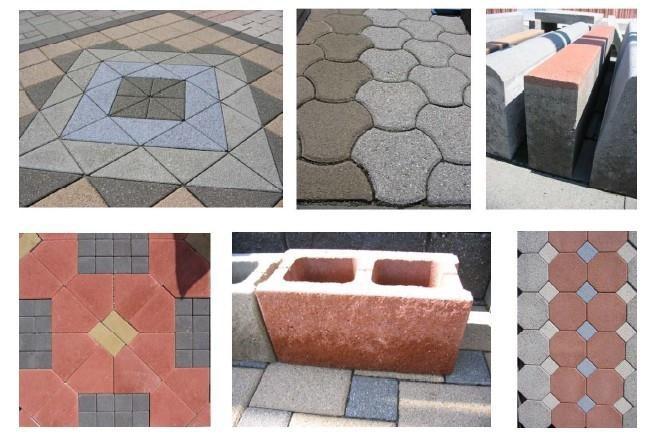

Production of paving slabs, production of curbs, production of concrete blocks, chimney elements, gutters, etc.

Advantages:
Fully automatic equipment, Mitsubishi Electric PLC;
Can make two-layer tiles and borders;
Powerful vibration provided by 4 electric motors and 2 vibration mechanisms;
Additional vibrators in the upper part of the punch;
Additional hopper for the face layer;
Our diverse range of molds can provide diversification of production;
Reliable mechanical and hydraulic systems;
High productivity in its class - forming area 1.10 x 0.63 m;
Reliable mechanical and hydraulic systems;
A wide selection of molds;
Quick and easy change of forms (2 hours);
High-quality components from proven partners;

Technical features:

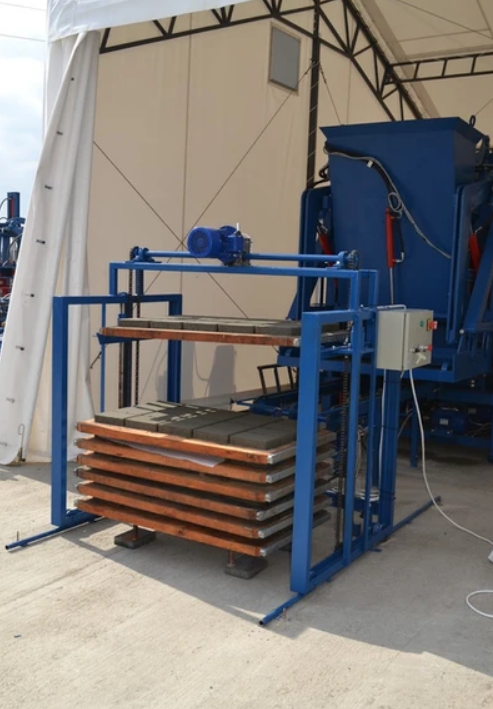

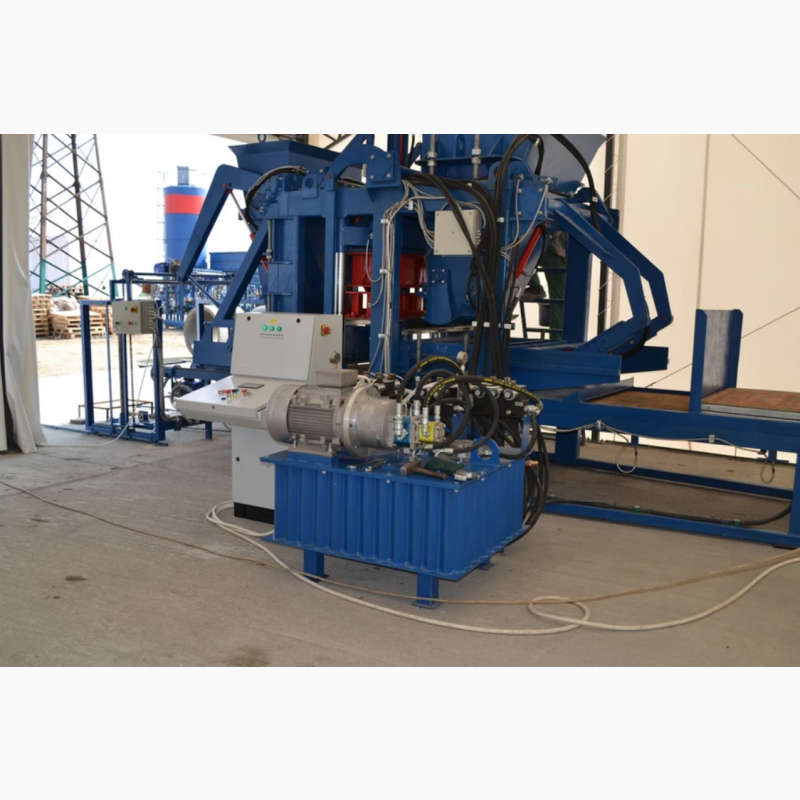

Components: press (vibro-pressing unit), pallet store, pallet feeding line, hopper and box for feeding the form with concrete for the main and face layer, unloading line of pallets with fresh products, extraction, hydraulic group, control panel.

Features:
Pallet dimensions: 1250x740x45 mm.
Forming area: 1100 x 630 mm.
Minimum/maximum height of the finished product: 40 mm/250 mm.

Vibration frequency: 3000 rpm.
Cycle duration: 35 - 60 seconds;
Installed power: 30.00 kW
Supply voltage: 380 V
Overall dimensions: 8x2, 10x3, 10 m
Net weight: 6000.00 kg
Concrete consumption: 4 m3/hour

Maximum performance:

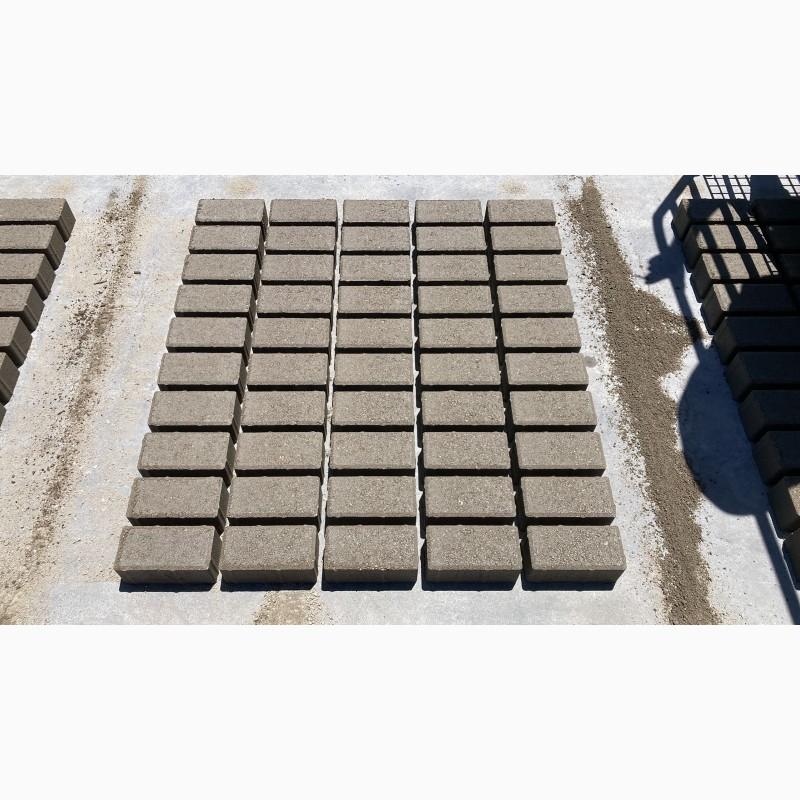

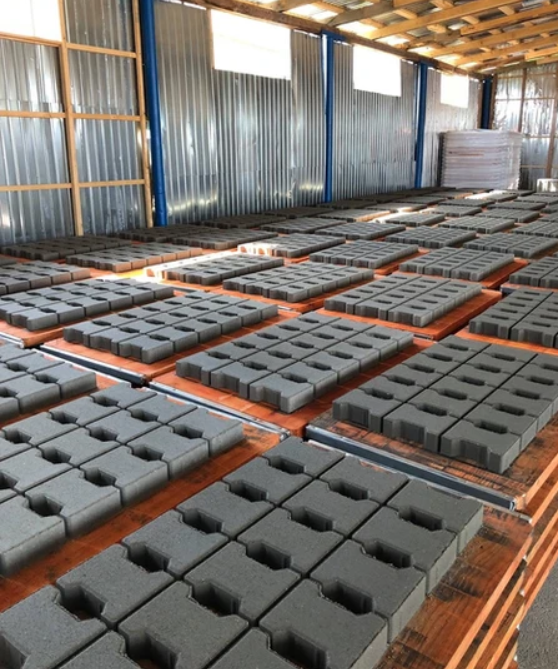

Tile (100 * 200 * 60mm): 320 m2 / 8 hours; 169
Бордюри (500 * 100 * 150мм): 4800 шт / 8ч;

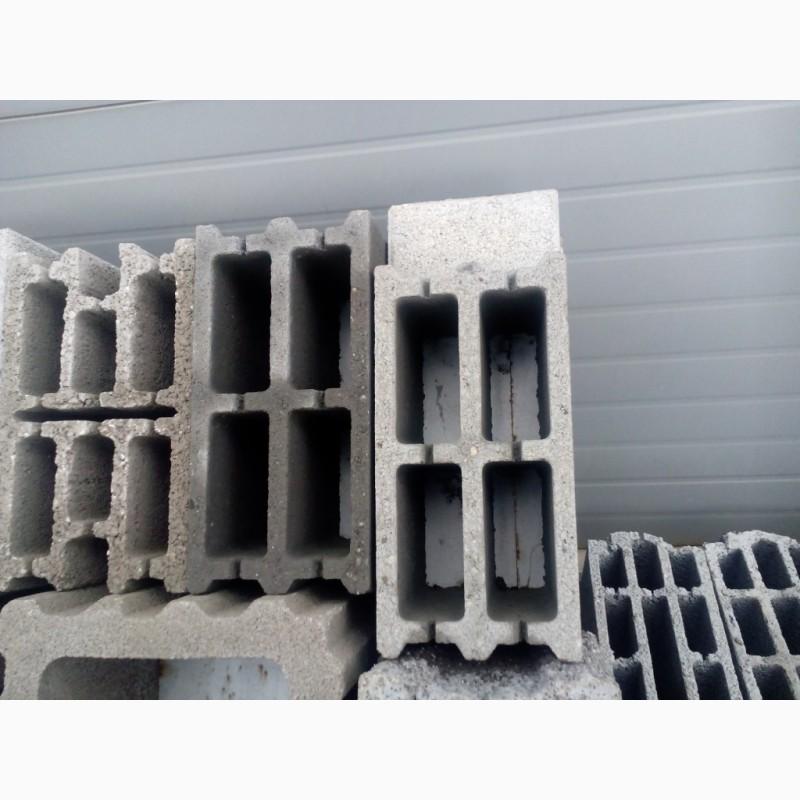

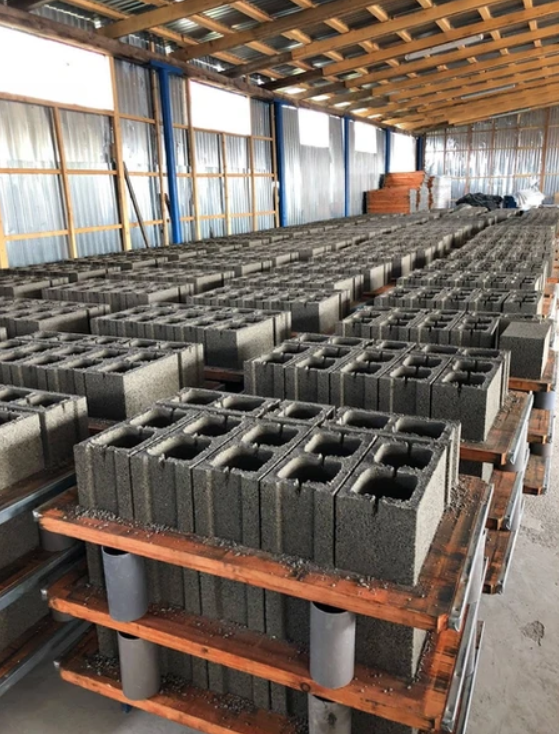

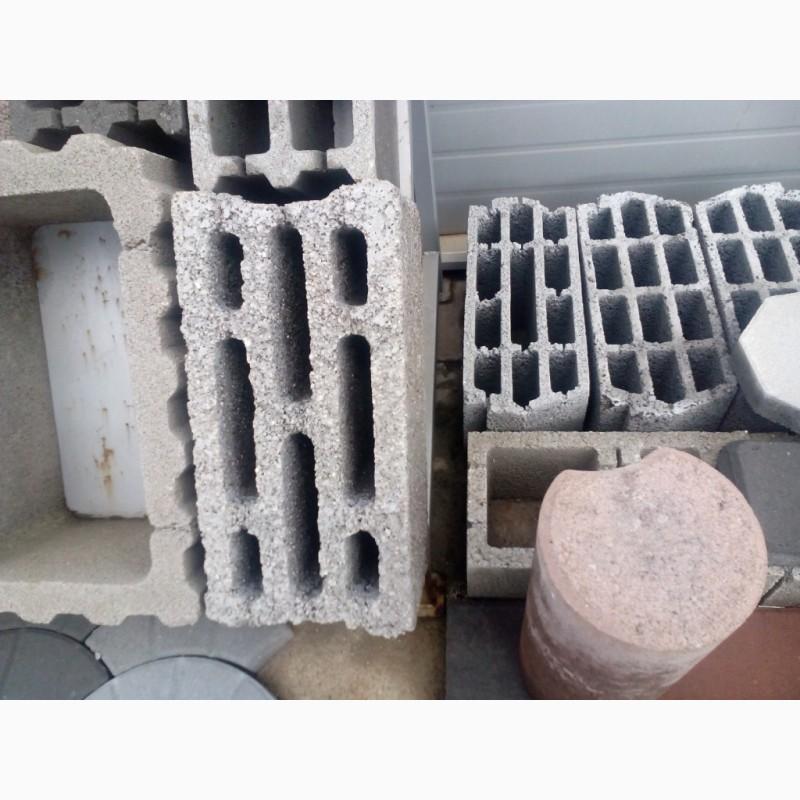

Блоки (200 * 200 * 400мм): 3600 шт / 8ч;

Для досягнення максимальної продуктивності стаціонарного вібропресу SUMAB SVEMLO 320 можна придбати наступне обладнання та аксесуари:
Concrete plant;
Belt conveyor;
Molds for various types of concrete products;
Technological pallets;
Crane for loading finished (dry) products;(//tractor-service.com)
Add. equipment and mixer for face layer;

Concrete plant SUMAB SVEMLO 700:
Productivity: 6 m3/h
Bunkers of inert materials
Bunker for gravel storage - capacity 8 m3
Bunker for sand storage - capacity 8 m3
Electric motor-vibrator, which facilitates the supply of aggregate.
Conveyor for feeding inert materials to the mixer
Length 6 m
Motor 1.5 kW (380 V)
PLC controls volume dosing.

Mixer of vertical type 700 l;
The walls and bottom are covered with armor;
Hydraulic opening control;
Dosage of water and supplements;
Useful volume: 500 liters
Rotation speed: 32 rpm.
Electric motor: 22 kW (380V)
Dimensions: 2.10 x 2.30 x 2.60 m
Weight: 2700 kg.

Cement weight 300 kg.
The flow maintained by the compressor

Cement feeding auger
Length: 5.6 m; motor 2.2 kW, diameter 139 mm
Feeding cement into the mixer

Conveyor belt for feeding concrete
Length 6m
Motor 1.5 kW (380 V)
Moves concrete from the mixer to the hopper of the machine.

Cabin with PLC control panel
- Mitsubishi PLC;
- the possibility of automatic or manual control;

Cement silo for a concrete plant
- Capacity: 24 m3
-The silo is equipped with a pressure relief valve, a low volume indicator and a fluidizer.
- internal diameter 2500 mm;
- The height of the cylindrical shell is 4500 mm;
- The height of the conical bottom is 1700 mm;
- overall height, incl. railing 8700 mm.
