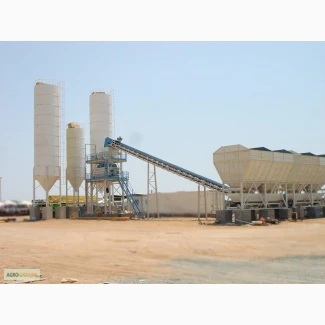

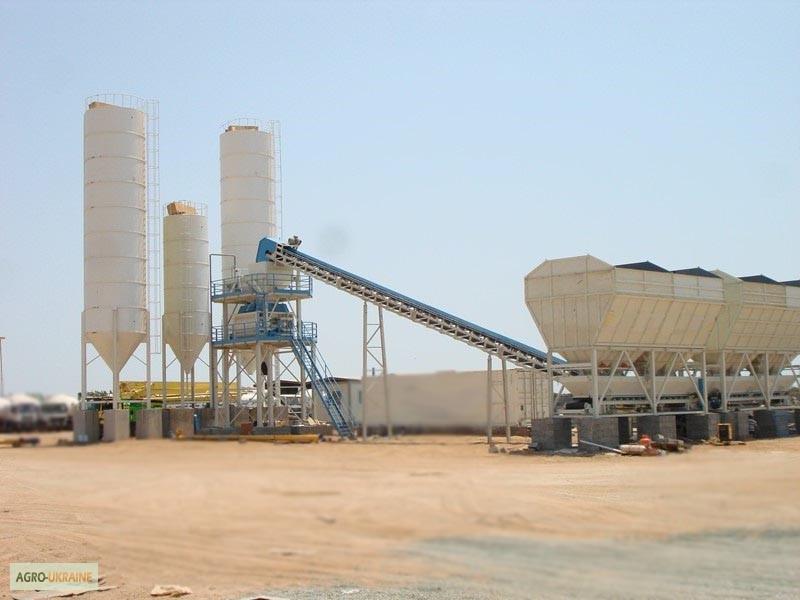

Concrete plant Stationary SUMAB T-40 m3/h, Sweden, Kyiv

Main advantages of Stationary concrete plant of Shvedskogo production Sumab T -40

1. Concrete plants have established themselves as reliable and high-quality equipment for the production of any type of concrete and concrete mixtures, ensuring the high quality of the concrete produced.

2. Compact transportation of the plant saves the client's money

3. Installation of a concrete plant is possible on any site.

4. Special painting is a guarantee of the durability of the plant.

5. The concrete plant is capable of producing more than 100 grades of concrete with a recipe change for each subsequent batch.

6. Automatic factory control, computer SIEMENS (GERMANY)

TECHNICAL CHARACTERISTICS AND EQUIPMENT OF THE SUMAB T-40 CONCRETE PLANT

Quick-mix concrete plant, capacity 30-40 m3/h. The structure is made of stainless galvanized steel.

SUMAB T-40 is a ready-mix concrete plant, which is ideal for construction companies and (or) building materials production companies that want to obtain not only a high productivity of the plant, but, above all, a high level of quality of the produced concrete.

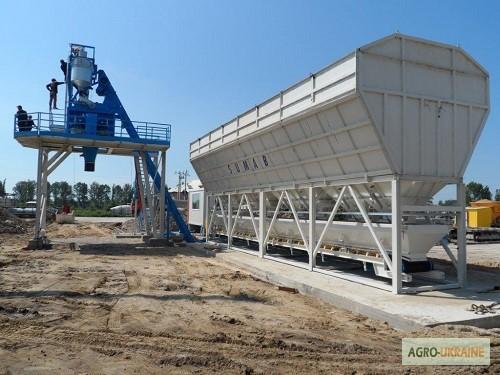

3 warehouses of inert materials in a series of 15 m3 each with automatically opening shutters. Open valve pneumatic.

A planetary mixer of 750 / 500 liters with a skip feed is installed on a platform with 4 metal supports. Automatic water cleaning system of the mixer after mixing.

A 300-liter cement storage tank with a vibrator is located above the mixer.

The inert supply conveyor is located under the bunkers.
The length is 10 meters and the width is 800 mm. Dosing of inert sensors by Siemens. Sensor load 2000 kg. The rate of inert supply is not less than 120 m3 per hour

Air compressor 270 liters 4 KW.

The automatic control system of the Siemens plant. More than 300 concrete recipes. Controlling the work of the plant from the container office, where a control stand and a computer including a printer are installed.

Before delivery, the plant is covered with an anti-corrosion emulsion and white RAL 9002 and blue RAL 5012 paint.

The supply of cement is carried out through a screw auger 220 mm long and 6000 mm long. Includes 2 pieces.

Planetary mixer SICOMA 750/500 liters (Option - 2 shafts)

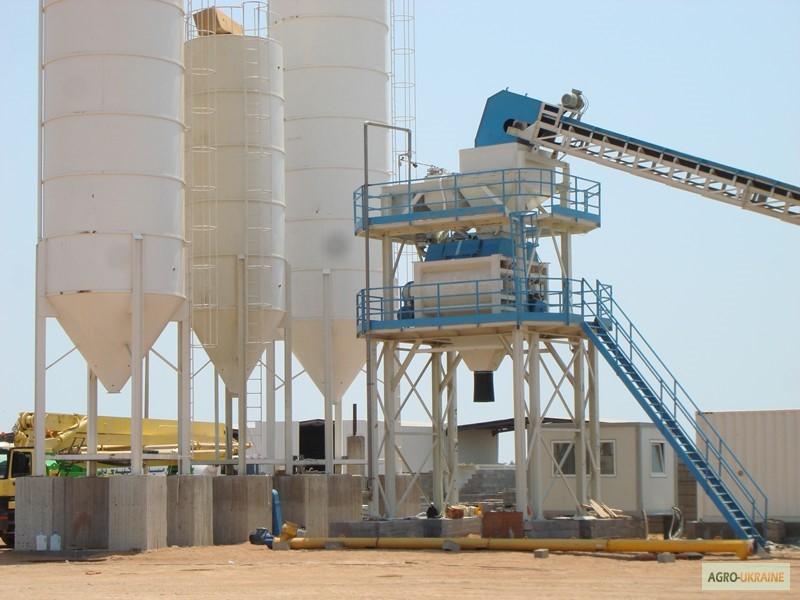

The set of equipment for mixing concrete includes a planetary mixer and a skip, which are located on a special supporting platform. The mixer is installed on a frame made of metal profiles, with a supporting platform on which a safety fence and stairs are installed for access to the mixer.

The mixer with planetary transmission is set in motion with the help of a reducer, which is adapted to work in heavy production conditions.

The mixing system is made in the form of a star with three rotating vanes (blades) and one external scraper. The paddles (blades) of the mixer are made, and the mixer itself has a coating of anti-wear material. It is also possible to make blades from anti-wear rubber.

Water supply to the mixer is carried out through the external parts of the mixer with the help of insert nozzles. To check the mixer, doors made of special rubber are placed on it. Manual hydraulic pump allows you to open doors in case of power failure.

The necessary proportions of inert materials enter the mixer with the help of a skip, which loads them from the dosing device, and then, with the help of a motor with a gearbox, the skip is raised along a metal cable to the mixer.
(//tractor-service.com)
Mechanical and electromechanical safety devices will not allow the skip to fall down if the cable breaks.

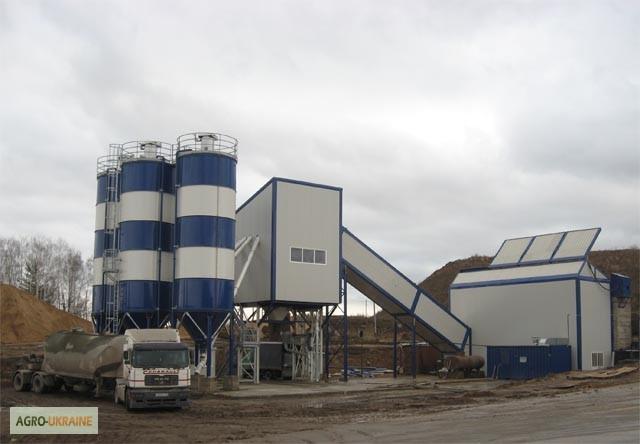

The concrete plant can be covered with insulating sandwich panels 60 mm thick (Option).

Fastening panels to a metal frame with a special space for service and repair work. Warehouses of inert materials with special windows for loading inert materials.

At the client's request, 2 PANASONIC 1.5 LUX color surveillance cameras can be installed.

Stationary computer Siemens. RS allows automated control of all concrete preparation processes.

Produces more than 300 concrete recipes. A Windows desktop computer is installed at the request of the Client. It has multiple protection systems. At the client's request, video surveillance systems can also be installed. Surveillance cameras showing everything on a computer monitor.

Factory control cabin.

Insulated office cabin with computer and electrical panel. Dimensions 4 x 2.5 x 2.5 m.

At the request of the client, an air conditioner or a heater can be installed.

Selectors 200 kg. 3 vibrators have been installed at inert and cement silo warehouses.

Box of automatic control.

The board shows all the processes of preparing and unloading concrete.

The security system signals all non-standard and emergency situations. Siemens fuses are installed on all units and control units.

Stationary concrete mixing plant Sumab T-40 is:

1. High-quality and modern equipment, made according to time-tested European technologies!

2. Development and modification taking into account the latest concrete production technologies.

3. Quick payback of equipment and subsequent profit.

4. Ease of maintenance and cleaning of the concrete plant.

5. All fast-wearing parts are made of durable materials and can be replaced individually if necessary, which significantly reduces production costs.

6. Reliability, tested by time!

Stationary concrete plant Sumab T-40.

Productivity 30 – 40 m3, per time, - 4 warehouses of inert materials of 20 m3 each with pneumatic control valves.
Planetary mixer or 2-shaft, 750/500 liters with Sicoma (Italy) skip feed, inert feed conveyor, Siemens sensors, chemical additives pump, automatic plant control system. Siemens computer. Control cabin. Air compressor 270 liters

Additional options (at the request of the Client):

Cement supply auger, length 8 m.

Cementsilo 30-150 tons (including level indicators, filter, ladder, fences, etc.)
