Automatic SBM casting line under pressure, Prima Fit, Kyiv

Equipment for the production of concrete pipes, Prima Fit automatic injection molding line.

 Flexible automated system for production:

Separate fences
Retaining walls
Products for wells
Other products for automobiles and railways
Specialized products

Prima Fit Wetcast Production - Economical, compact system for automated cladding production.

The Prima Fit system, developed by BFS, has been used for several decades in a variety of architectural products. Over the years, technology has improved and created an extremely efficient and productive system for optimizing production. Prima Fit uses a unique vertical stacking system that optimizes the area of the production room.

Prima Fit is ideal for production:

Separate fences
Retaining walls
Products for wells
Other products for automobiles and railways
Specialized products
Our technical team will help you design a system that optimizes your plant floor space and product needs.

Contact us today to learn more.

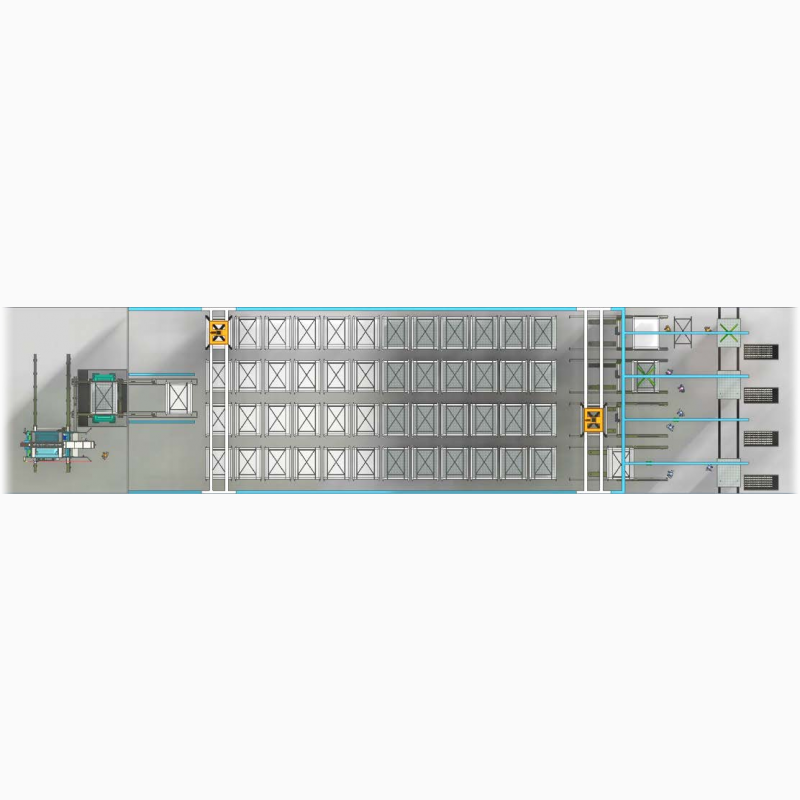

The Prima Fit production system for the production of products from vibrated concrete is a modular system that uses the method of vertical stacking to maximize the use of production space.

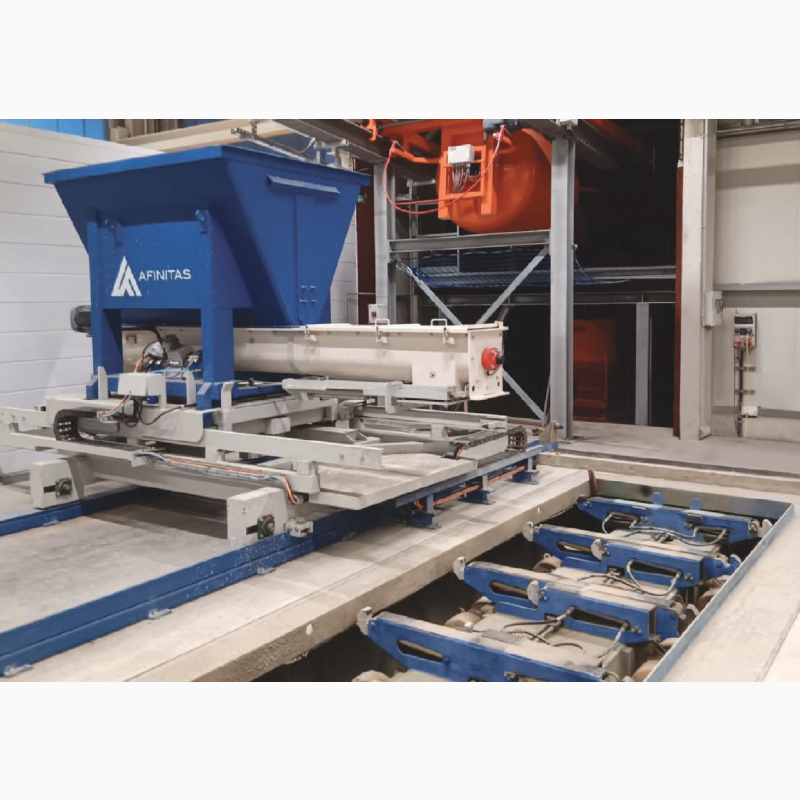

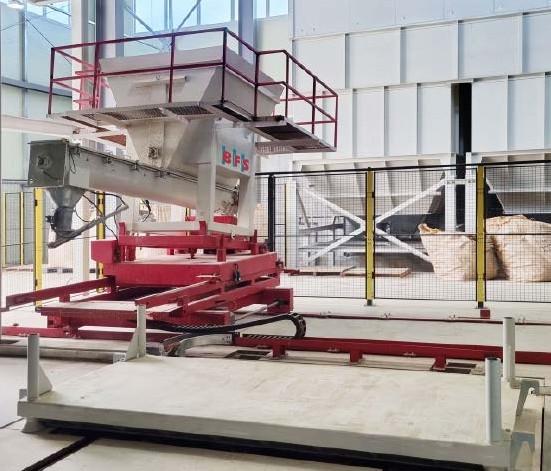

Pouring concrete:

Designed for dosing liquid concrete, which can be ordinary, light-compacting or self-compacting (SUB).

Concrete is fed by a screw conveyor and filled into molds through a dosing slide and a loading funnel.

Equipped with a highly sensitive concrete weighing system for accurate dosing of concrete into forms.
The height of the unloading openingof the silo is adjustable hydraulically, which allows you to precisely adjust the height of filling the form.
Movement along the contour of the form can be carried out manually, using a remote control or a fully automatically programmed route.
Easy to clean:the silo and the dosing auger can be removed for cleaning and transport to the washing station.

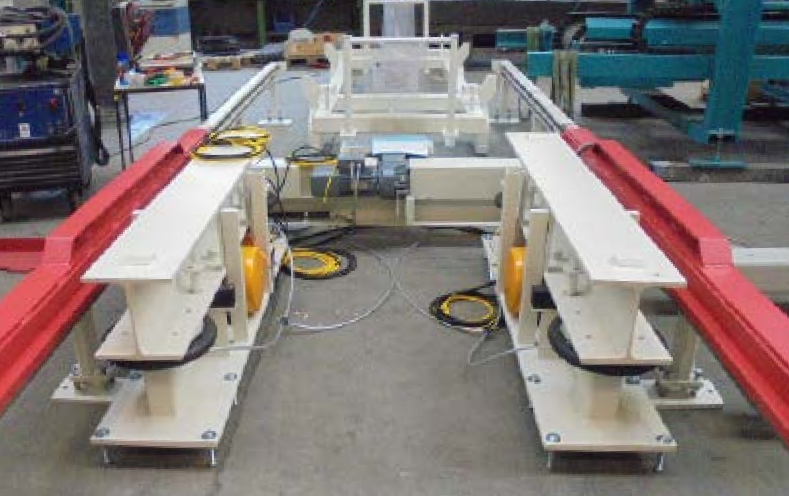

Charging station with a vibrating table

A specially developed system that switches between compaction of ordinary concrete and shaking of self-compacting concrete.
Depending on the direction of rotation, either a relatively small mass of the flywheel behaves at a high speed for compaction, or a large mass of the flywheel behaves at a low speed for shaking.
The mold tray is moved to the vibrating table by a moving beam. Pneumatic springs lift the pallet from the moving beam and the pallet is hydraulically fixed on the table.
Vibrators are driven by electric motors through frequency converters.
(//tractor-service.com)

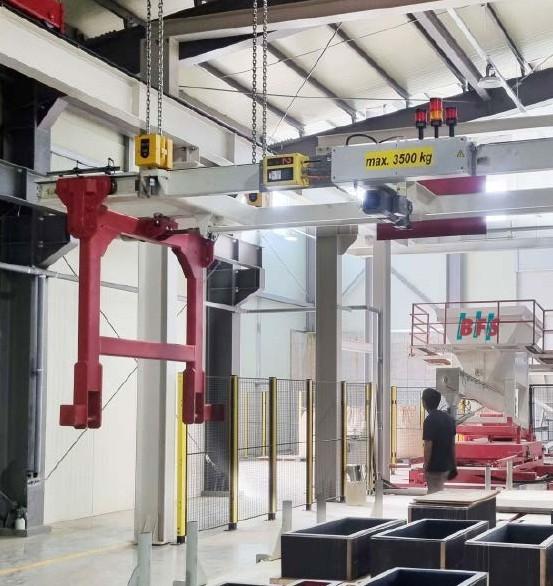

Lifting by crane

The crane can be equipped with a two-tap device for working with different sizes.
The movement and stacking of pallets with form carriers can be done manually using a crane lifting system, a rail gantry drive or a fully automated multi-level storage system.

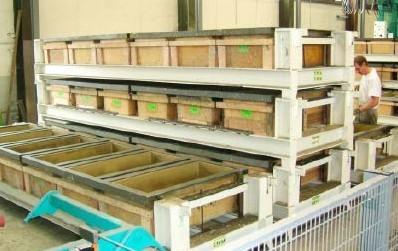

Area of stacking of form carriers

Pallets are stacked vertically for storage and exposure, which allows you to optimize the floor area.

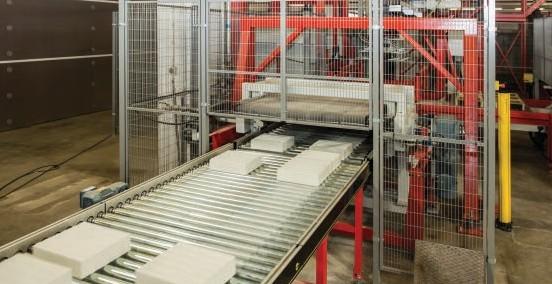

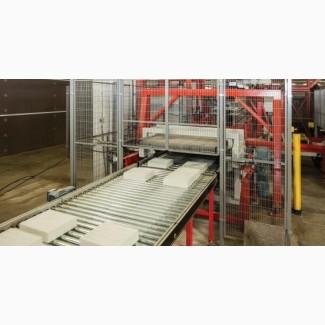

Formwork/unloading lines

At the formwork site, hardened concrete products are removed from the form, turned over and placed on a conveyor.
Can be equipped with a vibrating beam to support the formwork process.
Production pallets are automatically cleaned and prepared for the next use by applying a distribution compound to the spraying area.

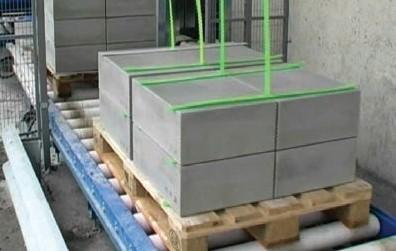

Transportation of products

Automated or using a shuttle cart.

We offer Prima 360

Prima 360 is our innovative family of equipment and automation systems for the production of vibrocasting products. Prima uses a wide range of in-house developments to provide the ability to bring vibrocasting products to market faster and with the highest quality. No matter the size of your business or product range, we have a Prima to fit your needs and budget. With Prima, you'll increase productivity, reduce labor costs, increase throughput and ultimately get more customers.

Prima

An advanced automation system for the production of vibrocasting products, designed to increase the efficiency of the assembly line during the production of infrastructure products.

Prima is the perfect system to take the uncertainty and variability out of vibrocasting. With a modern production cycle, automatic inventory management system and real-time analytics, Prima's highly optimized workstations reduce labor costs and increase productivity. Prima simplifies planning and provides all the indicators needed to optimize processes at every stage of production.

Prima Fit

A sophisticated automation system that adapts to the size of your plant or requirements for precast concrete products.

Prima Fit, as the name suggests, is a vibrocasting automation system that scales to your requirements. It is a powerful yet economical solution that uses vertical stacking of products to maximize the use of space. In addition, Prima Fit can be easily configured to produce special precast concrete structures that require more space and setup time on other systems. Prima Fit's flexibility and affordability make it an excellent choice for cost-effective vibro-cast production optimization.

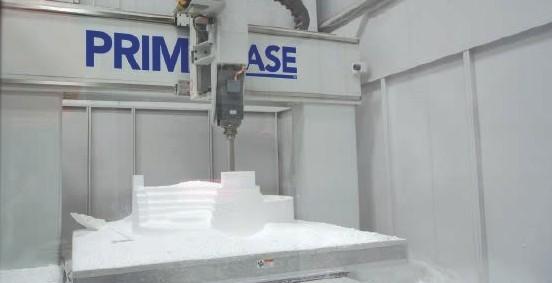

Prima Base

Maximize production efficiency, assortment and uniformity of monolithic well foundations.

Prima Base is an intuitive design software that allows you to create an unlimited number of channel options for monolithic well foundations. Prima Base changes the time-consuming and unstable traditional methods of manufacturing monolithic well bases with an intelligent digital configurator and a precision EPS milling system. Prima Base allows you to increase productivity and quality by reducing the number of finishing touches.

Prima Scape

Experience the beauty and precision of automating the production of concrete slabs and cladding.

Prima Scape draws on years of experience in vibration technology to help you create visually appealing and mechanically accurate slabs, pavers, cladding and more. With one automated system, you can create imitations of natural stone, slate, granite or terracotta in precise floor blocks for flooring, pools and fountains, patios, decking and other residential and commercial spaces.
