Lifting device for H=2800 (loaders DV 1784, DV 1786, DV 1788, DV 1792), Kharkov region.

Number of Positions
Catalog No.
Name

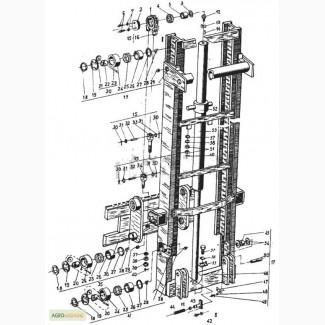

See fig. 1. 2 pos. 9
Lifting device
1

Video
2

Cover
3

Washer
4

Needle bearing
5

Sleeve
6
BDS 1232-86
Bolt 1M 3x22-5.6
7
BDS 833-82
Washer 2-8H
8
BDS 833-82
Washer 2
9
BDS 1232-86
Bolt IM20x35-5.6
10
BDS 833-82
Washer 2-20H
11
BDS 3609-73
Ring 1 A22x27
12

Bolt
13

Washer
14
BDS 1980-77
Cylindrical pin
15

Chain (assembled)
16

Plate chain
17

The frame is fixed
18
BDS 2170-77
Ring
19

Cover
20
8580 01.04.00
Small roller (assembled)
21
8580 01.04.03
Video clip
22
8580 01.04.01
Body
23
8580 01.04.02
Here is
24

Video clip
25

Needle bearing
26

Sleeve
27

Washer(//tractor-service.com)
28
8580 01.00.09
Lock washer
29
8580 01.00.08
Traffic jam
30
BDS 55-77
Splint
31
BDS 14494-78
Washer
32

Here is
33

Long bolt
34

The bolt is short
35

Vertical carriage
36

Frame
37
BDS 2327-73
Washer Сf20
38
BDS 2327-73
Washer 20
39
8802 00.00.01
Nut M20
40
BDS 55-77
Shpliit 4x36
41

Roma mobile
42
BDS 2171-83
Screw 1
43

Body
44

Throttle adjustable DN-1
45
1784.33 06.01.04
Sleeve
46
BDS 1640-81
Press-butter machine 1-B
47
BDS 2343-74
Fixing bar 36
48
BDS 833-82
Washer 2-10H
49
BDS 1232-86
Bolt IM10x20-S.6
50
1784.33 03.00.13
Here
51
BDS 744-83
Nut M20-5
52

Thrust nut
53

Telescopic cylinder
54
1784.33 06.01.03
Washer
55
8812
Counter-watch plate
56
ON-0252658-71
"0" ring 14x2
