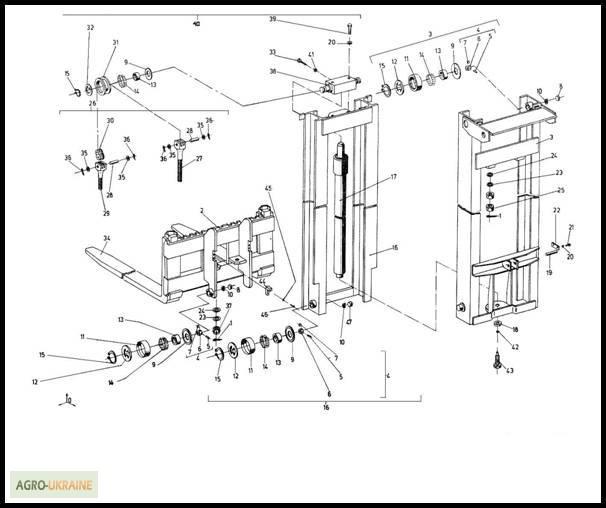

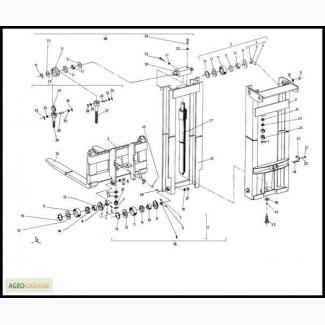

Lifting device for H=2200mm for loader EB 687, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
LIFTING DEVICE AT H=2200

129398 687.22 07.00.00
Lifting device
1
1
109420/109421/ BDS 55-64
Cotter pin 4x36
4
2
129301/129302/ 687.33 05/17/00
Vertical carriage
1
3
129399/129400/ 687.22 07.01.00
Fixed frame
1
4
185807 8540 01.04.00
The roller is small as a whole.
8
5
185826 8540 01.04.02
Here
8
6
185825/120261/ 8540 01.04.01
Body
8
7
185813 8540 01.04.03
Video
8
8
120272/120273/ 8540 01.00.04
Traffic jam
6
9
185812/129631/ 8540 01.00.03
Washer
10
10
129519/129520/ 8540 01.00.08
Lock washer
8
11
185986 8540 01.00.02
Video clip
8
12
185987/129633/ 8540 01.00.07
Cover
8
13
221162 INA IR 45x55x22
Bushing
8
14
219945 INA К55x63x20
Needle bearing
8
15
109458/109459/ BDS 2170-75
Ring B45
10
16
129404/129405/ 687.22 07.02.00
Movable frame
1
17
327873/327874/ 2915.1 00.00-03
Plunger cylinder TPS5 (50х1110)
1
17
338119/338120/ 2915.1 00.00-03 SY
Plunger cylinder TPS5 (50х1110) (special version)

18
129708 687.33 17.00.01
Washer
1
19
129517 687.33 01.07.04
Here
1
20
103161/103162/ BDS 833-71
Spring washer 10N
4
21
118515/118516/ BDS 1232-72/5,6
Bolt I M10x22
2
22
222137 BDS 2348-74
Fixing bar 36(//tractor-service.com)
1
23
109441/109442/ BDS 2327-73
Spherical washer Sf16
4
24
109443/109444/ BDS 2327-73
Conical washer 16
4
25
108873/108874/ BDS 744-72/5
Nut M16
4
26
129409/129410/ 687.22 07.03.00
Chain (assembled)
2
27
129525/129526/ 687.33 07.03.02
Long bolt
2
28
185929 7004 00.00.166
Here
2
29
129522/129523/ 687.33 07.03.01
The bolt is short
2
30
222990 BDS 4717-72
Plate chain A-71x20/4+4/A

31
266148 8544 00.00.06
Chain roller
2
32
253121 8560 00.00.02
Washer
2
33
122358/122359/ BDS 1366-73/5,6
Screw M12x50
1
34
127655/127656/ 9974.4 00.00.00
Pitchfork fang (assembled)
2
35
103272/103273/ BDS 206-73
Washer normal NM6
8
36
109473/109474/ BDS 55-64
Cotter pin 1.6x10
8
37
109445/109446/ BDS 745-73/5
Nut II M16
2
38
129712 687.25 04/07/01
Carrying beam
1
39
115321/115322/ BDS 1232-72/5,6
Bolt I M10x28
2
40
129316/169317/ 687.25 04.07.00
Carrying beam (assembled)
1
41
122160/122161/ BJS 744-72/5
Nut M12
1
42
103219/103220/ BDS 833-71
Spring washer 12N
1
43
222977/222978/ BDS 1232-72/5,6
Bolt I M12x1.5x16
1
44
108050/108051/ 7004 00.00.103
Limiter
1
45
103264/103263/ BDS 833-71
Spring washer 8H
2
46
120519/120520/ BDS 1232-72/5,6
Bolt I M8x20
2
47
185833 8540 02.00.6
Traffic jam
2
