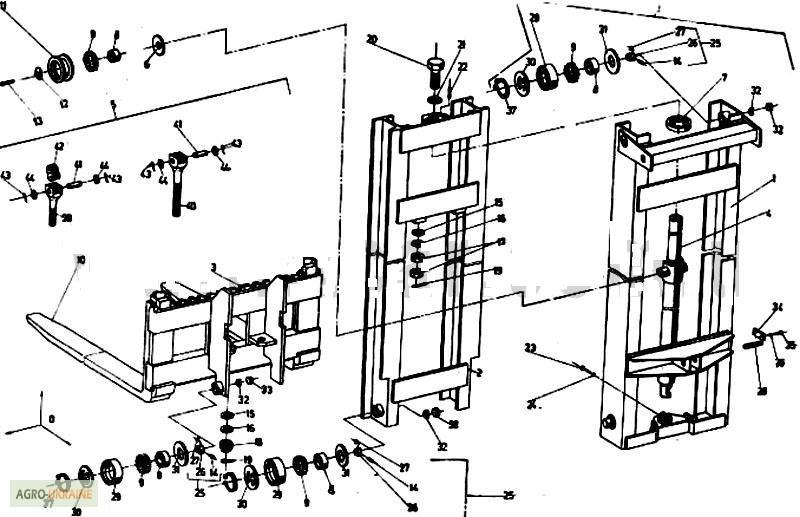

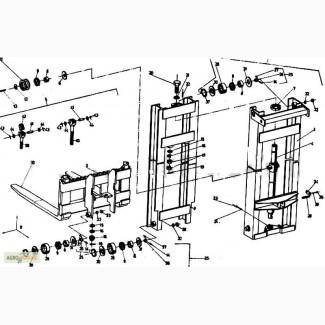

Lift device for H=2800mm variant 2 for forklift Balkankar EV 687, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
LIFTING DEVICE FOR H=2800 II variant

121210 687.28 07.00.00
Lifting device
1
1
129340/129341/ 687.28 05.07.00
Fixed frame
1
2
129331/129332/ 687.28 07.02.00
Movable frame
1
3
129301/129302/ 687.33 05/17/00
Vertical carriage
1
4
346695/346696/ 4148.4 00.00
Cylinder telescopic T-100/28 2
1
5
129338/129339/ 687.28 04.07.00
Chain (assembled)
1
6
185812/129631/ 8540 01.00.03
Washer
2
7
129723/129724/ 687.28 07.00.02
Spherical washer
1
8
221162 INA IR 45x55x22
Bushing
10
9
219945 INA К55х63х20
Needle bearing
10
10
127655/127656/ 9974.4 00.00.00
Pitchfork fang (assembled)
2
11
266148 8544 00.00.06
Chain roller
2
12
109400/109401/ 676 04/16/01
Cover
2
13
222980/222981/ BDS 1359-75/6,6
Screw II M8x12
4
14
185826 8540 01.04.02
Here
8
15
208441/208442/ BDS 2327-73
Washer Сf16
4
16
109443/109444/ BDS 2327-73
Washer K16
4
17
10883/108874/ BDS 744-72/5
Nut M16
4
18
109445/19446/ BDS 745-73/5
Nut 2 M16
2
19
109420/109421/ BDS 55-64
Cotter pin 4x36
4
20
129720/120721/ 687.28 07.00.01
Hollow bolt
1
21
222984/222985/ BDS 11002-73
Safety washer 132x75(//tractor-service.com)
1
22
128472/128473/ BDS 1980-65
Cylindrical pin 6Pr2/2х32
1
23
103229/103230/ BDS 1366-73/6,6
Screw M10x30
1
24
109151/109152/ BDS 744-72/5
Nut M10
1
25
185807 8540 01.04.00
Small roller (assembled)
8
26
185825/120261/ 8540 01.04.01
Body
8
27
185827 8540 01.04.03
Video clip

28
129517 687.33.07.01.04
Here
1
29
185986 8540 01.00.02
Video clip
8
30
185987/129633/ 8540 01.00.07
Cover
8
31
185812/129631/ 8540 01.00.03
Washer
8
32
129519/129520/ 8540 01.00.08
Stop washer
2
33
185813/120273/ 8540 01.00.04
Traffic jam
2
34
222137/116481/ BDS 2348-73
Fixing bar 36
1
35
118515/118516/ BDS 1232-72/5,6
Bolt I M10x22
2
36
103161/103162/ BDS 833-71
Spring washer 10N
2
37
109458/109459/ BDS 2170-75
Ring B45
8
38
185833/127141/ 8540 02.00.06
Traffic jam
2
39
129522/129523/ 687.33 07.03.01
The bolt is short
2
40
129525/129526/ 687.33 07.03.02
Long bolt
2
41
185929 7004 00.00.166
Here
4
42
210431 BDS 4717-72
Plate chain A-55x20 (4+4)-A
2
43
109473/109474/ BDS 55-64
Cotter pin 1.6x10
8
44
103272/103273/ BDS 206-73
Normal washer NM6
8
