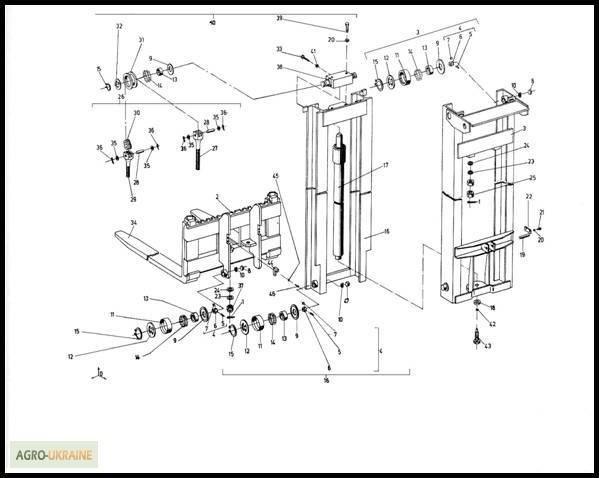

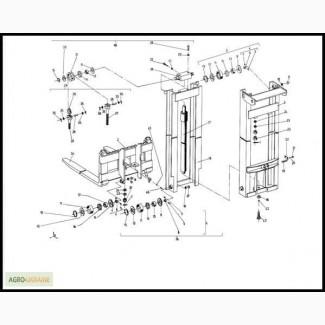

Podyemnoe device for H=3300 mm for Balkancar EV 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces
LIFTING DEVICE AT H=3300

129284 687.33 17.00.00
Lifting device
1
1
129285/129286/ 687.33 17.01.00
Fixed frame
1
2
687.33 02/17/00
Movable frame
1
3
129301/129302/ 687.33 05/17/00
Vertical carriage
1
4
129297/129298/ 687.33 03/17/00
Chain (assembled)
2
5
129299/129300/ 687.33 04/17/00
Carrying beam (assembled)
1
6
327871/327872/ 2915.1 00.00-05
Plunger cylinder TPS5 (50х1660)
1
6
338113/338114/ 2915.1 00.00-05SY
Plunger cylinder TPS5 (50x1660) (special version)
1
7
129708 687.33 17.00.01
Washer
1
8
253117 8560 00.00.03
Here
1
9
253115 8560 00.00.04
Video
1
10
253114/129663/ 8560 00.00.05
Washer
2
11
253119/129659/ 8560 00.00.01
Plank
1
12
108050/108051/ 7004 00.00.103
Limiter
2
13
222977/222978/ BDS 1232-72/5,6
Bolt I M12x1.5x16
1
14
103219/103220/ BDS 833-71
Spring washer 12H
1
15
109420/109421/ BDS 55-64
Cotter pin 4x36
4
16
109445/109446/ BDS 745-73/5
Nut II M16
2
17
120519/120520/ BDS 1232-72/5,6
Bolt I M8x30
4
18
103264/103265/ BDS 833-71
Spring washer 8H
4
19
123170/123171/ BDS 1230-72/5,6
Bolt I M5x12
1
20
103217/103218/ BDS 833-71
Spring washer 5H
1
21
109441/109442/ BDS 2327-73
Washer Сf16
4
22
109443/109444/ BDS 2327-73
Conical washer 16
4
23
108873/108874/ BDS 744-72/5
Nut M16
4
24
222137/116481/ BDS 2348-74
Fixing bar 36
1
25
118515/118516/ BDS 1232-72/5,6
Bolt I M10x22
2
26
103161/103162/ BDS 833-71
Spring washer 10N(//tractor-service.com)
4
27
129517 687.33 07.01.04
Here
1
28
185812/129631/ 8540 01.00.03
Washer
10
29
221162 INA IR 45x55x22
Bushing

30
219945 INA К55х63х20
Needle bearing
10
31
185987/129633/ 8540 01.00.07
Cover
8
32
185986 8540 01.00.02
Video clip
8
33
109458/109459/ BDS 2170-75
Ring B45
10
34
185813/120273/ 8540 01.00.04
Traffic jam
6
35
129519/129520/ 8540 01.00.08
Lock washer
8
36
185807 8540 01.04.00
Small roller (assembled)
8
37
185825/120261/ 8540 01.04.01
Body
8
38
185826 8540 01.04.02
Here
8
39
185827 8540 01.04.03
Video clip
8
40
185833/127141/ 8540 02.00.06
Traffic jam
2
41
129701/129702/ 687.33 02/17/02
Body
1
42
222974/222975/ BDS 1232-72/5,6
Bolt I M10x55
2
43
129522/129523/ 687.33 07.03.01
The bolt is short
2
44
129525/129526/ 687.33 07.03.02
Long bolt
2
45
185929 7004 00.00.166
Here
4
46
222247 BDS 4717-72
Plate chain A 99x20 (4+4) A
2
47
103272/103273/ BDS 206-73
Normal washer NM6
8
48
109473/109474/ BDS 55-64
Cotter pin 1.6x10
8
49
253121/127347/ 8560 00.00.02
Washer
2
50
266148 8544 00.00.06
Chain roller
2
51
129703 687.33 04/17/01
Bearing beam
1
52
129704 687.33 04/17/02
Plank
3
53
122358/122359/ BDS1366-73/5,6
Screw M12x40
1
54
122160/122161/ BDS 744-72/5
Nut M12
1
55
127655/127656/ 9974.4 00.00.00
Pitchfork fang (assembled)
2
