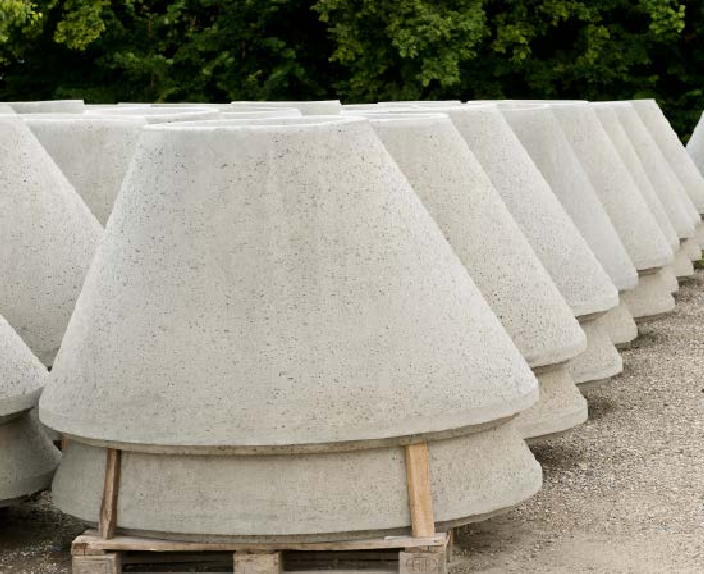

Equipment for the production of conical concrete products.

Cone shapes designed for the ages

Wet casts
Eccentric cones
Concentric cones
Cones with elongated protrusions
Transition cones

Rugged steel construction for strength, durability and performance.

Afinitas is known for bringing together the industry's leading engineers and manufacturing experts to create best-in-class precast formwork systems. Our wide range of high quality products is supported by experienced and responsive sales and production staff who are ready to assist you throughout the life of your uniform. And this ensures that our forms are created for many years. We combine strong steel with an innovative approach to production, which guarantees the ability to develop your business in the desired direction.

Products for wells are the key specialization of the Afinitas team.

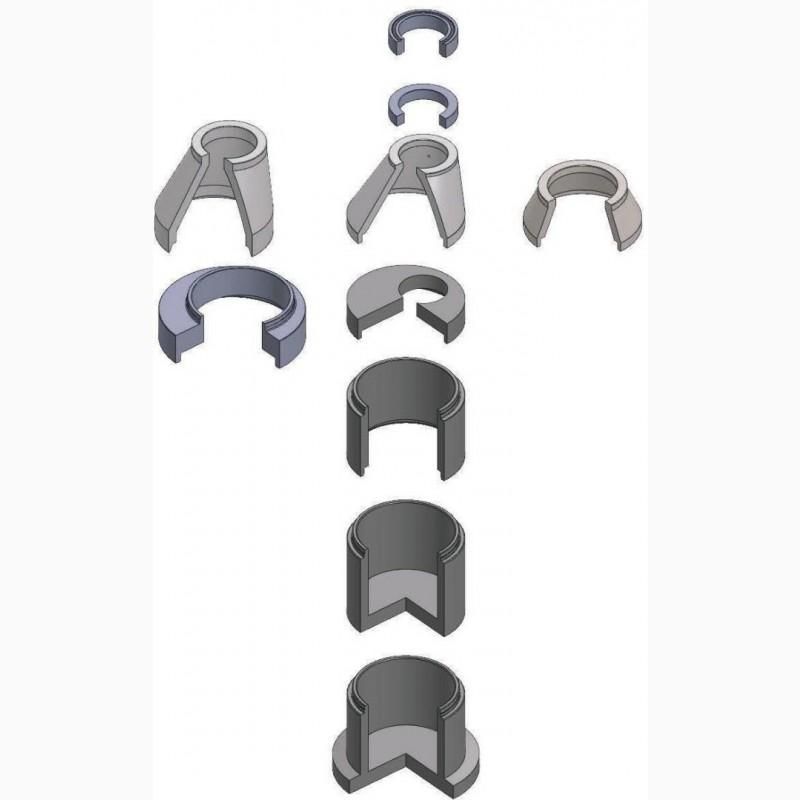

For decades we have been trusted to design molds for a wide range of well products including:

Forms with an eccentric cone
Forms with a concentric cone
Forms with a hinged upper part, transition plate, base plate
Forms with an elongated and straight base
Forms with a lifting base
Forms with a shortened base and a shortened lifting base
Forms for rings of single filling class
Forms for battery-grade rings
Rings for well joints

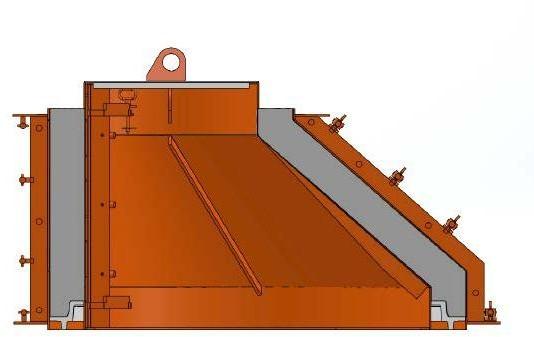

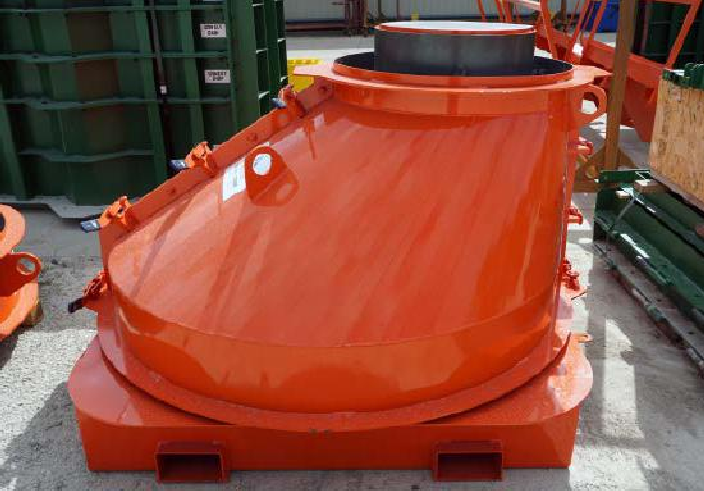

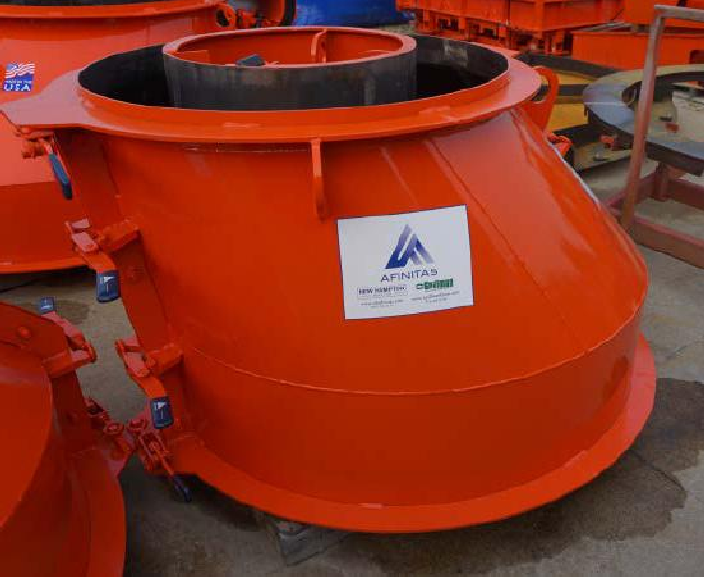

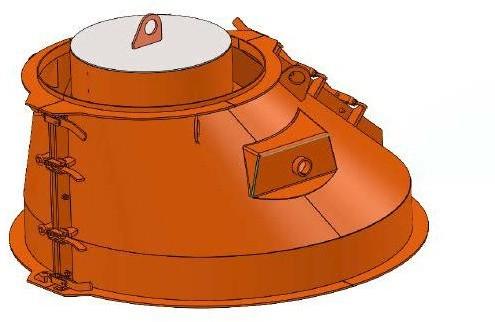

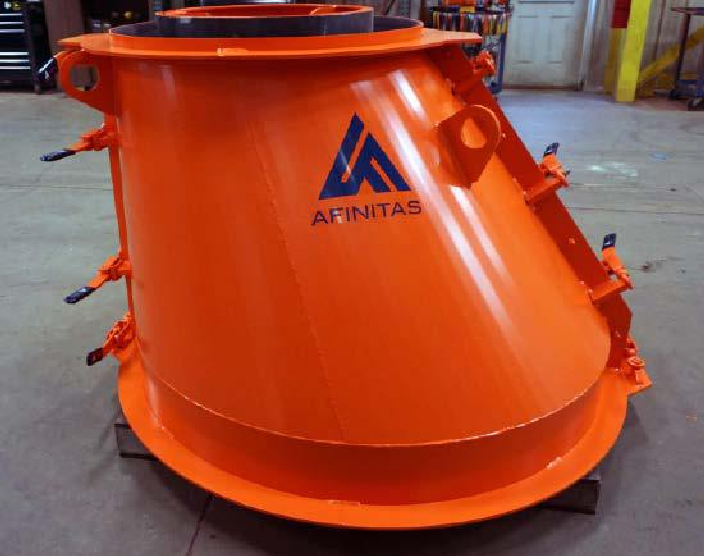

Eccentric cones

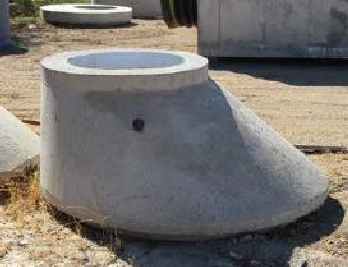

Hatches with eccentric cones are widely used in infrastructure projects. Eccentric cones provide easier service access, an increased diameter for increased worker maneuverability, and installation versatility, as the cone can be rotated as needed to avoid obstructions that may impede installation.

Afinitas has the experience and knowledge to assist you in the production of eccentric cones, offering shapes of exceptional strength and guaranteeing consistent quality.

Advantages of Afinitas

Hatch cone diameter: 107-183 cm
Height: 61-152 cm
Upper openings: 61-92 cm.
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 13-20 cm.
Two-piece construction with hinged clamps, gusset strips and leveling pins
The inner core is mechanically folded.
Welded ears for attaching pallets

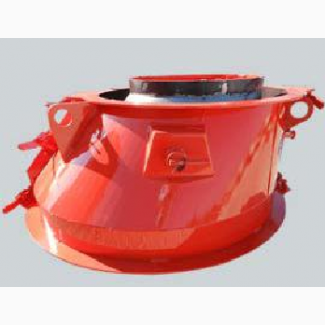

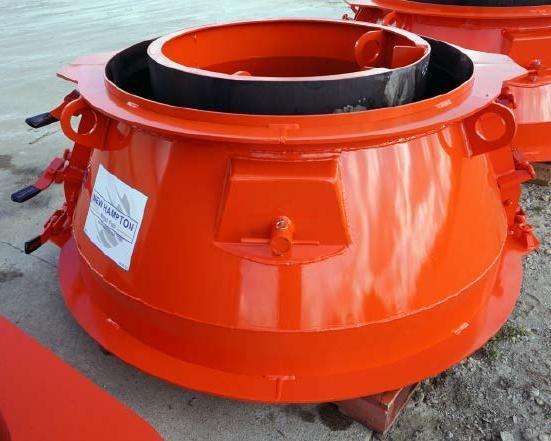

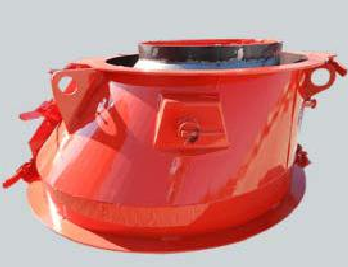

Concentric cones

In products with a concentric cone, the access hole is located in the center of the cone. Workers need a portable ladder to access the hatch. Although this design is generally less safe and efficient, a concentric cone may be a more economical choice. Whether you are making simple direct joint products or more complex products, Afinitas has the molding expertise to support your hatch products.

Advantages of Afinitas

Hatch cone diameter: 107-183 cm
Height: 61-92 cm
Top opening: 61-92 cm
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 13-20 cm.
Two-piece design with hinged clamps, gusset pads and dowel pins
Inner core that is mechanically destroyed.
Welded ears for fastening pallets

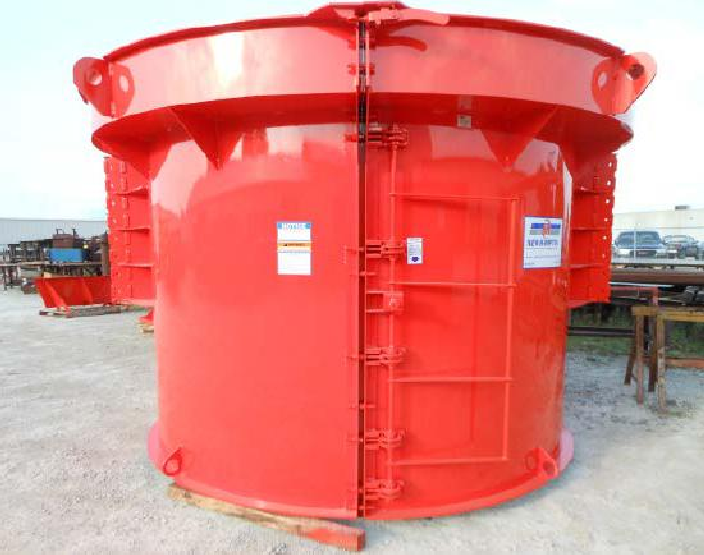

Eccentric/concentric cone with extended riser sections

Eccentric and concentric manhole cones with extended riser sections can be used in the manufacture of precast concrete manholes when the standard length of the riser section is not sufficient to provide the required depth or height of the manhole. We offer additional features such as pallet fixing pins to make it easy to manufacture hatches to exact specifications and heights.

Advantages of Afinitas

Hatch cone diameter: 107-183 cm
Height: 61-92 cm
Top holes: 61-92 cm
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 13-20 cm.
Two-component construction with hinged clamps, hemmed strips and set pins.
The inner core is mechanically folded.
Welded ears for fastening pallets

Eccentric/concentric transition cone

We design our eccentric and concentric transition cones

according to strict standards to guarantee a smooth transition when using two risers of different sizes.

We have experience designing cones for pipes of different sizes that provide the same throughput.

Advantages of Afinitas

Hatch cone diameter: 152-183 cm
Height: 61-92 cm.
Upper holes: 122-152 cm(//tractor-service.com)
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 15-20 cm.
Two-piece design with hinged clamps, gusset strips and dowel pins
The inner core is mechanically folded.
Welded ears for attaching pallets

Option - Two-component eccentric transitional conical shape

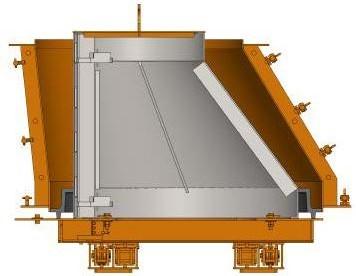

Eccentric/concentric cone with quick-release adapter plate

Why should you choose the Quick Disassembly option?

By manually moving the "Quick Disassemble" levers from right to left located at the bottom of the base plate, the inner core folds and the step pins (if necessary) are removed. This means you don't have to deal with an inner core or individual step pins. This simplifies and makes the process of disassembling the formwork safer.

Advantages of Afinitas

Hatch cone diameter: 107-183 cm
Height: 61-152 cm
Upper openings: 61-92 cm
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 13-20 cm.
Two-component design with hinged clamps, seam strips.
and alignment pins

The inner core is mechanically assembled.
Welded ears for fastening pallets

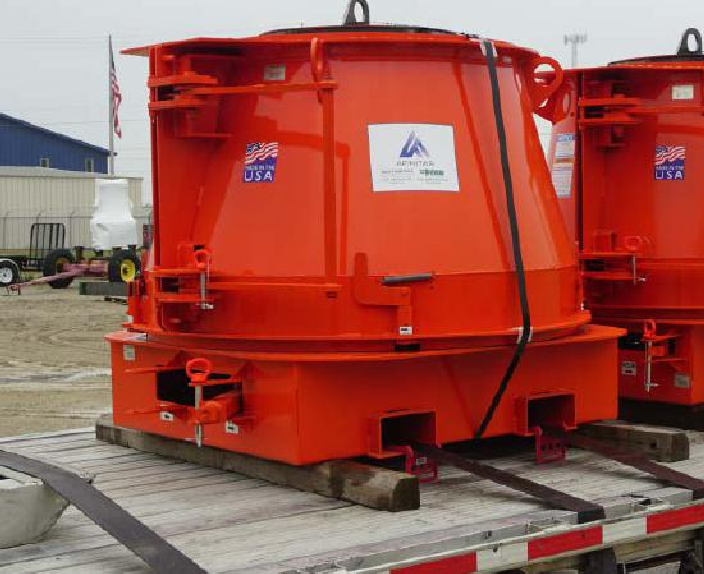

Eccentric and concentric cone with a Quick Strip retractable base

Why should you choose an option with a Quick Strip retractable base?

By manually moving the Quick Strip levers from right to left, located at the bottom of the base, the inner core folds and the step pins (if needed) are removed.

Formwork doors are opened/closed manually. This means you don't have to work with the inner core or individual pins, and you don't have to work with the outer mold. This simplifies and makes the dismantling process easier and safer.

Advantage Afinitas

Hatch cone diameter: 107-183 cm
Height: 107-183 cm
Top holes: 61-92 cm
The thickness of the upper wall: 13-20 cm.
The thickness of the lower wall: 13-20 cm.
Two-piece construction with hinged clamps, gusset strips and leveling pins
The inner core is mechanically folded.
Welded ears for fastening pallets

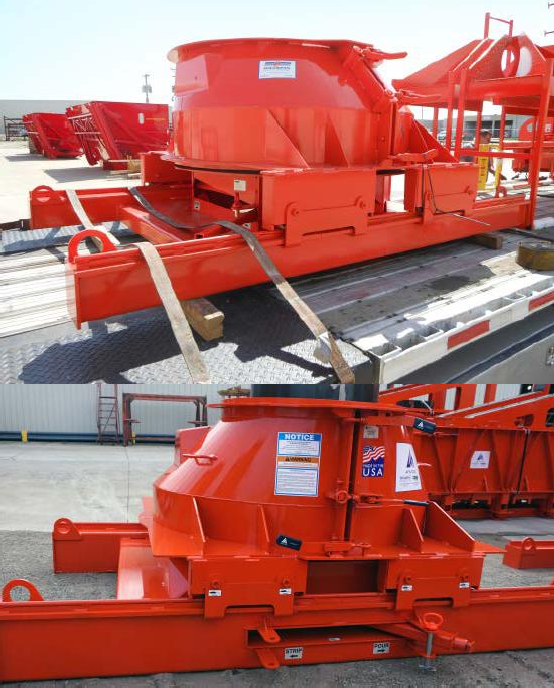

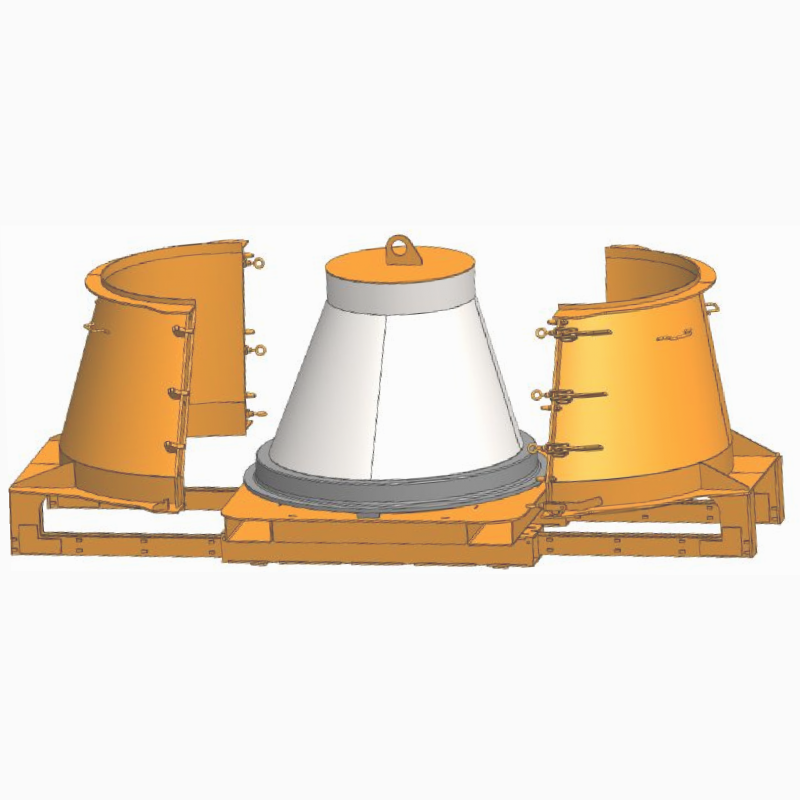

Eccentric and concentric cone with Quick Strip base

Why should you choose the Quick Strip - Roll Back option?

By manually moving the Quick Strip levers from right to left located at the bottom of the base, the inner core folds and the step pins (if needed) are removed.

Formwork doors are opened/closed manually. This means you don't need to touch the inner core or individual step pins, and there's no need to touch the outer formwork. This simplifies and makes the dismantling process safer.

Advantages of Afinitas

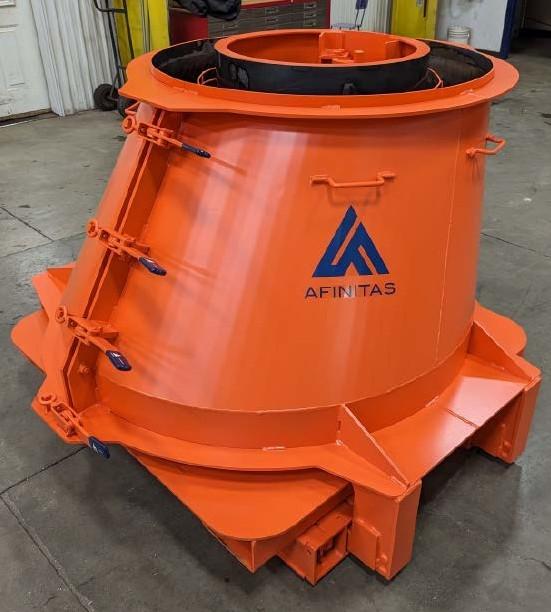

Features of the NextGen Forms Kit
Constant quality and service life of forms
Compact design to save space.
Hatch cone diameter: 100-180 cm
Height: 60-150 cm
Upper openings: 60-90 cm
The thickness of the upper wall: 12.5-20 cm.
The thickness of the lower wall: 12.5-20 cm.
Two-piece construction with hinged clamps, gusset strips and centering pins
The inner core is mechanically assembled.
Welded pallet fasteners
Quick release lever/open/close indicator
Optional SmartConnect™ hydraulic system
V-groove wheels with sealed roller bearings

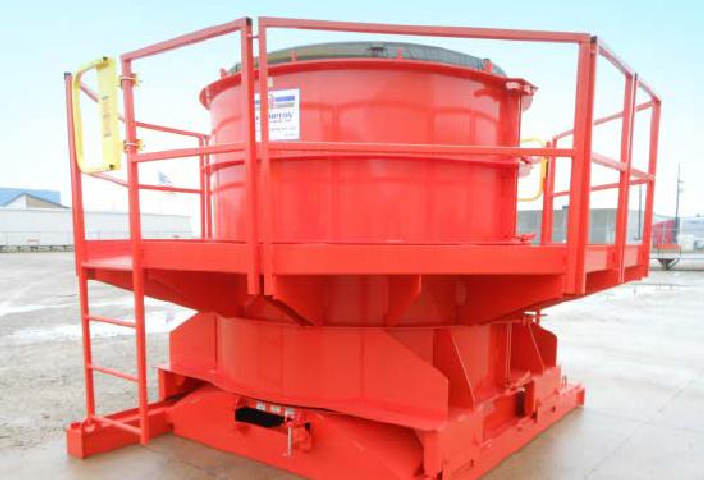

We offer SmartRoll™

Intelligent safety brake for controlled overturning of forms.

With SmartRoll, you control the rolling process. Unlike traditional manual methods, which use mold trunnions and cranes/lifts to turn the product, and sometimes piles of sand or similar materials to soften the tipping, Afinitas offers an innovative, easy-to-use friction brake system to reduce speed and inertia. By virtually eliminating rocking, operations can be performed faster and with fewer safety risks.

Why choose SmartRoll™?

Reduce the risk of mold tipping. Why put your employees or equipment at risk? Our adjustable friction brake controller is designed to safely reduce the rate of mold tipping before it becomes dangerous to employees, mold equipment, or your production schedule.

Built for complete control

We designed our controllers with the operator in mind. They are equipped with unique special replaceable polyurethane inserts with a high load-bearing capacity, making it easy to apply the precise torque required to ensure a very smooth and controlled rollover.

Reduced wear and tear and cost savings

Eliminating overturning forces significantly reduces strain on crane equipment and helps prevent formwork damage, reducing repair and replacement costs. Moreover, our replaceable polyurethane insert reduces friction between steel and steel and helps avoid more expensive replacement of trunnion shafts.
