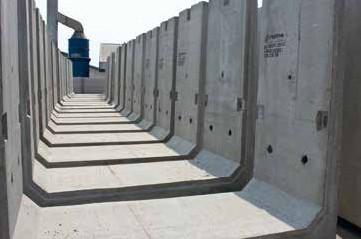

Equipment for the production of rectangular water culverts, MAMMUT BFS, Kyiv

Equipment for the production of rectangular culverts, MAMMUT BFS.

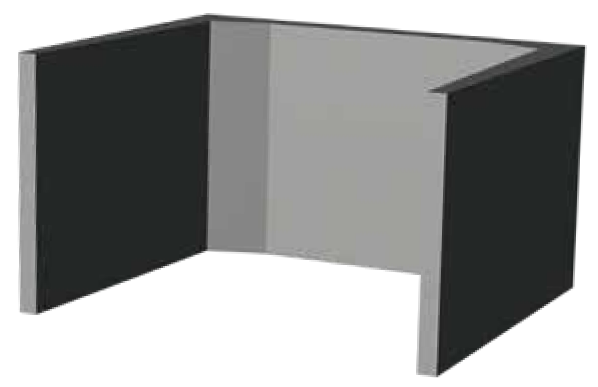

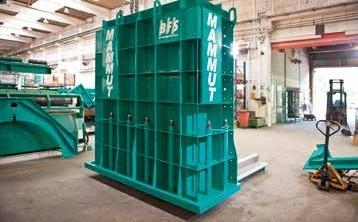

MAMMUT from BFS is a high-performance and reliable plant for the production of box culverts and other large-sized concrete products.

The powerful technology of the vibrating table ensures optimized production according to the highest quality requirements.

MAMMUT advantage review:

Depending on the requirements, different standard dimensions of the vibrating table are available - from the small M4030 (table area 4 m x 3 m) to the large M8668 (table area 8.6 m x 6.8 m).

MAMMUT is distinguished by perfect dimensional accuracy and clean surface of products.

Heat-resistant vibrators with an external central electric motor require minimal maintenance even in the harshest climatic conditions and ensure uninterrupted production.

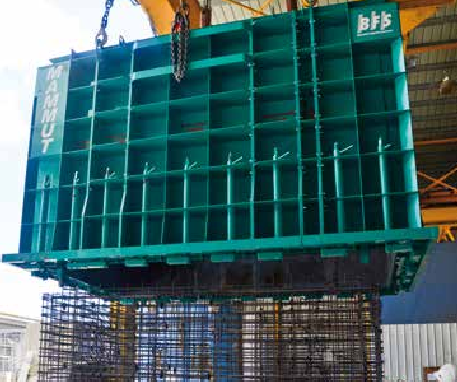

Prepared reinforcing frames on pallets are collected by a crane behind the mold body and installed in the system above the core.

With the help of strong hydraulic clamps, the body (including the pallet) is attached to the vibrating table.

Once the manufacturing process is complete, the case, including pallet, product and smooth end former, is gently lifted, ensuring maximum dimensional accuracy and allowing the box to be placed in storage for curing. After removing the clamps between the shirt and the base pallet, the shirt can be lifted and it is ready for the next cycle.

To optimize the shape of the bell, the bell shaper remains on the fresh product for a certain period of time.

There are individual designs for the socket. The bell is formed under the influence of vibration by eight hydraulic clamping cylinders built into the core. This stage of production is also fully automated. All parameters can be set using the built-in touch screen.

The following options are available:

Height-adjustable support frame of the vibrating table for the use of forms of different heights
Rotary pressing device for forming pipe bells
Semi-automatic or fully automatic formwork with a crane
Equipment for moving pipes

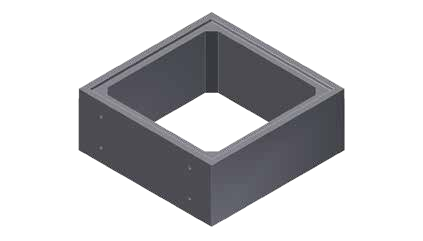

Equipment for bending molds (for example, for the production of the bases of hatches and containers)

Fast-acting fixation allows you to move them freely on the table, which allows you to produce products of various sizes and types.
(//tractor-service.com)

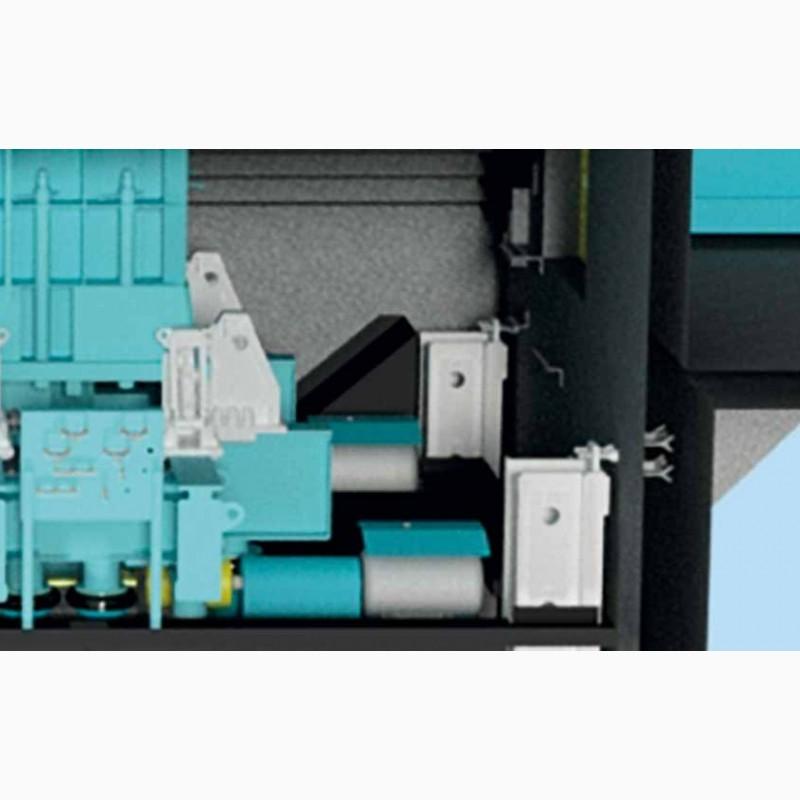

The MAMMUT vibrating table is very stable and rigid, characterized by a smooth and powerful vibration that spreads over the entire surface of the table.

It uses a pneumatic leveling system.

Thanks to this, the huge power reserve of the vibrating table allows you to work with even the largest products.

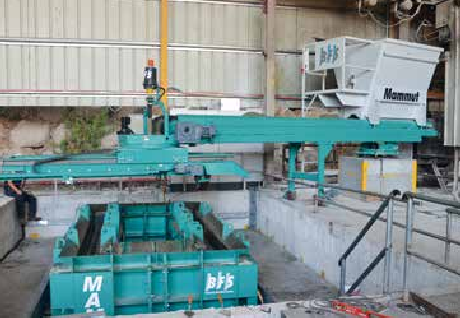

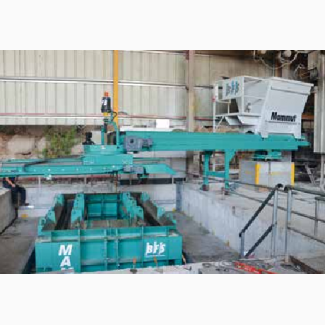

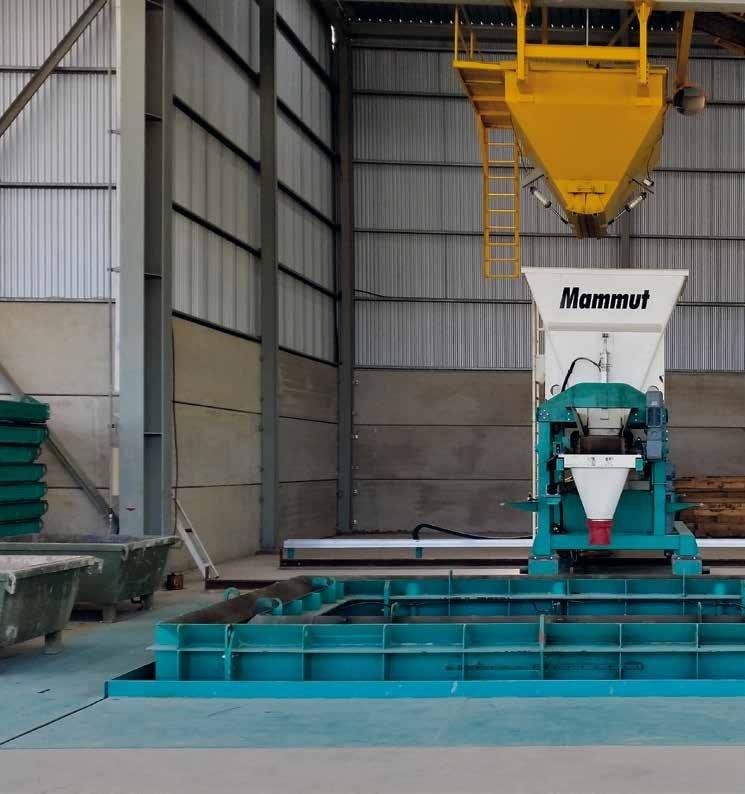

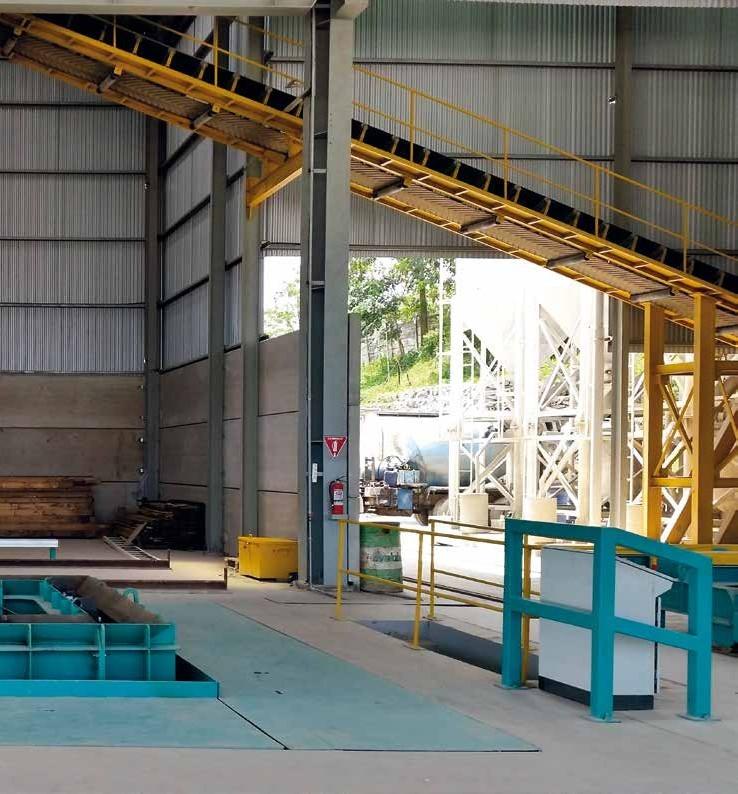

The hopper of the concrete mixer is filled using a belt conveyor or a mobile bucket.

The CNC system precisely tracks the geometry of the product, and the precise interaction between the pre-programmed control of the amount of mixture fed and the built-in laser measuring system guarantees a uniform level of mold filling.

This process does not require manual operator intervention, as the contour control and frequency-controlled vibration are fully controlled by the CNC.

Mammut provides optimal and uniform compaction.

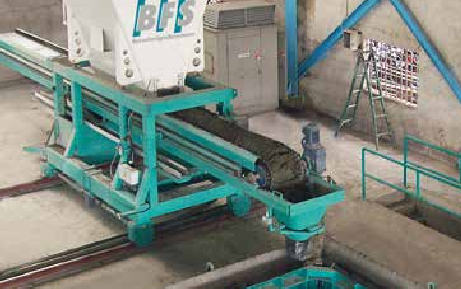

There are two concrete supply systems to choose from.

Linear feed in 2 planes, for very large products and two-box production

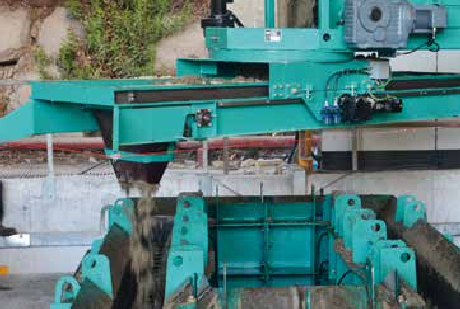

Rotary feed with rotating discharge belt and CNC contour control.
Optionally, both concrete supply systems can be equipped with laser pouring control.

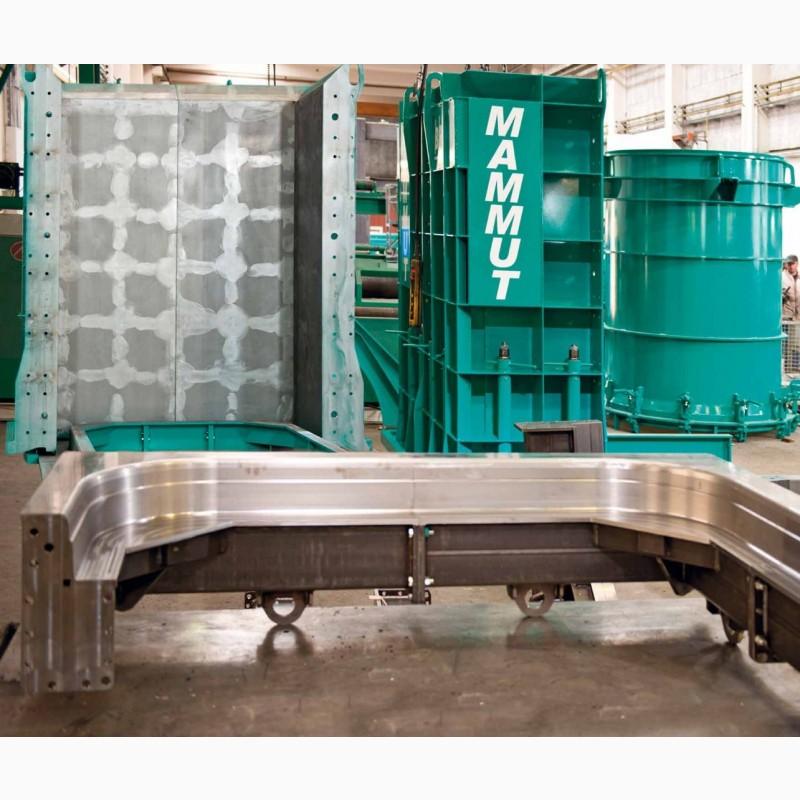

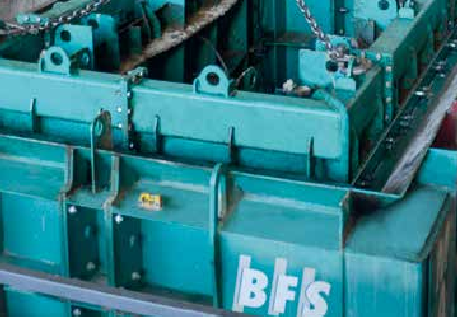

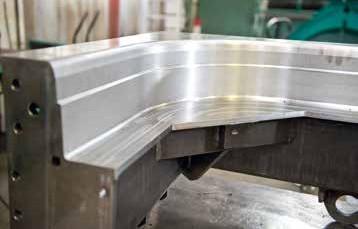

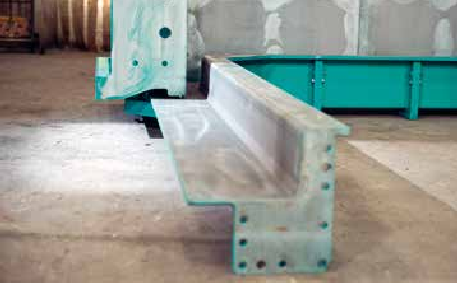

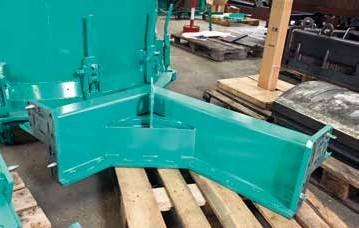

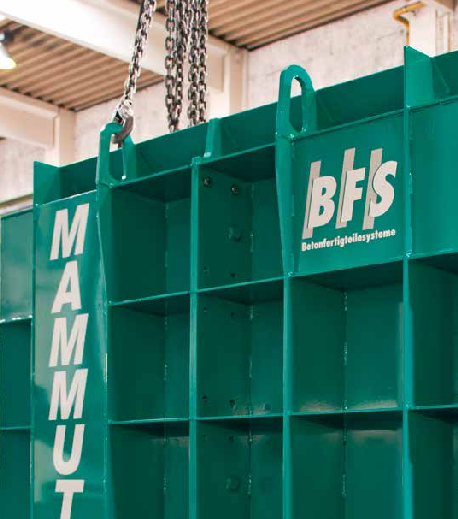

MODU-MOULD (modular systems of forms).

Thanks to the well-thought-out MODU-MOULD modular system, BFS offers a uniform concept. With a small size step, different components can be combined in a wide range of mold sizes.

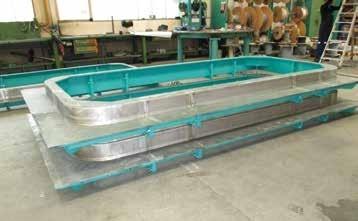

Mold cores, shirts, pallets, smooth end formers - all these elements of the modular system reduce investment costs and increase production flexibility.

MAMMUT forms can be equipped with:

Holding devices for lifting anchors
A device for transport holes
Tension devices for assembly
Centering devices for armatures
Equipment for installing PND liners
Holding devices for mounting rails
