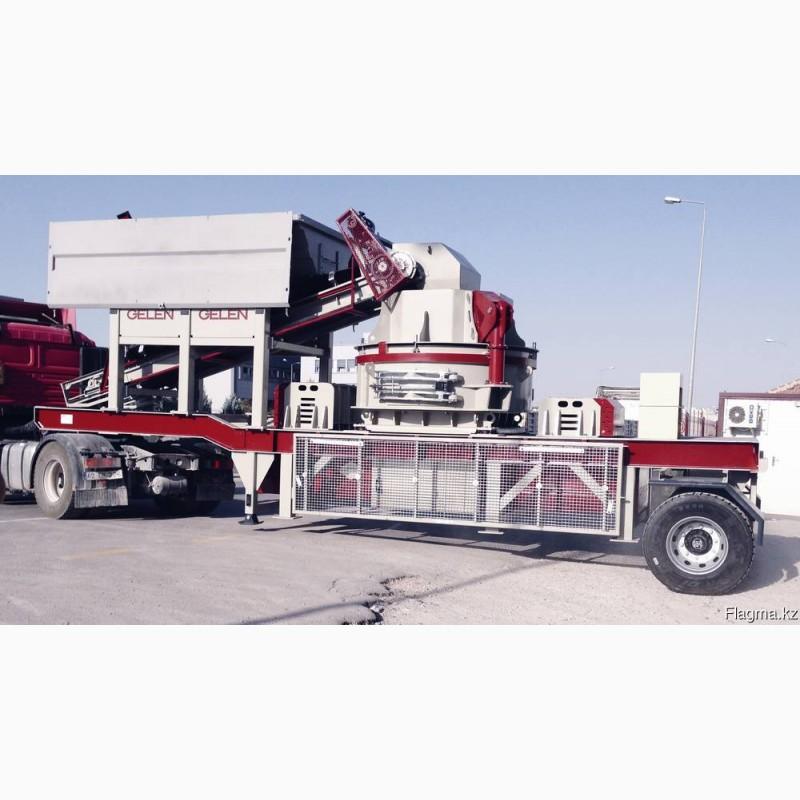

Mobile crusher Polygonmach V-70, 100-150 t/h, Turkey, Kyiv

Mobile crushing and sorting plant Polygonmach V-70 is also called MOBILE SAND MAKING MACHINE - it is an ideal solution for the production of very fine material, also known as sand, with a particle size of 0 up to 5 mm and excellent cubic shape.

The V-70 is the result of advanced design and engineering, superior quality components with a long service life, and superior craftsmanship.

In addition to the materials that are provided by preliminary crushing in the primary and secondary crushing operations, it is also possible to directly ask the system for natural stone, which does not exceed 35 mm.

All kinds of materials with different levels of hardness, such as granite, basalt, dolomite, gabbro, limestone, etc., can be processed by V-70 with satisfactory results.

The production capacity of the V-70 mobile sand production machine varies from 100 to 150 t/h depending on the level of hardness of the crushed material.

In addition to 0-5 mm sand, up to 3 different fractions can be obtained at the same time.

Loading hopper with vibrating feeder
Impact crusher with vertical shaft VSI 700 CR

Feeding conveyors

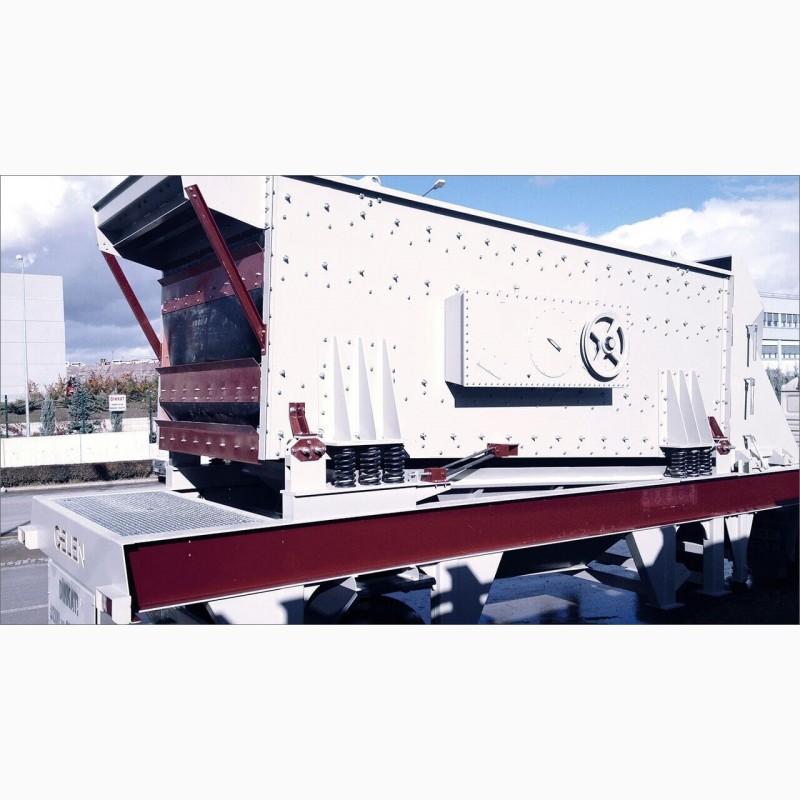

Discarded with 3 decks
Feedback conveyor
Stock conveyors

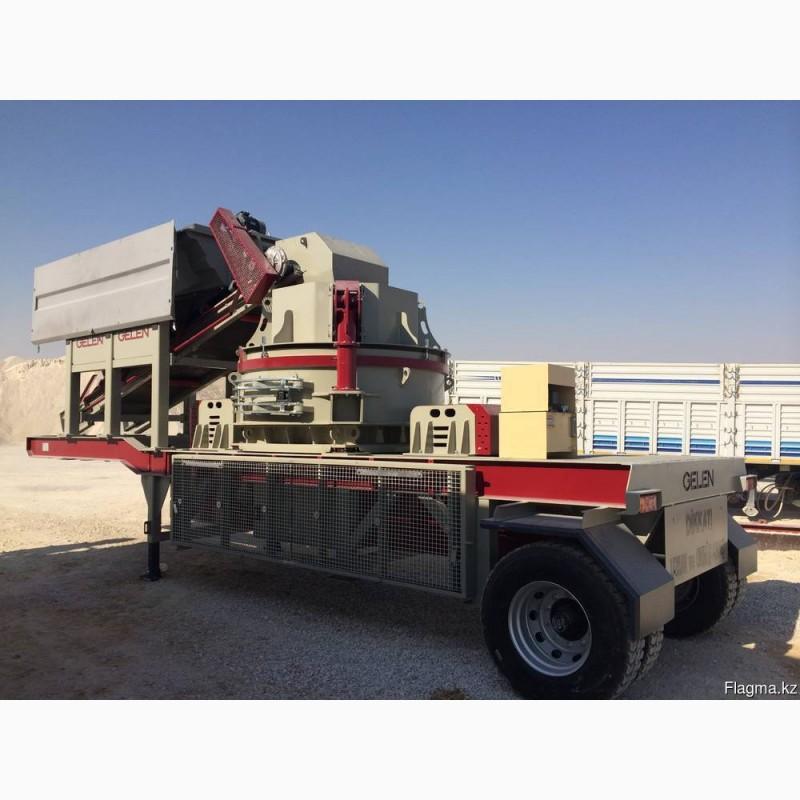

Mobile chassis with hydraulic legs
Automation system with PLC and remote control

Dust removal system

Electric generator (optional)

If necessary, it is possible to installdiesel-electrical generator installed on the chassis of the installation.

V-70 is a convenient system that offers its users convenient installation / assembly functions. The system can be put into operation just a few hours after arriving at the work site. If requested, the lids of loading hoppers and conveyors can be equipped with a hydraulic opening mechanism, and in this case the whole system can be put into working position without any external equipment.

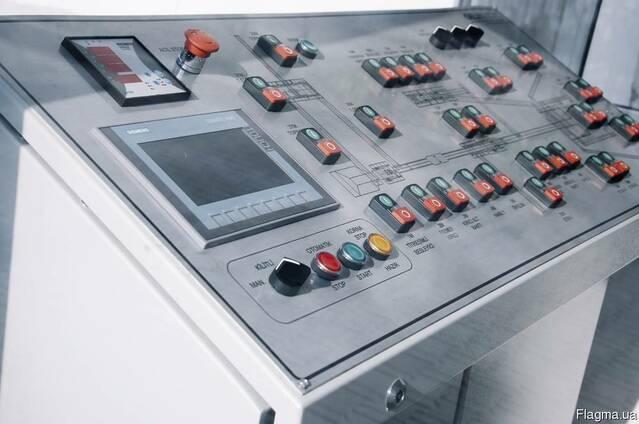

V-70 is equipped with a high-tech automation system, which includes electronic components and a high-class SIEMENS-SCHNEIDER PLC. V-70 is controlled only by the tablet controller.

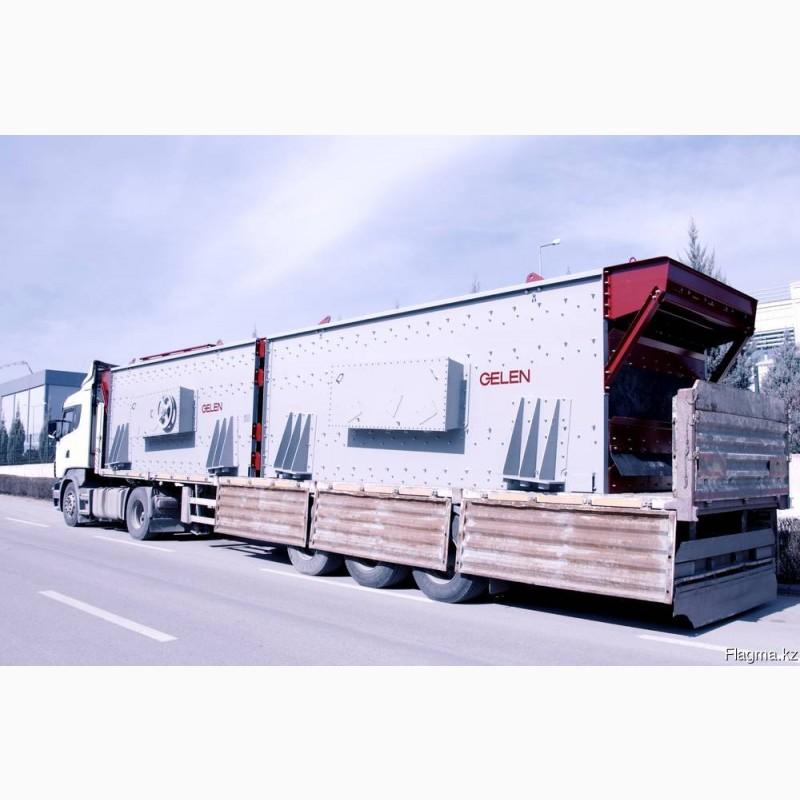

The overall dimensions of the installation are specified in accordance with the international rules of road transport, and the installation can be moved by only one tractor, which is easily connected between different workplaces.(//tractor-service.com)

Production capacity 100-150 t / h

The maximum loading size is 35 mm

Loading height  3.8 meters

Basic configuration

VSI Crusher + Vibration screen

The total power of the engine is 185 kW

Requirements forelectric generator 400 kVA

The weight of the plant is 28 tons

Plant dimensions 14 (L) x 3 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.
