Mobile crusher Polygonmach V-80, 120-200 t/h, 0-5 mm Turkey, Kyiv

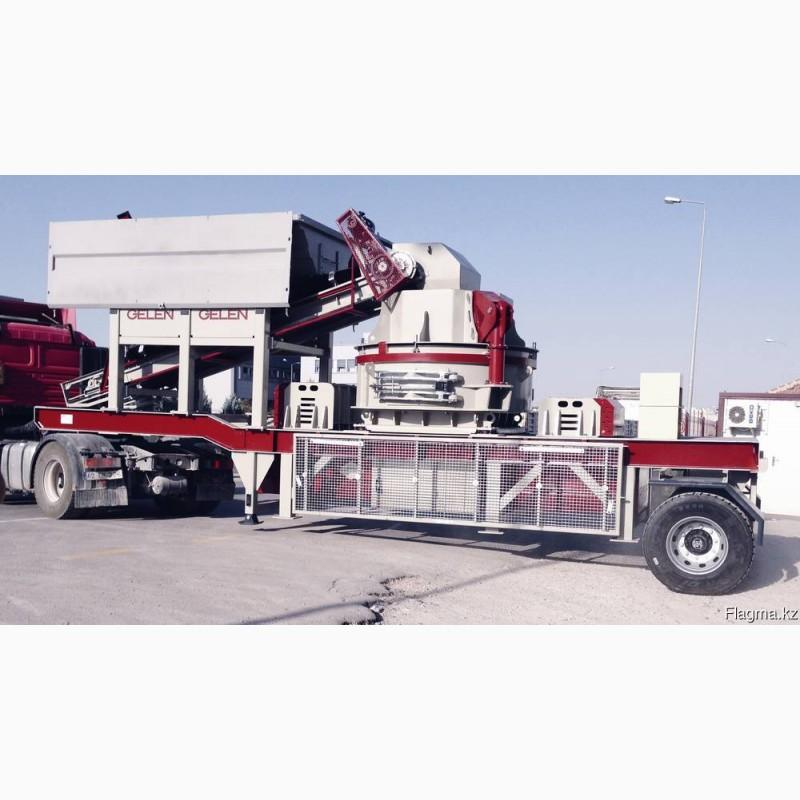

Mobile crushing plant Polygonmach V-80 also known as MOBILE SAND PLANT. This is an excellent application for the production of very small fillers (materials), which are also called sand, the size of the fraction is from 0 to 5 mm with large cubic shapes. The V-80 is the result of complex engineering and advanced design, high-quality components with a durable and amazing build quality.

In addition to materials that are provided by preliminary crushing in primary and secondary crushing operations, it is also possible to directly supply the system with natural stone, which is no more than 40 mm.

All kinds of materials with different levels of hardness, such as granite, basalt, dolomite, gabbro, limestone, etc., can be treated with V-80 with good results.

The productivity of the V-80 mobile crushing plant varies from 150 to 200 t/h depending on the degree of strength of the processed stone. In addition to thin material (up to 5 mm), it is possible to obtain up to 3 different final materials at the same time.

Bunker for feeding with vibrating feeder

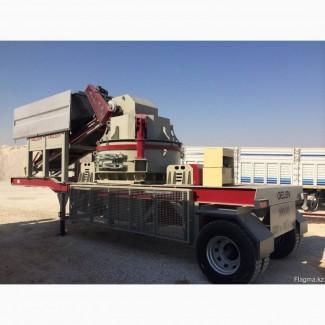

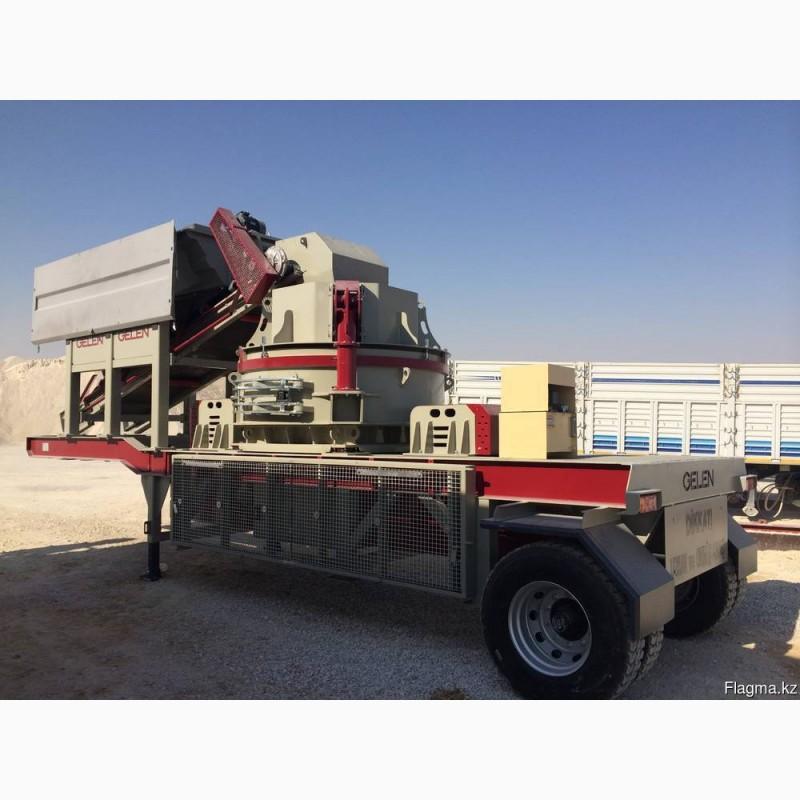

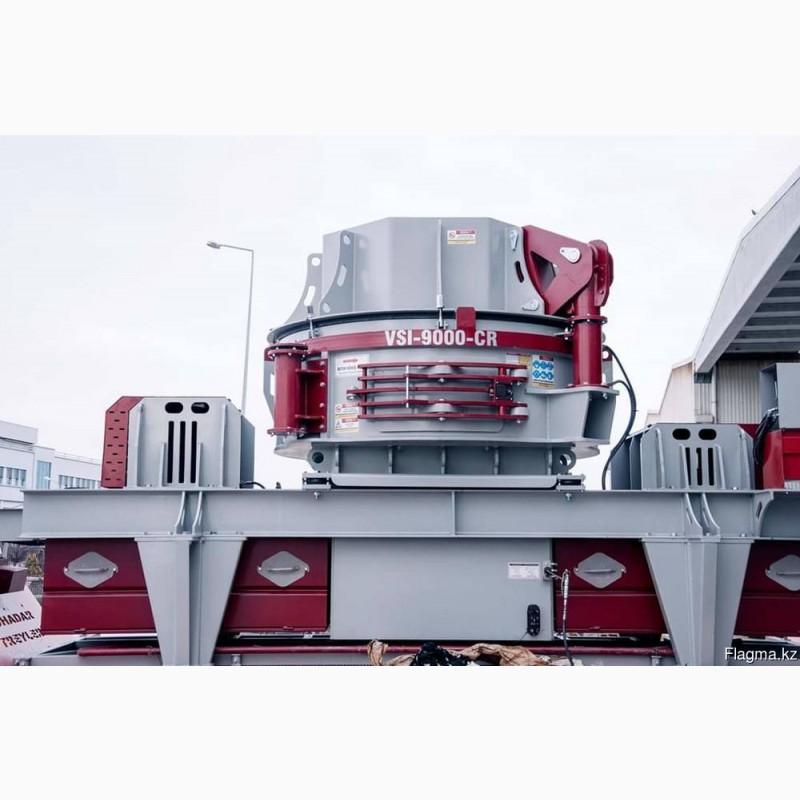

Impact crusher with vertical shaft VSI 800 CR

The loading conveyor between the loading hopper and the VSI crusher
The feeding conveyor between the VSI and the screen.

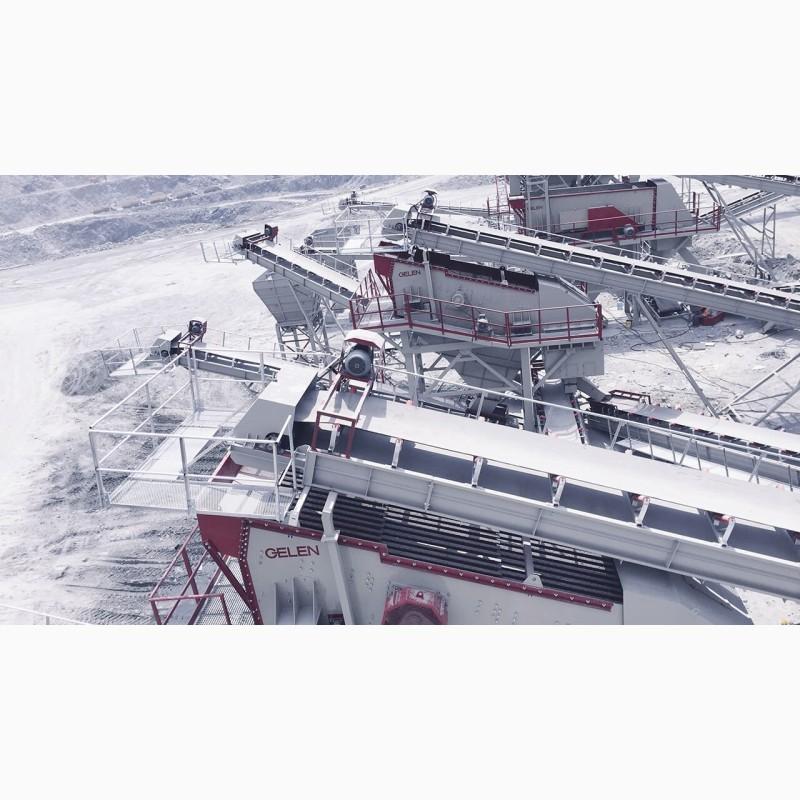

Discarded with 3 decks

Feedback conveyor for oversized material
Warehouse conveyors

Wheeled mobile chassis with hydraulic supports
Automation system with PLC and remote control
Dust removal system

Electric generator (additional function)
If necessary, it is possible to add a diesel electric generator to the main chassis of the system.

The V-80 is a convenient combination that provides easy installation / assembly. The installation can be put into operation in a very short time. If necessary, the loading hopper and storage conveyors can be equipped with hydraulic cylinders, and thus the plant can be started without the need to use any external equipment, such as a crane,loader etc.

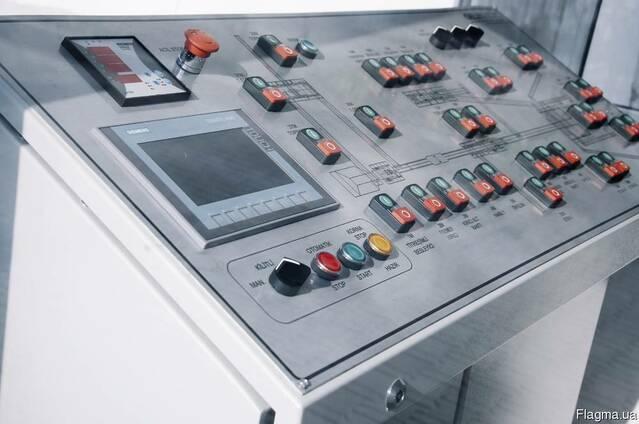

V-80 is equipped with a high-tech automation system, which includes high-class electronic components of the SIEMENS - SCHNEIDER brand and a PLC. V-80 is controlled only by the tablet controller.

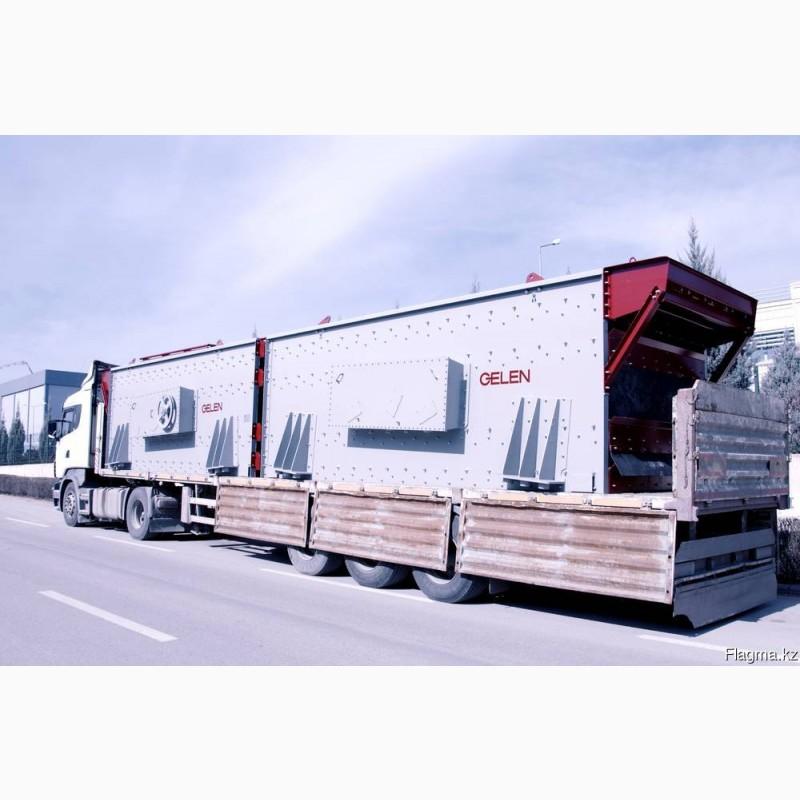

The overall dimensions of our mobile plants are determined in accordance with international road transport rules, and our mobile plants are transported only by tractor between the workplaces of our clients.

Production capacity 150-200 t/h
(//tractor-service.com)
The maximum size of the feed material is 40 mm

Feed height  4 meters

Basic configuration

VSI Crusher + Vibration screen

The total power of the engine is 385 kW

Requirements forelectric generator 600 kVA

The weight of the plant is 30 tons

Plant sizes

14 (L) x 3 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and training of personnel.

To receive a commercial offer, please send a request to our e-mail.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.
