Mobile crushing plant Polygonmach RJC-30 Turkey, Kyiv

Mobile crushing plant Polygonmach JC-3 Turkey

Technical specification:

Main parameters of JC-3

Maximum productivity

250 – 300 t/h (depending on the material and size of the finished product)

The maximum loading size is 1050 x 800 mm.

The loading height is 4.5 m.

Basic configuration

Primary crusher + Sandvik CH 440 Secondary cone + 4 screen levels

The total capacity is 500 kW.

Powerelectric generator 750 kVA

Plant weight. 80 T

Plant size

1st chassis: 10(L) x 3.2(W) x 4.5(H) m

2nd chassis: 1(L) x 3.2(W) x 4.5(H) m

Chassis type

Double chassis on wheels, equipped with hydraulic opening legs.

1st chassis:

Loading hopper with vibrating feeder
C-110 Primary Jaw Crusher
Bypass conveyor (for soil extraction)
Feeding conveyor
Wheeled mobile chassis with hydraulic supports
dust removal system
2nd chassis:

Cone crusher, SANDVIK CH 440
Dropped with 4 levels
Return feed conveyor from the vibrating screen to the cone crusher
Folding warehouse-type conveyors
Wheeled mobile chassis with hydraulic supports
Automation system with PLC and remote control for the entire system.
Dust removal system
Diesel electric generator set (option)
Vibrating feeder:

Feeder Grizzly System
Feeder size: 1,100 x 4,500 mm
Volume: 20 m3
Case material: St-37, 10 mm
Coating of the feeder inside: HARDOX 400 – 10 mm
Equipped with 2 Oli or Emtaş Brand vibrators: 2 x 2.2 Kw

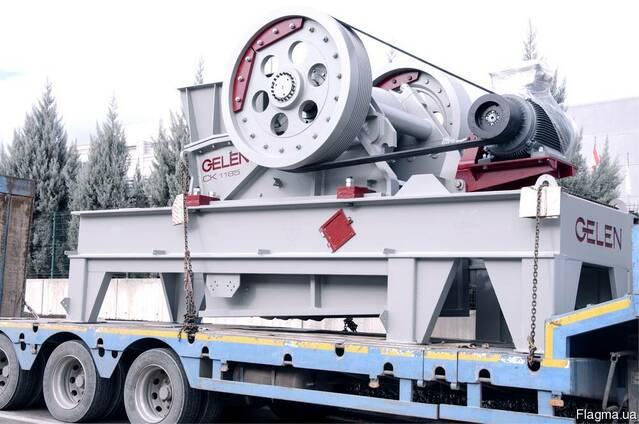

Jaw crusher:

The size of the feed hole: 1.100 x 850 mm.
Productivity: 250-300 t/h
The maximum size of the loading material: 850 x 850 mm
Power: Strong AC motor, 132 kW.1450 rpm – EMTAŞ Brand(//tractor-service.com)
Jaw crusher and abrasive parts: special high-strength steel
Abrasive processing of steel: Austenitic steel
Composition of austenitic steel: %16-18 Mn + % 2.2 Cr
Abrasion - hardness of austenitic steel > 450 HB
Pitman : GS 45 cast steel
Rotating (eccentric) shaft: Cr - Ni - Mo forged steel

Bearings: Reinforced type, SKF or FAG brand.
Adjustment mechanismjaw crusher : Hydraulics
Coating: Double layer of epoxy paint
The viewing platform is included.

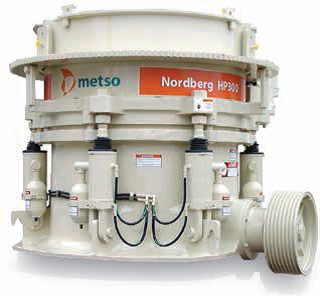

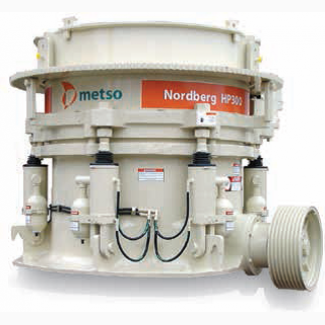

Cone crusher

Manufacturer: METSO (France)
Model: HP 300
Engine power: 200 kW
PLC and hydraulic system included.
Conveyors:

Bypass conveyor: 800 x 13,000 mm, 5.5 kW motor power
Unloading conveyor: 4 pcs, 800 x 7,000 mm, 3 kW motor power
Feeding conveyor: 000 x 20.000 mm, 18.5 kW motor power
Return conveyor: 800 x 7,000 mm, 3 kW motor power
Tape : EP125 : 10 mm
Drive drum: Ø 219 x12 mm
Tail drum: Ø219x10 mm
Bearings: FAG or SKF Brand
Bushing: SNH-513
Observation platform included

Conveyors have a HYDRAULIC folding mechanism

Mobile chassis:

Double chassis

4 pcs. bridges, 8 pcs. hydraulic supports on each chassis.

Chassis material: NPI 550 mm Steel profile

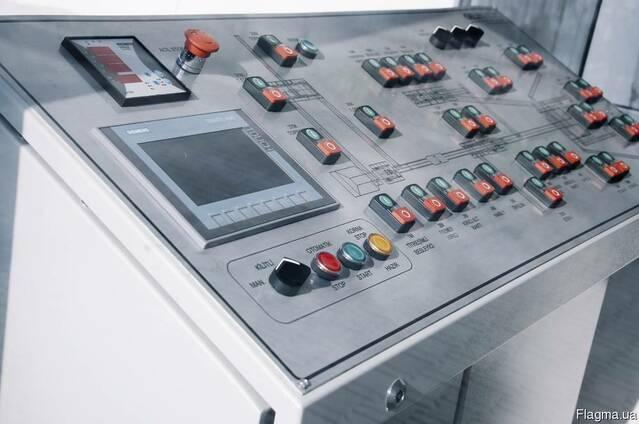

Computer control system:

Control of the installation is FULLY AUTOMATIC, and the entire system is used through the TABLET CONTROLLER automatically.

The control panel includes PLC, thermal relays, fuses, contactor, time relay and buttons for electric motors in the system.

Brands of electrical and electronic components:

SIEMENS / SCHNEIDER

The wiring between the control panel and the equipment is included.

The control system is covered with a double layer of the control panel against dust and rain. (panel in panel)

Warranty 24 months.

The manufacturer conducts the chief installation and training of personnel.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our E-mail.
