Mobile crushing and sorting plant Polygonmach T-150 is also called MOBILE SAND MAKING MACHINE - it is an ideal solution for the production of very fine material, also known as sand, with a granule size from 0 to 5 mm and an excellent cubic shape. The T-150 is the result of advanced design and development, superior quality components with a long service life and excellent craftsmanship.

In addition to materials that are provided by preliminary crushing in primary and secondary crushing operations, it is also possible to directly supply the system with natural stone that does not exceed 200 mm.

All types of materials with different levels of hardness, such as granite, basalt, dolomite, gabbro, limestone, etc., can be processed by T-150 with satisfactory results.

The production capacity of the T-150 mobile sand production machine varies from 230 to 250 t/h, depending on the hardness level of the crushed material. In addition to 0-5 mm sand, up to 3 different fractions can be obtained at the same time.

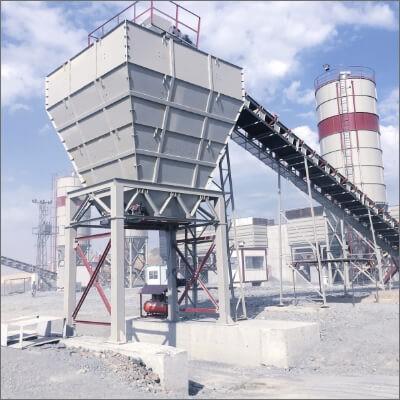

Loading hopper with vibrating feeder

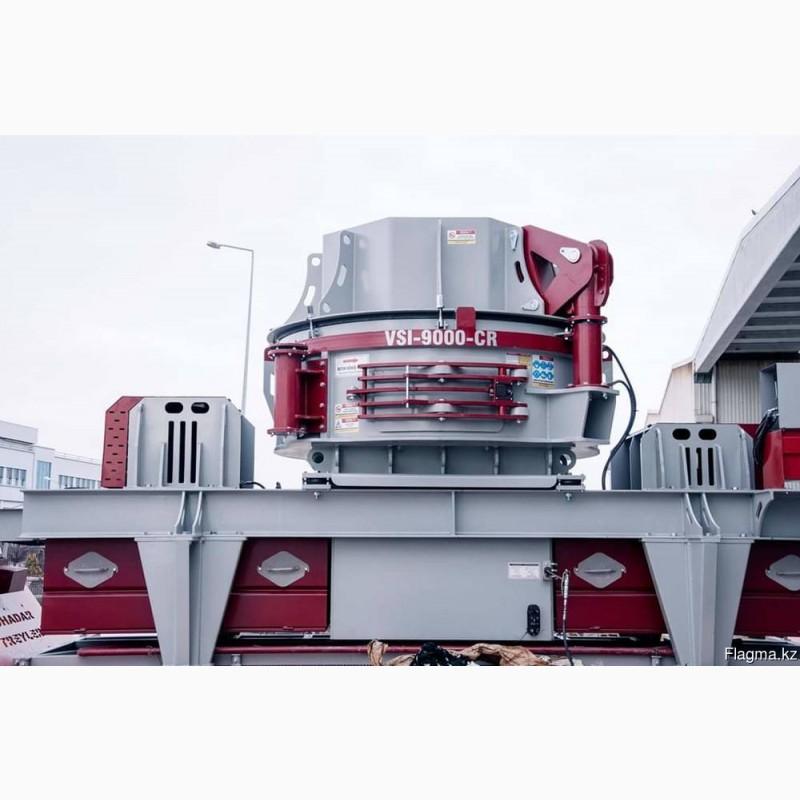

CTC-1212 Tertiary impact crusher
Feeding conveyors
Dropped with 3 levels

Feedback conveyor
Stock conveyors
Mobile chassis with hydraulic legs

Automation system with PLC and remote control
Dust removal system

Electric generator (optional)
If necessary, you caninstall a diesel engine-an electric generator installed on the chassis of the installation.

T-150 is a convenient system that offers its users convenient installation / assembly functions. The system can be put into operation just a few hours after arriving at the work site. If requested, the lids of loading hoppers and conveyors can be equipped with a hydraulic opening mechanism, and in this case the whole system can be put into working position without any external equipment.
(//tractor-service.com)

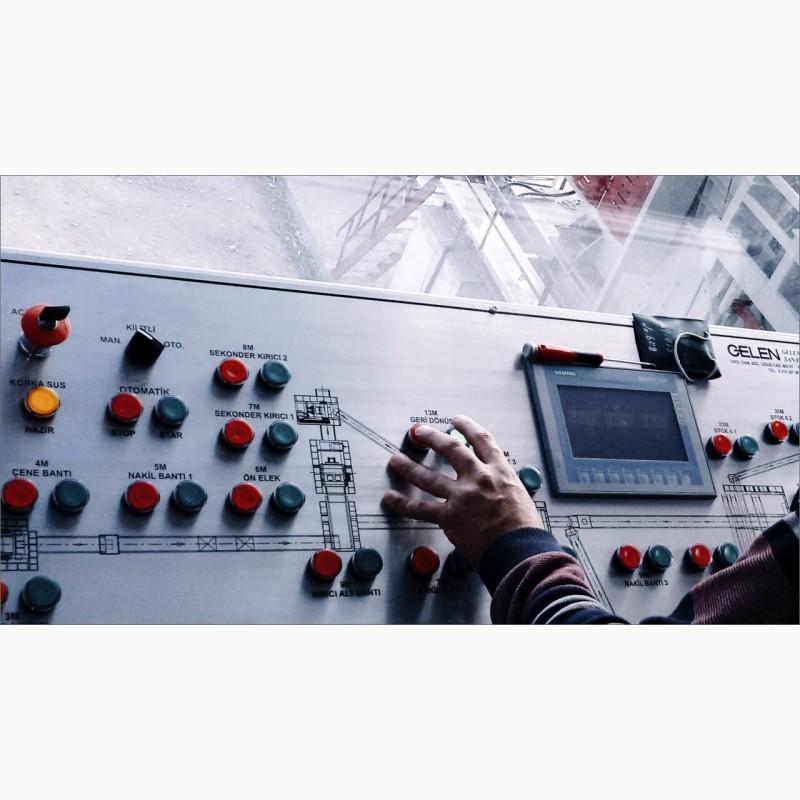

The T-150 is equipped with a high-tech automation system that includes high-class electronic components from SIEMENS - SCHNEIDER and a PLC. The T-150 is controlled only by the tablet controller.

The overall dimensions of the installation are specified in accordance with the international rules of road transport, and the installation can be moved only by one tractor, which is easily connected between different workplaces.

You can view the general layout, transportation information and photos of our T-150.

Production capacity 230-250 t / h

The maximum size of the loading material is 200 mm

Loading height 4 meters

Basic configuration

Tertiary impact crusher + 3 screens

The total power of the engine is 330 kW

Requirements forelectric generator 850 kVA

The weight of the plant is 46 tons

Plant dimensions 16 (L) x 3.2 (W) x 4.5 (L) meters

Chassis type

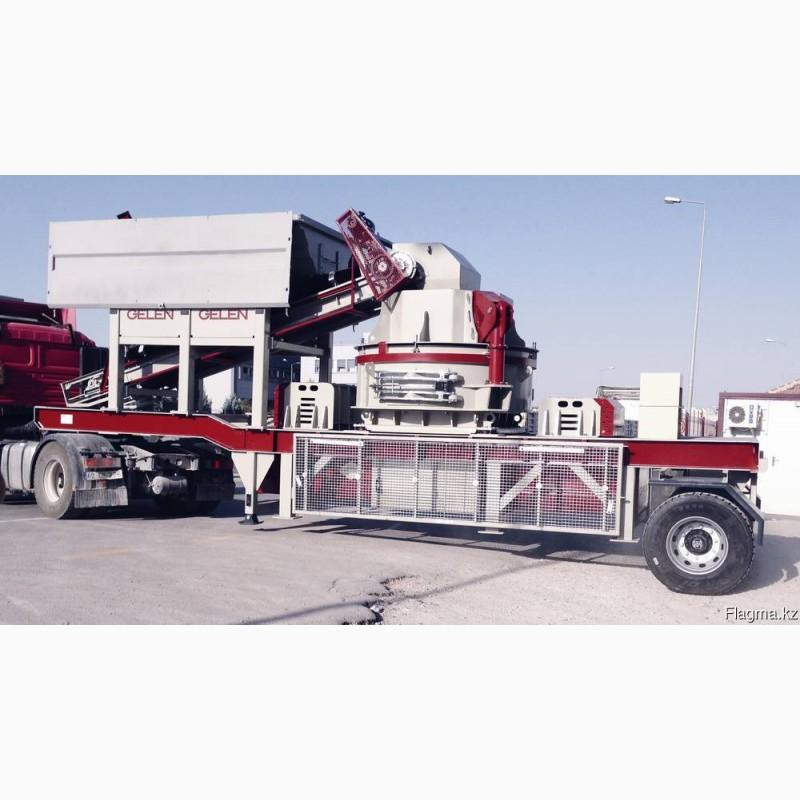

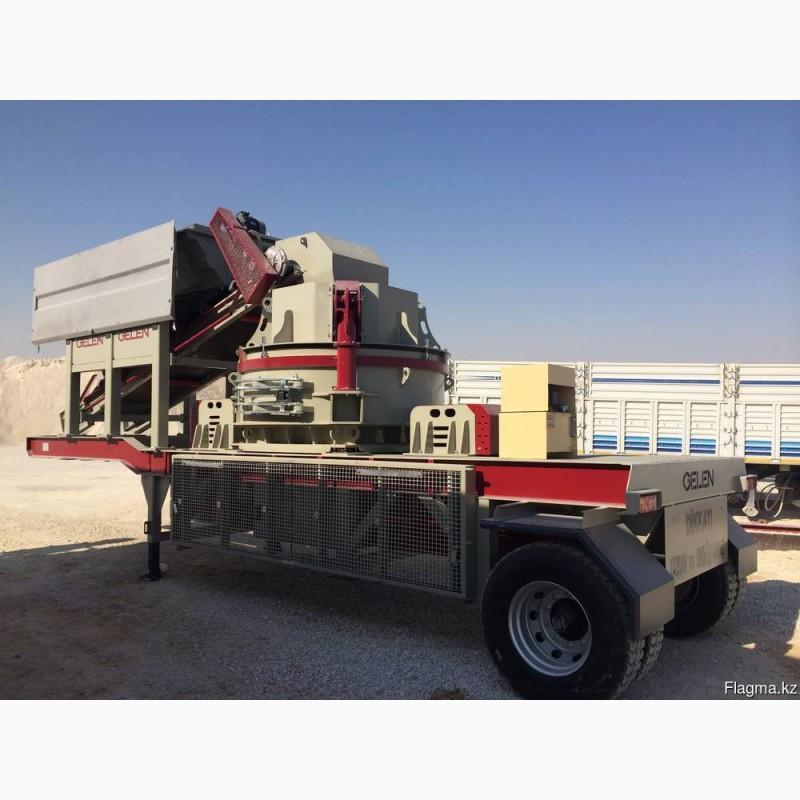

Single chassis on wheels, equipped with hydraulically opening legs.

Warranty 24 months.
