Mobile crusher Gelen Makina T-100, 80-135 t/h, Turkey, Kyiv

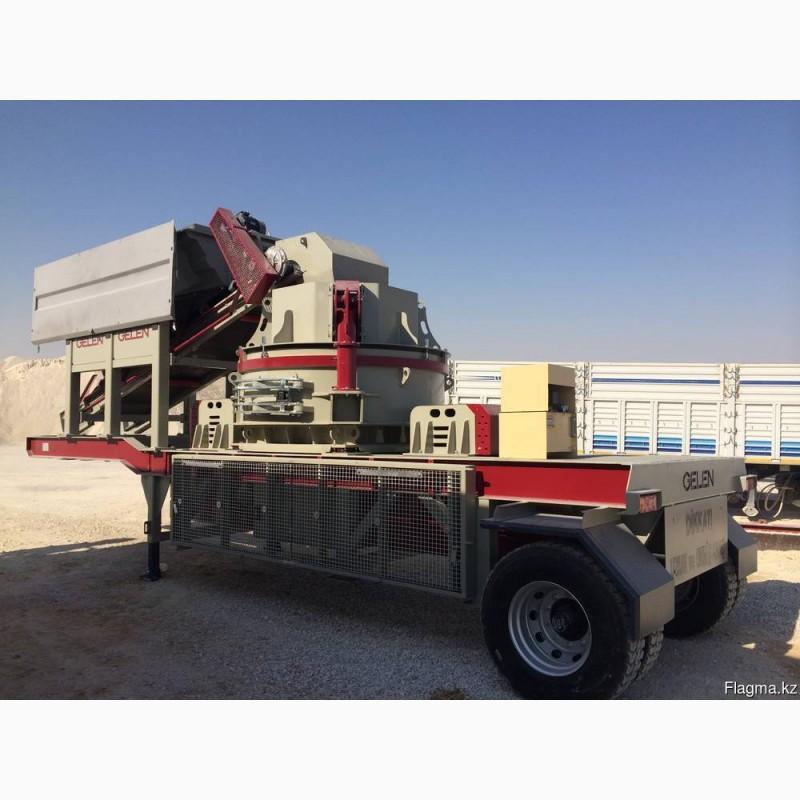

Mobile crushing and sorting plant Gelen Makina T-100 is also called MOBILE SAND MAKING MACHINE - an ideal solution for the production of very fine material, also known as sand, with the size of granules from 0 to 5 mm and excellent cubic shape. The T-100 is the result of advanced design and development, superior quality components with long service life and excellent craftsmanship.

In addition to materials that are provided by preliminary crushing in primary and secondary crushing operations, it is also possible to directly supply the system with natural stone, which does not exceed 150 mm.

All kinds of materials with different levels of hardness, such as granite, basalt, dolomite, gabbro, limestone, etc., can be processed by T-100 with good results.

The production capacity of the T-100 mobile sand production machine varies from 80 to 135 t/h depending on the hardness level of the ground material. In addition to 0-5 mm sand, up to 3 different fractions can be obtained at the same time.

Loading hopper with vibrating feeder

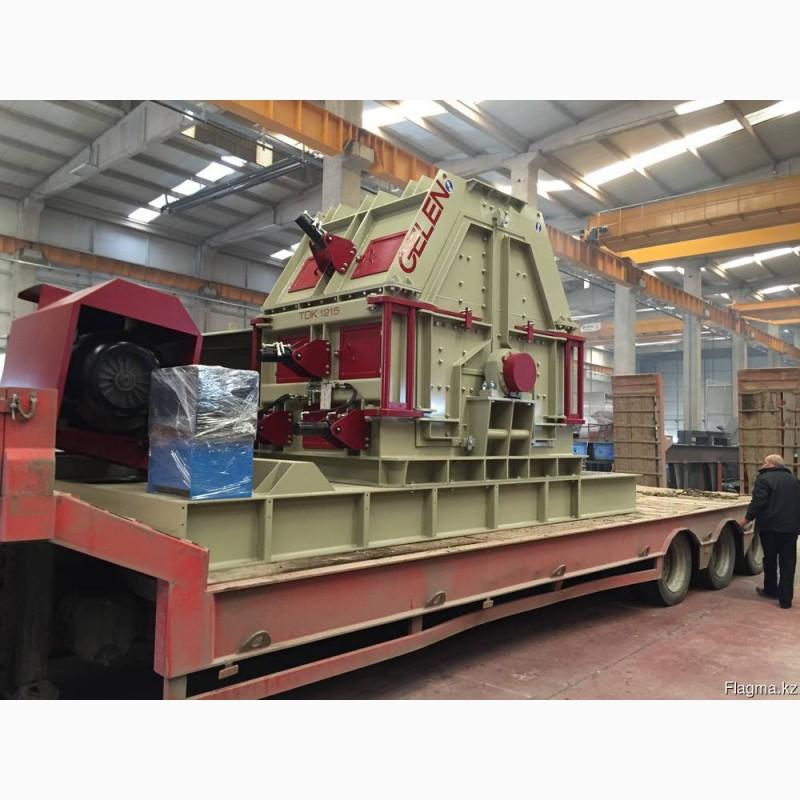

CTC-1210 Tertiary impact crusher
Feeding conveyors
Dropped with 3 levels

Feedback conveyor
Stock conveyors

Mobile chassis with hydraulic legs
Automation system with PLC and remote control.
Dust removal system

Electric generator (optional)
If necessary, it is possible to installdiesel-electrical generator installed on the chassis of the installation.

T-100 is a convenient system that offers its users convenient installation / assembly functions. The system can be put into operation just a few hours after arriving at the work site. If requested, the lids of loading hoppers and conveyors can be equipped with a hydraulic opening mechanism, and in this case the whole system can be put into working position without any external equipment.

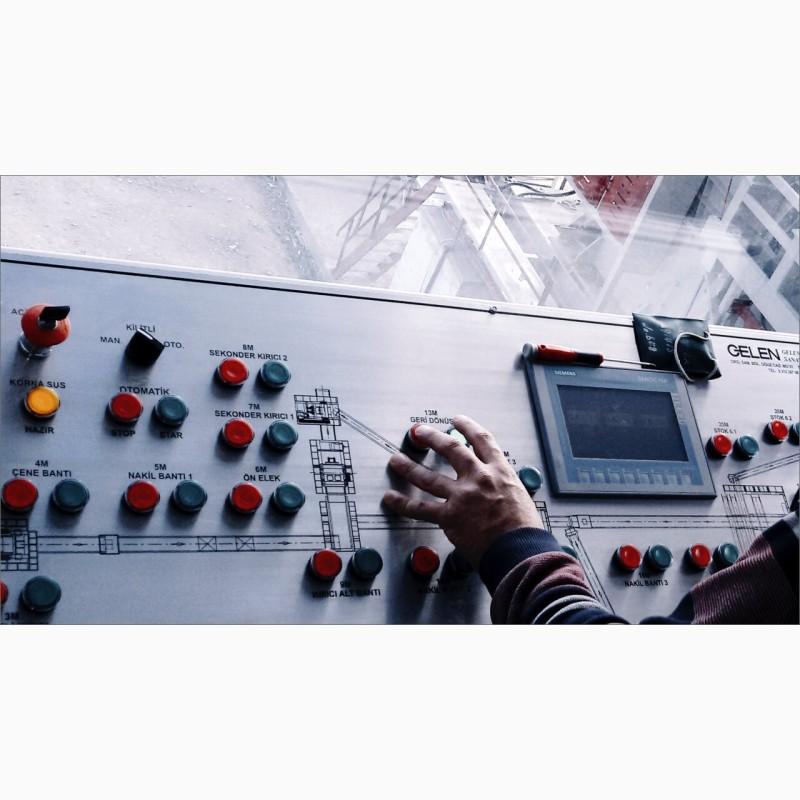

The T-100 is equipped with a high-tech automation system that includes high-class electronic components from SIEMENS - SCHNEIDER and a PLC. The T-100 is controlled only by the tablet controller.

The overall dimensions of the installation are specified in accordance with the international rules of road transport, and the installation can be moved only by one tractor, which is easily connected between different workplaces.

You can see the general plan, shipping information and photos of our T-100 by clicking on the appropriate tabs, and you can request a quote.

Production capacity 80-135 t / h(//tractor-service.com)

The maximum size of the feed material is 150 mm

Loading height  3.8 meters

Basic configuration

Tertiary impact crusher + 3 screens

The total power of the engine is 220 kW

Requirements forelectric generator 550 kVA

The weight of the plant is 36 tons

Plant dimensions 15 (L) x 3.2 (W) x 4.2 (L) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

Warranty 24 months.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.
