Second-hand Wartsila 43 MW gas piston power plant, 2008, Kyiv

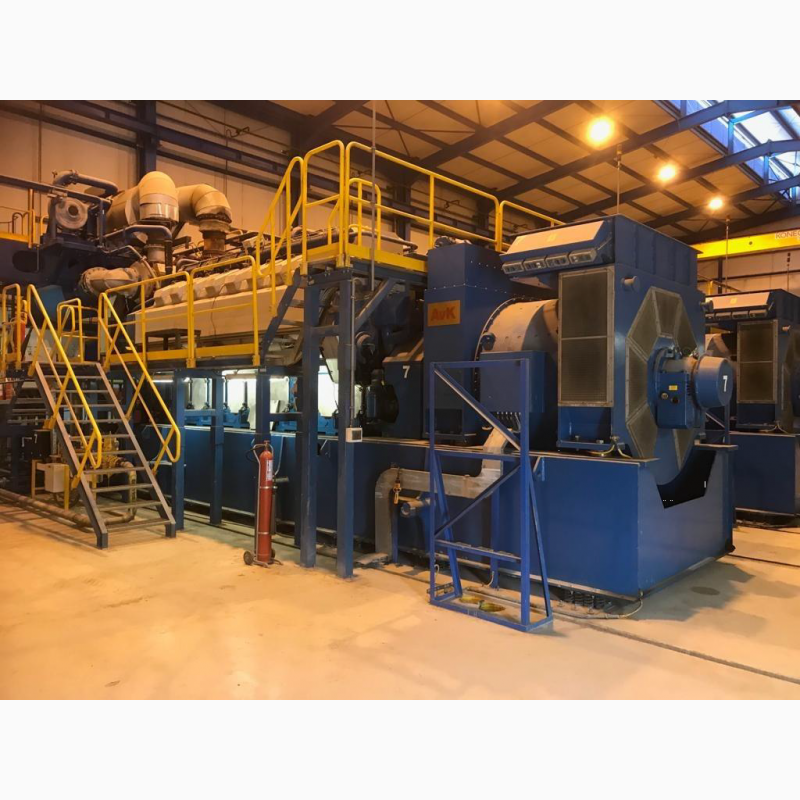

Used gas-pistonWartsila power station 43 MW (6 *7.2 MW) :

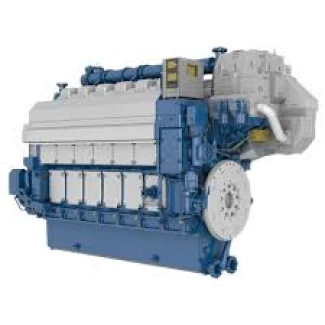

Wartsila engine W16 V34 SG

AVK generator

Power, kW 7,200 kW *6 pcs.

Year of release 2008.

28,000 engine hours.

Fuel is natural gas.

Rotation speed, rpm 750 (50 Hz)

Cylinder diameter/piston stroke, mm 3400/400

The power of the cylinder is 500 kW / cyl.

Average effective pressure 22.0 bar(//tractor-service.com)

Piston speed 10.0 m / s

Heat transfer power of the cooling jacket (± 8%), kW 1538

Heat transfer power of the intercooler of the 2nd stage (± 8%), kW 326

Exhaust heat transfer power,
cooled to 120 °C (± 8 %), kW 2240

Electrical efficiency, % 43.5

Thermal efficiency, % 43.7

Total efficiency, % 87.2

The set includes a GPA, a cooling system, a control unit and other components necessary for the operation of the energy complex.

The equipment is in excellent working condition, regularly serviced according to the regulations.

For more detailed information, send your request to our mail.
