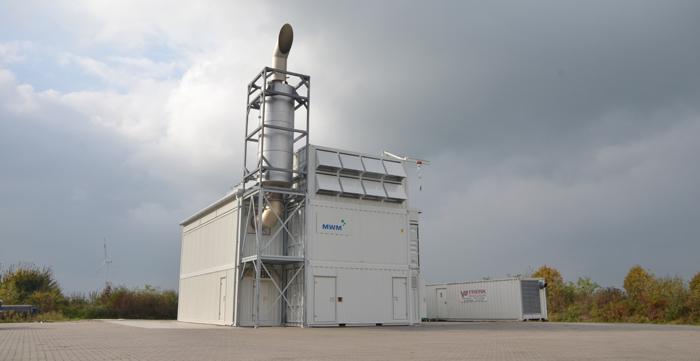

Used gas plant MWM, 4300 kW, Kyiv

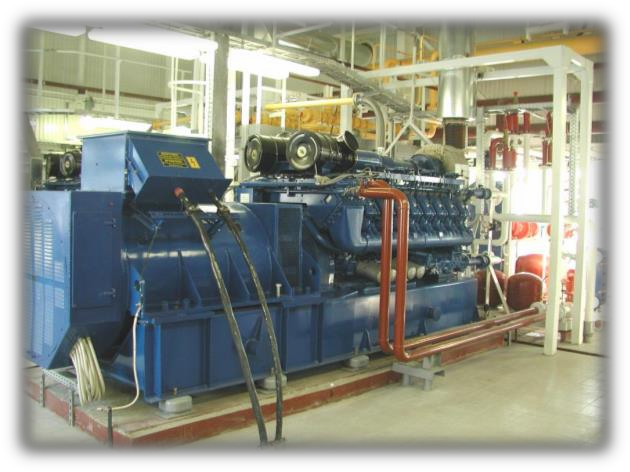

Used MWM TCG 2032-16

Released in 2010. Working hours are only 15,000/hour.

Technical characteristics of a gas piston power plant

Model: TCG 2032 16 DEUTZ (MWM) 4 300 Kw

The power of the block is 4,300 kW.

Gas consumption 9.344 kW at a permissible load of 100%.

Cylinders and configuration 16 V

Engine speed 1000 rpm.

Electro. Efficiency 42.8%

Thermo. Efficiency 44.5%

Air consumption 20,537 kg/hour

Exhaust gas temperature ~ 459 ºC

The engine works with a generator of electric power 5.055 kVA.

The voltage is 6600 V.

The current situation with the engine:

The installation has an engine life of 15,800 hours.(//tractor-service.com)

1 x 4000 MW engine:

Exhaust gas from the engine is directed to theboiler, which produces heat, there is also the option of installing a steam generator (option), which produces saturated steam of 3 t/h at 7.5 bar, using the heat released by the exhaust gases.

Steam conditions for the engine:

The temperature of the supplied water is 95 ºC

The maximum flow of steam with exhaust gases from

Engine 3 t/h

Registered pressure 9 bar Normal

Working pressure 7.5 bar Par

Amount of steam 3,000 kg/h Exhaust

The general heat balance of the cogeneration plant looks like this:

- Production of hot water

- Steam production (Option) using exhaust gases at 7.5 bar - 3 t/h per engine

Pumps and fans

Control panel management

Engine panel

Coolers of air cooling fans
