Used GPD MWM TCG 2016V08, 800 Kv. Year 2011, working hours – 16,000 hours. Cogeneration, Kyiv

Used GPD MWM TCG 2016V08, 800 Kv. Year 2011, accumulated service - 16,000 engine hours. Cogeneration

Engine Manufacturer MWM (Germany)

Power kW 2*400

RPM 1000

Fuel Natural Gas – Methane, Biogas

Generator Marelli, Voltage 400 V, Hz 50

Year of manufacture 2011

Hours of operation:

DPD No. 1 - 15,800

DPD No. 2 - 18,750

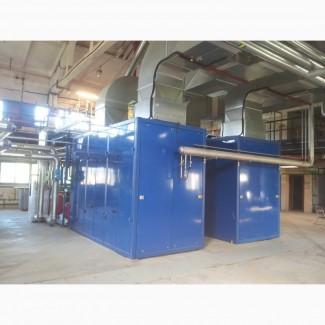

CHP 8352020 with a capacity of 800 kW with 2 MWM generator sets of 400 kW each.

It is a complete power plant supplied with panels and auxiliary equipment.

We can arrange professional dismantling and delivery of equipment.

This station is in good condition.

CHP works on natural gas or biogas.

Thermal energy is represented as hot water with a temperature of 90°C and is currently used for district heating.

It has a mixing system to use biogas containing 50-65% CH4 coming from the landfill.
(//tractor-service.com)
The heat recovery system is built next to the generator set containers.

The main characteristics of this power plant

Production of the German company MWM.

Commissioned in 2011.

Power generation 2 x 400 kW/400 V/50 Hz

Electrical efficiency of 42.8% at the poles of the generator.

Therman 2 x 395kW power generation at 90°C

NOx emission level Max. 500 mg/Nm3

The noise level is 65 dB(A) at a distance of 10 meters.

Engine performance 18750 and 15800 (end of August 2020)

TEAM Evo WMW control system

MWM DSL control PLC

Basic equipment:

Gas engines 2 x MWM TCG 2016 V08 C, V8 configuration, 1500 rpm, 2x400 kWm power

Generators 2 x Merelli MJB 355 MB4, 400 V/50 Hz, board Cos 1.0, power 2 x 400 kW.

Gas ramp, gas mixer, voltage stabilizer, power factor regulator, control unit and switchboard.

Muffler, exhaust gas heat exchanger, engine cooling systems with plate heat exchangers for pumps and cooler air duct radiators.

Control cabinets, MMC cabinets, power switches
