Hinged cultivator GRAND MAX 3, 5 m - stand S-shaped Bellota 70×12, leg 260 mm, Zaporizhzhia region.

Hidden cultivator GRAND MAX 3.5 m - rack S-shaped Bellota 70×12, leg 260 mm

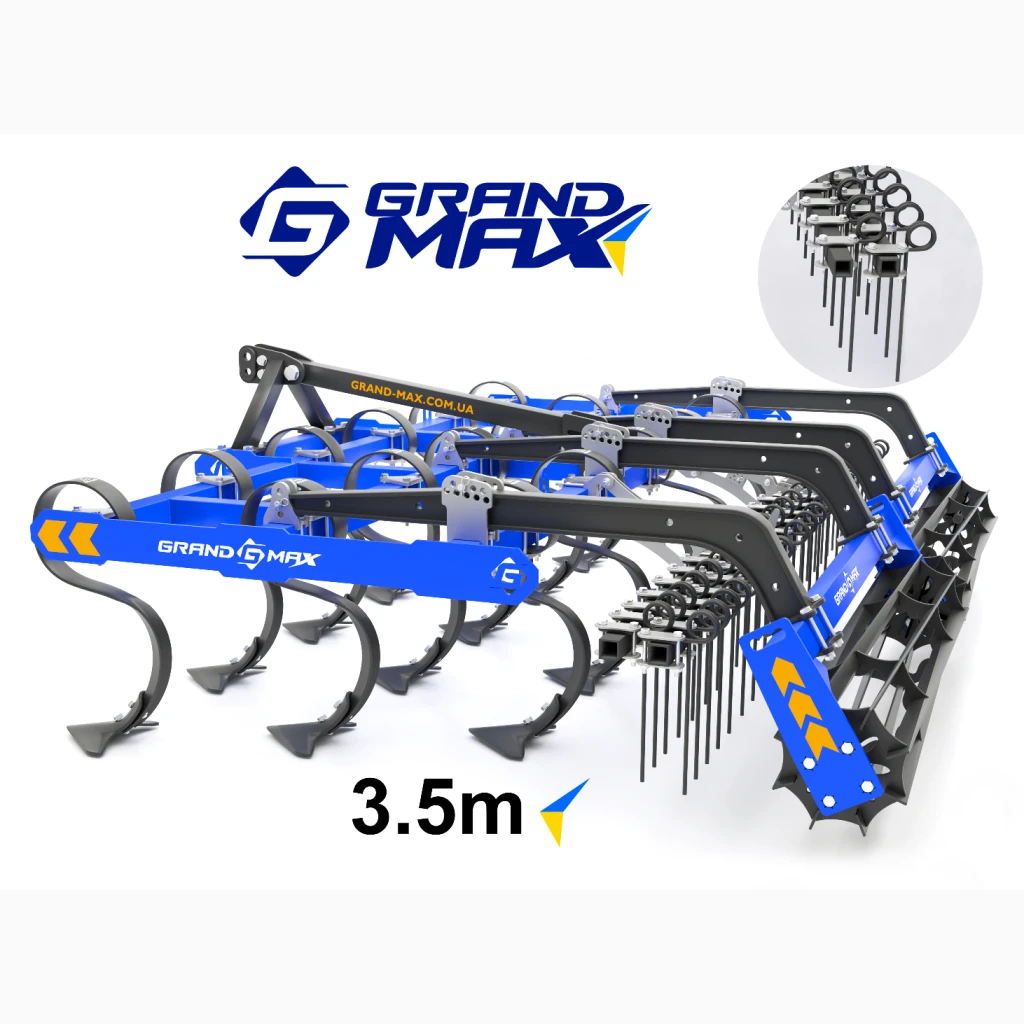

Cultivatorcontinuous cultivation mounted GRAND MAX Bellota 3.5 m - professional soil preparation in one pass

The GRAND MAX Bellota 3.5 m mounted cultivator is a modern high-performance continuous cultivation cultivator designed for high-quality pre-sowing soil preparation, weed control, field surface leveling and moisture sealing. The unit is equipped with original working bodies of Bellota (Spain), which guarantee a long service life, high quality of cultivation and minimal maintenance costs.

Cultivator KNS-3.5 from the manufacturer Grand Max allows you to perform several technological operations in one pass, which significantly increases the productivity of field work and reduces fuel costs.

The main advantages of the GRAND MAX Bellota 3.5 m cultivator

A modern cultivator for continuous cultivation combines four operations at once:

Effective destruction of weeds.

Bellota's arrow claws ensure high-quality cutting of weeds across the width of the grip and combing of the root system, which allows you to significantly reduce the use of herbicides.

Soil loosening

The cultivator performs intensive loosening of the upper layer of the soil without overturning the layer, improving the water-air regime and creating favorable conditions for the development of crops.

Leveling the field surface

The double-row spring rake qualitatively grinds lumps, distributes plant residues and forms an even seedbed.

Moisture conservation

Rollers compact the surface layer of the soil, contribute to the accumulation of moisture and reduce its evaporation.

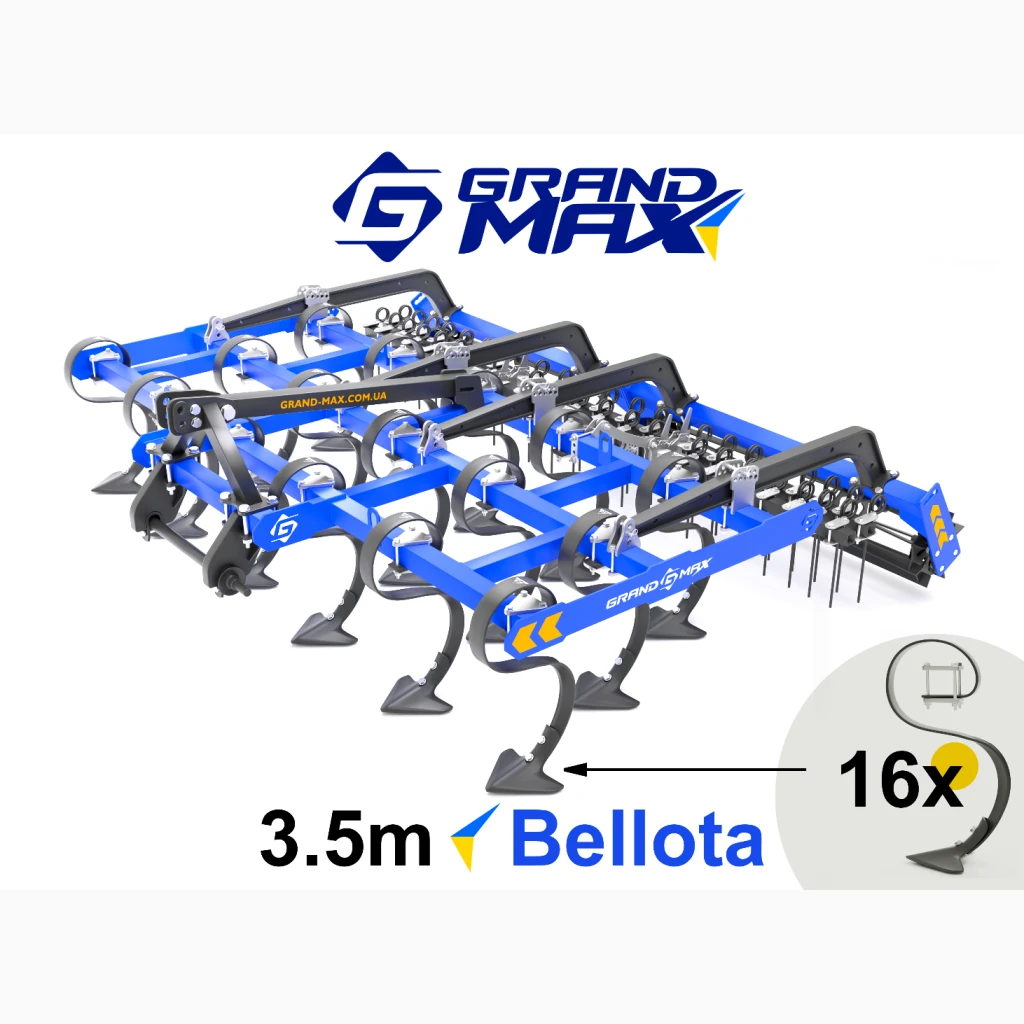

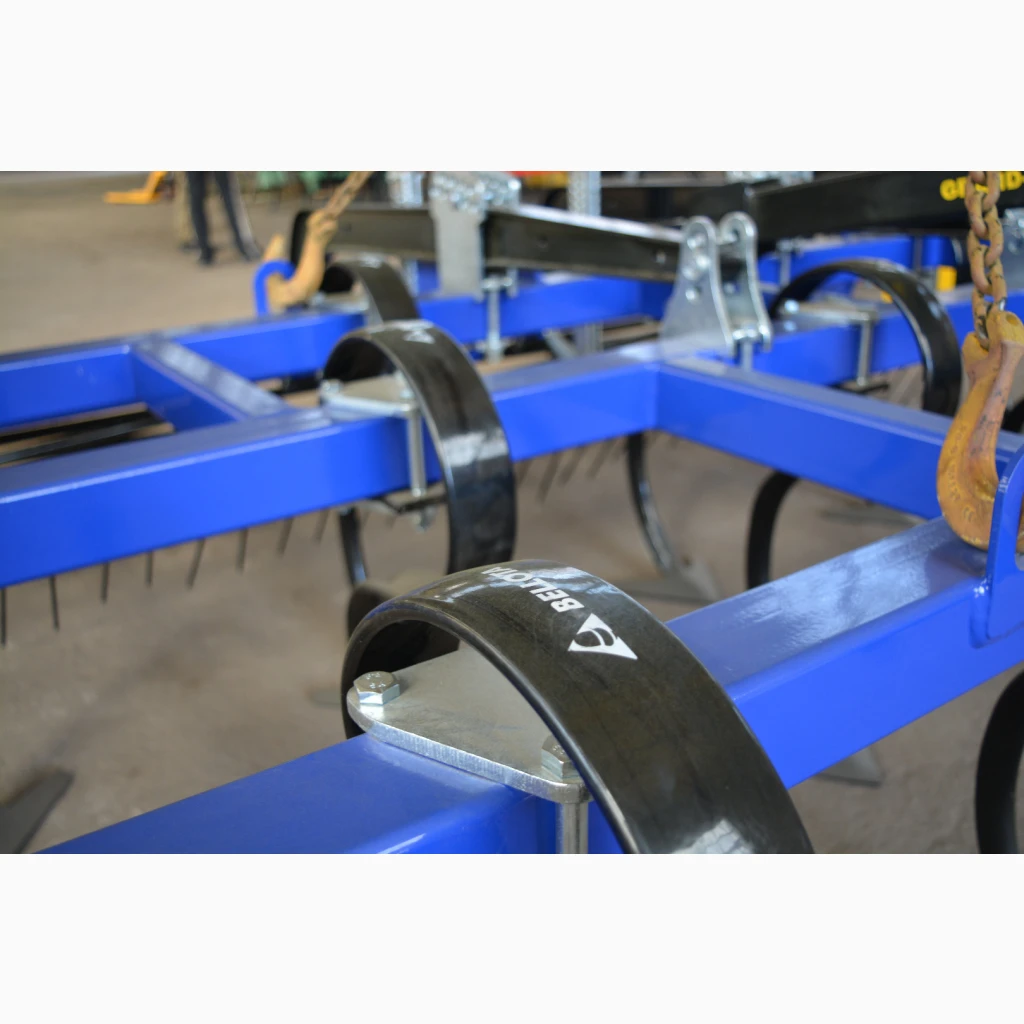

Working bodies Bellota (Spain)

The cultivator is equipped with original Bellota racks and legs, which are known for their reliability among Ukrainian farmers.

Benefits of Bellota:

✔ high wear resistance;

✔ resistance to shock loads;

✔ stable processing depth;

✔ long service life;

✔ quality trimming of weeds;

✔ minimal maintenance costs.

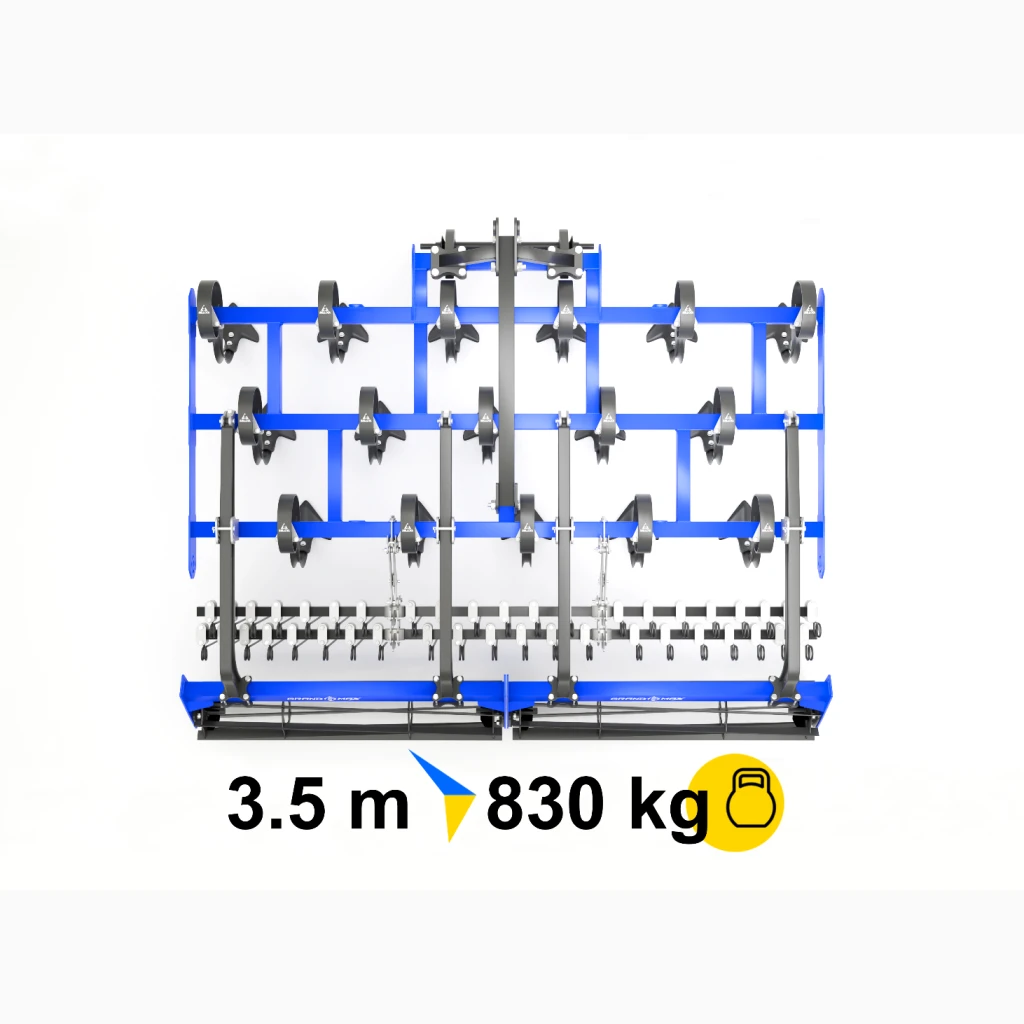

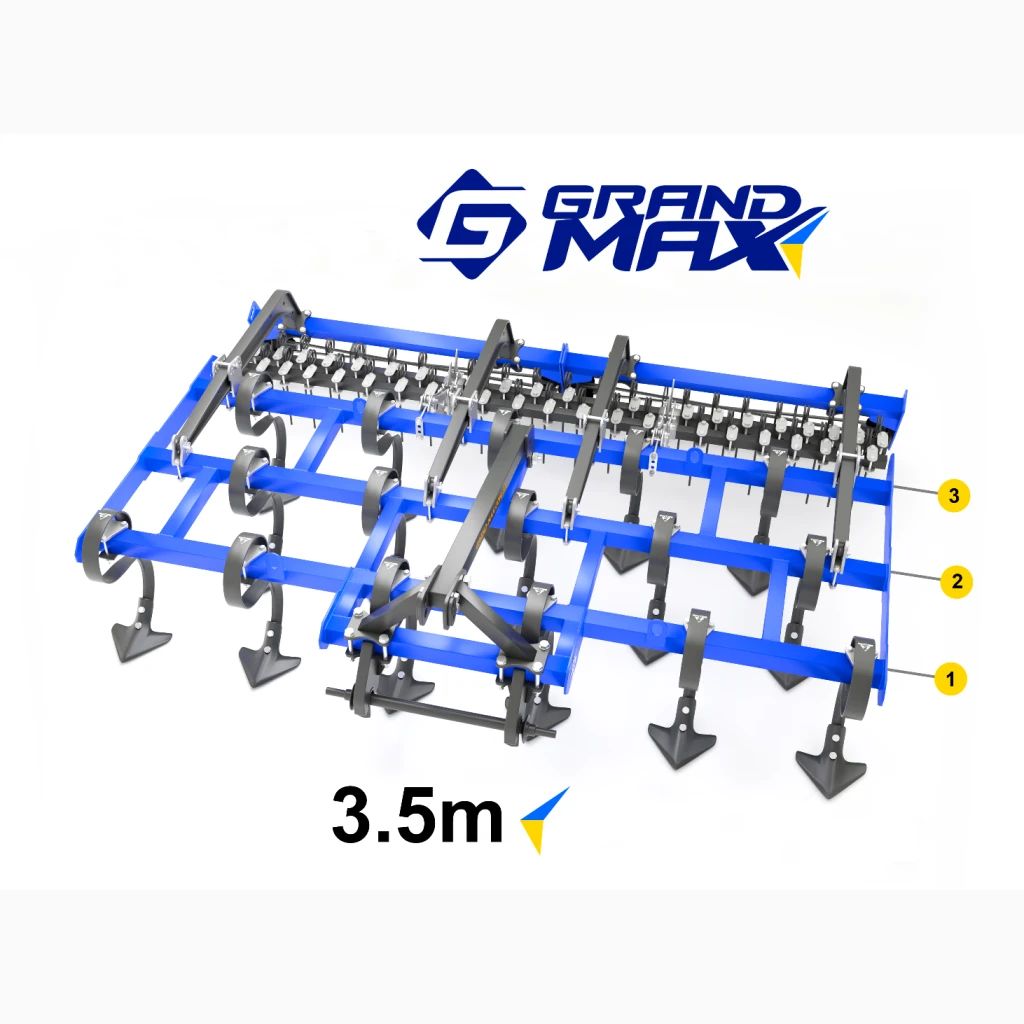

The three-row staggered arrangement of the working bodies ensures an even flow of soil and eliminates clogging with plant residues even under difficult working conditions.

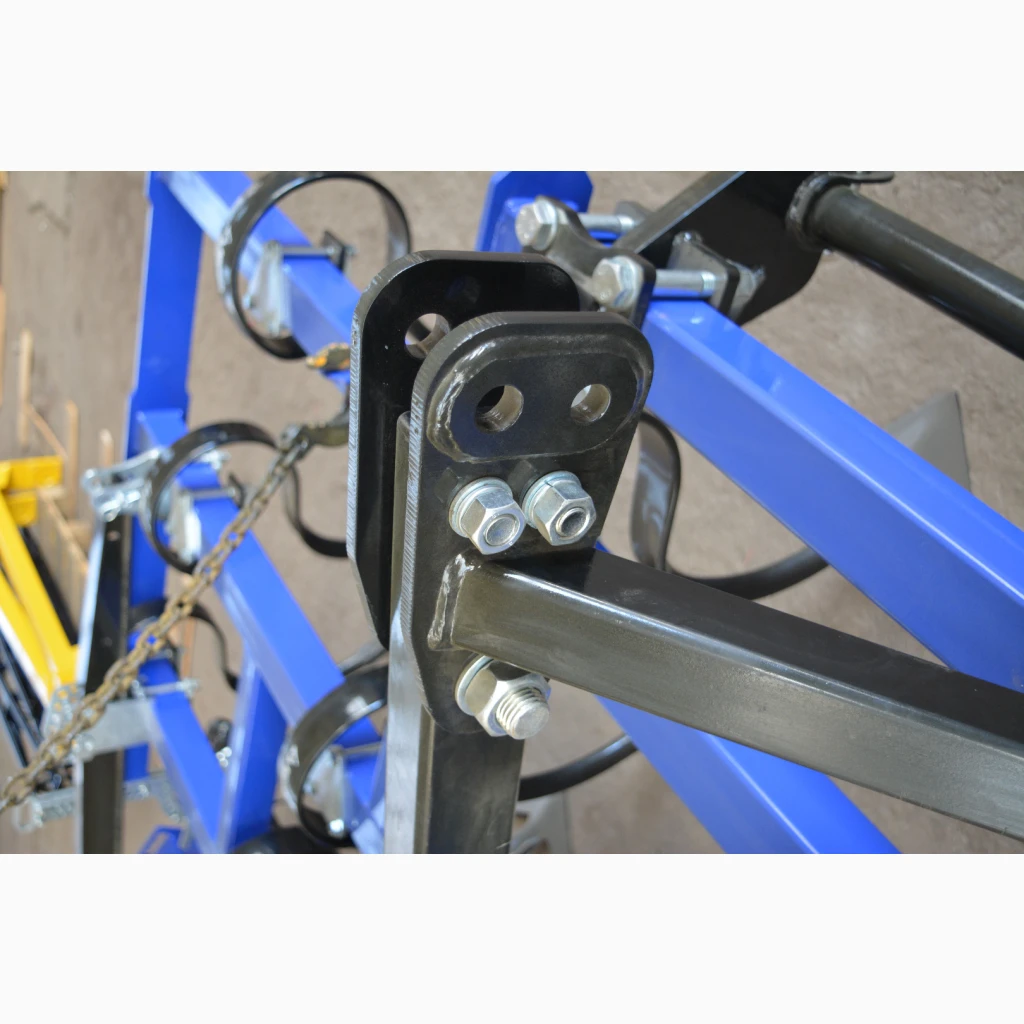

Reinforced design for long-term use.

The basis of the unit is a strong frame made of a profile pipe with a thickness of 5 mm.

Advantages of the design:

high rigidity;
reliability under heavy loads;
resistance to deformations;
long service life;
minimal repair costs.

The cultivator works successfully both on light and heavy soils.

Rake for perfect alignment

A two-row rake with a floating mode of operation provides:

crushing lumps;
leveling of the field surface;
distribution of harvest residues;
formation of a high-quality seedbed.

Spring teeth Ø10 mm are made of hardened steel grade 70, which guarantees their durability.

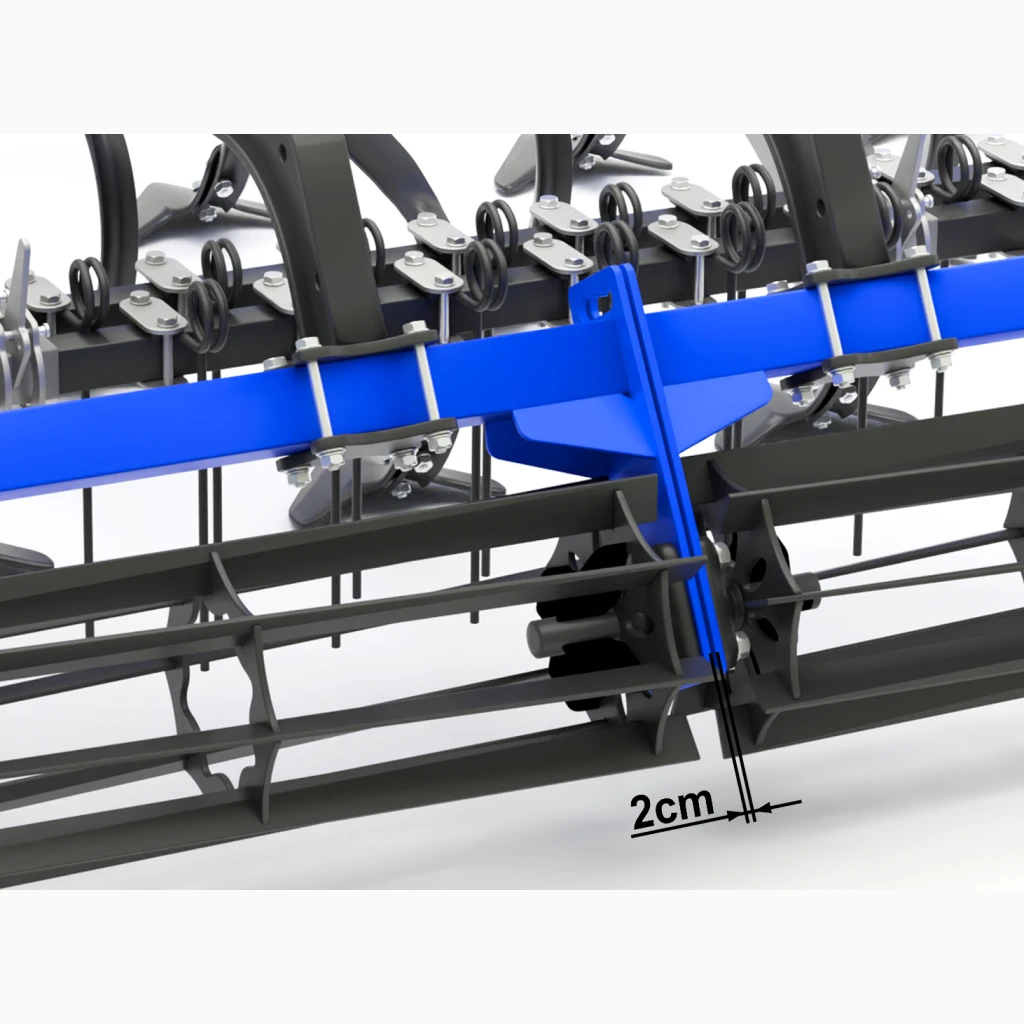

The choice of roller under any conditions
(//tractor-service.com)
GRAND MAX Bellota 3.5 m cultivator can be equipped with one of fourtypes of rollers:

pipe straight;
tubular spiral;
striped straight;
striped spiral.

This allows the unit to be adapted to different growing technologies and soil types.

Scope of application

Cultivator of continuous cultivation GRAND MAX Bellota 3.5 m is used for:

pre-sowing cultivation;
seedbed preparation;
continuous processing of steam;
mechanical destruction of weeds;
leveling of the field surface;
closing moisture;
spring and autumn tillage.

The unit works effectively after ploughing, discing and other types of main cultivation.

Technical characteristics
Parameter Value
Aggregation type Hinged, euro beam
GRAND MAX Bellota model 3.5 m
Type Cultivator of continuous cultivation
The width of capture is 3.5 m.
The number of rows is 3
The processing depth is 4–12 cm.
Recommended powertractor from 60 hp
Type of working body Bellota (Spain)
Spring Hard tooth 10×400 mm
Spring material Hardened steel grade 70
Number of working bodies 16
The pitch of the racks is 220 mm.
The distance between racks in a row is 660 mm.
Arrangement scheme Chess order
The thickness of the profile tube of the frame is 5 mm.
Double-edged rake, floating
The diameter of the rake teeth is Ø10 mm.
Grab material Steel 70
Dimensions (L×W×H) 3600 × 2800 × 1000 mm
Skating rink Two single Ø320 mm
Variants of the roller 4 types
Weight 830 kg
Country of manufacture Ukraine
Why you should buy the GRAND MAX Bellota 3.5 m cultivator

✔ original Bellota working bodies;

✔ three-row construction of increased efficiency;

✔ quality trimming of weeds;

✔ uniform loosening of the soil;

✔ minimum number of passes on the field;

✔ saving fuel and time;

✔ reinforced frame for long-term use;

✔ a wide selection of cats;

✔ high productivity;

✔ adaptation to Ukrainian business conditions.

Buy GRAND MAX Bellota 3.5 m single-tillage cultivator

If you are looking for a 3.5 m continuous cultivator, Bellota mounted cultivator, KNS-3.5 cultivator, pre-sowing cultivator, tractor cultivator from 60 hp, weed control cultivator or moisture seal cultivator, the GRAND MAX Bellota 3.5 m model will be a good investment for your farm.

Order a cultivator directly from the manufacturer Grand Max with delivery throughout Ukraine and receive professional equipment for consistently high yields.
