Hinged cultivator GRAND MAX 3, 0 m - Bellota S-shaped stand 70×12, leg 260 mm, Zaporizhia region.

Cultivatorcontinuous cultivation mounted GRAND MAX Bellota 3.0 m - pre-sowing cultivation, soil loosening and effective weed control

The GRAND MAX Bellota 3.0 m mounted cultivator is a modern three-row continuous tillage cultivator designed for pre-sowing soil preparation, mechanical weeding, field surface leveling and moisture conservation. Thanks to the use of original Bellota (Spain) working bodies, the unit ensures high quality processing, durability and stable operation even under conditions of intensive operation.

The GRAND MAX 3.0 m cultivator is successfully used on farms and agro-enterprises to prepare the soil for sowing grain, technical and vegetable crops. The design of the unit allows you to perform several agrotechnical operations in one pass, which significantly reduces fuel consumption and increases the productivity of field work.

Purpose of GRAND MAX Bellota cultivator 3.0 m

Cultivator of continuous processing is used for:

pre-sowing cultivation;
preparation of a high-quality seed bed;
continuous processing of steam;
mechanical destruction of weeds;
soil loosening without layer turnover;
destruction of the soil crust;
closing moisture;
leveling of the field surface;
crushing lumps after plowing;
wrapping plant remains.

High-quality soil cultivation contributes to the uniform emergence of crops and creates optimal conditions for the development of the root system of plants.

Four operations in one pass
Destruction of weeds

Bellota's arrow legs effectively cut weeds across the entire width of the catch and comb their root system. This makes it possible to reduce the number of treatments with herbicides and reduce the costs of plant protection.

Soil loosening

The cultivator qualitatively loosens the upper layer of the soil without overturning the layer, improving aeration and water permeability.

Leveling the surface

A double-row rake with spring teeth effectively destroys clods and creates an even field surface for further sowing.

Soil compaction

The rear rollers form an optimal structure of the upper layer of the soil, contribute to the accumulation of moisture and reduce its evaporation.

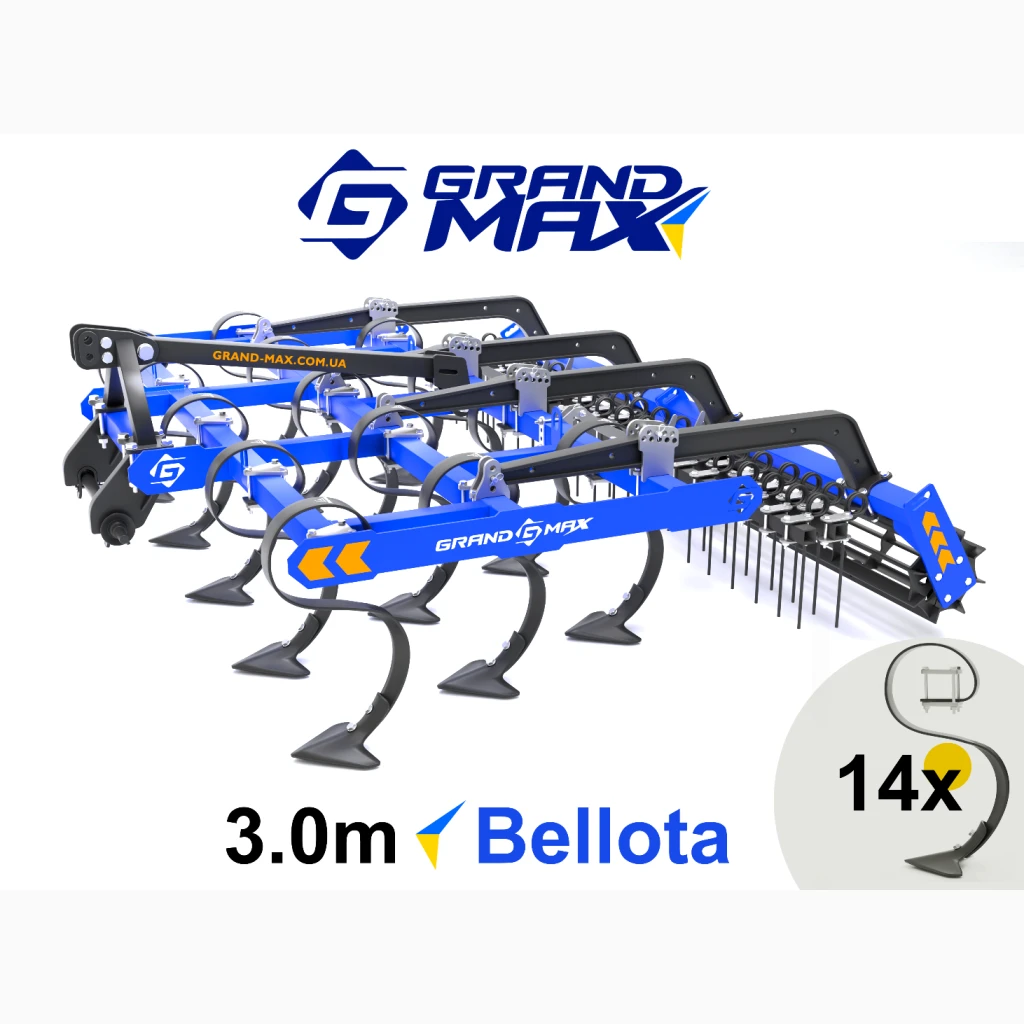

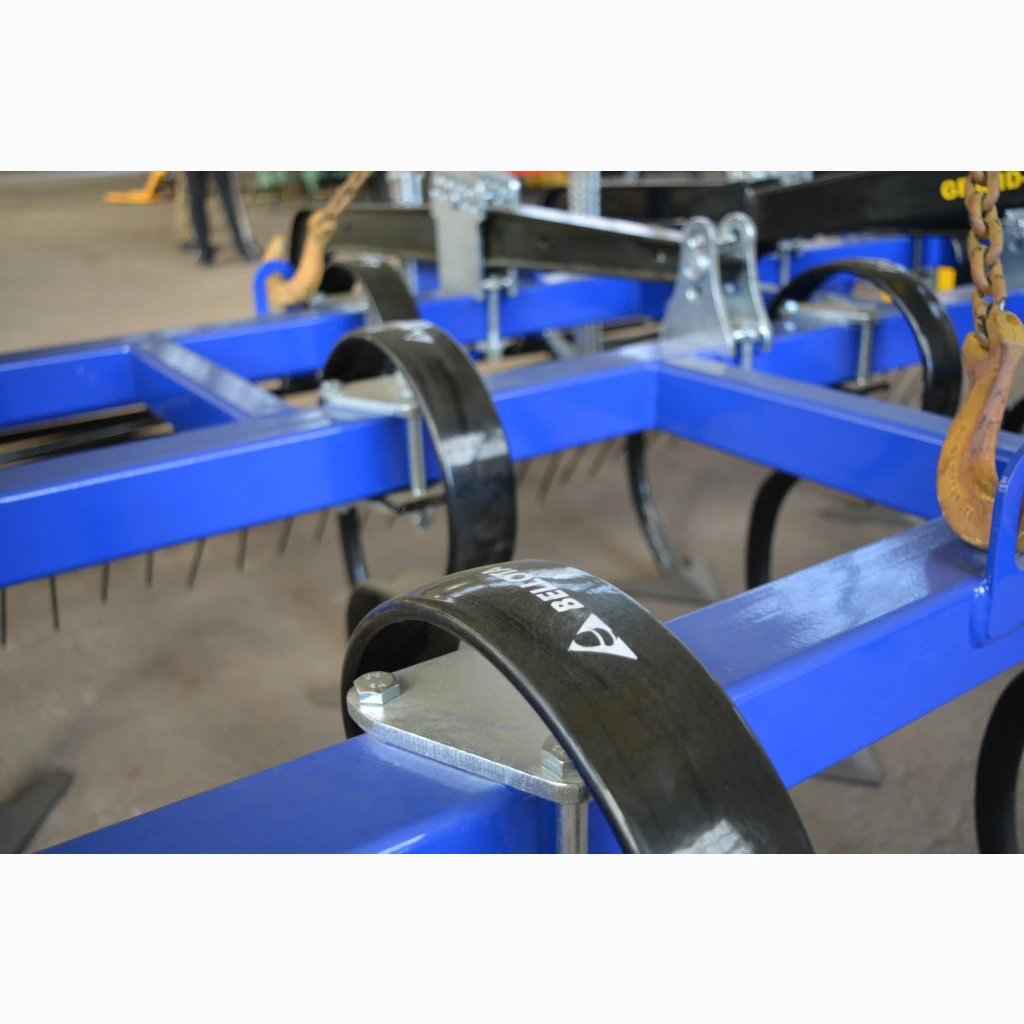

Bellota working bodies - European quality and durability

The cultivator is equipped with original Bellota working bodies (Spain), which are known for their strength and resistance to wear.

Advantages of Bellota working organs:

✔ high metal hardness;

✔ long service life;

✔ resistance to shock loads;

✔ stable processing depth;

✔ quality cutting of weeds;

✔ minimal maintenance costs.

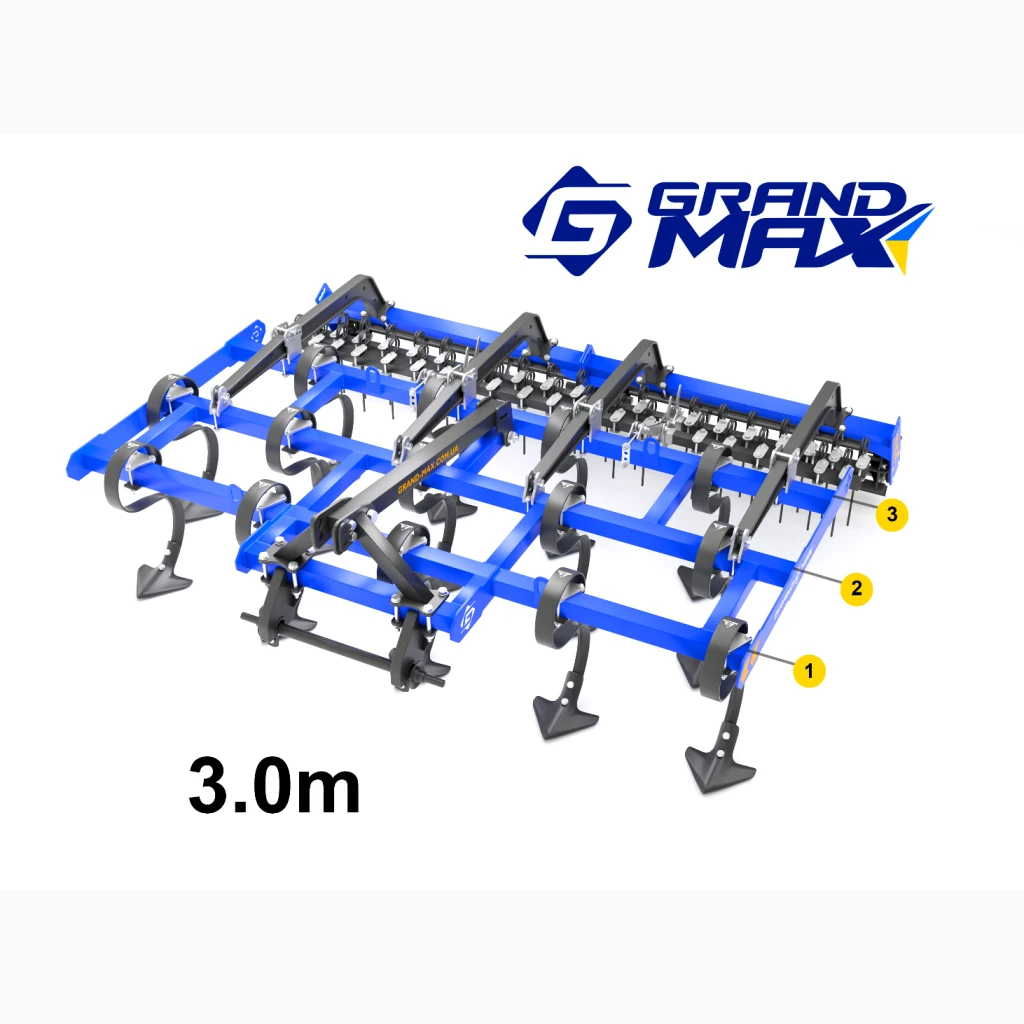

The three-row staggered arrangement of the racks ensures uniform passage of the soil and prevents clogging with plant residues.

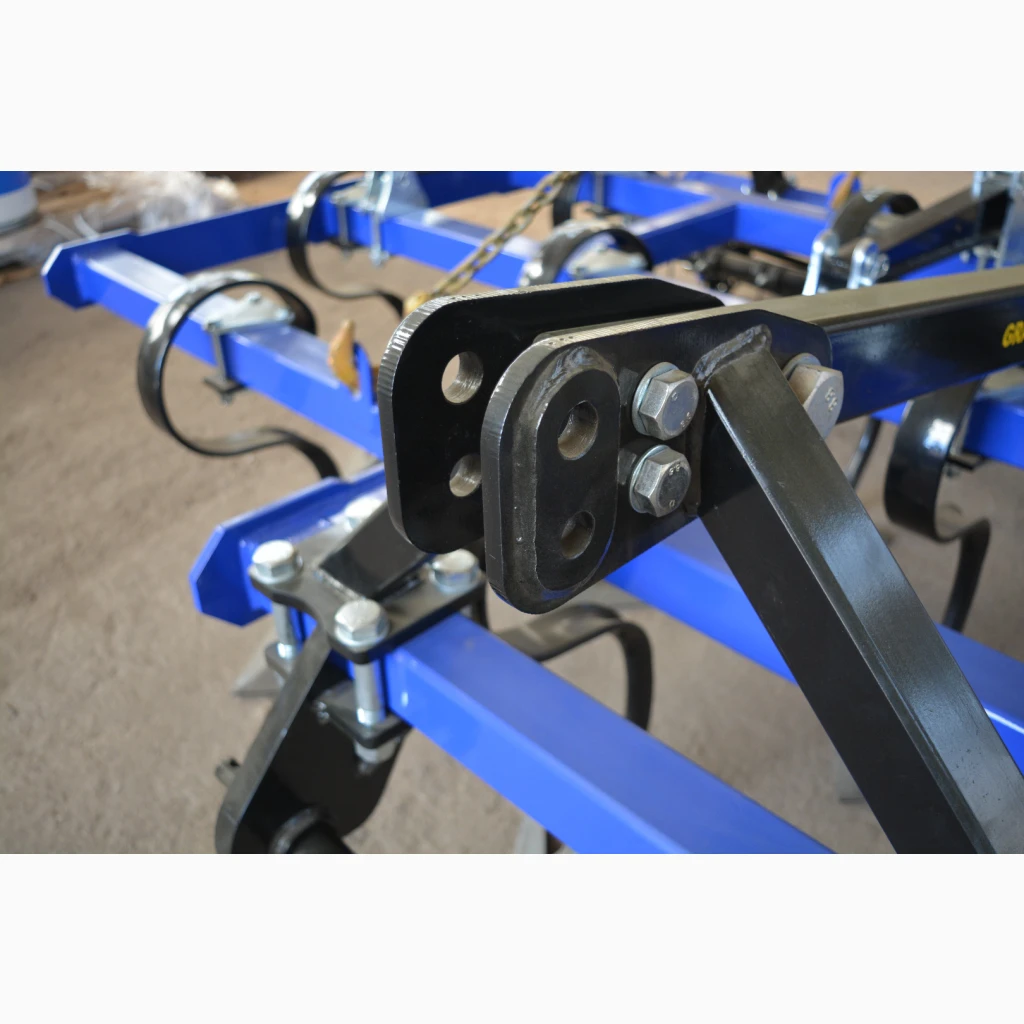

Reinforced frame for long-term use

The basis of the cultivator is a strong frame made of a profile pipe with a thickness of 5 mm, which can withstand significant loads during operation.

Advantages of the design:

high rigidity;
resistance to deformations;
reliability in difficult field conditions;
longevity;
minimal service costs.

Reinforced design guarantees stable operation even on heavy soils.

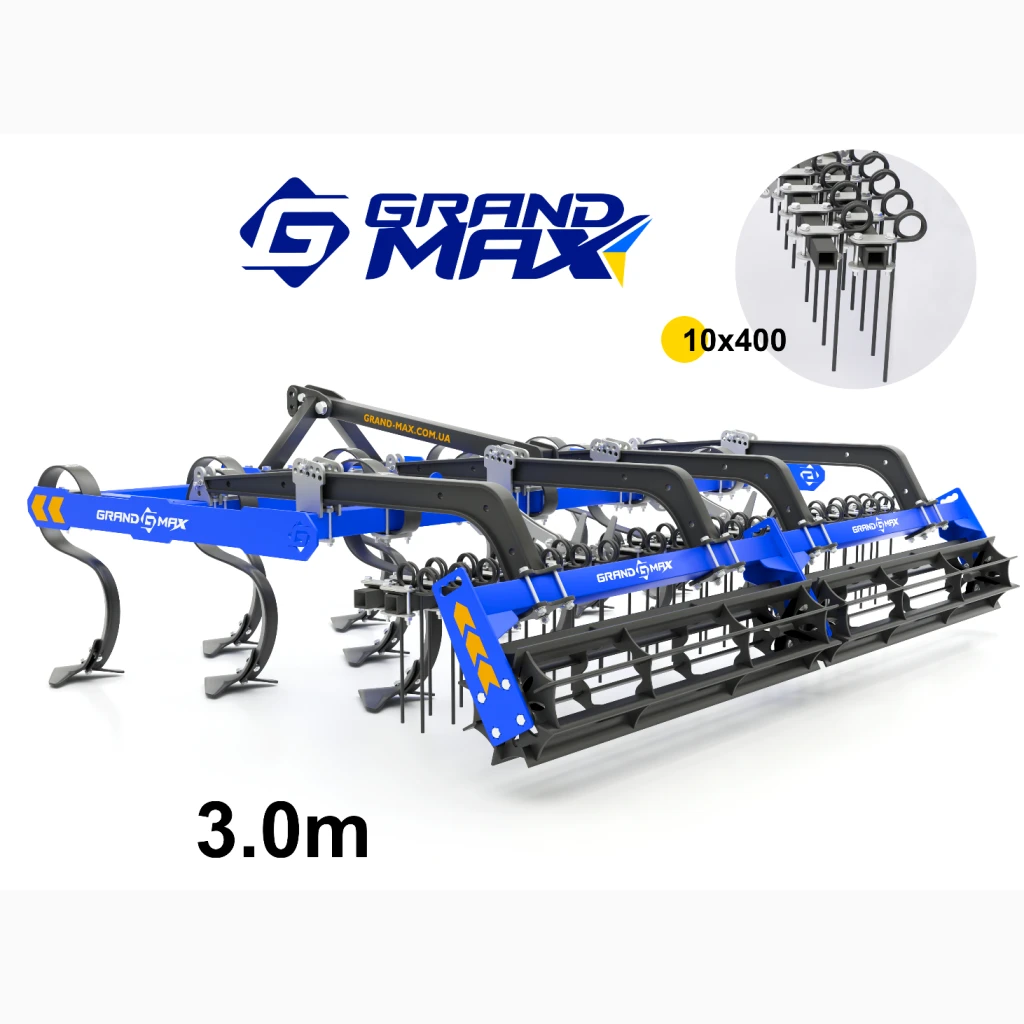

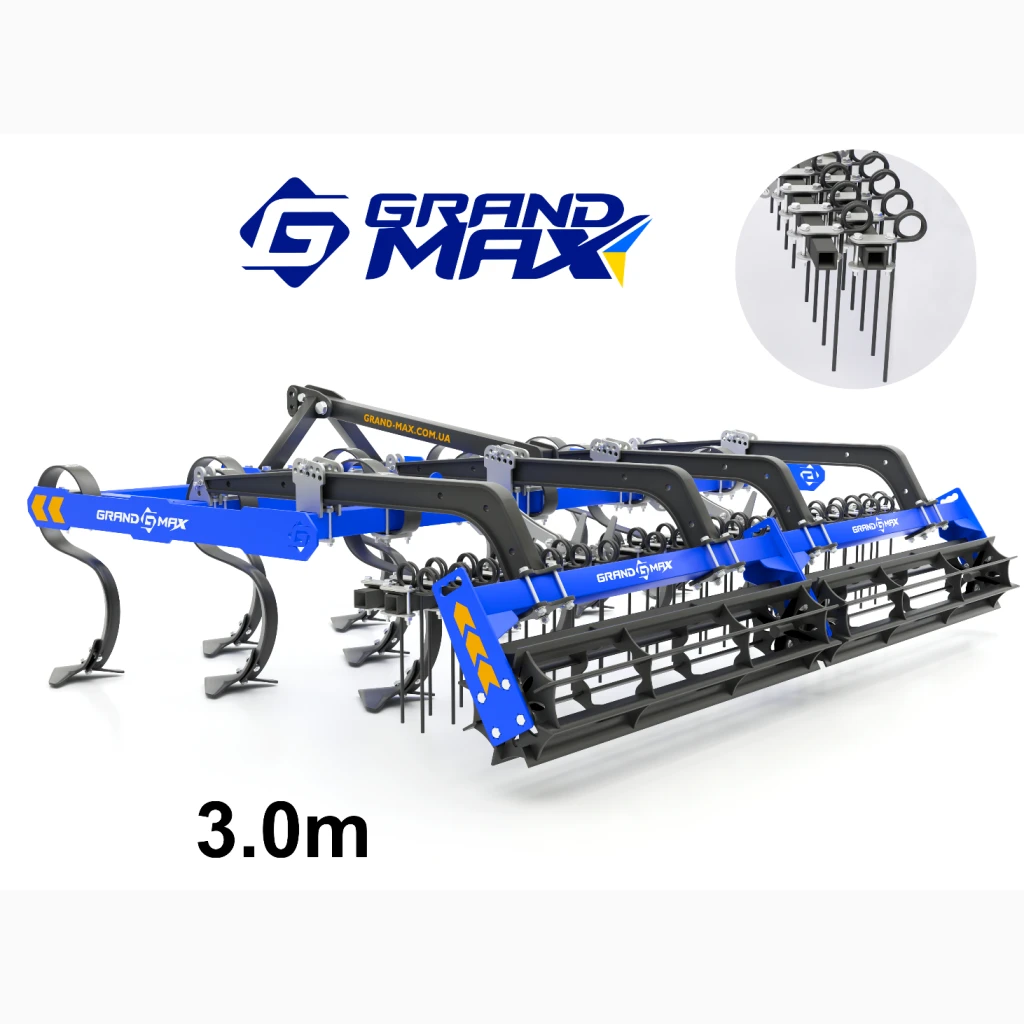

Double-row rake for high-quality leveling

The cultivator is equipped with a two-row rake with a floating mode of operation.

Its functions:

leveling of the field surface;
destruction of lumps;
distribution of plant remains;
preparation of a high-quality seed bed;(//tractor-service.com)
improvement of soil structure.

The spring teeth are made of hardened steel grade 70, which ensures their high strength and long service life.

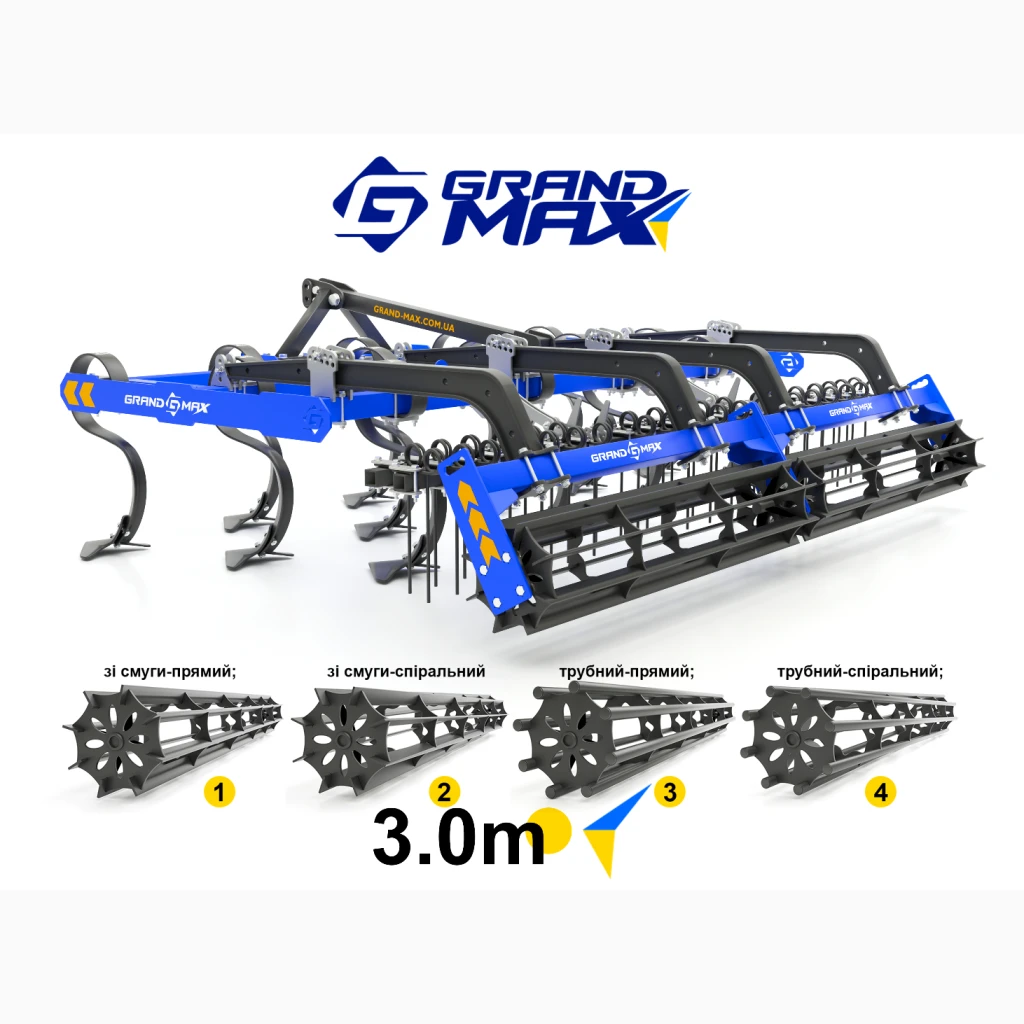

Selection of a rolling pin under farm conditions

To achieve maximum efficiency, the cultivator can be equipped with various types ofrolling rollers:

pipe straight;
tubular spiral;
striped straight;
striped spiral.

This choice allows you to adapt the unit to different types of soil and crop cultivation technologies.

Where the GRAND MAX Bellota 3.0 m cultivator is used

Cultivator works efficiently:

after plowing;
after disking;
in pairs;
for grain crops;
under the sunflower;
under corn;
under soy;
under rape;
for vegetable crops.

Thanks to its versatility, the unit is suitable for both small farms and large agricultural enterprises.

The main advantages of the GRAND MAX Bellota 3.0 m cultivator

✔ original working bodies Bellota (Spain);

✔ three-row construction;

✔ checker arrangement of racks;

✔ effective destruction of weeds;

✔ high-quality loosening of the soil;

✔ simultaneous execution of several operations;

✔ reinforced frame 5 mm;

✔ two-row rake with floating mode;

✔ choice of roller type;

✔ low operating costs;

✔ high performance;

✔ reliability and durability.

Technical characteristics of the GRAND MAX Bellota 3.0 m cultivator
Parameter Value
Aggregation type Hinged, euro beam
Model GRAND MAX Bellota 3.0 m
Type Cultivator of continuous cultivation
Gripping width 3.0 m
The number of rows is 3
The processing depth is 4–12 cm.
Recommended powertractor from 60 hp
Type of working body Bellota (Spain)
Number of working bodies 14
The step of rack placement is 220 mm.
Placement scheme Chess order
The thickness of the profile tube of the frame is 5 mm.
Double-edged rake, floating
The diameter of the rake tooth is Ø10 mm.
Material of teeth Hardened steel grade 70
Skating rink Two single Ø320 mm
Variants of execution of the roller 4 types

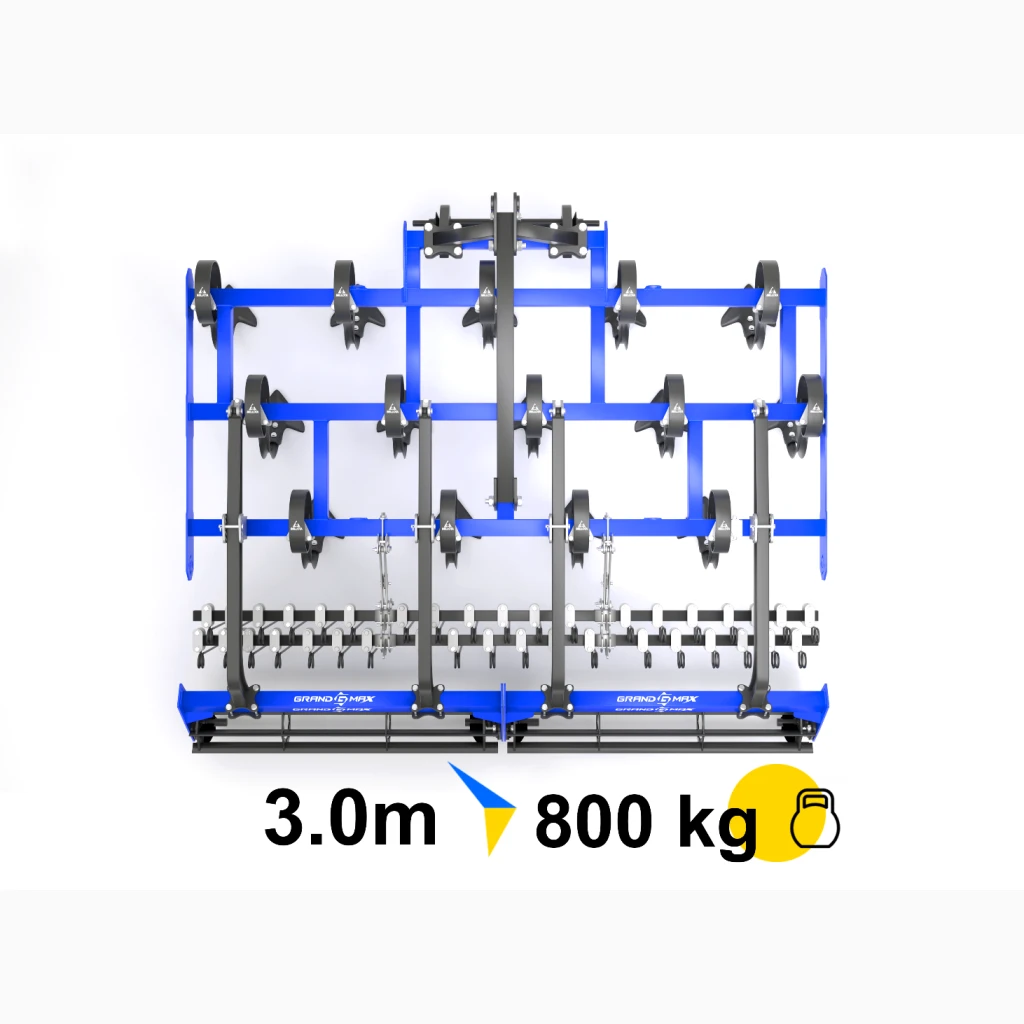

Weight 800 kg
Country of manufacture Ukraine
Buy GRAND MAX Bellota 3.0 m single-till cultivator in Ukraine

Whether you are looking for a 3m continuous cultivator, a Bellota mounted cultivator, a pre-sowing cultivator, a tractor cultivator from 60 hp, a weed control cultivator or a steam cultivator, the GRAND MAX Bellota 3.0m model will be a good solution for your farm.

The unit allows you to prepare the field for sowing in a high-quality manner, reduce the number of passes of the equipment, reduce fuel consumption and obtain evenly cultivated soil for the formation of a high yield.

You can buy the GRAND MAX Bellota 3.0 m cultivator from the manufacturer Grand Max Agro with delivery throughout Ukraine. Reliable Ukrainian equipment for modern and efficient agriculture.
