KNS-2, 6m - Bellota - Cultivator hinged continuous 3-row 2.6 m - Grand Max, Zaporizhia region.

Cultivatorcontinuous cultivation mounted GRAND MAX Bellota 2.6 m (3-row) - pre-sowing cultivation, soil loosening and weed control

The GRAND MAX Bellota 2.6 m continuous cultivation cultivator is a modern mounted cultivator for pre-sowing soil cultivation, which combines high productivity, structural reliability and high-quality field preparation for sowing. The unit is designed for continuous cultivation, leveling the surface, destroying weeds and creating an optimal structure of the seed bed in one pass.

Thanks to the use of Bellota working bodies, a reinforced frame and an effective soil leveling system, the cultivator demonstrates stable work on various types of soil and provides high-quality field preparation for grain, technical and vegetable crops.

What is the GRAND MAX Bellota 2.6 m cultivator intended for?

The mounted cultivator is used to perform a complex of agrotechnical operations:

pre-sowing cultivation;
continuous tillage;
mechanical destruction of weeds;
loosening of the top layer of the soil;
leveling of the field surface;
seedbed preparation;
closing moisture;
steam processing;
crushing lumps after plowing;
improvement of soil structure.

The cultivator of continuous cultivation GRAND MAX allows you to significantly reduce the number of passes of the equipment on the field and reduce the costs of soil cultivation.

Four operations in one pass

One of the main advantages of the model is the possibility of simultaneous execution of several operations.

Effective weed control

Bellota's arrow feet efficiently cut the root system of weeds across the width of the grip, providing mechanical protection of crops without the use of herbicides.

Soil loosening

The cultivator performs uniform loosening without overturning the soil layer, which allows you to preserve the natural structure of the soil and improve aeration.

Leveling the field surface

The double-row spring rake effectively destroys clods, distributes plant residues and levels the surface before sowing.

Rolling and moisture preservation

The rear roller compacts the top layer of the soil, forms a high-quality seedbed and reduces moisture loss due to evaporation.

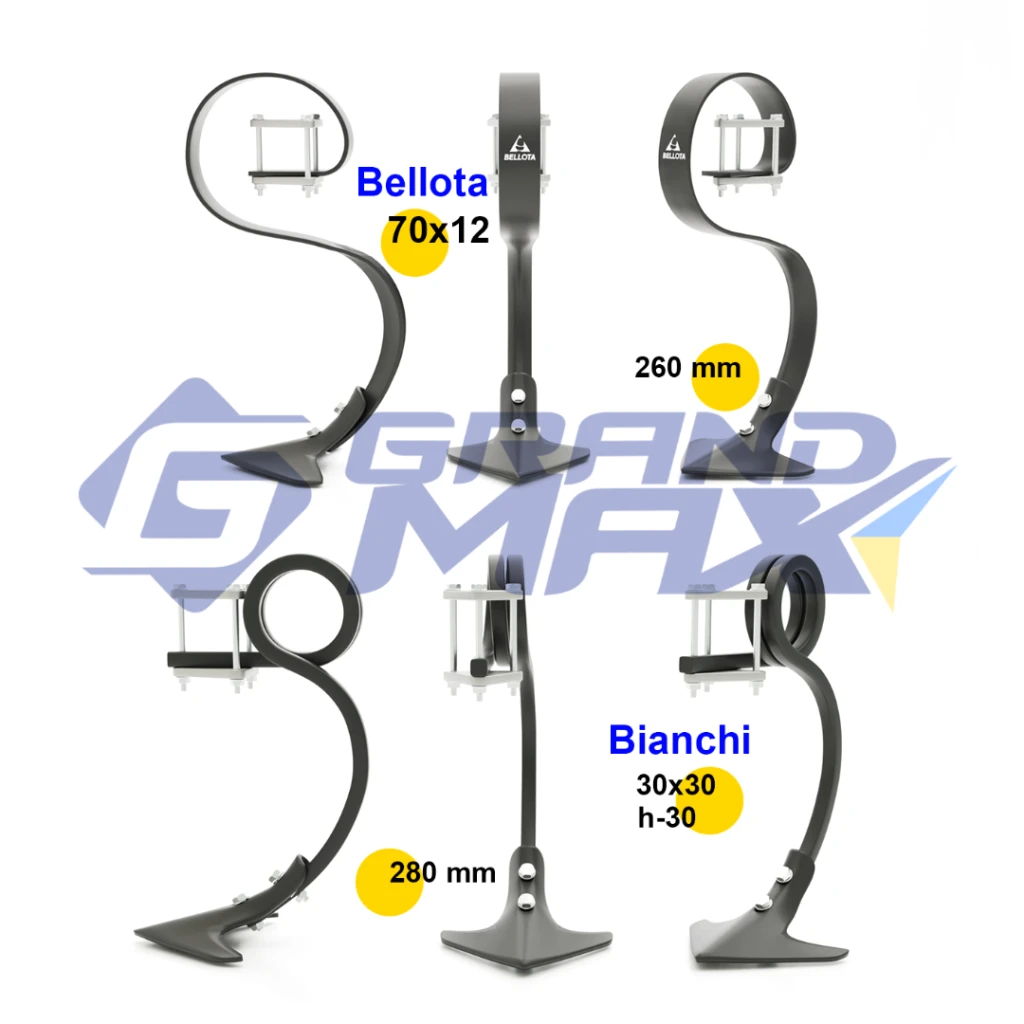

Bellota working bodies — high wear resistance and durability.

The GRAND MAX cultivator is equipped with original Bellota working bodies, which are well known to farmers for their strength and resistance to wear.

Advantages of Bellota racks:

high metal strength;
long resource of work;
resistance to shock loads;
stable working depth;
high-quality loosening of the soil;
effective work on different types of fields.

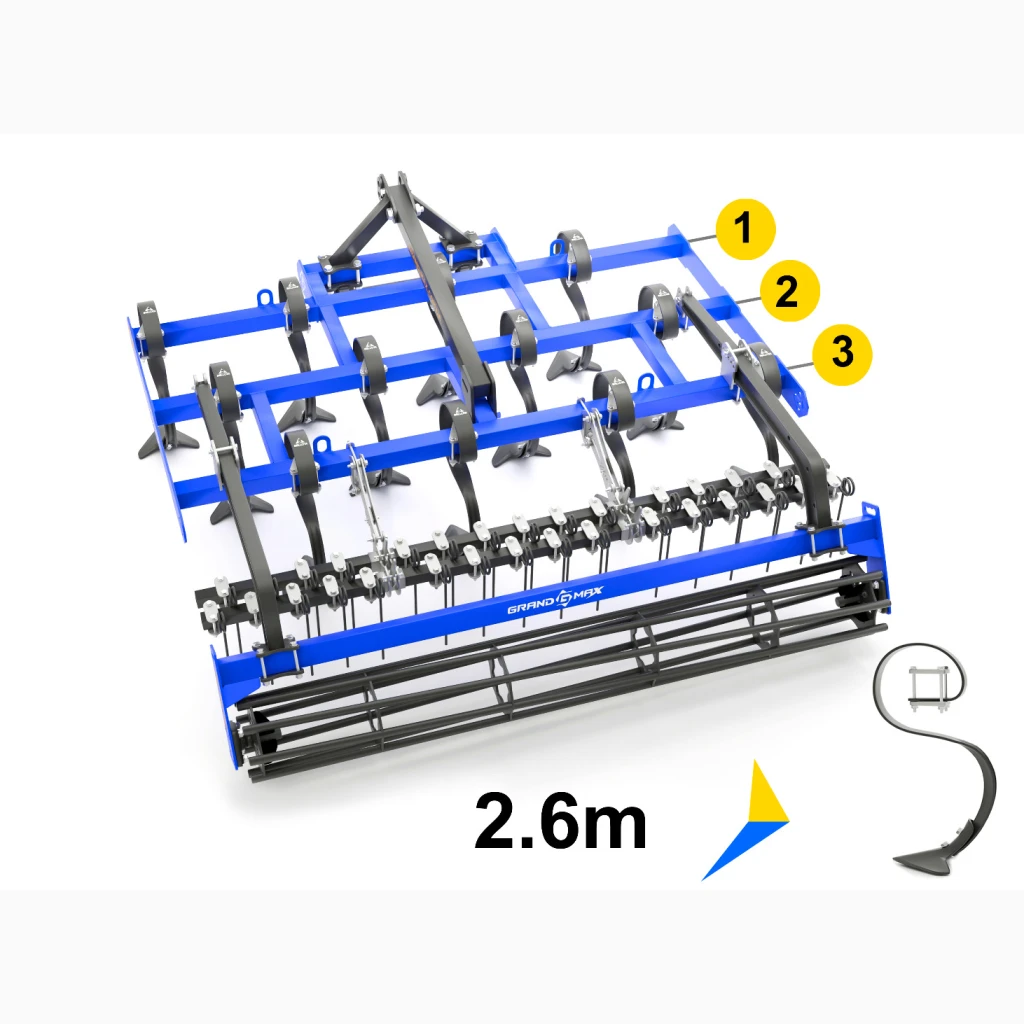

Thanks to the three-row staggered arrangement of the working bodies, an even soil flow is ensured without clogging with plant remains even under difficult working conditions.

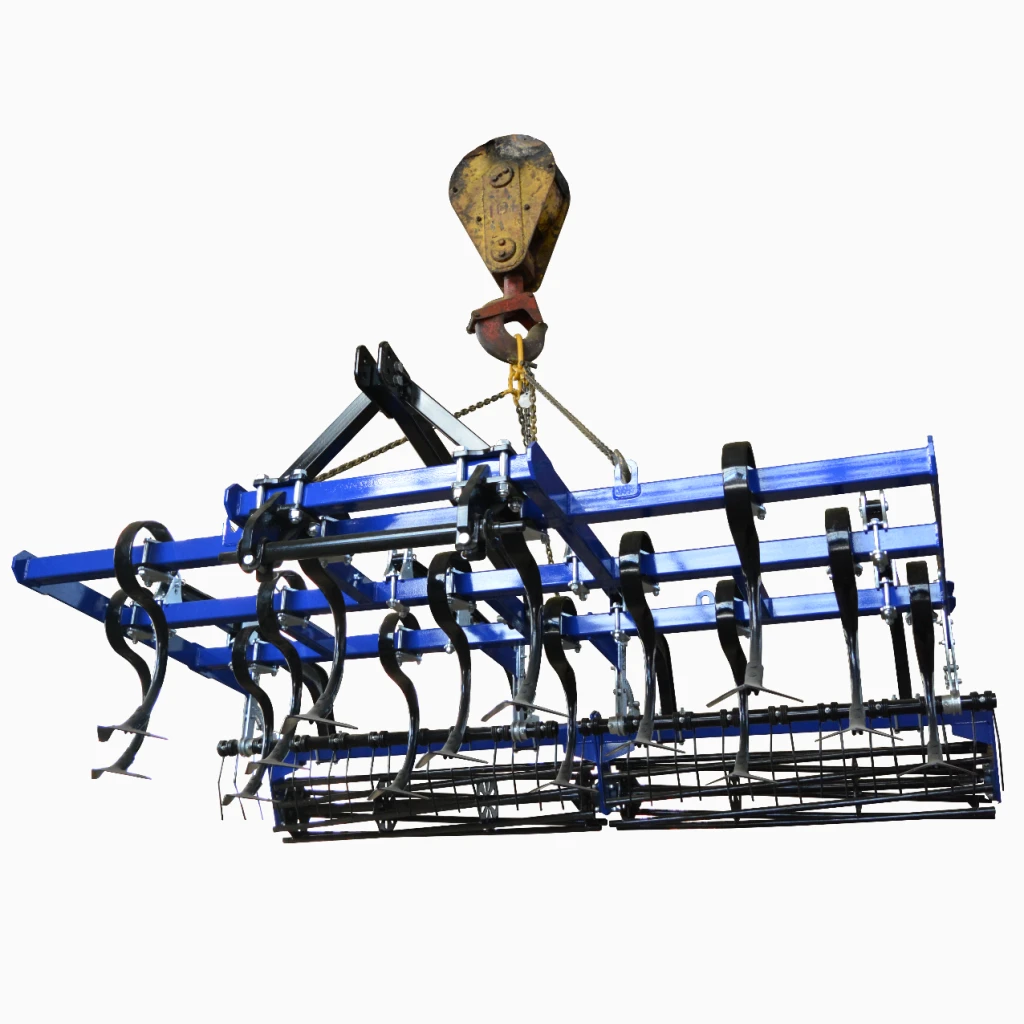

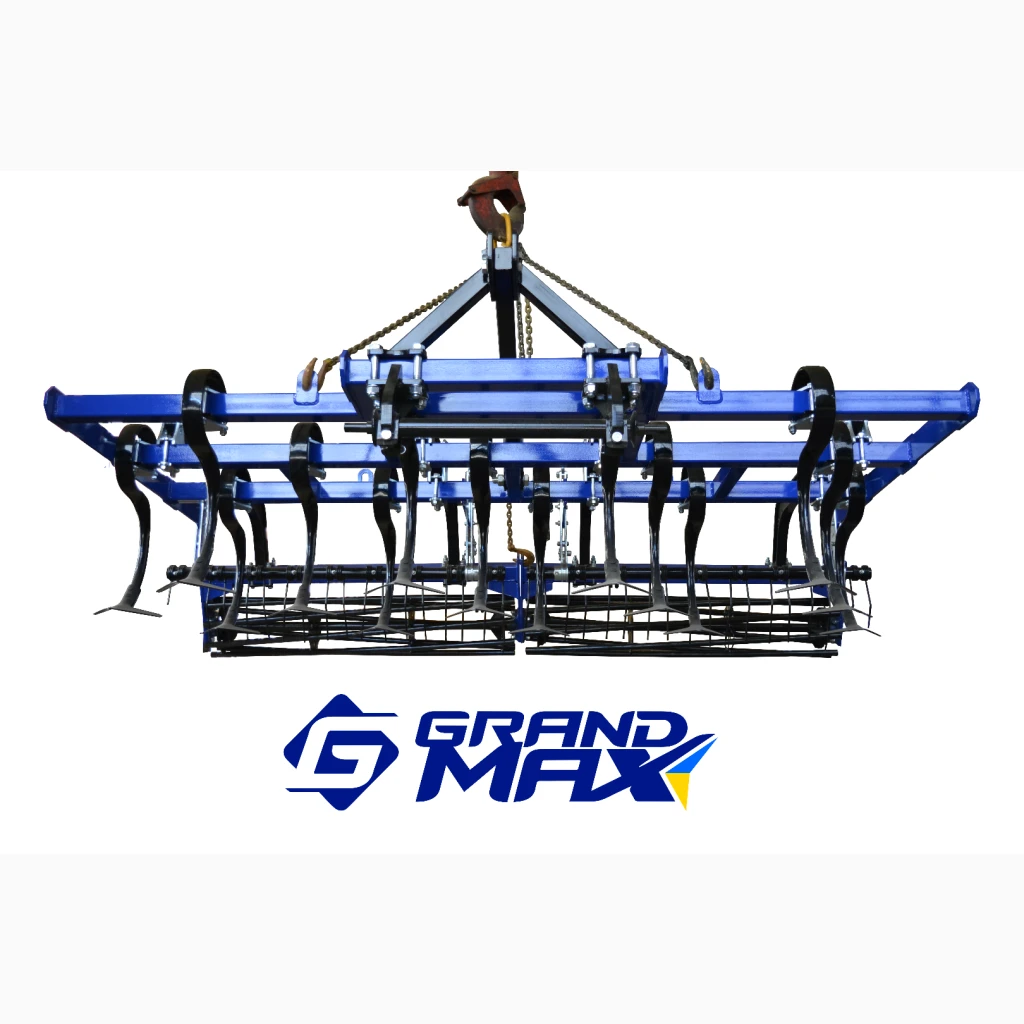

Reinforced frame design

The basis of the unit is a strong frame made of a profile pipe with a thickness of 5 mm.

Advantages of the design:

✔ increased rigidity;

✔ resistance to loads;

✔ long service life;

✔ reliable operation on uneven fields;

✔ minimal maintenance costs.

The reinforced design allows effective work even on heavy soils and large areas.

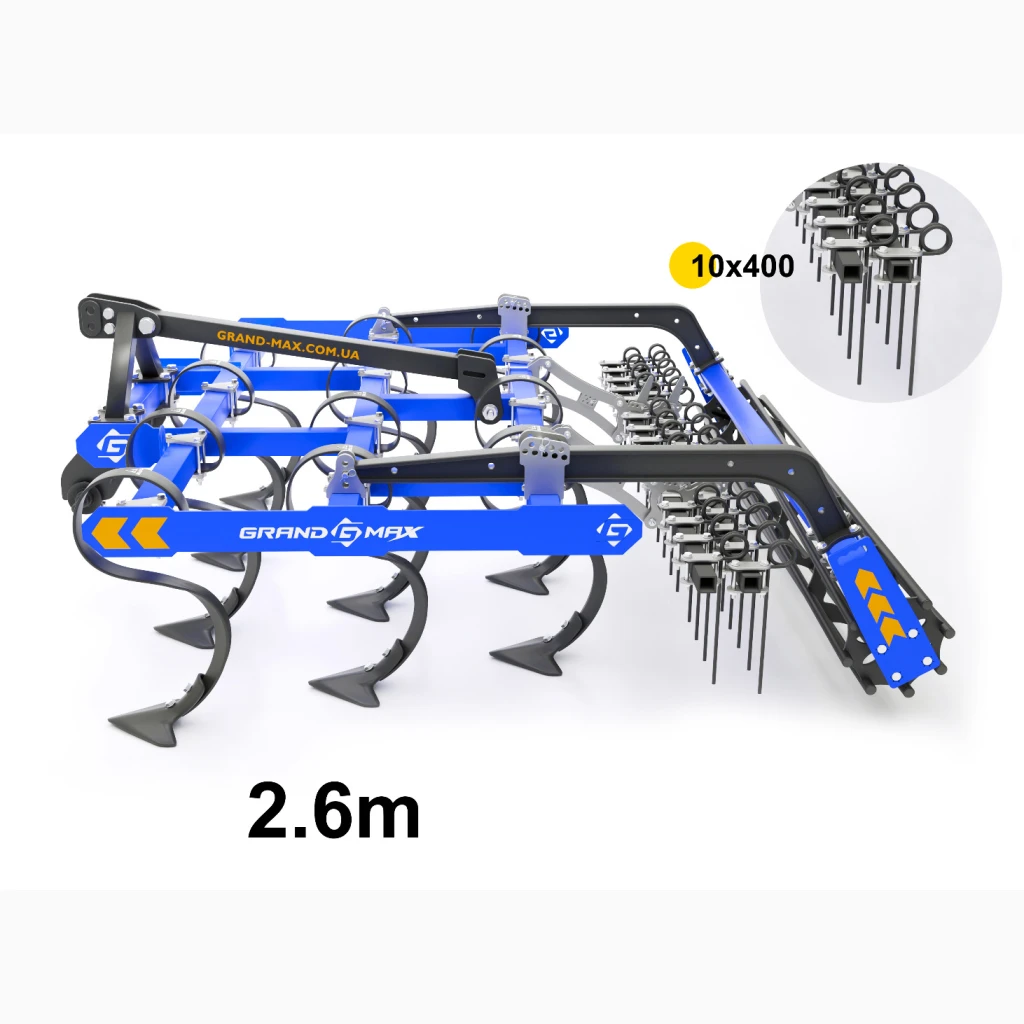

Double-row rake for high-quality leveling

The cultivator is equipped with a modern two-row rake with a floating mode of operation.

Main advantages:

qualitative alignment of the field;
crushing lumps;
distribution of plant residues;
preparation of an ideal seed bed;
improvement of the structure of the surface layer.
(//tractor-service.com)
The spring teeth are made of hardened grade 70 steel and are characterized by high wear resistance.

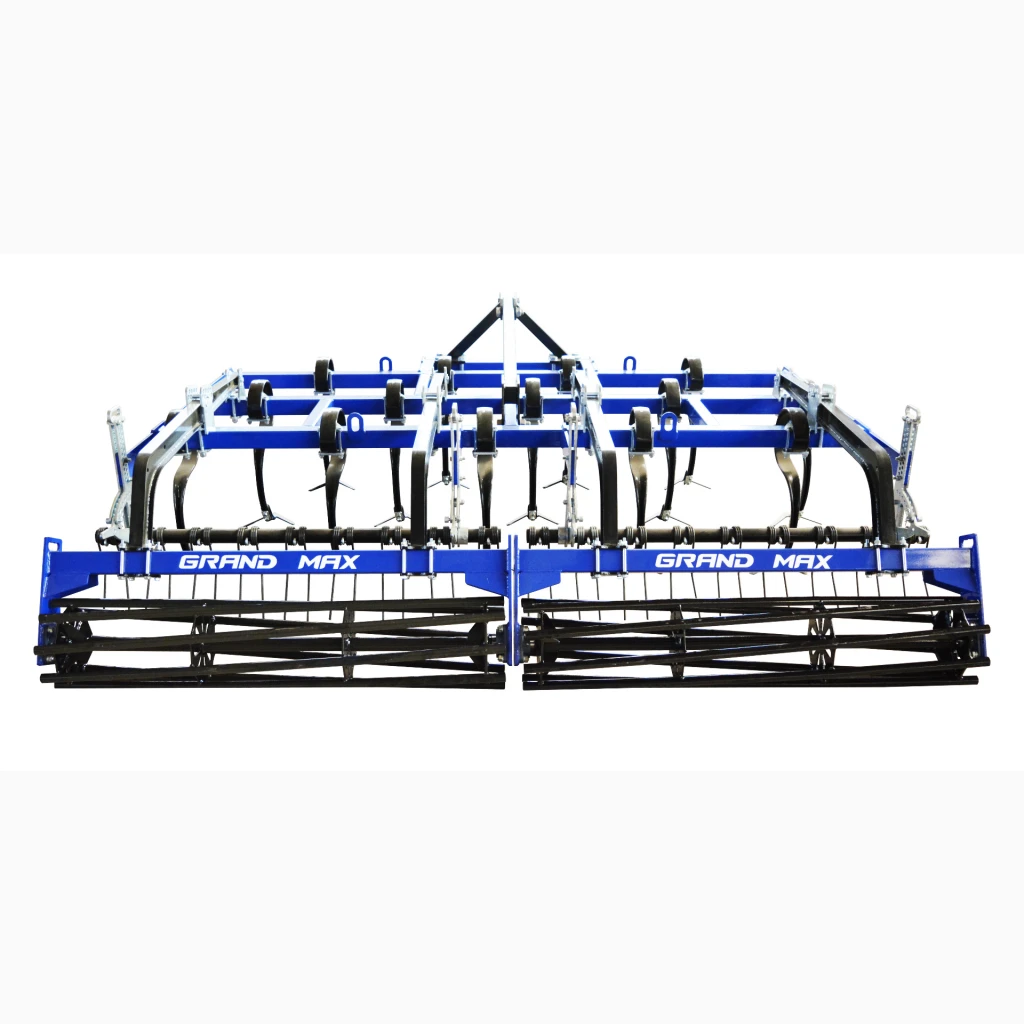

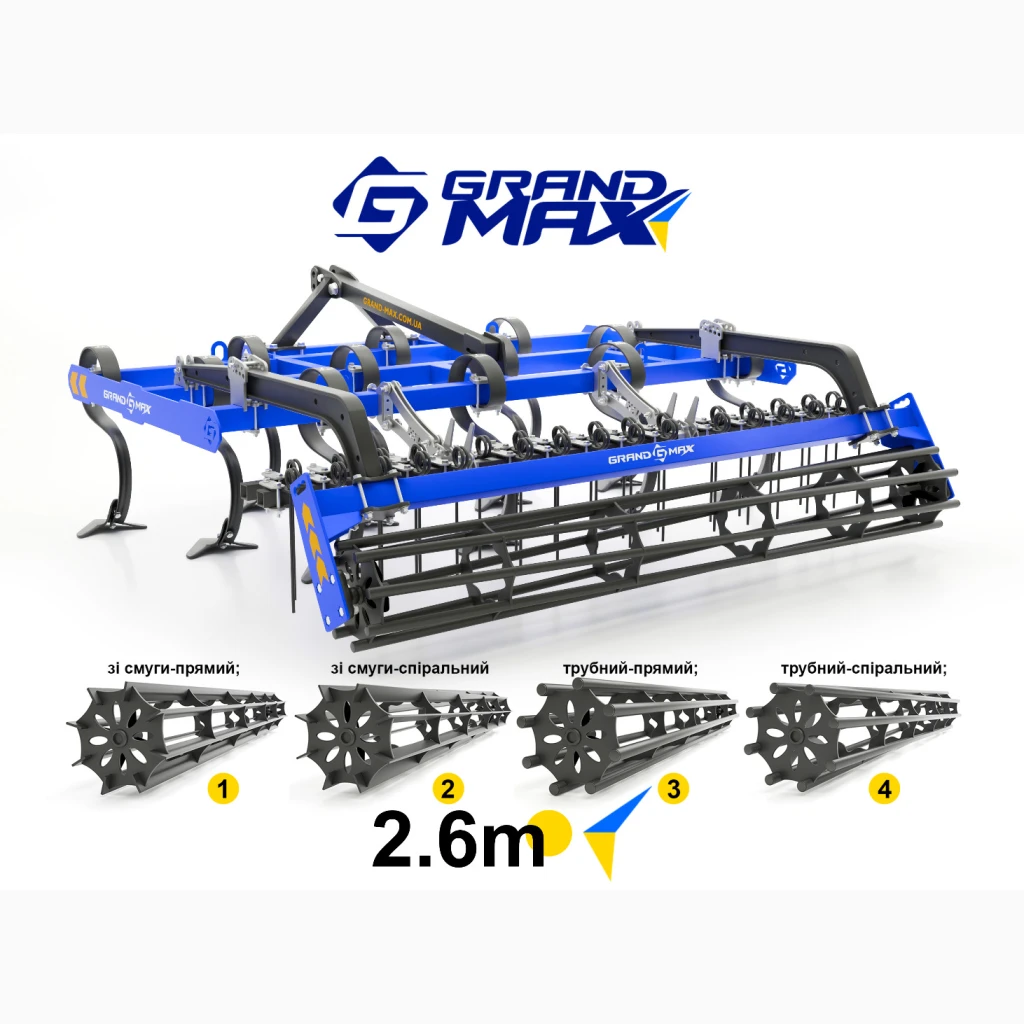

Selection of the type of roller under farm conditions

GRAND MAX Bellota cultivator 2.6 m can be equipped with one of four types of rollers:

pipe straight;
tubular spiral;
strip straight;
strip spiral.

This makes it possible to adapt the cultivator to different types of soil and crop cultivation technologies.

Where the GRAND MAX Bellota cultivator is used

The unit is effectively used for:

pre-sowing tillage;
preparing the field for sowing;
steam processing;
leveling after plowing;
weed control;
closing moisture;
of spring cultivation;
autumn cultivation of fields.

Cultivator works greatafter the plow, disk harrow and other tillage units.

Advantages of GRAND MAX Bellota cultivator 2.6 m

✔ Bellota working organs;

✔ three-row construction;

✔ checker placement of racks;

✔ quality trimming of weeds;

✔ effective soil loosening;

✔ simultaneous execution of several operations;

✔ reinforced frame 5 mm;

✔ two-row rake with floating mode;

✔ possibility to choose the type of roller;

✔ low operating costs;

✔ high productivity;

✔ adaptation to Ukrainian operating conditions.

Technical characteristics of the GRAND MAX Bellota 2.6 m cultivator
Parameter Value
Aggregation type Hinged, euro beam
GRAND MAX Bellota model
Type Cultivator of continuous cultivation
Working width 2.6 m
The number of rows is 3
The depth of processing is 4–12 cm.
Recommended powertractor from 40 hp
Type of working organs Bellota

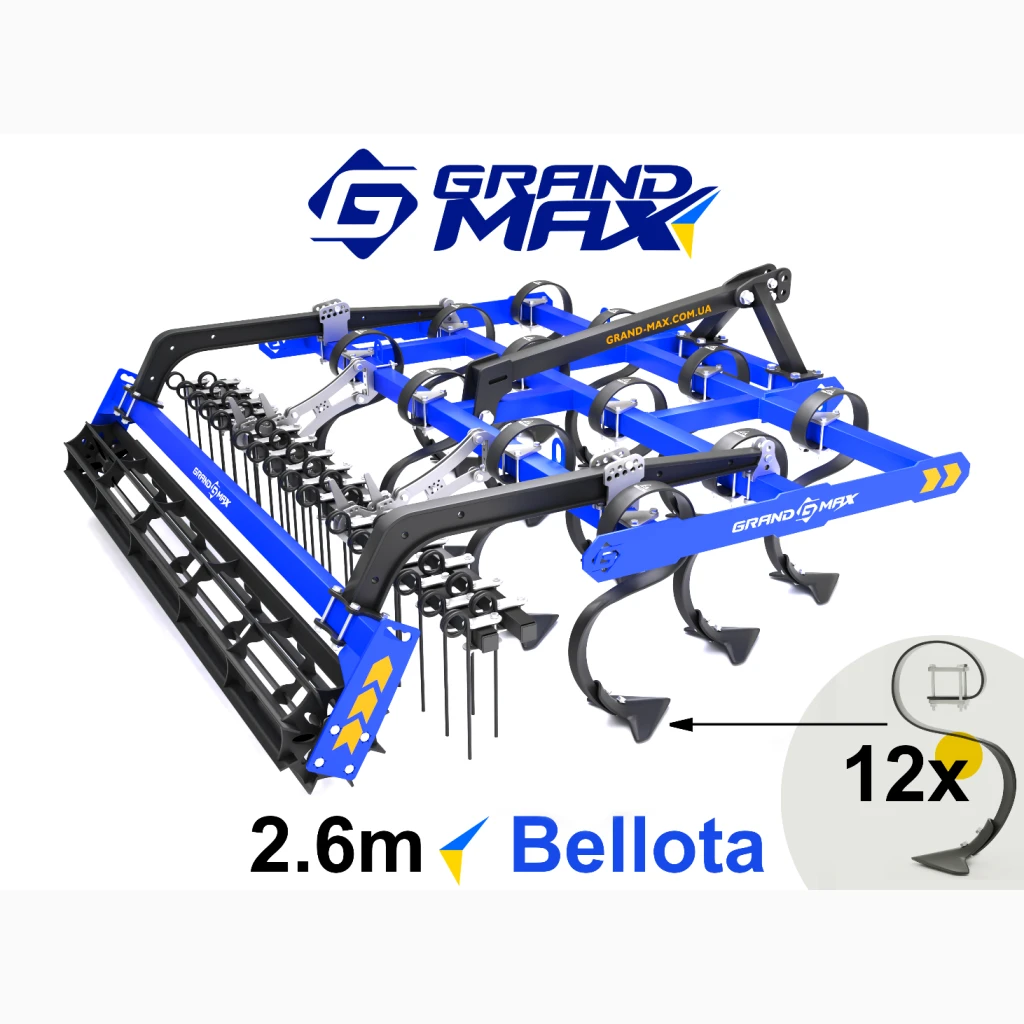

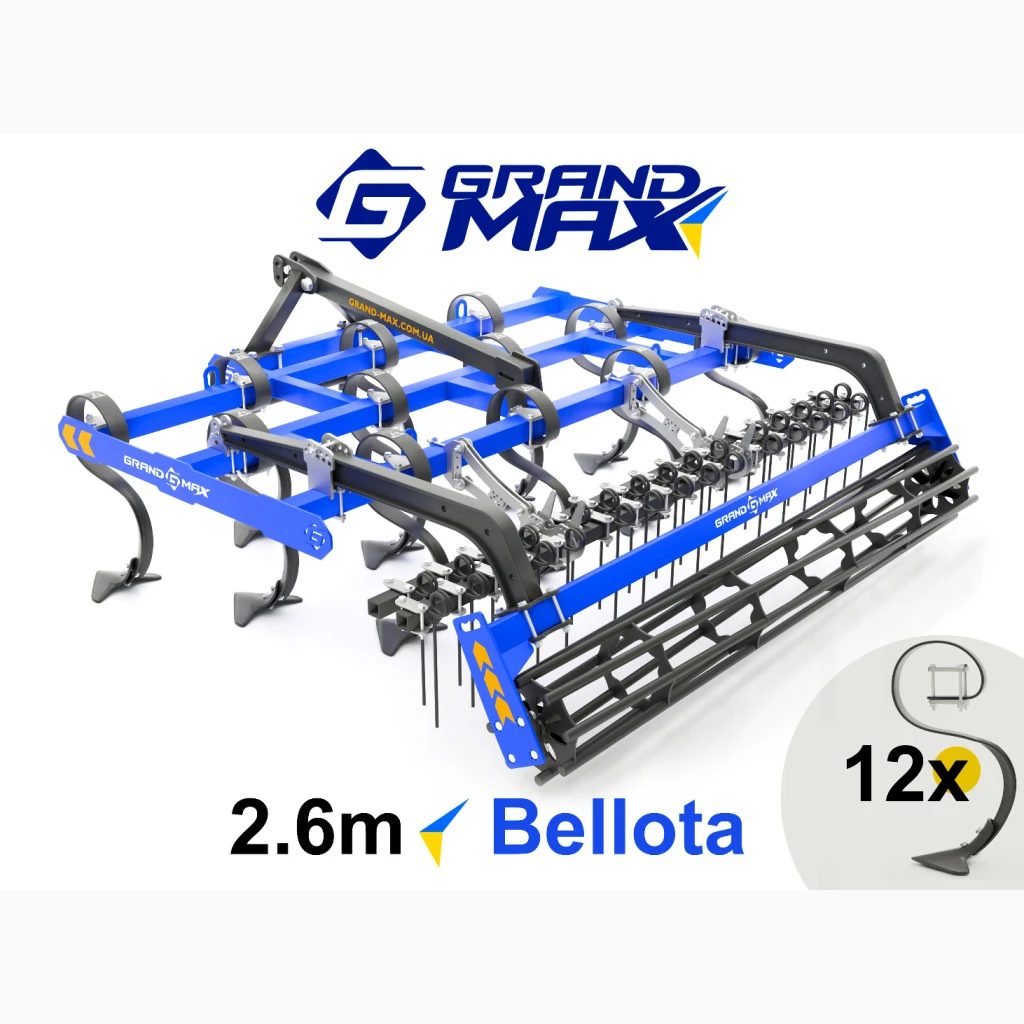

Number of working bodies 12
Spring Hard spring tooth 10×400 mm
Spring material Hardened steel grade 70
The pitch of rack placement is 220 mm.
The distance between the racks in a row is 660 mm.
Placement scheme Chess order
The thickness of the profile tube of the frame is 5 mm.
Two-eaten rake, floating
The diameter of the rake tooth is Ø10 mm.
The material of the rake is Steel 70
Roller Single Ø320 mm
Variants of the roller 4 types of execution
Width 2800 mm
Height 2700 mm
Length 1000 mm

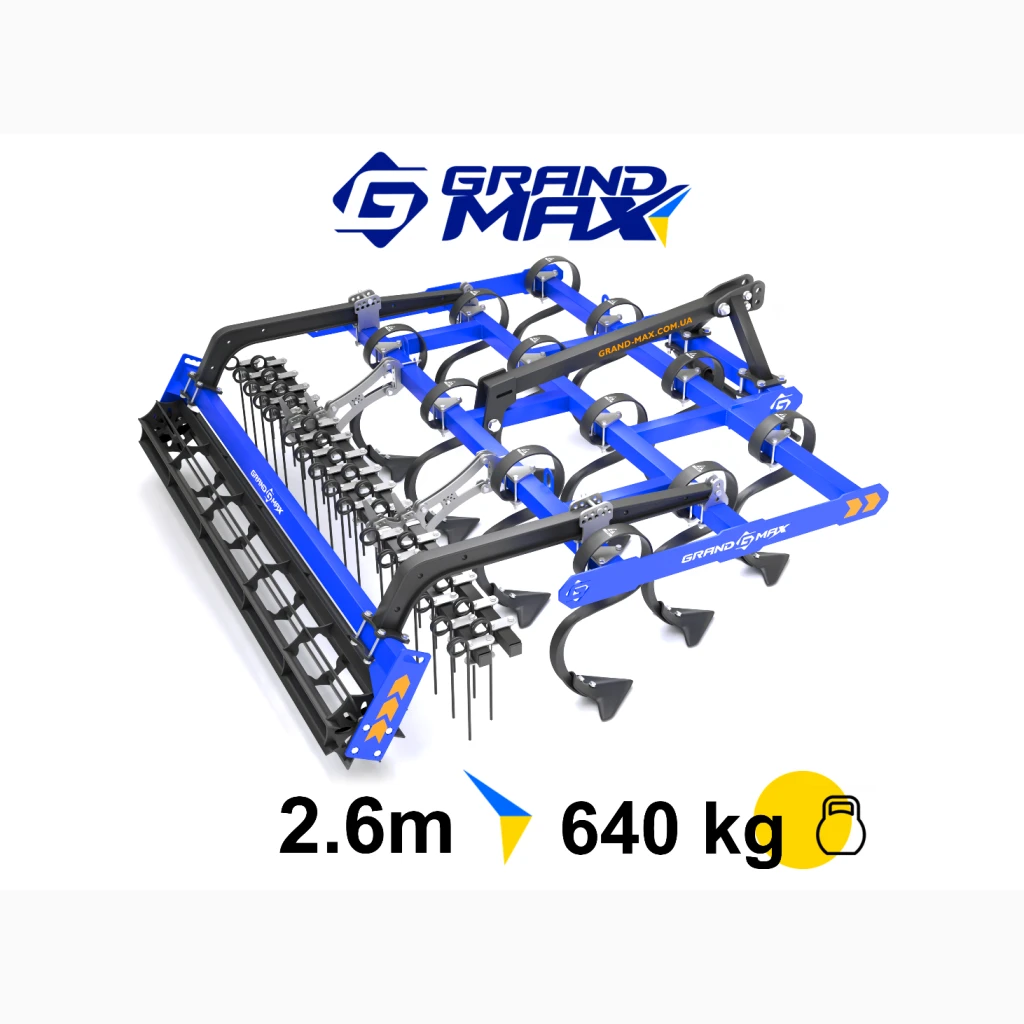

Weight 640 kg
Country of manufacture Ukraine
Why should you buy a GRAND MAX Bellota continuous cultivator

If you are looking for a 2.6m continuous cultivator, a Bellota mounted cultivator, a pre-sowing cultivator, a weed control cultivator, a cultivator for tractors from 40 hp, the GRAND MAX Bellota 2.6m model will be a good solution for your farm.

The unit allows you to qualitatively prepare the field for sowing, reduce the number of passes of equipment and obtain evenly cultivated soil with minimal fuel consumption.

You can buy GRAND MAX Bellota 2.6 m cultivator from the manufacturer in Ukraine with delivery throughout the country. GRAND MAX is modern Ukrainian agricultural machinery for efficient farming, high productivity and stable harvest.
