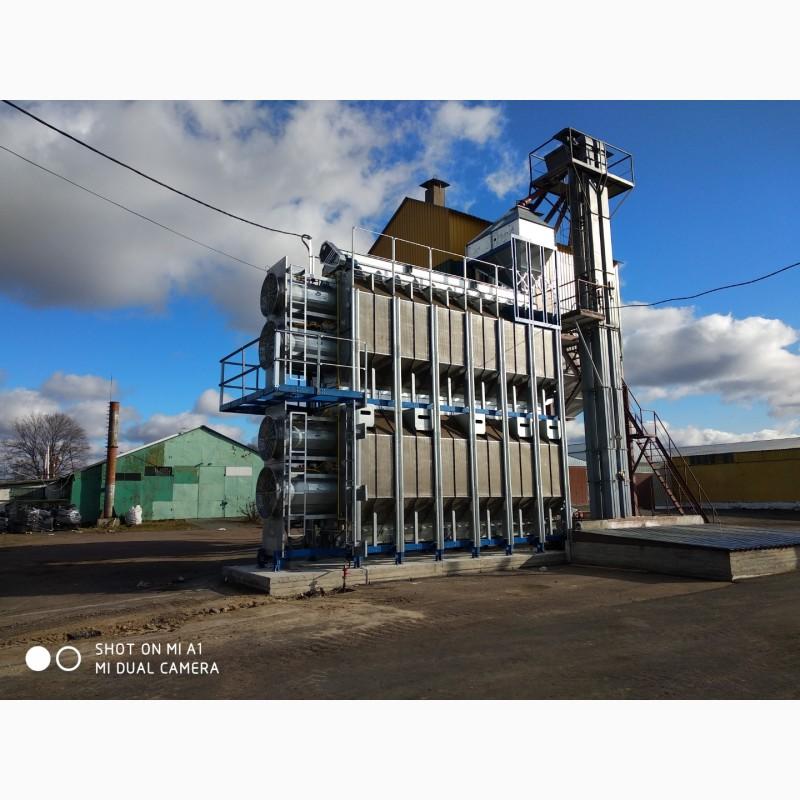

Grain dryer 400t/d state compensation - 25%, Kirovohrad region.

Agro Star grain dryers - intended for drying grain of various crops food, seed and fodder purpose of any moisture level. The use of continuous (current) grain drying technology ensures high productivitygrain dryers with relatively small dimensions and high quality of the final product.
Principle of operationgrain dryers "Agro Startm" .
Wet grain is fed by auxiliary equipment (e.g. noria, conveyor) into the upper part of the dryer, where it is evenly distributed along its entire length with the help of an auger. After filling with grain, the auger is automatically turned off and on at the command of the filling sensor. Air heated by gas burners under the pressure of fans passes through a uniform layer of grain, heats it and removes moisture to the outside through the perforated walls of the sections. To cool the grain to the storage temperature, the fan of the lower chamber of the dryer is used. The productivity of the grain dryer depends on the initial moisture content of the grain and the selected drying mode and is regulated by the speed of rotation of the metering rollers, which are locatedbelow the grain sections along the entire length of the dryer on both sides. After the rollers, the dried grain enters the lower auger of the dryer and is transported further by auxiliary equipment for cleaning or storage.
Grain inverters between the modules create a cross movement of the grain as it passes from the upper module to the lower one and ensure high uniformity of drying.
Four separate temperature zones allow you to gradually heat the grain that passes through the dryer during drying, thereby avoiding overheating of the grain and reducing its cracking.
The modern control panel allows you to remotely enter and monitor operating parameters such as: air temperature in the dryer chamber, grain temperature, burner operation parameters, operation of loading and unloading systems, security system messages.
Technical characteristics of grain dryer Model ZM 0824
*Productivity, t/h, (t/day) for corn:
moisture reduction from 29-14% without cooling the grain in the dryer 14.5
moisture reduction from 24-14% without cooling the grain in the dryer 25
moisture reduction from 19-14% without cooling the grain in the dryer 40
moisture reduction from 29-14% with grain cooling in the dryer 10(//tractor-service.com)
moisture reduction from 24-14% with grain cooling in the dryer 17.5
moisture reduction from 19-14% with grain cooling in the dryer 27
Length, mm. 7030
Width, mm. 2430
Height, mm. 7800
Volume, m3. 28.1
Number of sections, pcs. 8
Number of modules, pcs. 2
Number of fans, pcs. 4
Number of gas burners, pcs. 4
*Average consumption of propane-butane to reduce 1 t/% of moisture, l. 2.0
*Average consumption of natural gas to reduce 1 t/% of moisture, m3. 1.5
