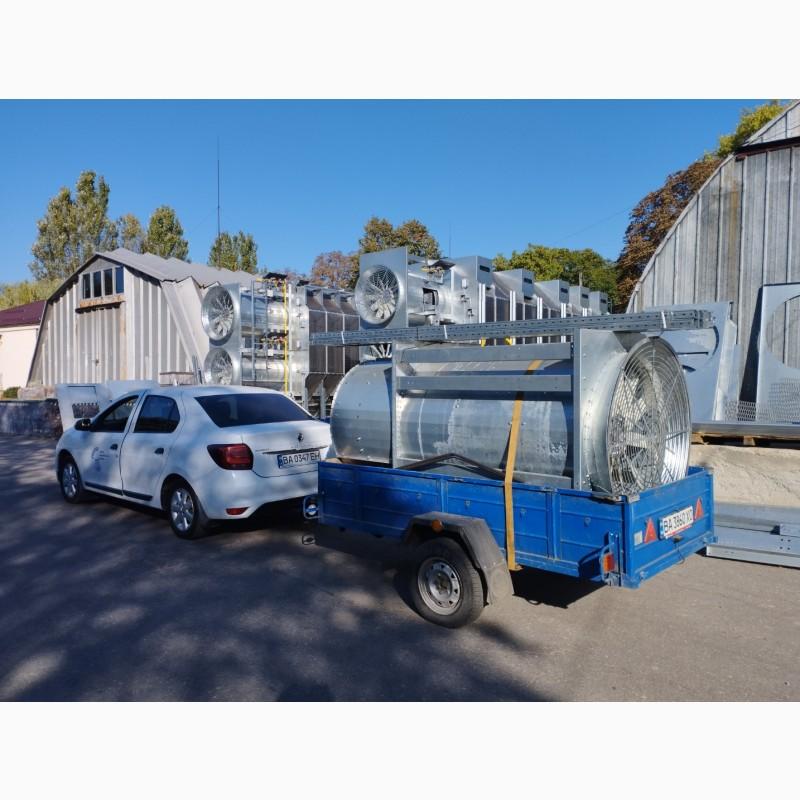

Grain dryers Gas and propane-butane heat generator for grain dryer, Kirovohrad region.

The gas burner is designed to obtain the heat agent (hot air) by burning natural or liquefied gas and is used ongrain modular (column) dryers.
Octagonal low-flame diffusers in combination with the two-stage principle of gas supply in high and low combustion modes ensure efficient fuel combustion and allow obtaining a stable temperature of the drying agent in the chamber, which as a result has a positive effect on the uniformity and quality of grain dryingсушіння зерна.

Delivery set.
- socket (body) of the burner made of galvanized steel;
- a fan with the ability to adjust the angle of attack produced by Multi-Wing;
- fan electric motor;
- burner diffuser – collapsible structure made of high-temperature stainless steel
European production;
- flame control sensor;
- ignition electrode;
- propane-butane liquid phase vaporizer (for the PB series);
- gas main (valves, faucets, Italian-made gas pressure regulator);
- gas riser;
- air temperature sensor in the drying chamber;
- burner control cabinet:
Delta DTA temperature controller with a digital indicator of the temperature of the drying agent, which allows you to select and control the working and critical parameters of the burner;
Siemens burner control unit;
start-protection unit of the Shnieder fan electric motor ;
intermediate relays, buttons, Shnieder light and sound indication.
- technical passport;
- operating instructions.

Technical characteristics:
Fuel type: propane-butane
Maximum thermal power: 2.37 MW/h
Minimum capacity: 0.8 MW/h(//tractor-service.com)
Maximum gas consumption: 316 l/h
Average gas consumption: 190 l/h
Average gas consumption for 1% moisture reduction: 2 l.
(at an ambient temperature of 10°C, relative air humidity of 50%,
clogging up to 1%, the grain is physiologically ripe).

Power supply: alternating current network
- voltage: 380 V
- frequency: 50 Hz
Consumed electricity nominal power: - 15 kW

Degree of equipment protection according to DSTU EN 60529 IR 40
Weight of the burner: no more than 350 kg.
Overall dimensions of the burner:
length 1500 mm.
width 1110 mm.
height 1110 mm.

Fan parameters
Fan air flow: no more than 60,000 m³/h.
Engine power: 15 kW/1450 rpm.
The diameter of the injection bell: 1100 mm.
Temperature modes of burner operation
Maximum air temperature: 150 ºС
Nominal operating mode: 100-110 ºС

Warranty - 12 months.
Delivery, installation and training on the equipment are possible.
