Cutting hub of Agro Point IL50-98/5T-M22 FKL, AHU28117A-02 NSK, HUA11-5M12-S01 SNR, Dnipropetrovsk region.

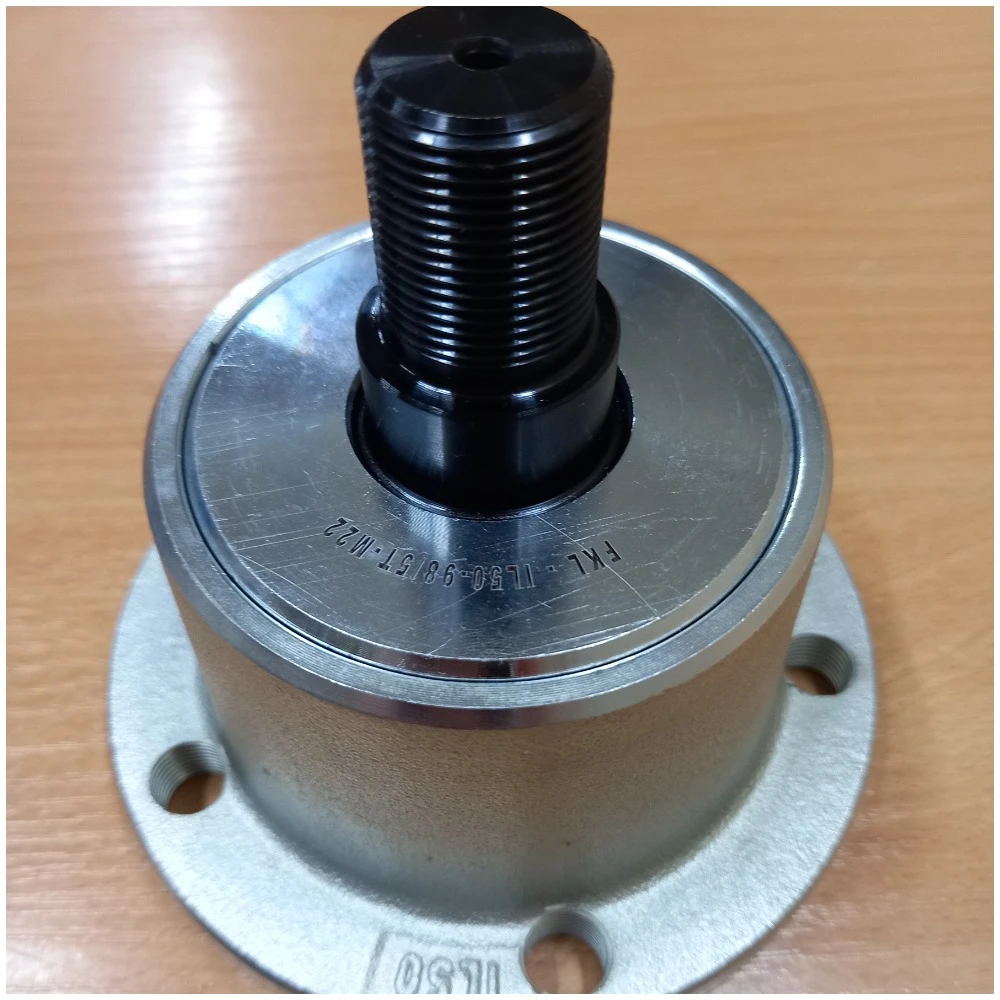

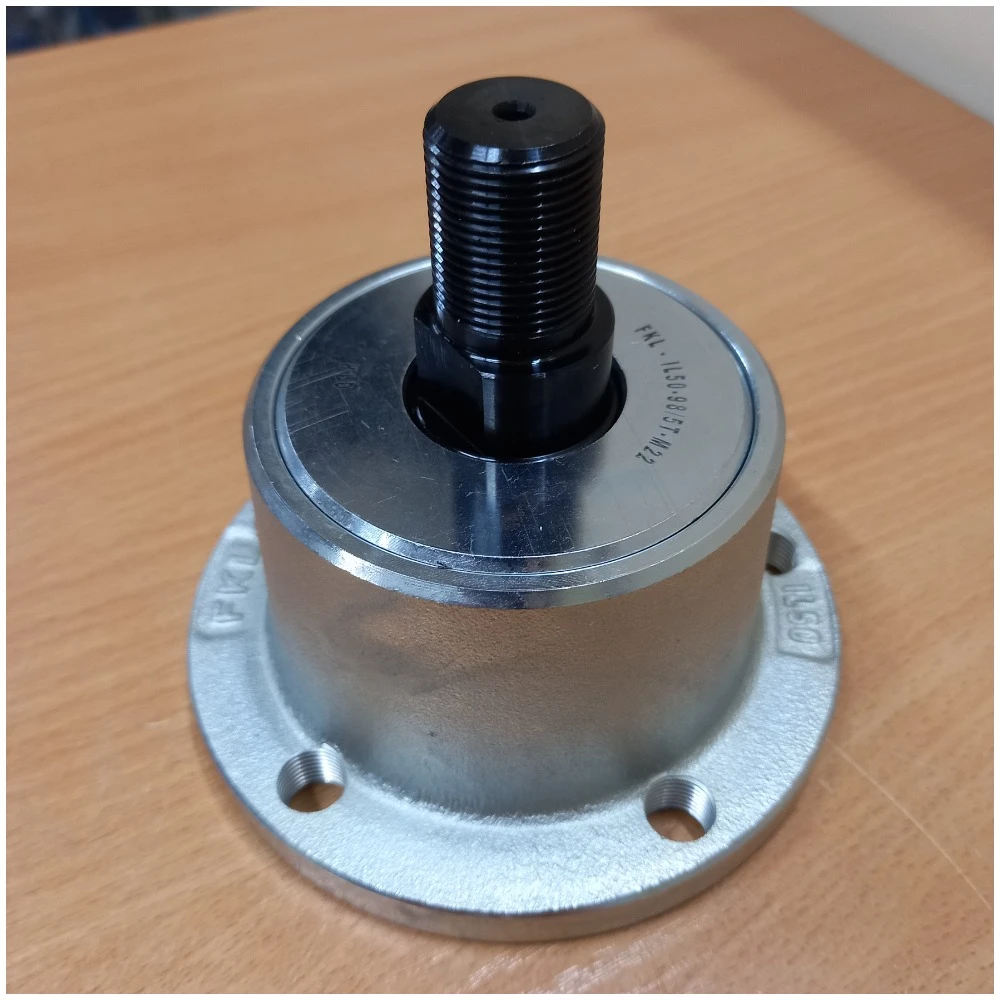

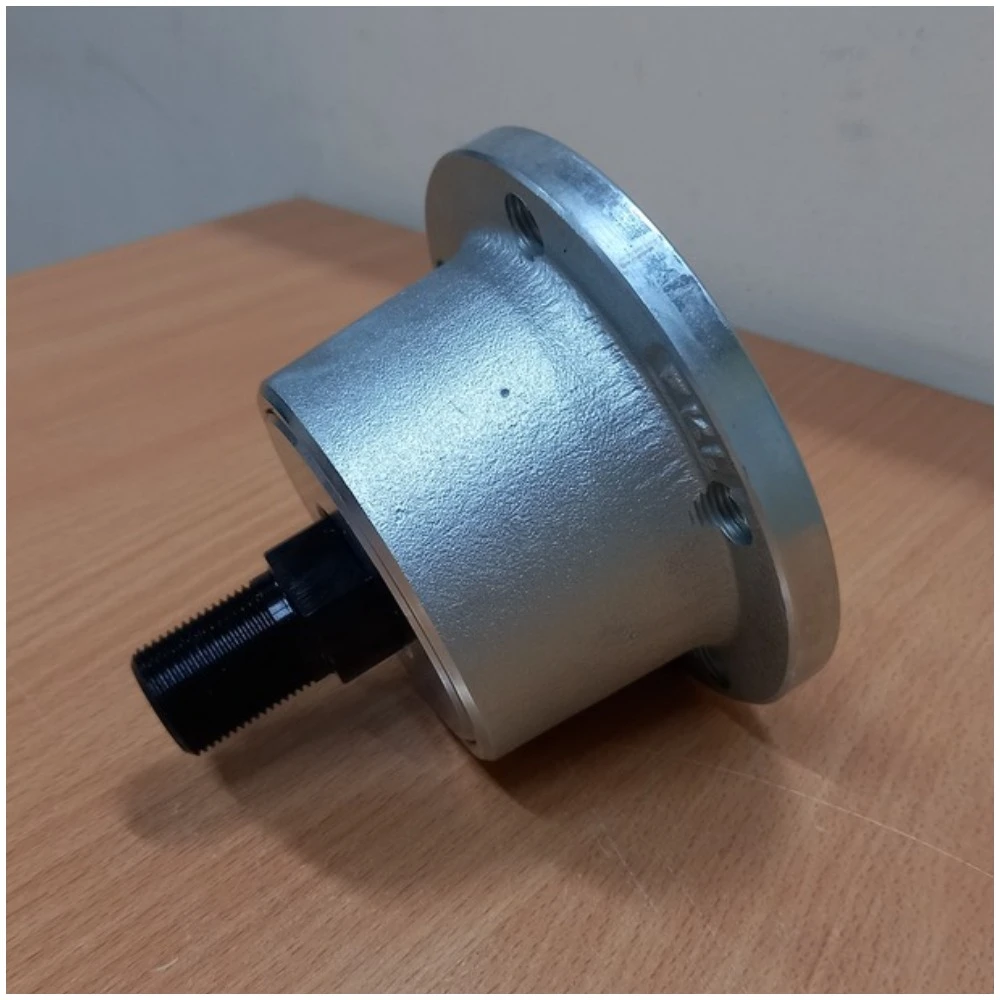

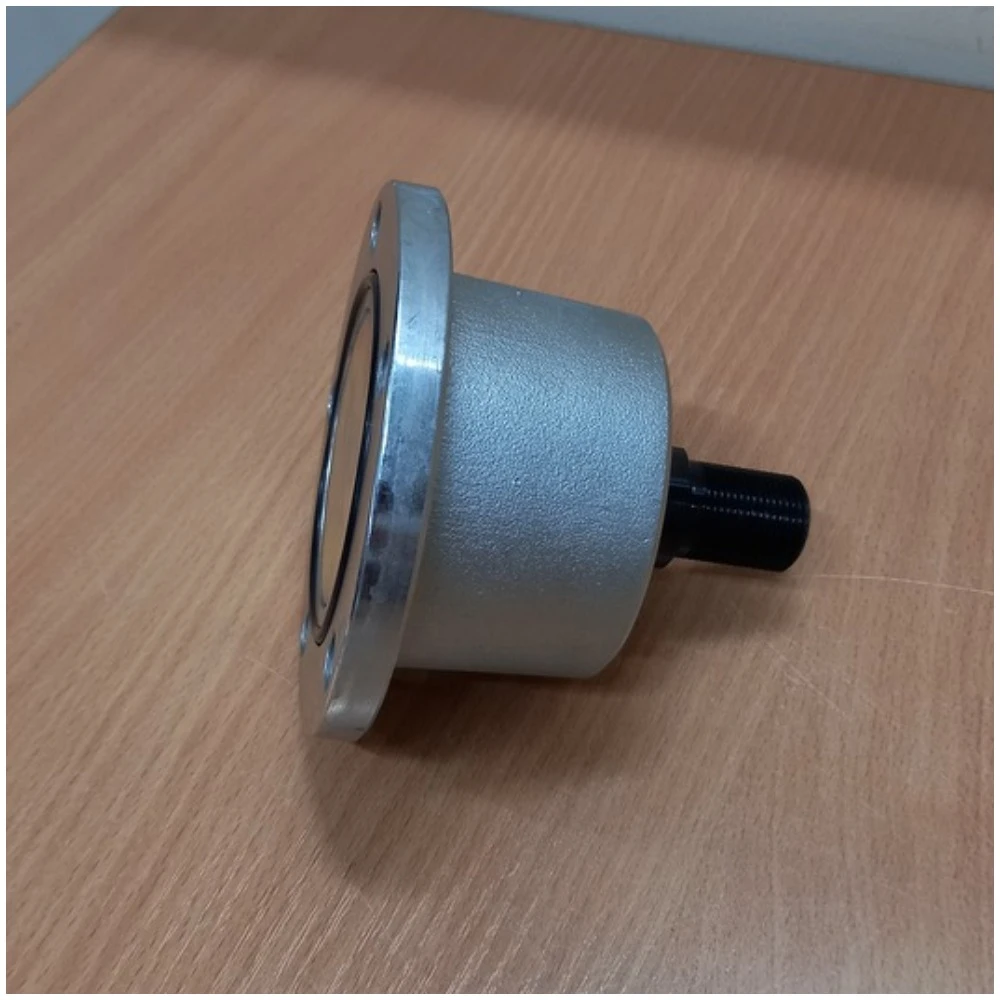

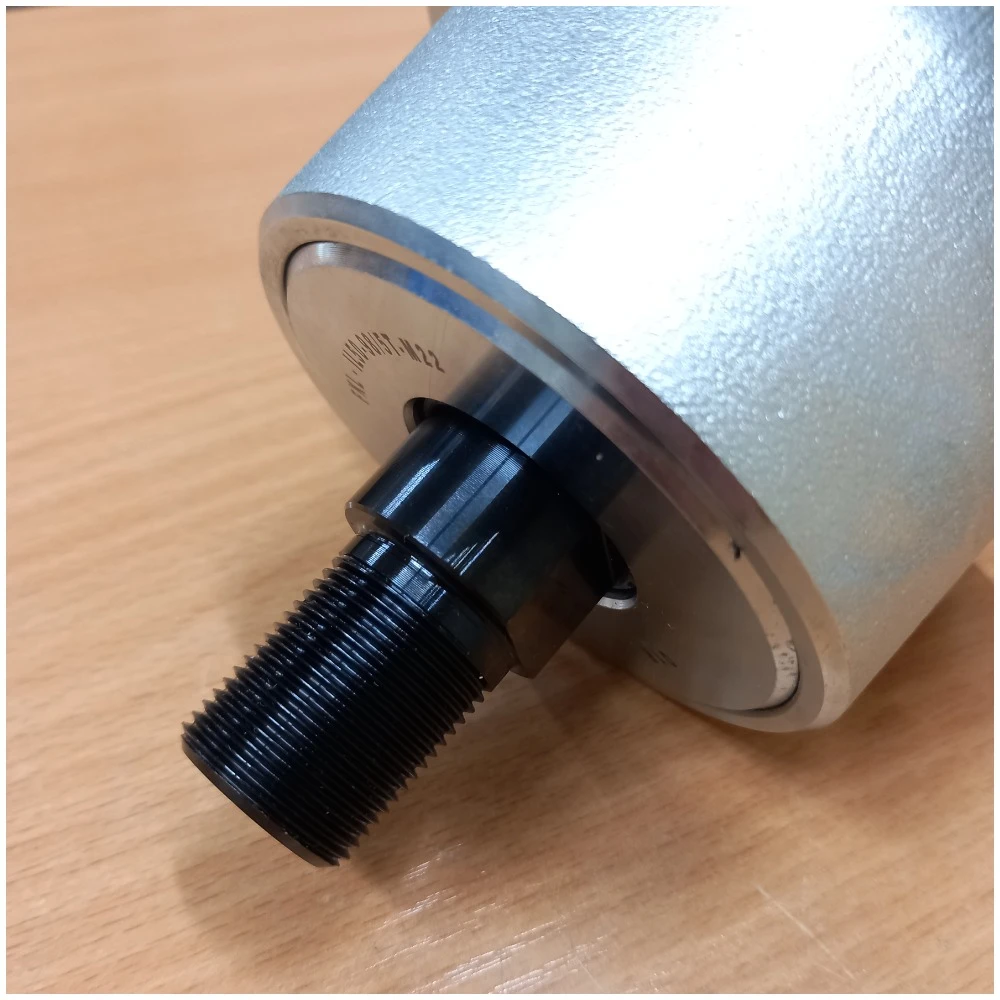

We offer for delivery the hub of the cutting unit Agro Point IL50-98/5T-M22 FKL (Serbia).
Field of application -disc harrows,cultivators,mulchers on spring struts or with struts on elastomers and disc diameter up to 710 mm. It can be installed on a rigid stand of the BDM type with a disk diameter of 560 mm.

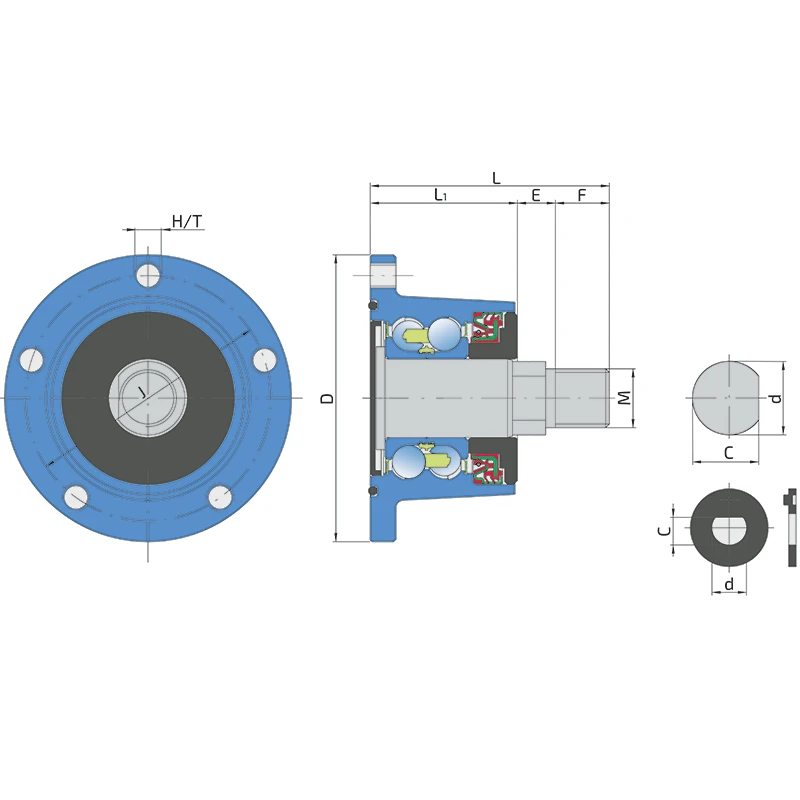

Bearing inner diameter - 30, overall length - 102, flange overall length - 60, hole center distance - 98, weight - 2.5, flange diameter - 117, bore diameter - 27.95, thread length - 25, dynamic load - 60, static load - 45.8.

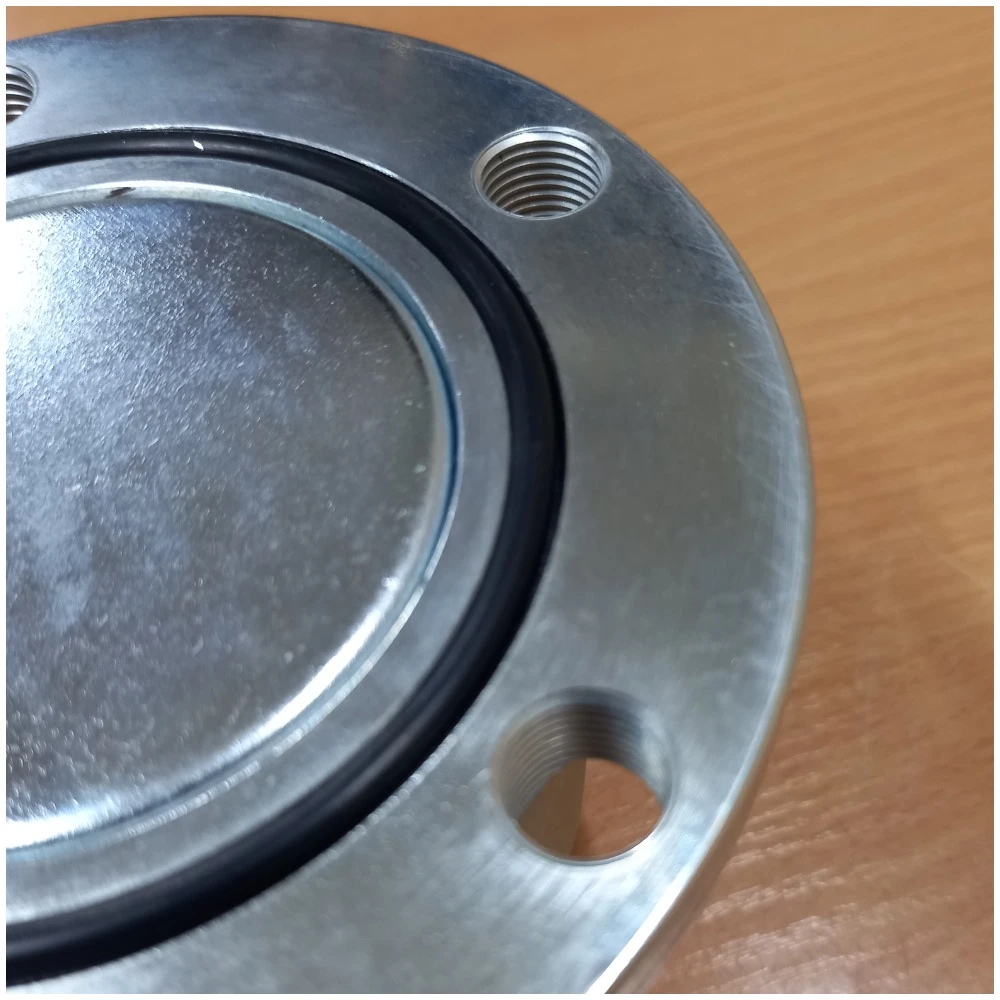

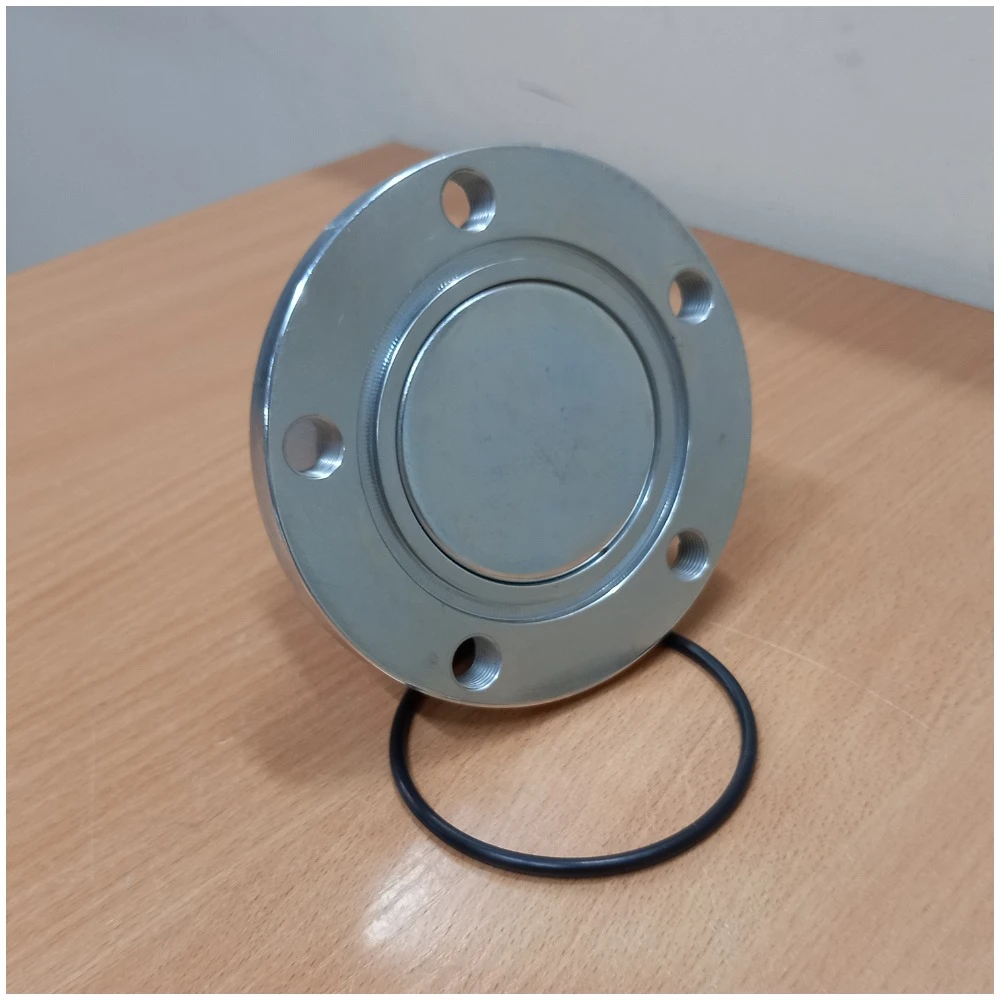

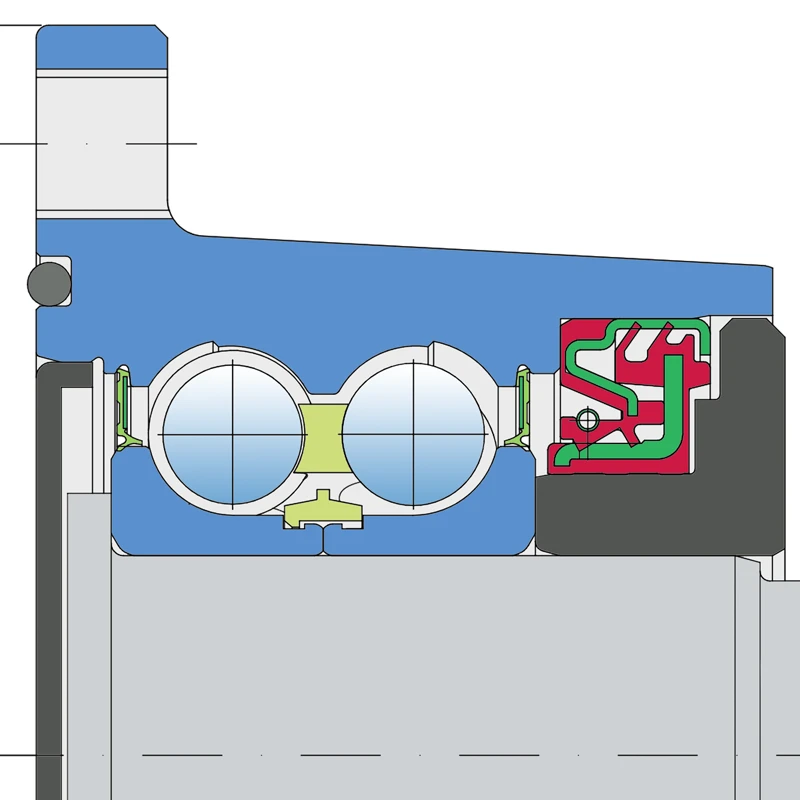

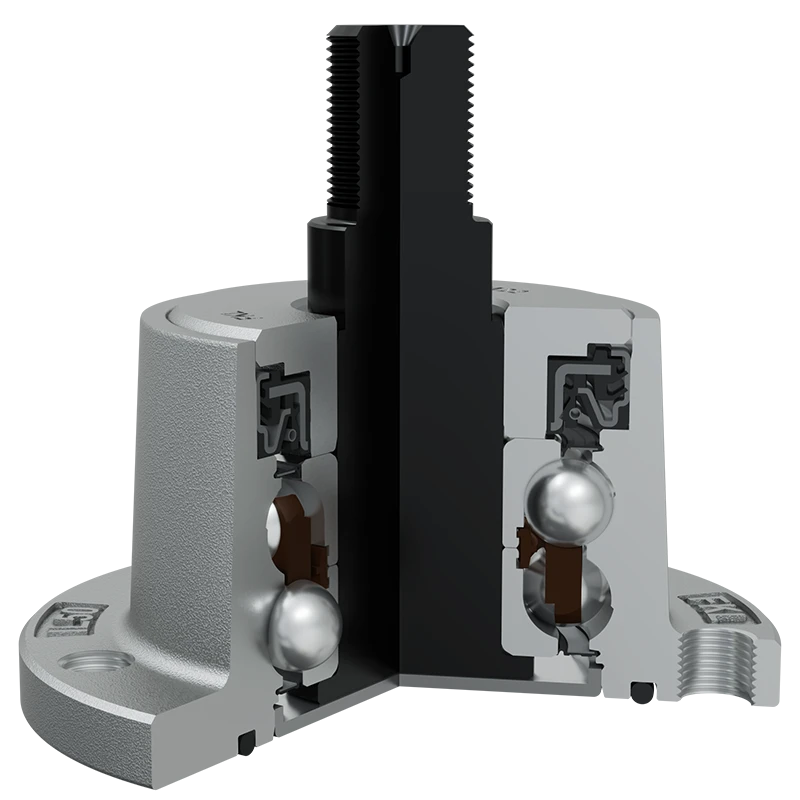

This hub is a ready-made solution for manufacturers of heavy disc harrows. The main advantage of this development is that the hub of the IL50-98/5T-M22 FKL cutting unit is a maintenance-free bearing unit, completely eliminating the influence of the human factor on the performance characteristics of the entire harrow cutting unit. A modern system of seals, together with high-quality materials used in the production of the hub, allow to guarantee the correct operation of the cutting assembly during a long period of operation.

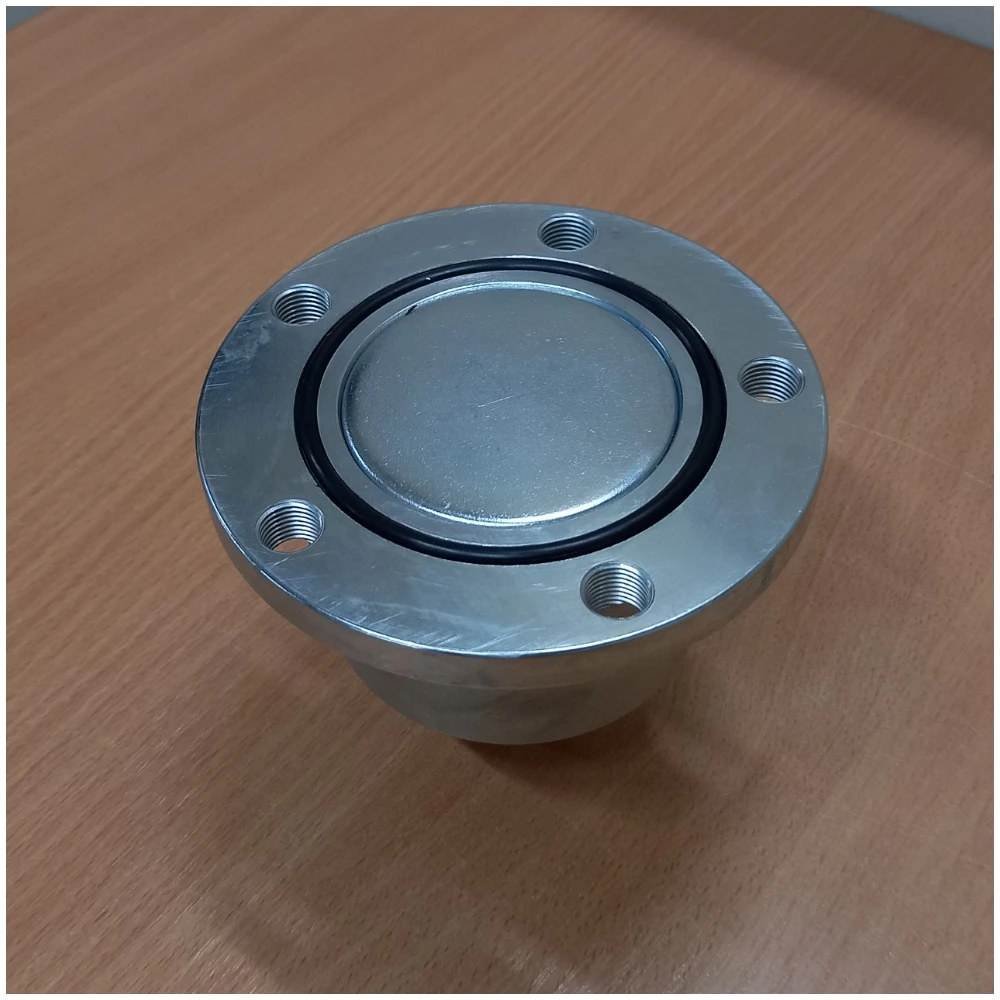

Competitive advantages of the hub: longer service life of the bearing unit due to the use of a reliable sealing system, as well as a load capacity of 30% more than hubs of the same type/size, the lack of the need for maintenance of the unit increases the service life and minimizes the costs of its operation, galvanized surface of the flange, resistance to corrosion, ease of installation and replacement.(//tractor-service.com)

Operating conditions and recommendations: ambient temperature from -20 to +50 C, tractor speed 5-20 km/h, disk diameter up to 610 mm, grease applied for the entire service life.

Analogs: AHU28117A-02 NSK, HUA11-5M12-S01 SNR.

"Favourit" LLC is a business partner of TVC "FKL Ukraine", which equips its own agricultural machinery with IL50-98/5T-M22 FKL hubs.
