Hub IL50-98/4T-B30-J FKL, 152271, 481460, 482496, 440488, 470974 Vaderstad, Dnipropetrovsk region.

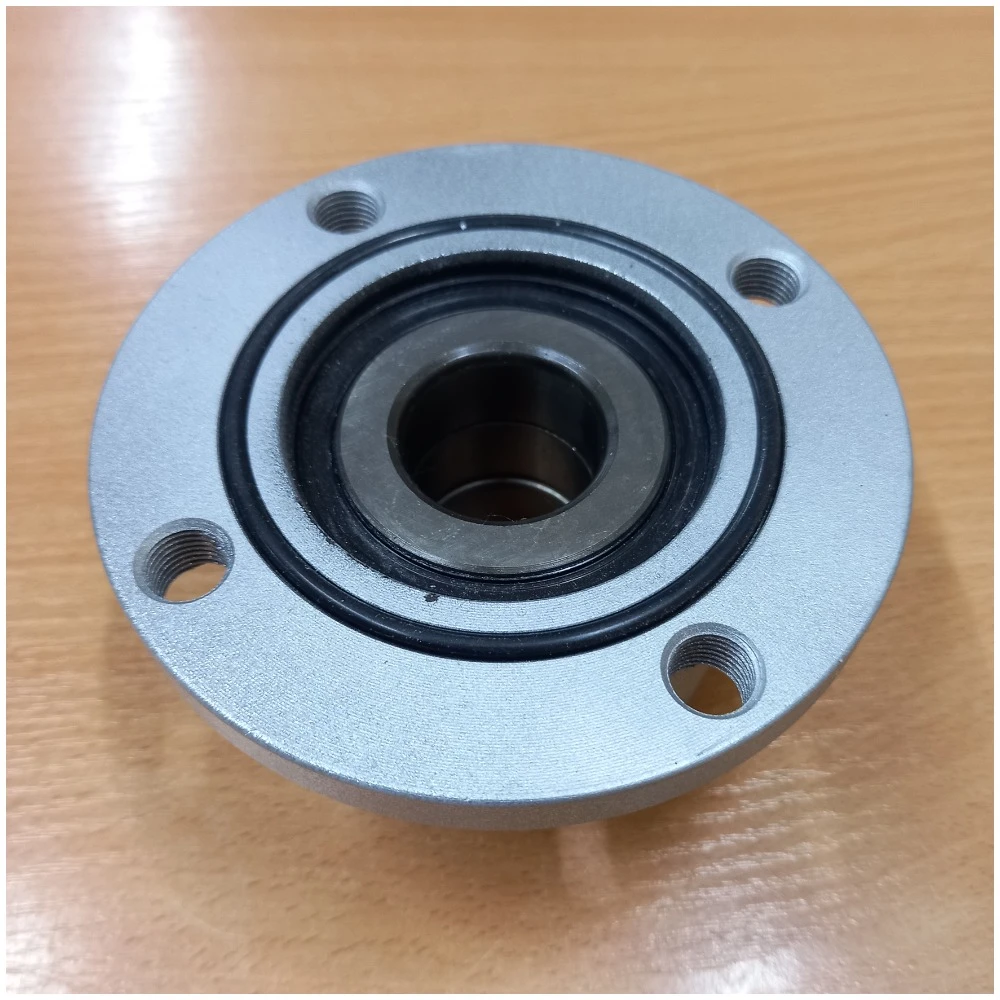

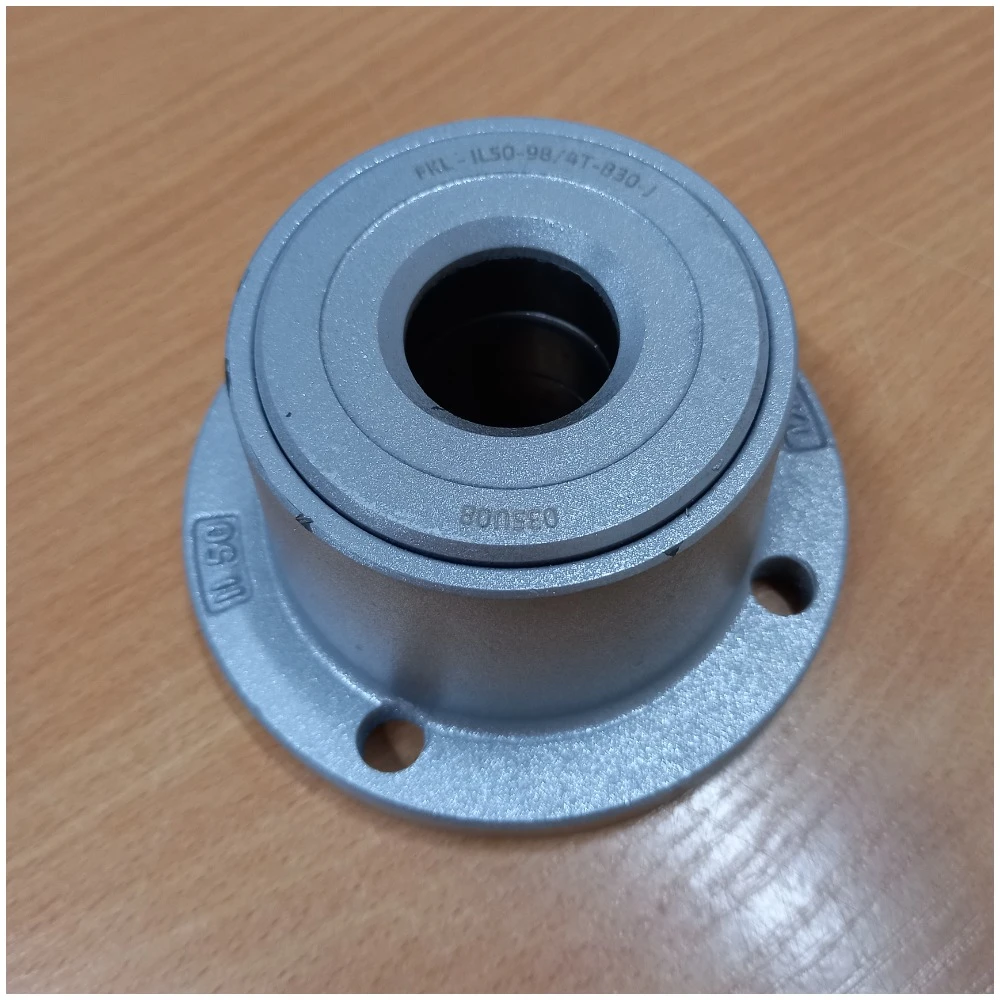

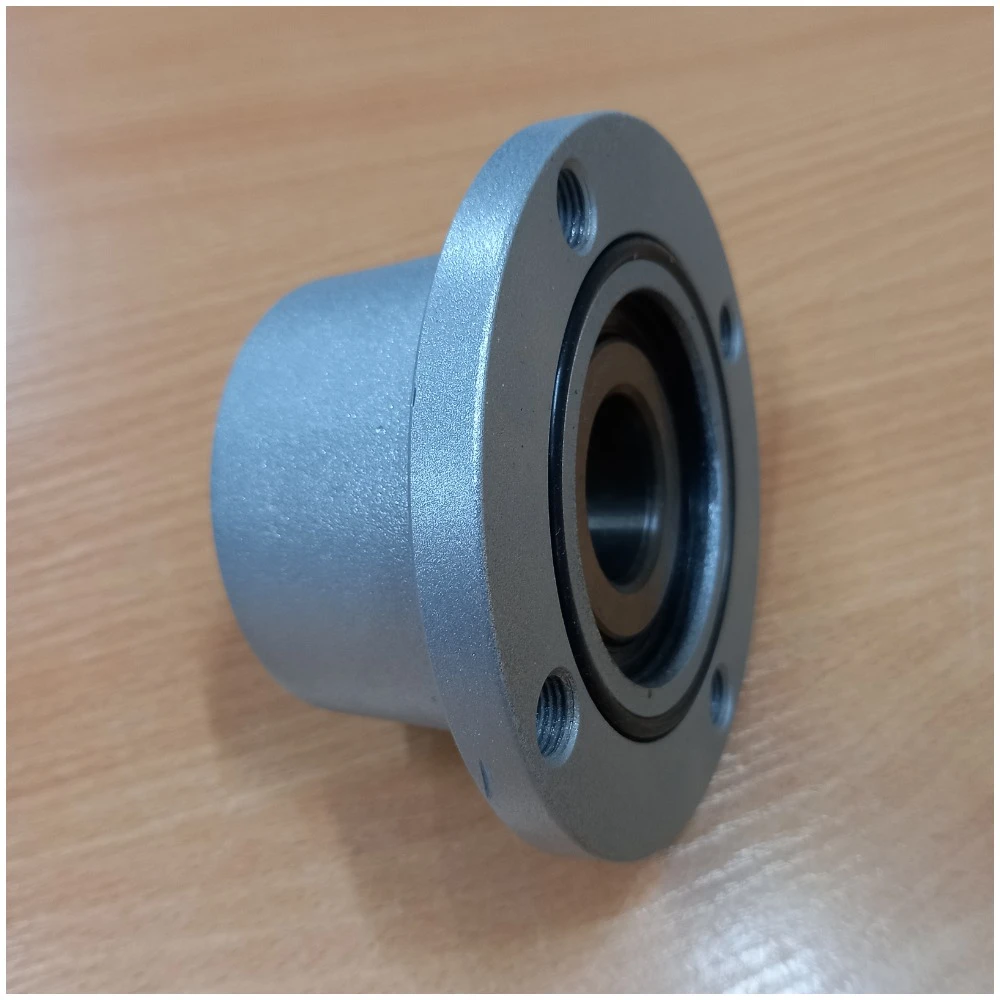

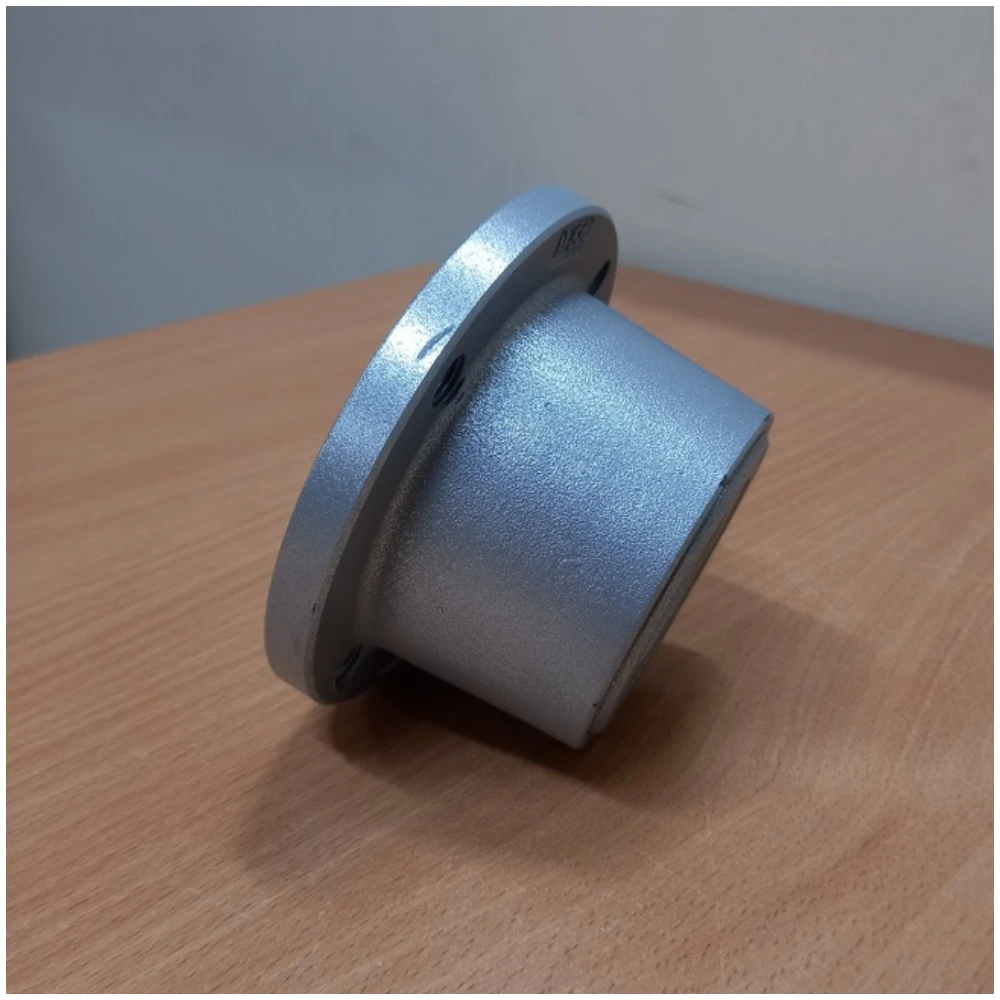

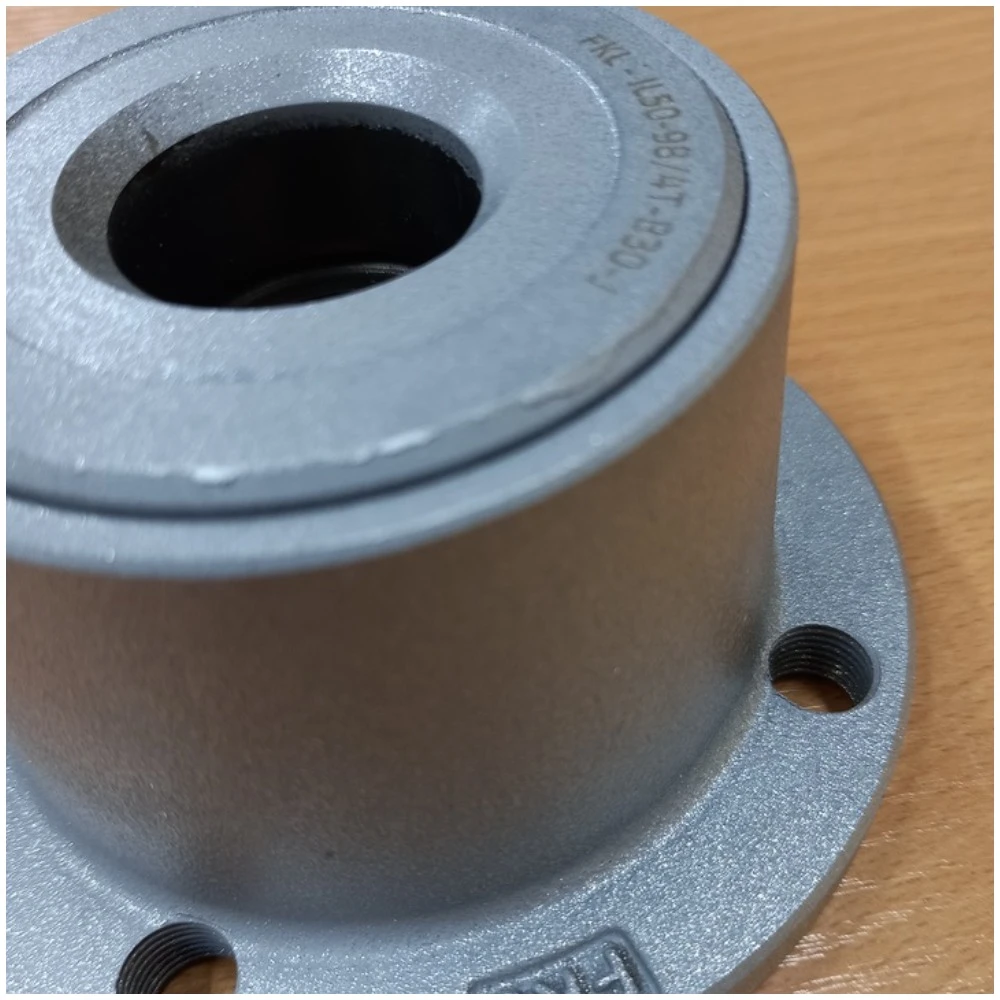

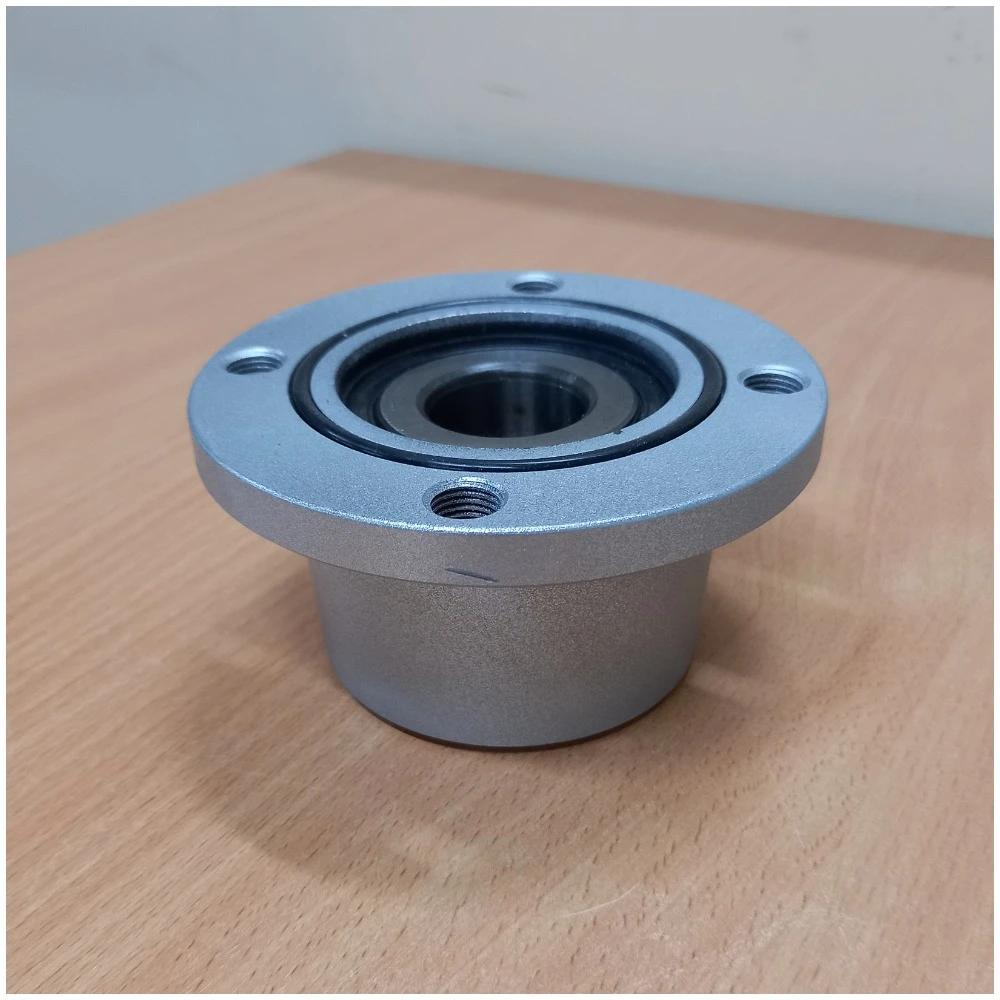

We offer the hub of the cutting unit IL50-98/4T-B30-J FKL (Serbia).

Field of application - Vaderstad tillage machinery.
OEM: 152271 Vaderstad, 481460 Vaderstad, 482496 Vaderstad, 440488 Vaderstad, 470974 Vaderstad.
Analog: BAA-0003 SKF, PHA0003 PFI.
(//tractor-service.com)

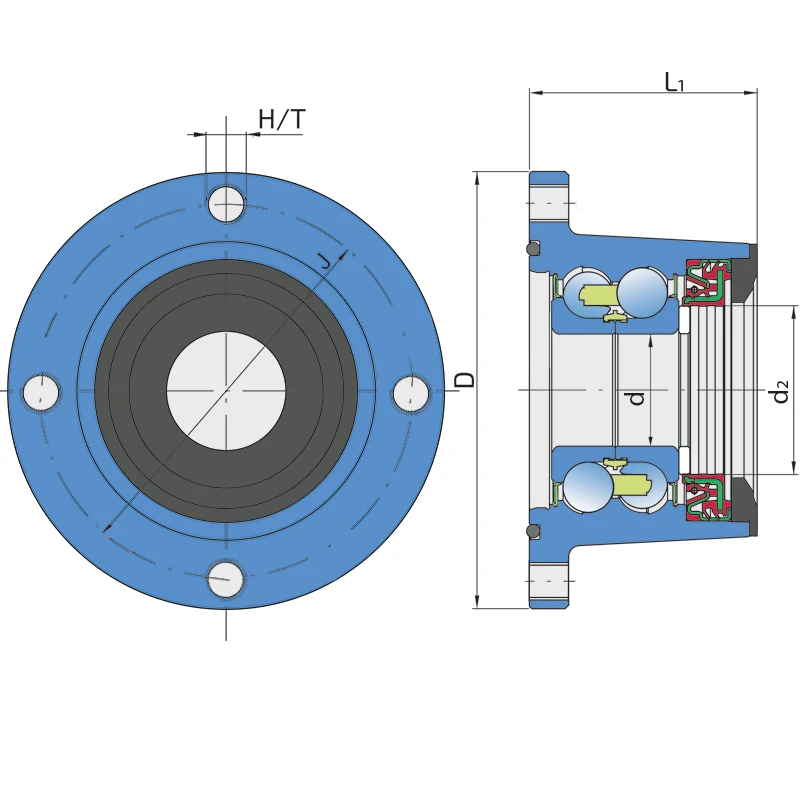

The inner diameter of the bearing is 30, the total length of the flange is 61, the distance between the centers of the holes is 98, the diameter of the flange is 117, the size of the hole on the flange is 4хМ12х1.25, the weight is 1.87, the dynamic load is 60, the static load is 45.8.

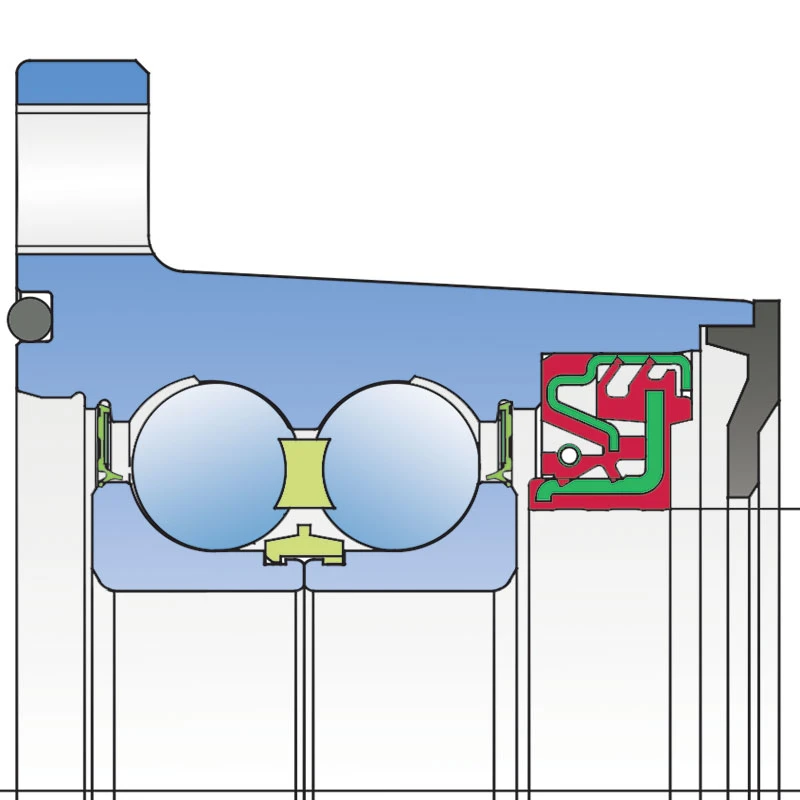

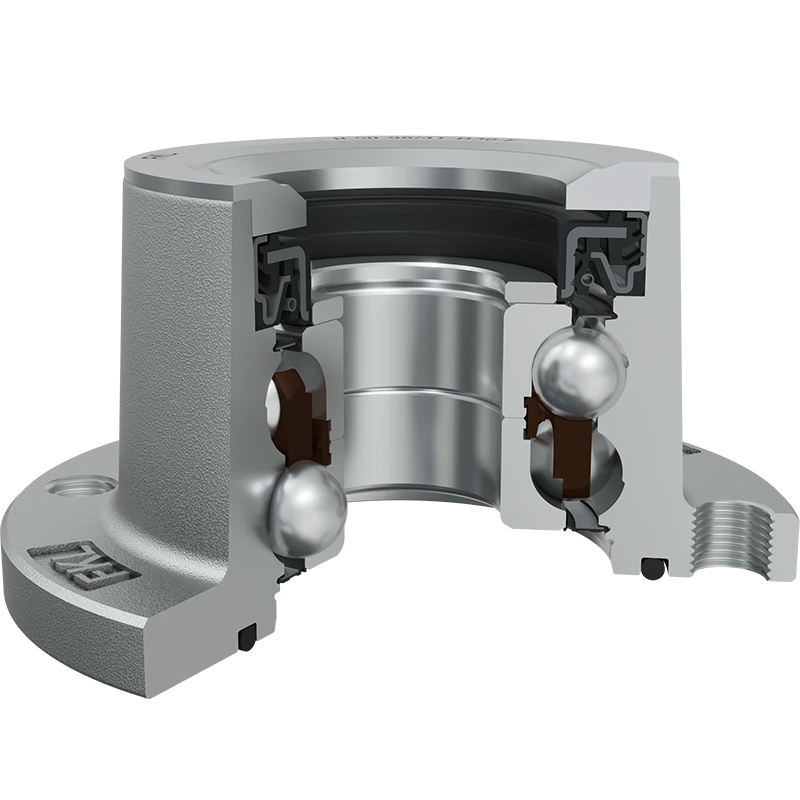

The hub of the IL50-98/4T-B30-J FKL cutting unit is a maintenance-free bearing unit, completely eliminating the influence of the human factor on the performance characteristics of the entire cutting unit. The modern system of seals, combined with high-quality materials used in the production of the hub, made it possible to guarantee the correct operation of the cutting assembly for a long period of operation.
Operating conditions and recommendations: ambient temperature from -25 to +55 C, tractor speedtractor 5-15 km/h, disk diameter 300-800mm, maximum number of disk revolutions up to 400 revolutions/min, rack thickness at the place of installation of the hub at least 18mm,lubricant applied for the entire term services.

LLC "Soyuz-Spetstechnika", JSC "Elworthy" are business partners of the company "TVK "FKL Ukraine", which equip their own agricultural machinery with hubs IL50-98/4T-B30-J FKL.
