Hub IL50-98/4T-M24 FKL, 9031.40.89, RA133000A, 9031.40.12, 9031.40.02, 5554516, 555451, Dnipropetrovsk oblast.

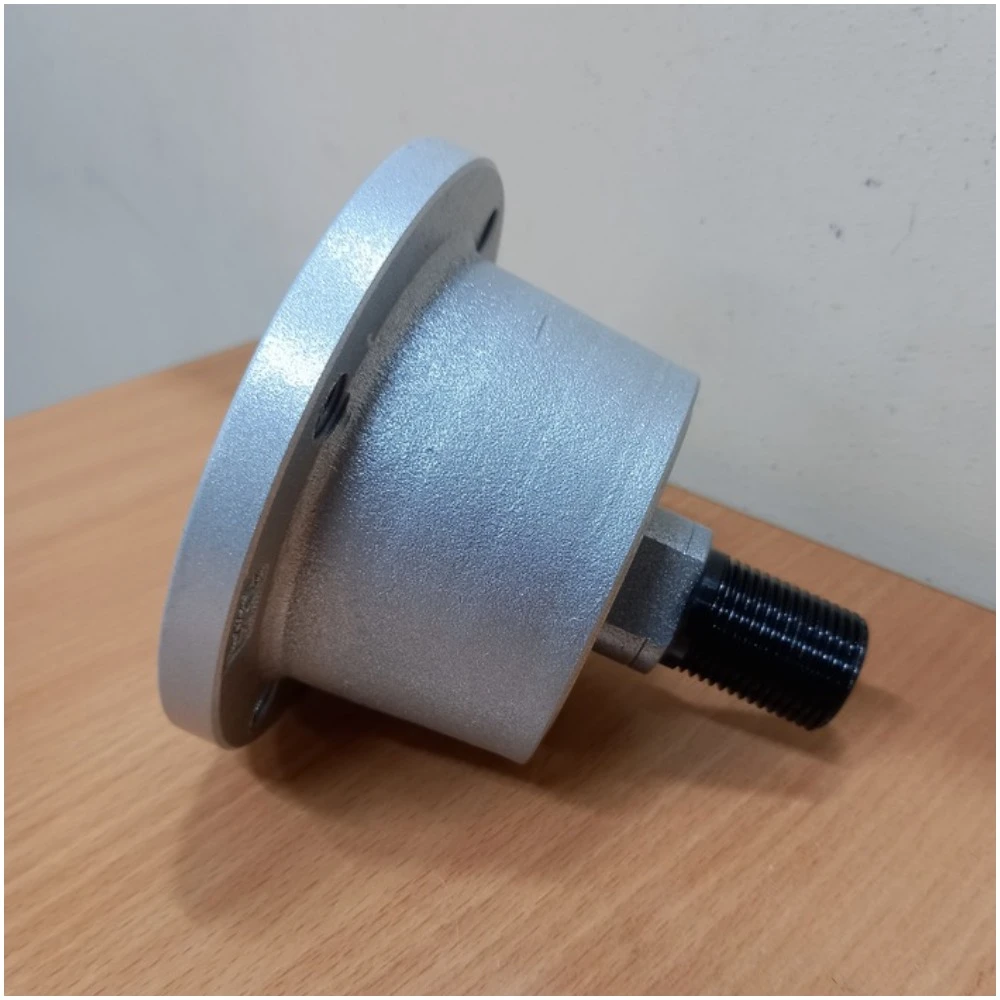

We offer the hub of the cutting assembly IL50-98/4T-M24 FKL (Serbia).
Field of application - for disc harrows,cultivators, mulchers on spring struts or with struts on elastomers and disc diameter up to 710 mm. It can be installed on a rigid stand of the BDM type with a disc diameter of 560 mm.

Bearing inner diameter - 30, total flange length - 60, total length - 106, hole center distance - 98, weight - 2.55, flange diameter - 117, thread length - 29, dynamic load - 60, static load - 45.8.

The hub of the IL50-98/4T-M24 cutting unit is a maintenance-free bearing unit, completely eliminating the influence of the human factor on the operational characteristics of the entire cutting unit. A modern system of seals, together with high-quality materials used during the production of the hub, allow to guarantee the correct operation of the cutting unit during a long period of operation.(//tractor-service.com)
The hub of the IL50-98/4T-M24 cutting unit has a number of unique and undeniable competitive advantages: longer service life of the bearing unit due to the use of a reliable sealing system, as well as a load capacity of 30% more than hubs of the same type / size, no need for maintenance of the unit increases its service life and minimizes its operating costs, galvanized surface of the flange, durability against corrosion, ease of installation and replacement.
Operating conditions and recommendations: ambient temperature from -20 to +50 C, tractor speedtractor 5-20 km/h, disk diameter up to 610mm,lubricant applied for the entire service life.

OEM: 9031.40.89 Rabe, RA133000A Vogel&Noot, 9031.40.12 Rabe, 9031.40.02 Rabe, 5554516 Lemken, 5554510 Lemken.
Analogues: PN60036 RBF, AHU30117A-0 NSK, PR040/4*98 FLT, H-1-8163 NWG.

"Krasnianske JV Agromash" LLC, JSC "Favorit" LLC are business partners of "TVK "FKL Ukraine", which complete their own agricultural machinery with hubs IL50-98/4T-M24 FKL.
