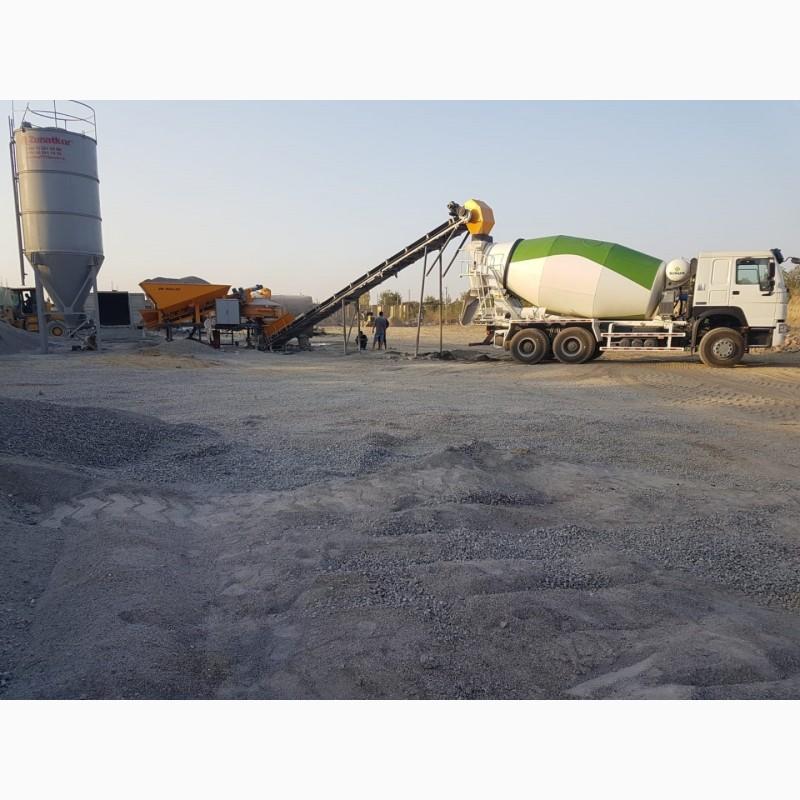

Mobile mini concrete plant Polygonmach Mobil 40-60 m3/hour, Turkey, Kyiv

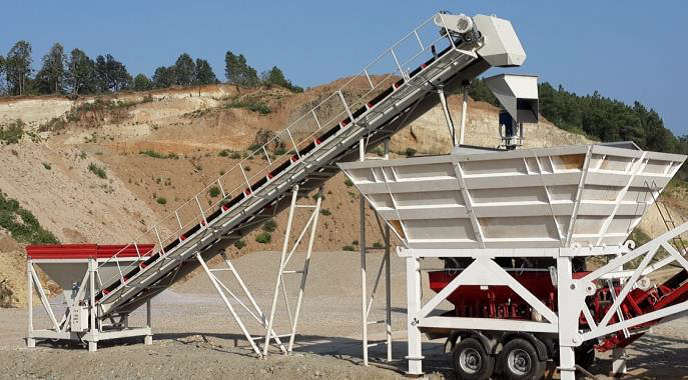

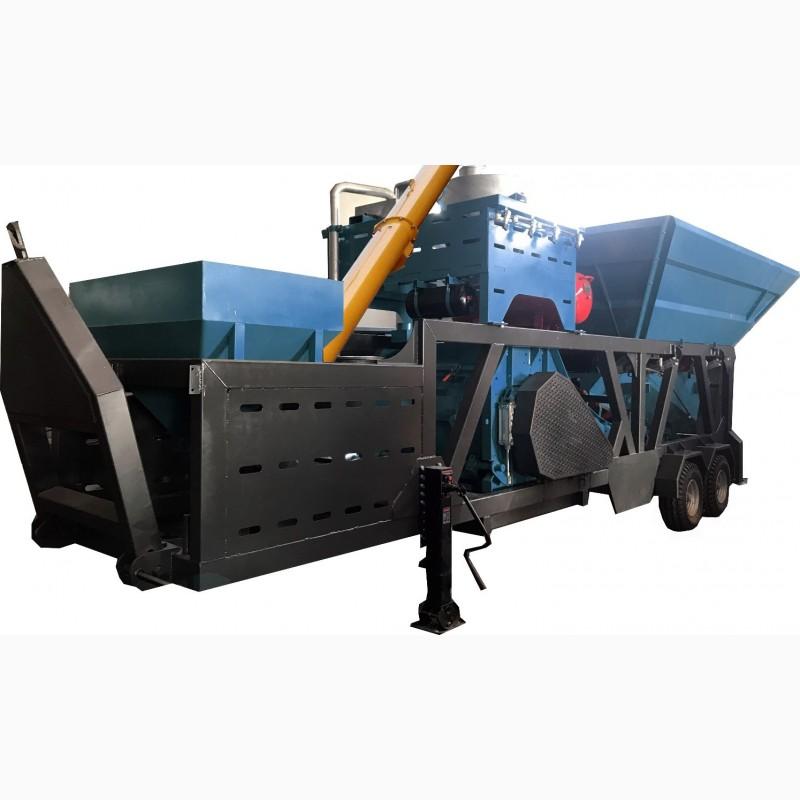

Mobile mini concrete plant Polygonmach Mobil 60 (40-60 m3/hour) Turkey.

1. Bunker of aggregate material - 4 x 5 m3

2. Aggregate weighing hopper – 1 m3

3. General feeding conveyor – 600 mm x 4,000 mm

4. Mixer: 1-only 1 m3

5. Cement weighing hopper - 600 kg

6. Water weighing system - 300 l.

7. The system of chemicaladditives - 20 l.

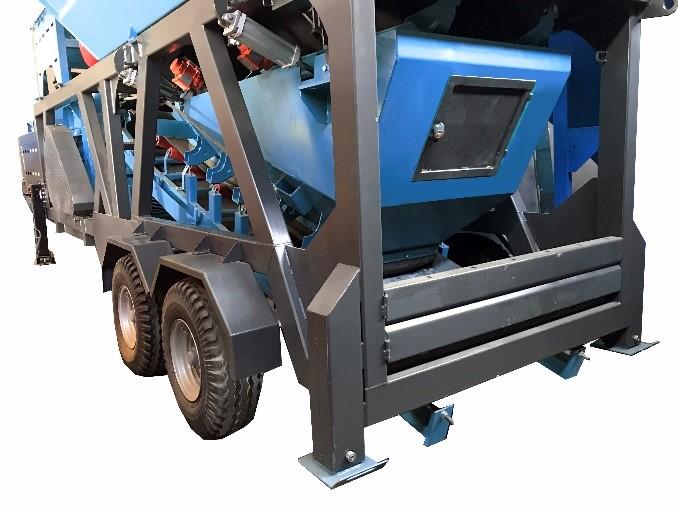

8. Mobile Chassis

9. Floor control system - automatic machine

10.Emkost cement storage and supply

11. Cement auger

12. Concrete supply conveyor - 600 x 10,000 mm

Maximum productivity (hard concrete): up to 60 m³/hour.

Operating voltage: 380 V - 50 Hz, 70 kW.

Transport dimensions of the installation: Delivery in a container 40 'OT

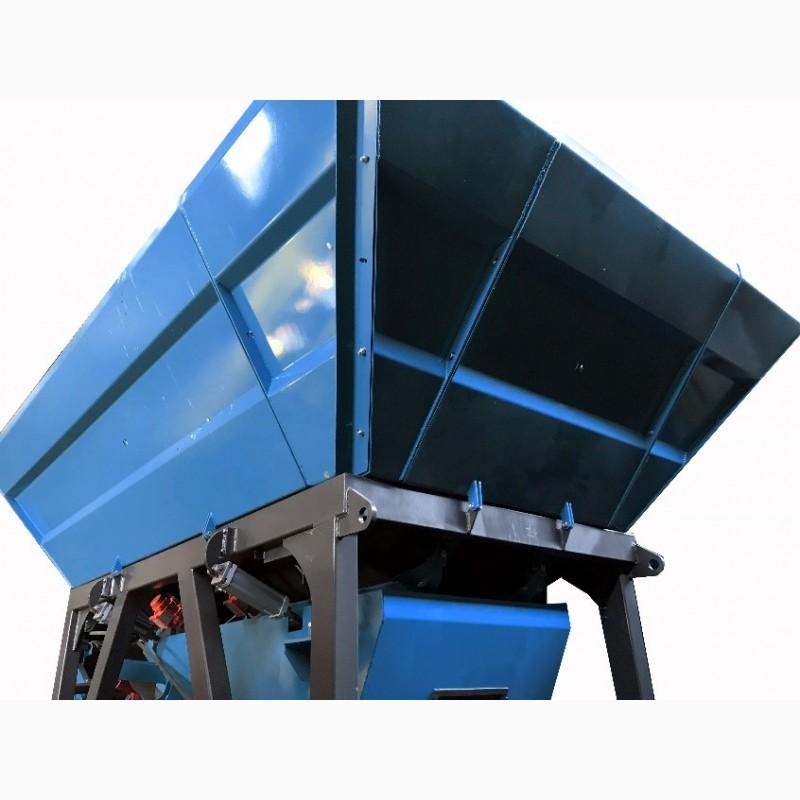

Bunkers of aggregate materials:

Total volume: 20 m3

Quantity: 4 pcs. x 5 m3

Material: St 37 – 4-5 mm

Unloading flaps: 4

Unloading system: Electro-pneumatic.

Cylinder: 800 x 300 mm, Brand: Pemax

The body is strengthened against deformation.

Sand compartment selector: 1 pc., 0.37 kW

Selector: OLI (Italy),

Aggregate weight bunker:

Weighing capacity of the hopper: 2,500 kg

Selector: 1

Loading cells: 4 x 2000 kg

Aggregate weighing conveyor:

Conveyor size: 600 x 4,000 mm

Electric motor: 5.5 kW, 1450 rpm, EMTAŞ Gearbox: Dissan, reinforced type

Bearings: FAG or SKF Brand for heavy duty conditions.

Conveyor: Quality EP 125, Number of layers: 4, Thickness: 10 mm

Tape Brand: Derby

Emergency stop button.

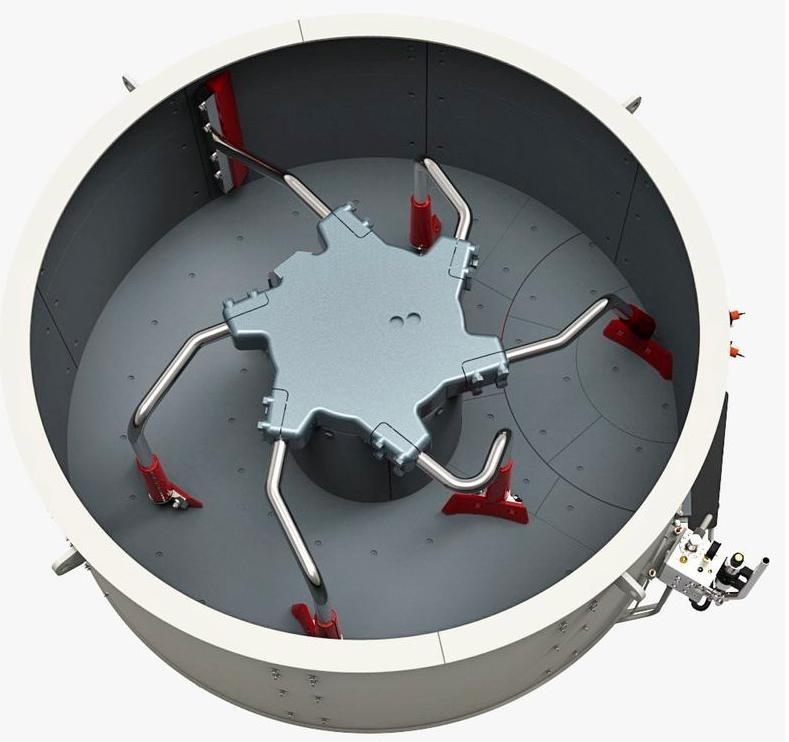

Mixer: 1-one shaft

Loading volume: 1.5 m3

Unloading volume: 1.0 m3

Mixer motor: 37 kW, 1450 rpm

Gearbox: Reinforced

Bottom and side inner plate made of wear-resistant Ni Hard metal, 12 mm thick, Hardox 450 (Sweden) Mixing blades: Ø 55 mm, Wear-resistant steel.

Mixing and cleaning of blades in Ni-Hard, hardness: 700 HBW

Hydraulic power supply unit with a hand pump for emergency opening of the unloading door; All moving parts of gearboxes and bearings are constantly lubricated with an oil bath;

Bearings: FAG or SKF - Germany

The inner surface of the unloading bucket is covered with wear-resistant sheet metal Hardox 450 - 12 mm.(//tractor-service.com)

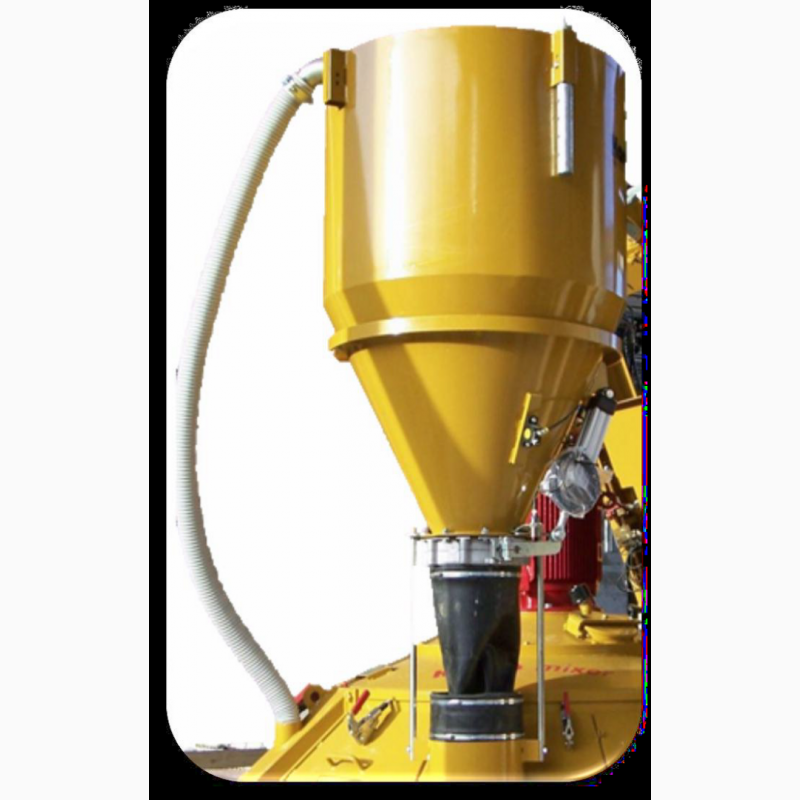

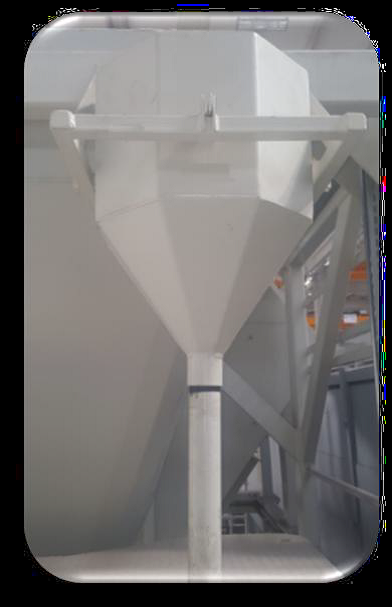

Cement supply system :

Volume: 600 kg

Выгрузка cement with a throttle pneumatic valve (WAM Brand – Italy)

Strain gauge, 3 pcs., 1000 kg/each. (Brand : Esit)

Selector: 1 pc., 0.18 kW, (Brand: Oli - Italy)

Water supply system:

Volume: 300 l.

Material: St 37 - 4 mm.

Supply through a pneumatic throttle valve. (WAM Brand – Italy)

Strain gauge, 3 pcs., 1000 kg/each. (Brand : Esit)

Chemical supply system additives.

Volume: 20 l.

Strain gauge, 1 pc., 100 kg. (Brand : Esit)

Air compressor:

Compressed air cylinder: 300 l.

Brand: Mark (Atlas – Copco) USA

Type: Piston compressor with belt drive

Motor power: 5.5 kW

Pressure: 10 Bar

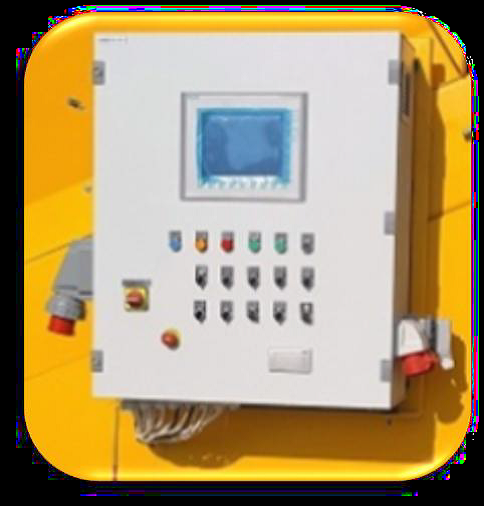

Management system:

The automation system includes:

* Power panel and switches

* Dosing control terminals

* Semi-automatic control unit

* Water control panel

* Weighing indicators

Electronic components are Siemens Brand

Cement open receiver:

Volume: 1 m3

Cement auger:

Size:

Ø 193 x 6,000 mm

Motor: 5.5 kW

Brand: WAM (Italy)

Concrete supply conveyor :

Size: 600 x 10,000 mm

Thickness: sheet metal - 4 mm

Motor: 7.5 kW, reinforced

Bearings: FAG or SKF

Reinforced bearing housing.

Tape: EP 125, Number of layers: 4,

Thickness: 10 mm

Brand: Derby

Emergency stop button.

Drives: Ø273 mm, 5 mm thick.

Drives covered with rubber.

Warranty 24 months.
