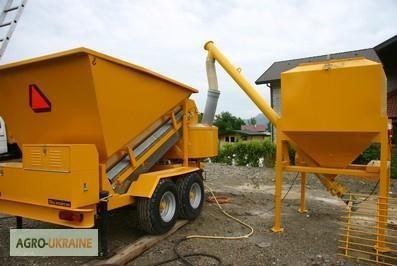

Mobile Mini-Concrete Plant 6-12 m3/h, Kyiv

TECHNICAL CHARACTERISTICS AND COMPONENTS OF THE CONCRETE PLANT.

The Mini mobile concrete plant is designed for the production of high-quality concrete and concrete mixtures, with a volume of 5-12 m3 per hour. The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

The mobile concrete plant is equipped with a convenient automatic plant control system. The modern Siemens computer system allows the production of 20 recipes and types of concrete. It is possible to print each ready-mix mixture in kilograms and percentages of inert materials or cement during the preparation of the concrete mixture.

Main technical characteristics:
1. Fully automated mobile concrete plant, productivity 5-12 m3 per hour (depending on the brand of concrete: wet or dry grade).

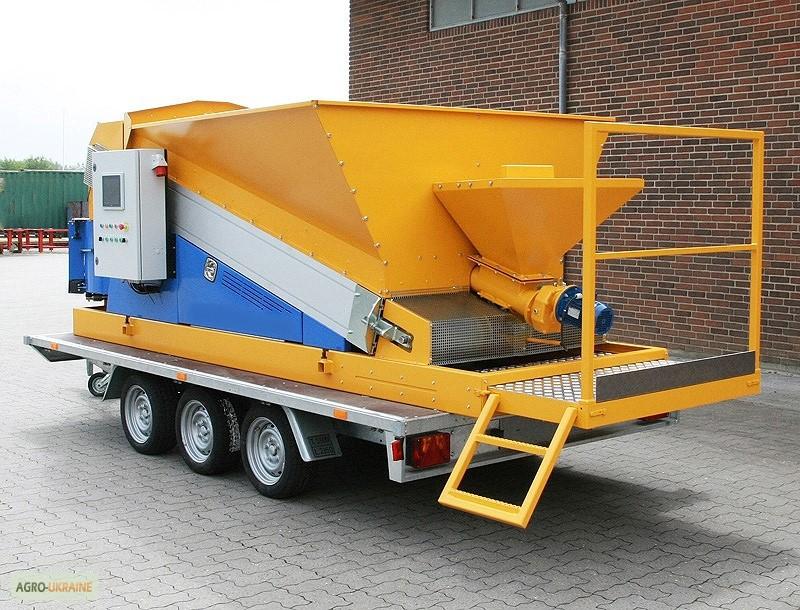

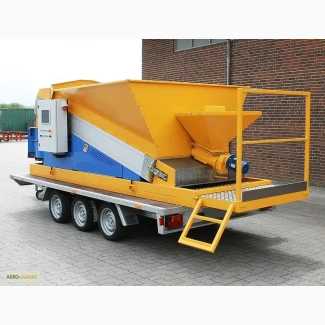

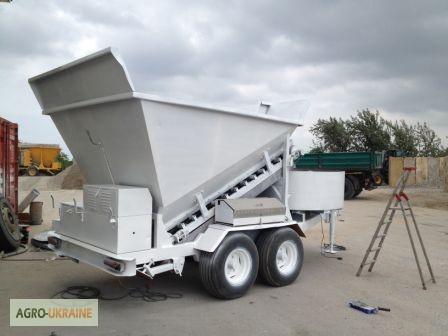

Located on a wheeled chassis.
It can be transported at a speed of up to 40 km/h.

2. Bunkers of inert materials, 2x1.1 m3
3. Sensors for weighing inert materials. Located under the pan-mixer. Dosing accuracy +/- 100 g. SIEMENS - Germany.
4. Conveyor for supplying inert materials from hoppers to the mixer, incl. electric motor

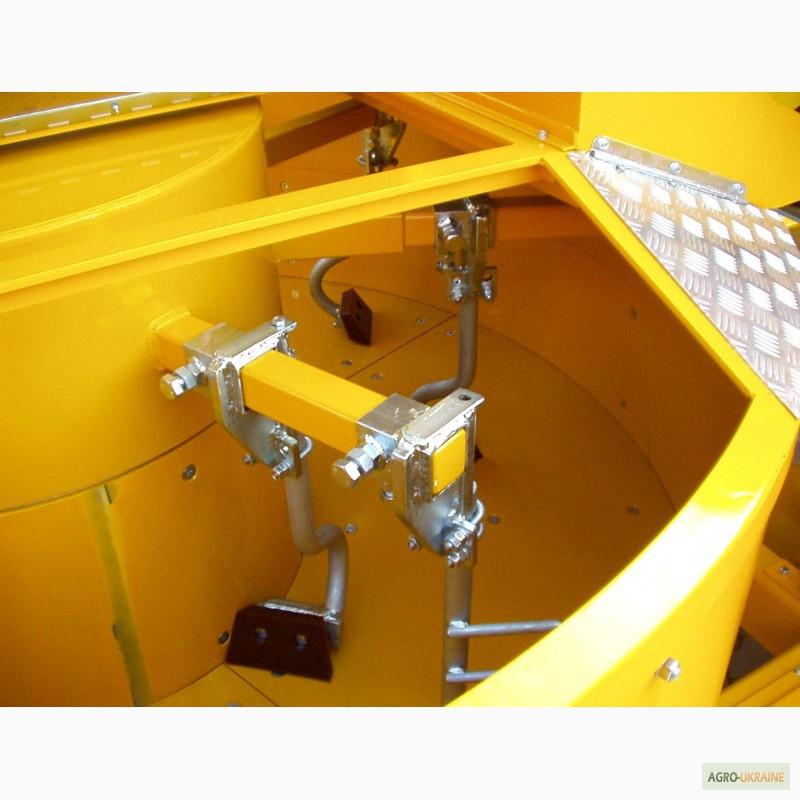

5. Pan-mixer 500/300 liters, covered with a 12 mm layer of special steel. 5 quick-removable paddles with fiberglass tips. Ready-made concrete feed valve that opens automatically.
(//tractor-service.com)
6. Galvanized water tank, 200 liters, with built-in DANFOSS pump and water dispenser.

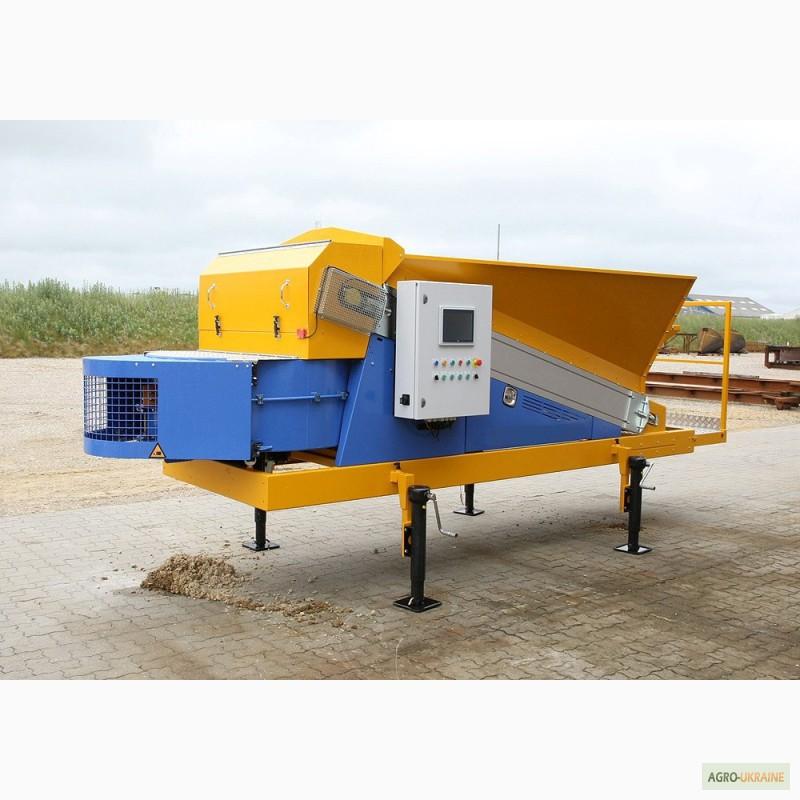

7. The control panel of the mobile concrete plant. Manual control keyboard. Easy touch screen of the SIEMENS automatic factory control PC. 20 types of concrete with the possibility of changing the brand of concrete before each batch. A printer with a printout of the mixture of the finished batch in KG and %. Indicators per batch, hour, shift, month.

Mini mobile concrete mixer is:

1. High-quality and modern equipment, manufactured according to time-tested technology!

2. Development and modification taking into account the latest technologies of concrete production.

3. Quick payback of the equipment and further profit.

4. Ease of maintenance and cleaning of the concrete plant.

5. All parts that wear out quickly are made of durable materials and can be replaced separately if necessary, which significantly reduces production costs.

6. Time-tested reliability!
