Mobile crushing plant Polygonmach PI-2 Turkey, Kyiv

Mobile crushing plant Polygonmach PI-2 Turkey

Technical specification:

The maximum productivity is 250-300 t/hour.

The maximum loading size is 950 x 950 mm

Loading height 4.2 m

Basic configuration

Impact crusher + 3-level screen

The total power is 400 kW.

Requirements forelectric generator 1100 kVA

The total weight is 55 Tn

Dimensions 15(L) x 3.2(W) x 4.2(H) meters

Chassis type

Single chassis on wheels, equipped with hydraulic opening legs.

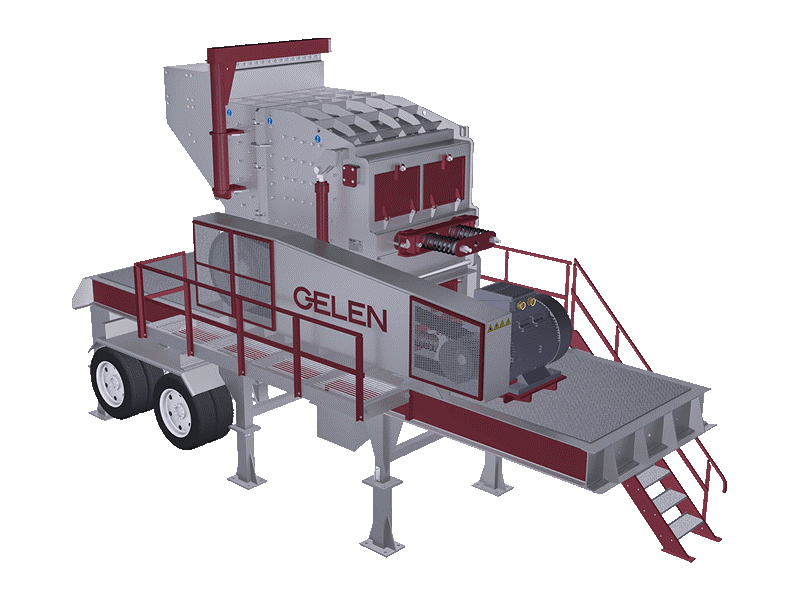

The PI-2 mobile crushing plant is a combination of:

Loading hopper with vibrating feeder
CPI-1415 Primary Impact Crusher
Bypass conveyor (for soil extraction)
The feed conveyor between the primaryimpact crusher and the vibrating screen
Discarded with 3 or 4 decks
Feedback conveyor from the vibrating screen to the impact crusher
Folding conveyors of warehouse type
Wheeled mobile chassis with hydraulic supports
Automation system with PLC and remote control
dust removal system
Diesel electric generator set (option)

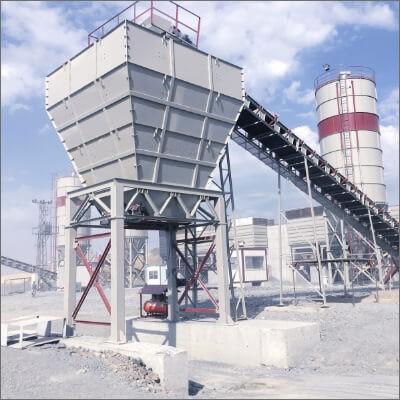

Loading bunker:
Hopper volume: 20 m3

Vibration motors: 2 x 2.2 kW - brand OLI, origin: ITALY.

Feeder system Grizzly

Asker size: 850 x 3,900 mm. Throughput capacity: 200 tons/h.

Thickness of the main body: 20 mm.

Body cladding: HARDOX 450 - 10 mm

Feed height: 4.5 meters

Observation platforms are included.

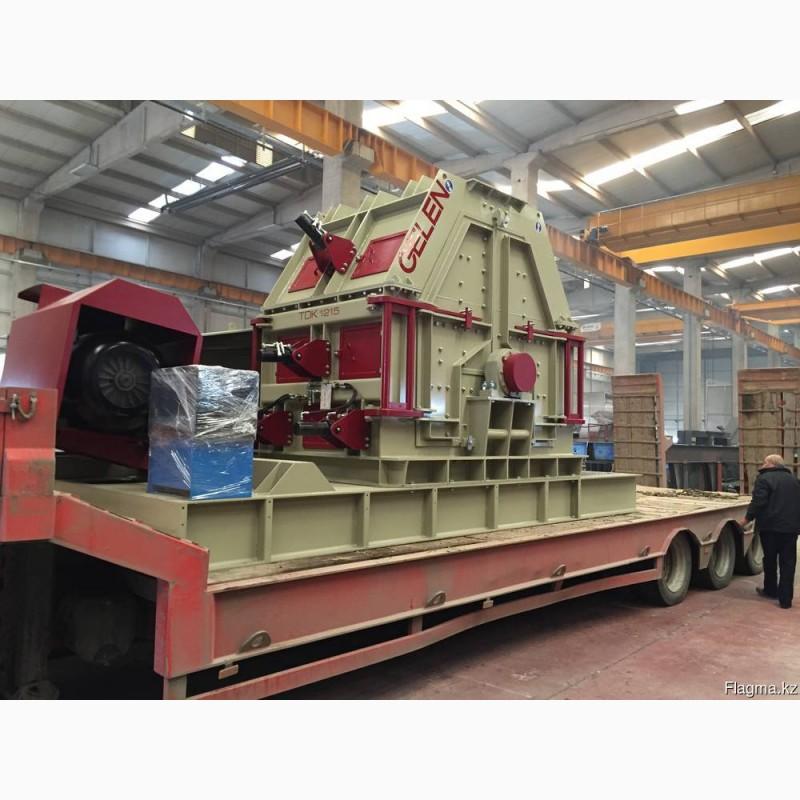

Primary Impact Crusher:
Rotor size: 1,500 x 1,250 mm.

Durable housing, rotor and installation blocks.

Engine: 250 kW, engine 1500 rpm, brand EMTAŞ Max.

Feed size: 900 x 900 mm

Hydraulic opening system and

A simple adjustment mechanism is included. Productivity 200 - 250 t / h

Speed adjustment is possible.

The main characteristics of our primary impact crushers:

high productivity
High reduction factor
Production of high-precision materials
cubic product
Ease of maintenance

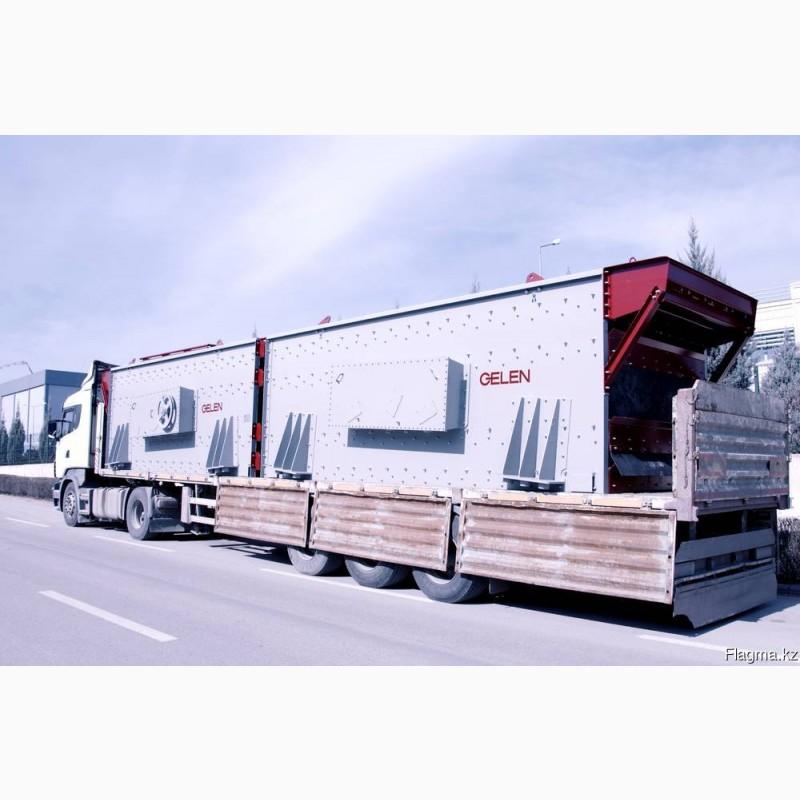

SELECTION SCREEN:(//tractor-service.com)
 Model: CVS-2060/3

Dimensions: 6,000 x 2,000 mm

Screen shelves: 3 pcs.

Screen area: 8 m²

Drive power: 22 kW

Screen pitch: 18º

Stroke: 6 - 8 mm

Flow speed: 0.45 m / s

Thickness of the main body: 12 mm. Unloading blocks are covered with sheets of HARDOX 450 - 10 mm.

Bearings: SKF, made in Germany.

BELT CONVEYORS:

Belt: EP125: 10mm

Drive drum: Ø 219 x 10 mm.

Tail drum: Ø 219 x 10 mm.

Bearings: FAG or SKF.

Bushing: SNH-513.

Viewing platform - Option

CONVEYOR SIZE 1,000 x 4,000 mm (Bypass) 7.5 kW

1.000 x 10.000 mm (Main feeding conveyor)18.5 kW

800 x 8,000 mm (Unloading conveyor) 7.5 kW*3

8000 x 10.000 (Return conveyor) 11 kW

Mobile chassis :

3 axles and 6 wheels are installed on the chassis.

The hydraulic system is included in the supports.

Chassis material - steel profile 550 mm.

MAIN CHARACTERISTICS OF THE PLANT:

Feed size max. 900 x 900 mm

Feed height 3600 mm

Feed capacity 200 - 220 t / h

Total weight 58,000 kg

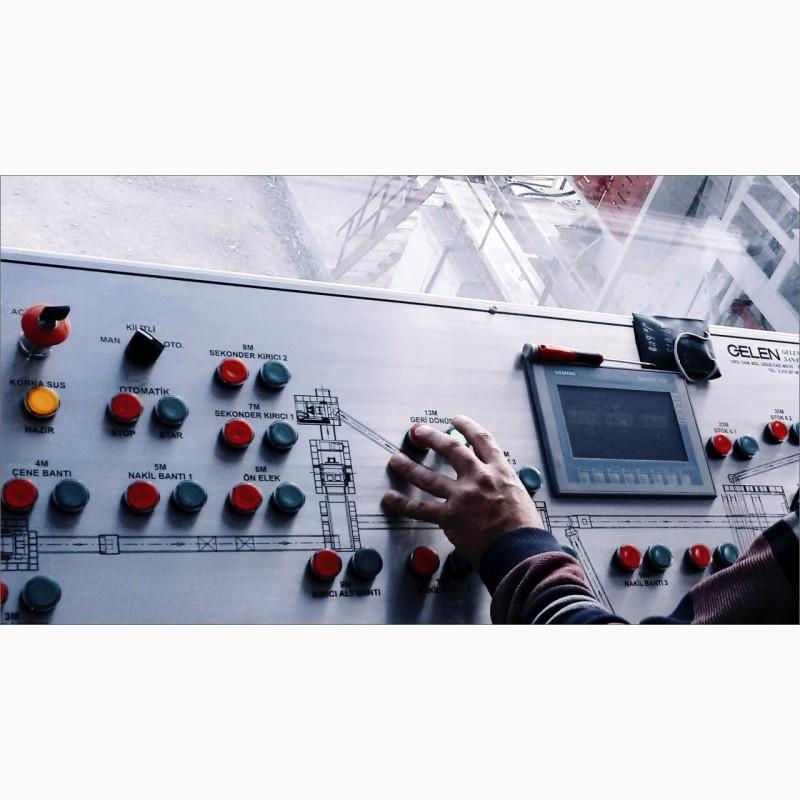

Computer control system:

The control panel includes thermal relays, fuses, a contactor, a time relay and buttons for electric motors in the system.

Brands of electrical and electronic components: SIEMENS - GERMANY

The wiring between the control panel and the equipment is included.

Warranty 24 months.

The manufacturing company conducts chief installation and personnel training.

The official representative of the manufacturer - the Turkish company Polygonmach offers high-quality equipment at minimal prices and convenient delivery conditions.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our e-mail.
