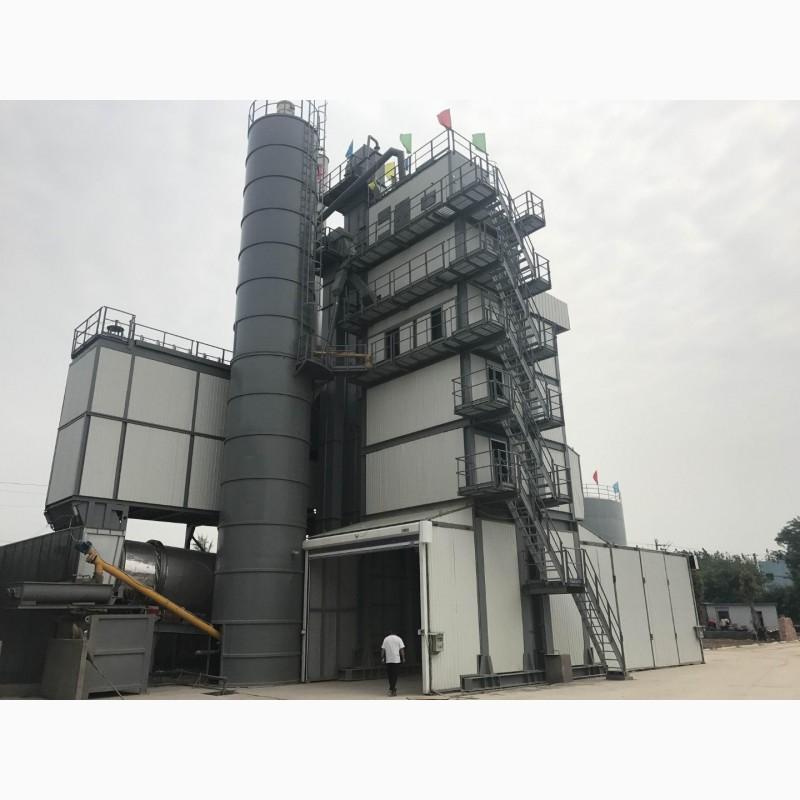

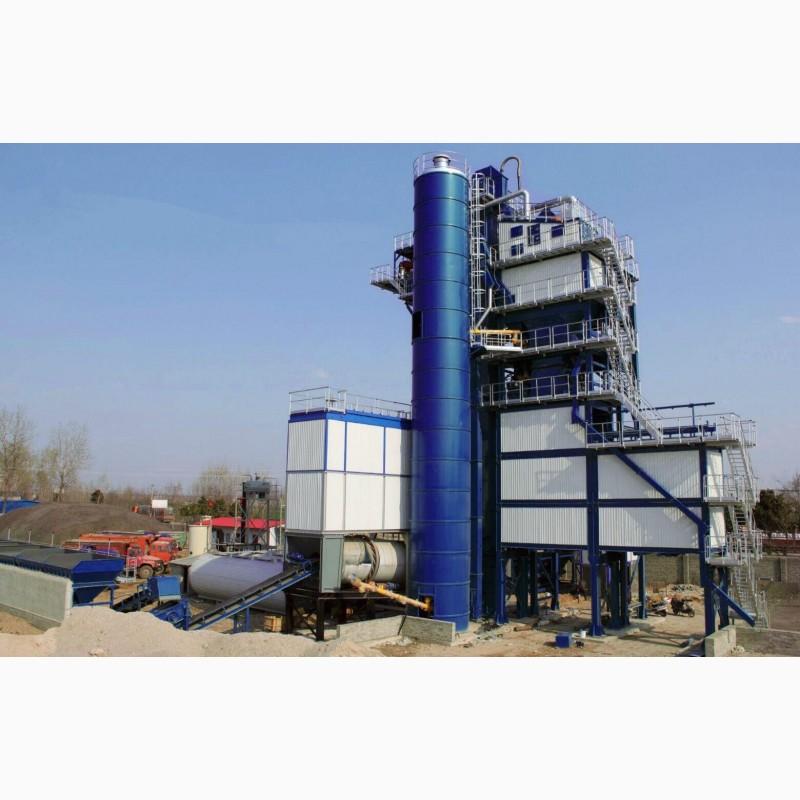

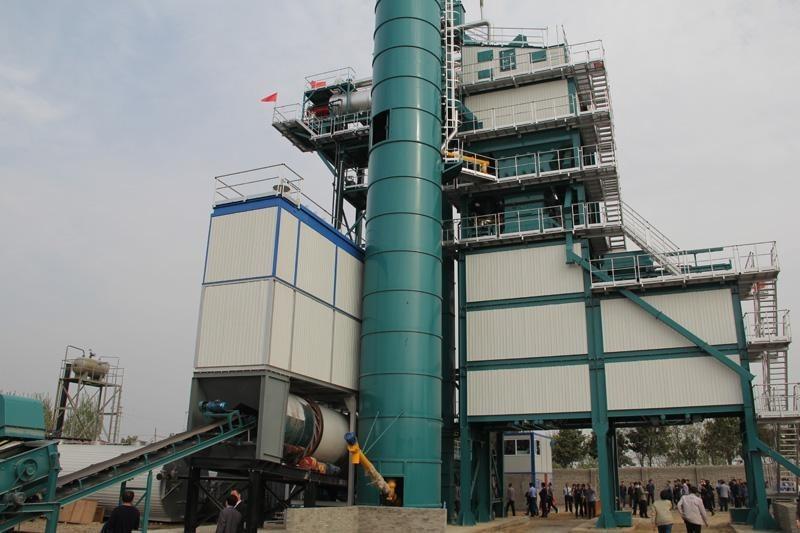

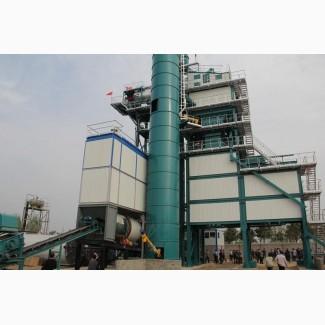

Stationary asphalt plant Sinosun SAP320 (320 t/h), Kyiv

Official representative of Sinosun Machinery company

offers high-quality equipment at minimal prices and convenient delivery conditions.

The official representative of the producer company offers minimal factory prices.

Delivery of equipment to any region or country.

The manufacturer carries out chief installation and personnel training.

To receive a commercial offer, please send a request to our E-mail.

The Sinosun company is a manufacturer of high-quality, technological and modern asphalt concrete equipment.
The manufacturer actively cooperates with international companies working in this industry.
The best European options are used as the basis of its equipment.

Characteristics of the asphalt mixing plant Sinosun Machinery SAP320 (320 t/h):

Technical parameters:

Installation power (kW) 860

Nominal power (T / h) 320

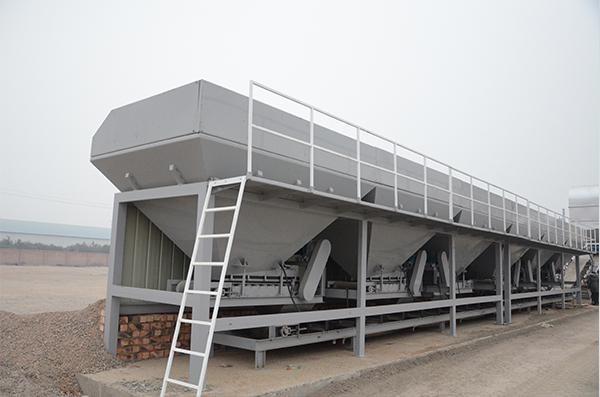

Cold aggregate types 6 pcs * 15 m3

Drying drum Length / diameter 10 m * Ф 2.7 m

The number of screen layers is 6

Double Italy OLI Vibrator vibrating screen

Mixing period (sec) 45

Mixer capacity (kg) 4000

fuel consumption 6.5 kg/t of finished product

Type of fuel for the burner - Fuel oil / Diesel / Natural gas / Liquefied gas.

Dust collection model Gravity dust collector + Nomex Bag Dust Filter(//tractor-service.com)

Control method Manual / automatic

Temperature of the finished product (℃) 140-180

Concentration of emissions ≤ 20mg / Nm³

Hopper for finished products 20/40/60/80/100/120/200 tons, Lower type, under the mixer or standing on the side.

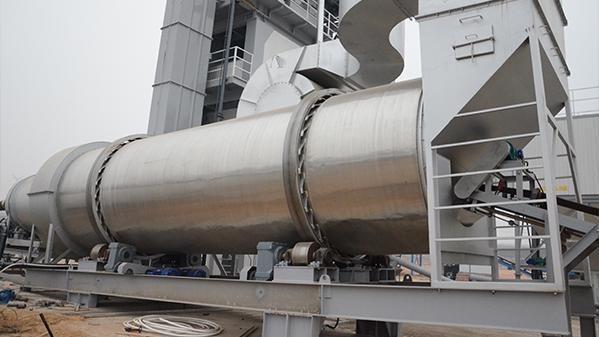

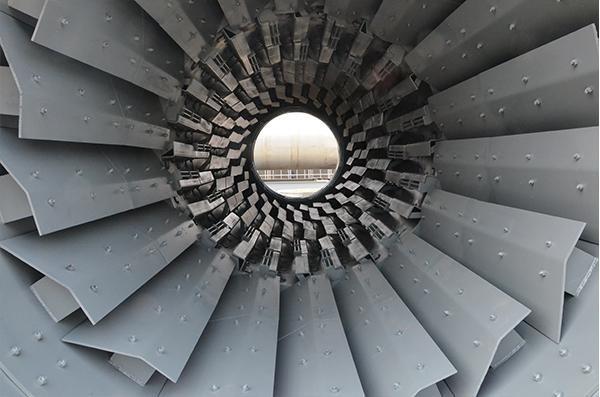

Drying drum.
1. The drum body of the dryer is made using heat-resistant steel.
2. The inner blade of the drying drum is made of heat-resistant steel and is connected with a bolt, with a long service life and quick and convenient replacement.

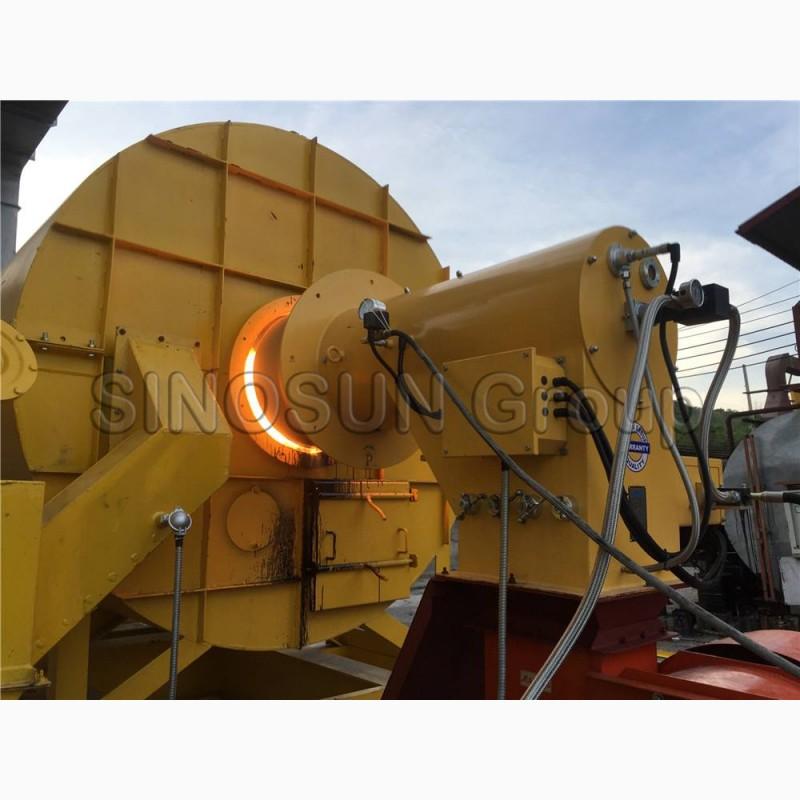

Diesel burner:
Specially developed burner on heavy / lightliquid fuel for an asphalt mixing plant, with stable air flow control, economical and energy-saving.
Temperature sensors installed on the output side provide information in real time, which allows you to accurately regulate the process.

Three types of burners (diesel, liquefiedgas) to choose from.

The vibrating screen uses an Italian vibrator of the OLI brand, high-quality steel with a long service life. The design allows you to easily change the necessary parts, makes maintenance simple and fast. The vibrating screen has a construction and coating that reduces the noise level and a sealed, completely closed system.

Weighing system
1. The system uses a weight mechanism with good adaptive ability.
2. The system uses a patent of combined two-stage weighing and precise dosing.
3. A unique patented technology of secondary tracking and weighing is used to ensure a stable and reliable ratio of bitumen and inert materials.

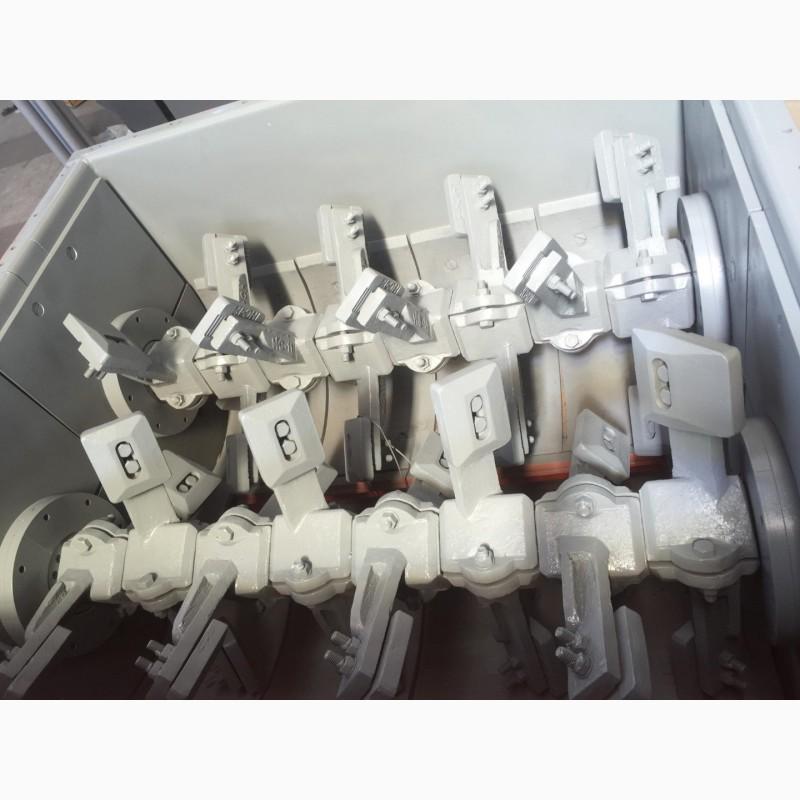

The main mixer is developed on the basis of European technology. It has double gearboxes with high-speed synchronization capacity. Accurate weighing of bitumen can be done directly by the pump in the mixing system.

Dust collection system
1. The system uses a step-by-step rotary reverse purge.
2. The system provides intellectual control of the frequency of dust removal.
3. The efficiency of the Nomex sleeve filter reaches 98-99%.
4. The system meets European emission standards (up to 20 mg/Nm).

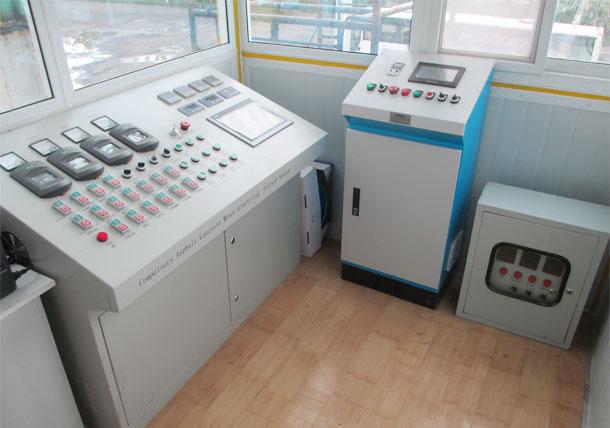

Intelligent management system. Russified
1. Electric components of Siemens.
2. Siemens PLC (with the function of remote detection and diagnostics)
3. Weighing module Siemens

The manufacturer carries out chief installation and personnel training.

Warranty 15 months.
