Used Mobile asphalt plant Intrame UM 260 (2005), Kyiv

Used mobile asphalt plant Intrame UM 260 - 2005 (production - Spain)

Intrame UM ultra-mobile installations are designed for on-site production, which reduces logistics costs and installation time.

They are transported in several mobile devices on wheels, always in compliance with the requirements of road transport. In addition, they can be equipped with legs and load distribution, which can be adjusted in height, avoiding concrete foundations, if the soil guarantees the appropriate resistance.

The design and final layout of the installations guarantees the operator easy access to all maintenance.

High standards of safety, accessibility and environmental protection.

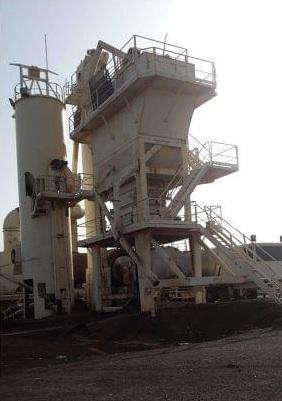

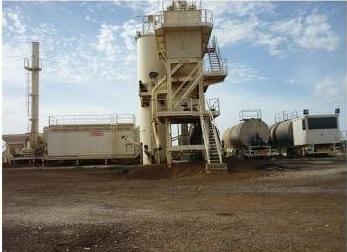

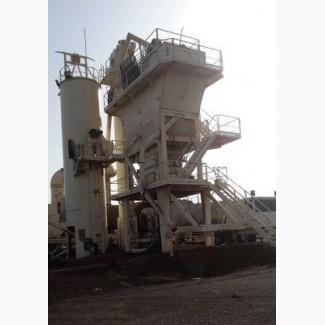

Description of used Asphalt "ultramobile" plant Intrame UM 260 (260-300 t/h) 2005.

Type UM 260

Serial number 2680

YOM 2005.

Productivity:

260 t / h (moisture 3.0%)

300 t / h (humidity 1.5%)

Technical characteristics and parameters:

6 units Cooling feeders 10.5 m3 each, total 60 tons

The diameter of the drying drum is 2400 mm.
(//tractor-service.com)
10.080 mm long.

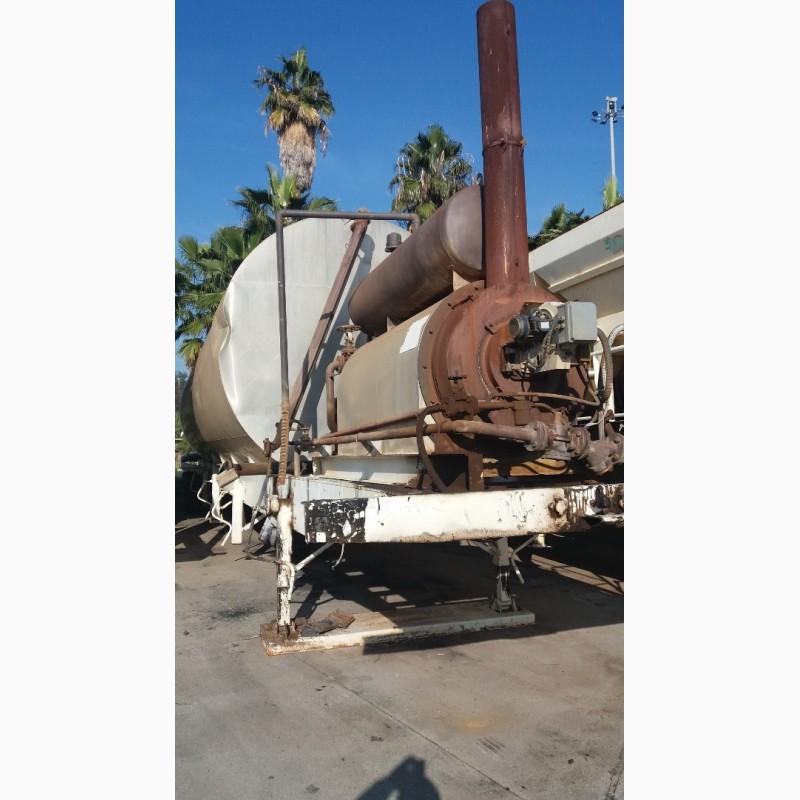

Agromat Bfec burner for 16,340,025 kcal / h

Mixing tower with hot riser

Screening unit (vibration screening) 4 levels + bypass size 1,800 mm x 3,600 mm

Bunker of hot material of 4 different types for 24 m3

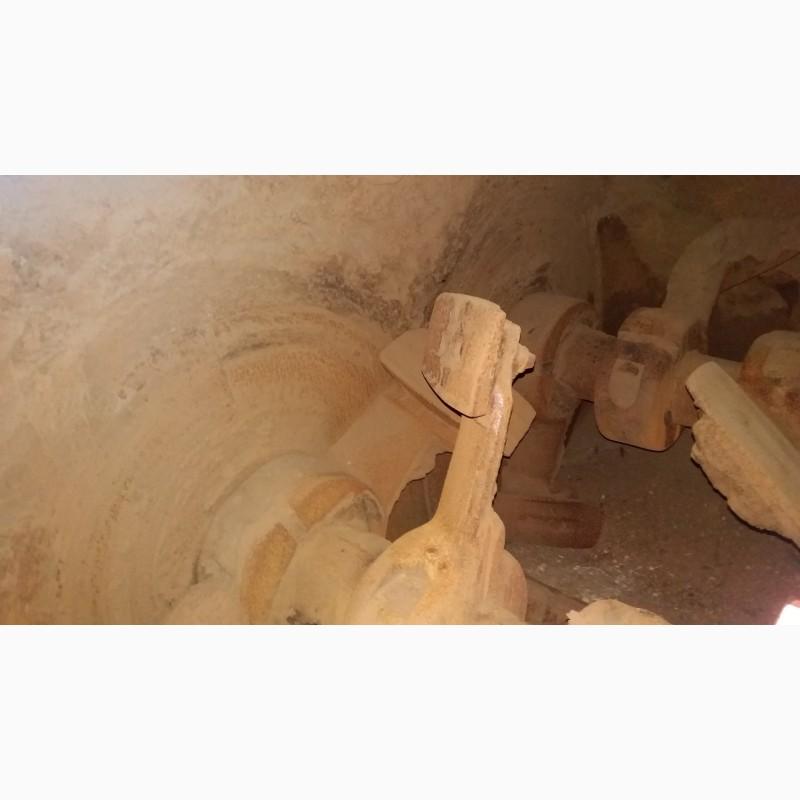

Mixer with a volume of 3250 kg.

Bag filter JET Surface 742 m2 and 462 filter bags

Ready asphalt bunker for 2 compartments 40 m3 + 40 m3 = 80 m3

Computer control unit - Control camera, computerized workstation.

The total power is 640 kW.

2 bitumen tanks * 90,000 liters

1 fuel tank for 90,000 liters

Additional conditions:

The plant is fully serviced and in excellent working order.

Service was carried out exactly according to the regulations and in a timely manner.

The seller offers full service + Organization of delivery + Chief installation at the Buyer.
