Equipment for unloading cement from hopper wagons, 60 t/h, Kyiv

Offer for pneumatic cement unloading equipment, Sweden.

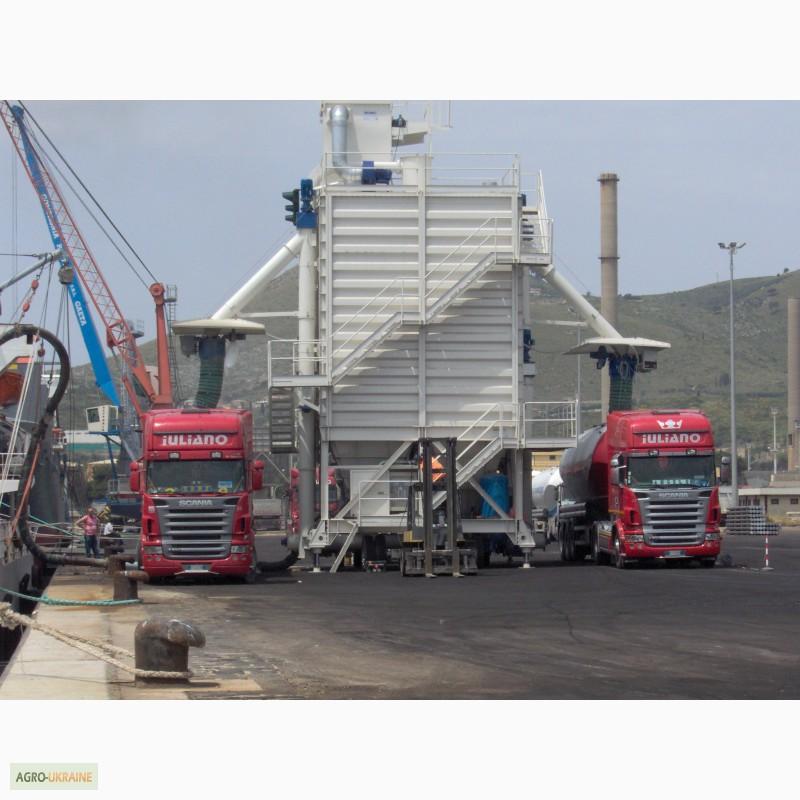

PNEUMATIC CONVEYOR INSTALLATION FOR THE FULL CYCLE OF CEMENT PROCESSING - UNLOADING THE WAGON AND LOADINGSILO.

Pneumatic transport system for transporting cement, productivity 60 t/h.

It consists of:

- hopper for 50 m3, sp.4mm;

- 2 vibrators of 200 kg.

- 2 screws with a diameter of 323/3000 extractors under the hopper.

- A mesh frame (size 20x20 mm) that vibrates over the bunker with an autonomous vibrator.

- 8 loading chambers with compression.

- portable tank;

- Air supply system complete with pipeline and guides up to a maximum distance of 100 meters.

- Control cabin with PLC control panel.

The compressor is not included in the delivery package.
(//tractor-service.com)
DEVICE FOR DISPLACEMENT OF DUST ON THE CHARGER - DRYBATCH 70 S.M. WITH RECOVERY SCREW AND HOOD FOR DUST SUCTION.

Filter Euro DRYBATCH F 70 with the following technical characteristics.

Filtration surface 70 m3.

Centrifugal "silent" fan 11 kW (15 hp).

72 filtering elements located on three rows.

The system for cleaning parts of the filter by means of compressed air, supplied by a countercurrent pressure from 5 to 6 bar.

Compressed air tank 5.5 dm3 with condensate drainage system.

- Extractor for suctiondust is located at the loading point, made of steel Fe 360 mm 3.

- Cement recovery auger

- DPM (Differential Pressure Meter) system designed to control the level of filter cleaning.

- Three-sided coating made of non-slip plates, galvanized and painted.

- INTEGRAL COVERING OF THE UNLOADING BUNKER. Made of steel structures covered with galvanized metal, painted on the outside, complete with drain.

The price depends on the configuration. Upon request.

To receive a commercial offer, please send an application to our e-mail address.
