Equipment for unloading cement from hopper wagons, 150 m3/h, Kyiv

PROPOSAL FOR EQUIPMENT FOR UNLOADING WAGONS

CEMENT SCREW FOR LOADING A CEMENT TRUCK DIAMETER 457 MM - CAPACITY 150 T/H - LENGTH 10,000 MM

The removable tubular auger has high efficiency even during intermittent operations. Ø 457 mm, length 10 m, with spiral with variable inclination, coaxial reducer R 1/7. Productivity 150 tons/hour. Universal inlet.

-BUCKET ELEVATOR FOR CEMENT 25.5 m - 150 cubic meters/hour

- RUN PARAMETERS:

The displacement capacity is 150 m3/h.

Coef. filling: 71%

Speed: 1.2 m/s

Roller distance: about 25,500 mm

Input - Output distance: 23,000 mm

COMMAND MANIFOLD is made of electro-welded frame, consisting of sheet metal and Fe 360 steel structure, with built-in supports for shaft and bottom flange, to connect to top flanges and cylinder barrels, to connect cover to cylinder barrels.

The unloading door has a retractable wrench made of special steel, which prevents losses, and is equipped with an inspection hatch.

The cover consists of two parts, completely covered with a rubber, anti-sound coating, disassembled for maintenance and inspection of the entire loading group, as well as for mounting / dismounting of the tape.

The drive shaft is made of 38NiCrMo4 steel, subjected to high release hardening, shaped to support the transmitted loads, the belt and the power train.

Inspection hatches manufactured in accordance with CE European standards, which facilitates the opening of the entire voltage group.

The rotary drum in the grate is made of steel 45 and installed on electro-welded structures made of Fe 360 metal sheets.

The loading hopper is equipped with anti-rust steel, the rotary shaft is made of C 45 steel, respectively.

to DIN 17200, and is shaped to support the return drum against shocks from the material recess at the bottom.

BUCKETS for material lifting are manufactured according to DIN 15234 standards in a special design for cement, made of steel Fe 430, with special hard edges to limit losses. The buckets on the back panel have holes for connection with a rubber band. They have a special shape at the back in order to fix the rubber gasket. inserted between the buckets and the tape, which ensures proper mechanical protection of the tape.
(//tractor-service.com)
The SAFETY AND CONTROL DEVICE has 4 microcomputers to control the 6O-3OD belt slip. All bolts class 8.8 according to DIN 931, galvanized.

ПРИСТРІЙ З ВИСТАВАННЯ DUST EXTRACTION DEVICE ON THE CHARGER - DRYBATCH 70 S.M., with recovery auger.

Filter Euro DRYBATCH F70 with the following technical characteristics.

Filtration surface 70 m3.

Centrifugal "silent" fan 11 kW (15 hp).

72 filtering elements located on three rows.

A system for cleaning parts of the filter by means of compressed air supplied by a countercurrent pressure from 5 to 6 bar.

Electrical board for automatic duty cycle of the suction filter and electrical card to control the cleaning and select the operating mode of the solenoid valve (pause/run).

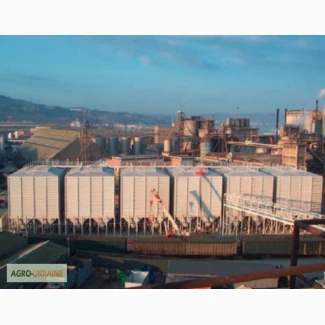

WAGON UNLOADING STATION:

The wagon unloading station consists of:

- Bunker 50 m3.

- 2 vibrators of 200 kg.

- 2 screws with a diameter of 323/3000 extractors under the hopper.

- A mesh frame (size 20x20 mm) that vibrates over the bunker with an autonomous vibrator.

- 8 loading chambers with compression.

INTEGRAL COVERING OF THE LOADING BUNKER:

Integral coating of the loading hopper: It consists entirely of steel structures, fully covered with galvanized metal and painted on the outside, complete with a drain.

Dimensions: mm 10.000 x 6.000 (variable height as shown in the attachment)

Not included in the delivery and delivered at the discretion of the Buyer's Company: internal lighting device on the cover, concrete curb, plates and elements for fixing the curb.

The price depends on the configuration. Upon request.
