Equipment for the production of concrete square water pipes and chimneys, Kyiv

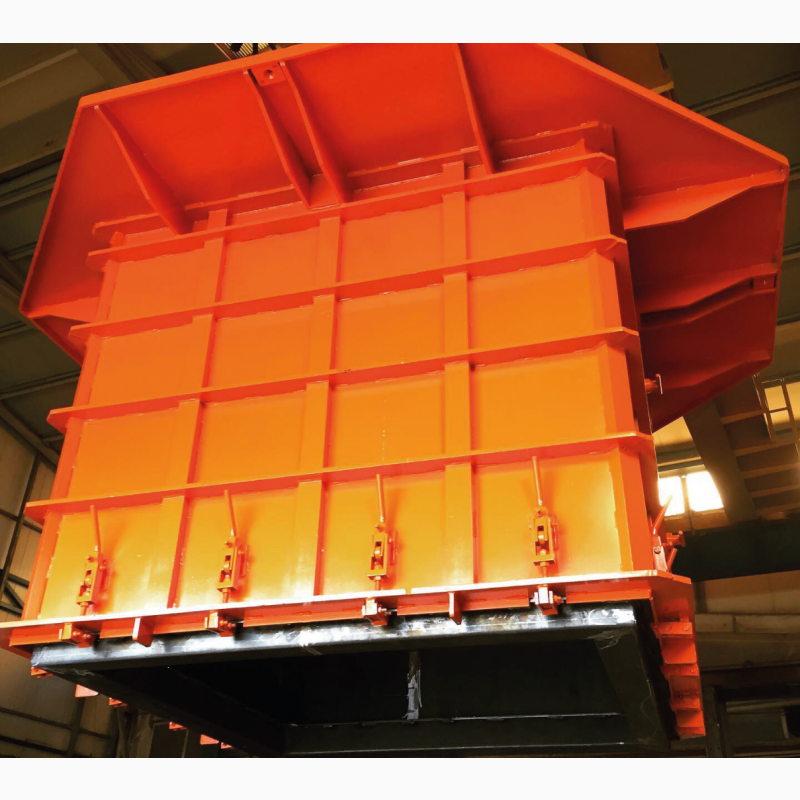

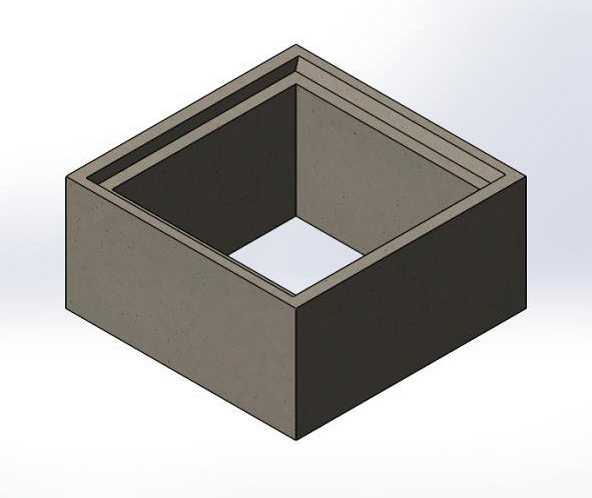

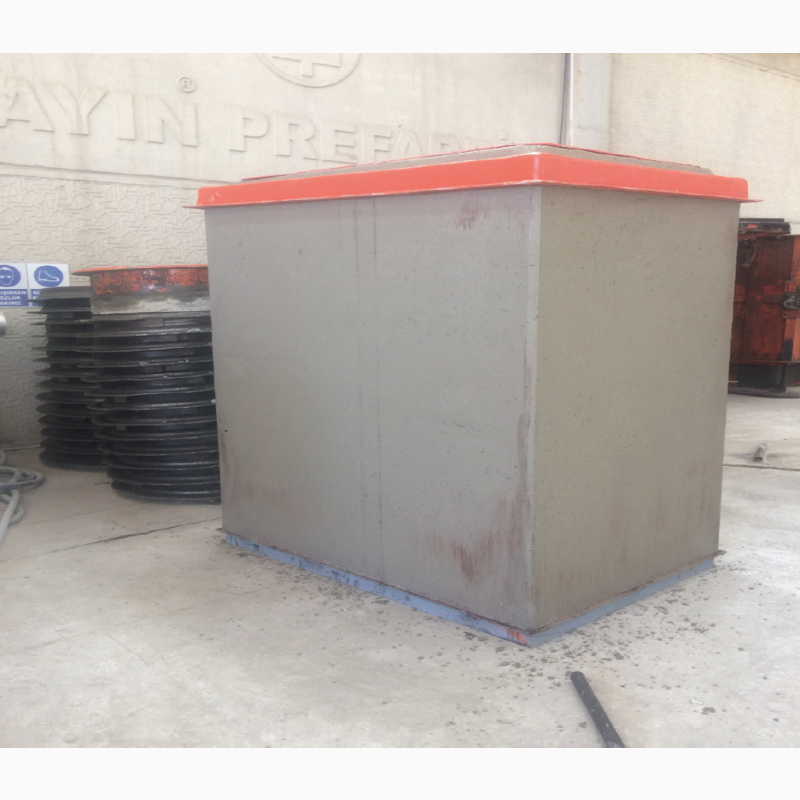

Machine for the production of square water pipes and chimneys.

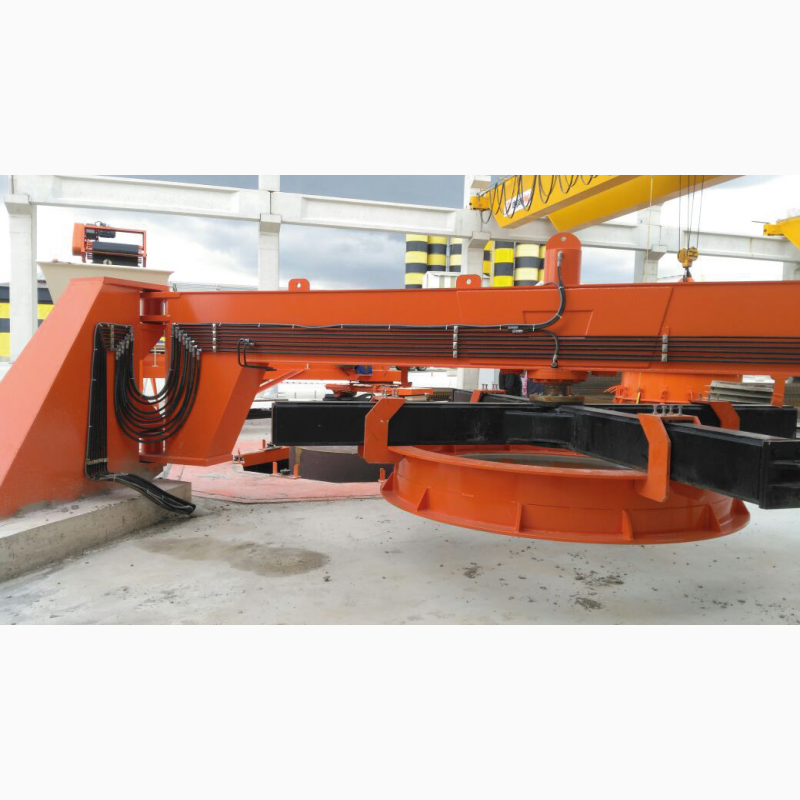

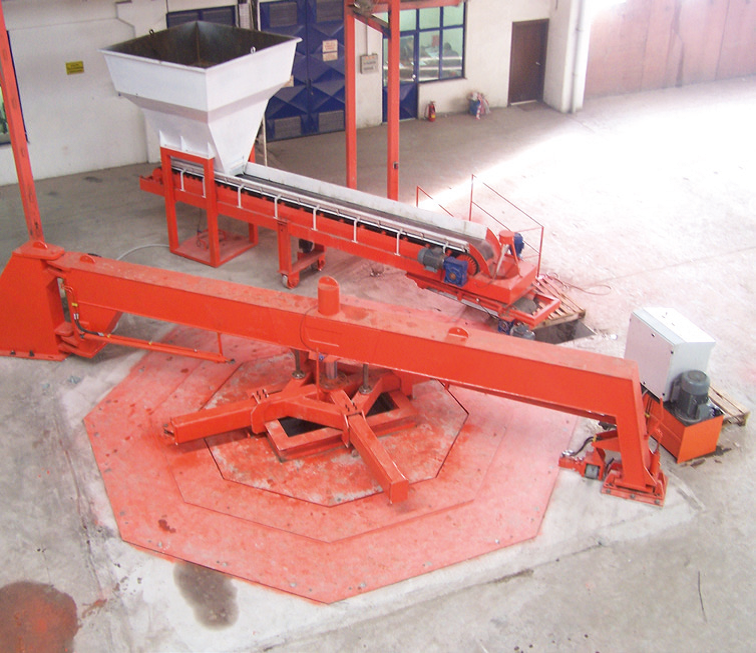

Machine for the production of concrete pipes and box culverts KMS 3000; It produces concrete water pipes with a diameter of 800 to 800 mm and from 3000 to 3000 mm with a minimum length of 1000 mm and a maximum length of 2000 mm in accordance with the Iller Bank TSE 821 specification.
Production is carried out by connecting one mold of all sizes.
Vibration system of a machine with a closed circulation systemliquid oil. The automatic lubrication system is activated when the machine is running.

SKF or FAG bearings resistant to high cycles and heating are used in the vibrator.
Technical characteristics

Control system - Manual/semi-automatic
Production capacity Ø800 mm-3000 mm
Engine power 30 kW 3000 rpm
Hydraulic pressure 120 bar
Bucket for solution 1.5 m3(//tractor-service.com)

Volumes of production Height mm Production in 8-hour shifts
in one print

Ø800*800 1 pc. 1000/2000 25 pieces
Ø1000*1000 1 pc. 1000/2000 25 pieces
Ø1000*1500 1 pc. 1000/2000 20 pieces
Ø1500*1500 1 pc. 1000/2000 20 pieces
Ø1500*2000 1 pc. 1000/2000 15 pieces
Ø2000*2000 1 pc. 1000/2000 15 pieces
Ø2000*2500 1 pc. 1000/2000 10 pieces
Ø2500*2500 1 pc. 1000/2000 10 pieces
Ø2500*3000 1 pc. 1000/2000 5 pieces
Ø3000*3000 1 pc. 1000/2000 5 pieces
