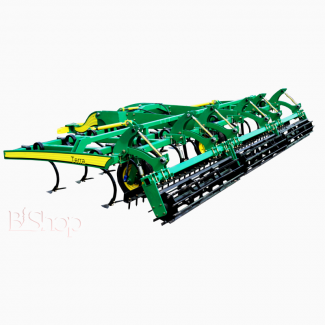

Cultivator of continuous processing TERRA 520, Zaporizhzhya region.

Cultivator of continuous processing TERRA 520 is intended for the care of couples,pre-sowing soil treatment. A 310-mm working width arrowhead is used for loosening the soil without removing wet layers to the surface with simultaneous trimming of weeds. To achieve continuous processing and free passage of harvest residues without clogging, the paws are installed in 2 rows.

Due to the high working speed and small width of the cultivator, high productivity can be achieved. The essential thing is that, thanks to its well-thought-out design and small size, the seedbed after plowing in one pass, the soil is processed not only on the surface, but also along the entire profile.

Features

Harvest Brand

Trailer type

Gripping width, m 5.2

Working speed, km/h 10-14(//tractor-service.com)

Productivity, ha/h 6

Overall dimensions, mm 5000x4450x830

Mass, kg 1800

It is aggregated with tractors with a capacity of at least hp. 90

Processing depth, mm 0...120

Number of cutting units, pcs. 19

Number of rows, pcs. 2
