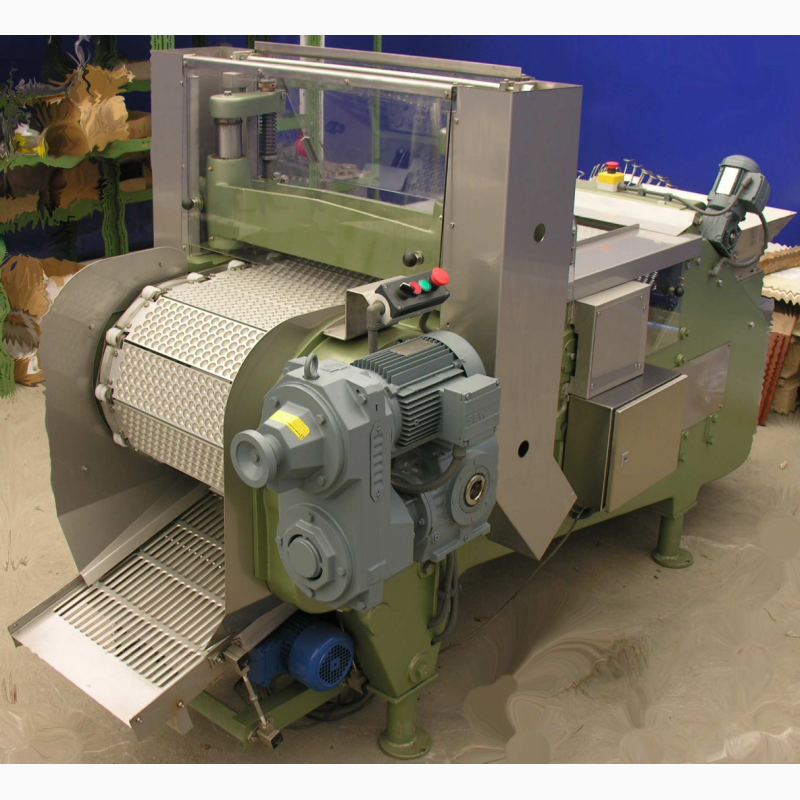

Machine for removing pits from cherries "UNIMASH'' DA-1 1800 - 2000 kg/hour, Lviv region.

New cherry pitting machine "UNIMASZ" made of stainless steel.
Overall dimensions: 151
• Длина: 2780 мм
• Width: 1272 mm
• Height: 1690 mm
• Weight: 1600 kg.
• Maximum productivity 800-1200 kg/hour.

Technical data:
• Main drive: power - 2.2 kW
• Output revolutions: 7.3-47 min
• Brush drive: power - 0.37 kW
• Drive of the cutting unit: power - 0.37 kW
• Vibrating table drive: power - 0.75 kW
Replaceable plates for stone removal with holes strictly dependent on the size of the cherry from which the stone is removed.

• Number of holes in the plate 108/77
• The diameter of the holes in the plate is from 19 to 26 mm.
• Needle diameter Ø7, Ø8.5, Ø11
• Cleaning of needles strip brushes
 • Additional equipment
• 5 needles, 2 plates, 10 brushes, strip brushes.
Available options and plate diameters
A kit for removing pits from cherries with a diameter of Ø 20÷23.5 mm is sold as standard, the diameter of the holes in the plate is 24/14, the ejector plate is Ø 9 mm, the ejector needles are Ø 8.5 mm

When changing to a 77 hole - we replace the entire set

Set 108 holes
• Plate 19/10 – 40 pieces (cherry up to 18.5 mm)
• Needle Ø7 – 108 pcs.
• Ejector plate Ø7 – 1 pc.
• Tightening plate Ø 9 – 1pc

Set of 108 holes(//tractor-service.com)
• Plate 21/12 – 40 pieces (cherry from 18 to 20.5 mm)

Set 108 holes
• Plate 22.5/12 – 40 pieces (cherry from 19 to 22 mm)

Set 108 holes
• Plate 24/14 – 40 pieces (cherry from 20 to 23.5 mm)

Set 108 holes
• Plate 24/14 – 40 pieces (cherry from 20 to 23.5 mm)
• Needle Ø11 – 108 pcs
• Ejector plate Ø11 – 1 pc.

Set 77 holes

• Plate 26/14 (cherry from 22 to 25.5 mm)
• Needle Ø11 – 77 pcs.
• Ejector plate Ø 9 – 1 pc.
• Tightening plate Ø 13 – 1 pc.
• Cutting plate - 1pc
• The base for attaching strip brushes-1 pc.
• Strip brushes for cleaning needles - 77 pieces

Efficiency

• standard -1 stone per 3 kg of pitted cherries
• maximum - 1 stone per 10 kg of pitted cherries - subject to proper operation

The machine can be equipped to remove pits fromcream.
Available plate diameters:
40/21- 30 holes
35.5/21-30 perforated
34/20-50 open
In addition, there is a base for a bone remover and a service platform.
All questions by phone. +48608741365 Viber/WhatsApp
