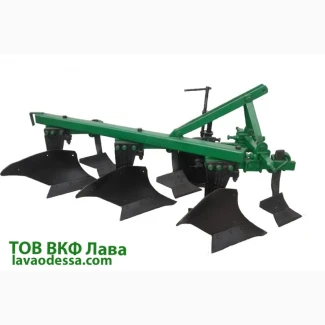

Plow PLN 3-35 with a front plow on flat racks, semi-screw blade, Odesa region.

Hinged plowPLN-3-35 (with front plow) is intended for plowing soils for grain and technical crops to a depth of up to 30 cm.
The plow is used in all soil and climatic zones, except for soil clogged with stones, slates and other obstacles, with a specific resistance of the soil of 0.9 kgf / cm2 (0.09 MPa) and hardness up to 35 kgf / cm2 (3.5 MPa) and humidity up to 27%.
The plow is aggregated with 80-100 hp tractors. (MTZ 80/82, MTZ 1025),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.05 m
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 620 mm.
4. Mass - 475 kg
5. The working speed of movement during the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Cover width - 350 mm
8. The width of the front plow - 230 mm
9. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm:(//tractor-service.com)
length - 2550±100
width - 1350±50
height - 1300±50

Benefits:
1. The front plow, installed in front of each plow body, serves to cut the top layer of the soil and wrap plant remains to a depth of up to 12 cm.
2. The plows are equipped with reinforced semi-screw blades for more efficient circulation of the layer, the field plowed with such a plow has a well loosened, even surface.
3. The plow axle is made of a 50x50 mm square.
4. Clarity, simplicity and ease of adjustment.

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
