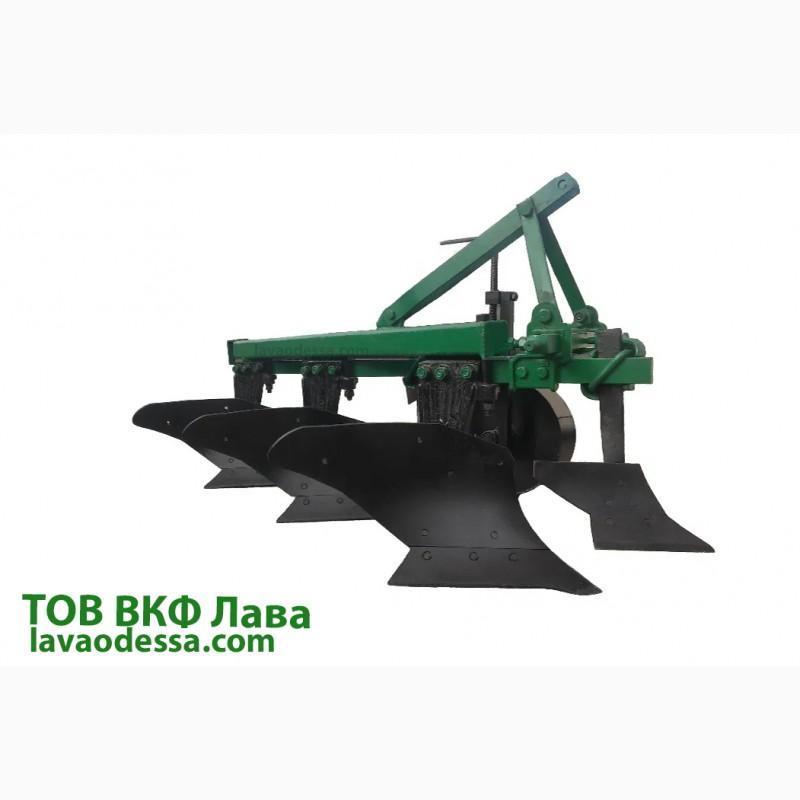

Plow PLN 3-35-01 with a front plow on high flat racks, semi-screw dump, Odesa region.

Mounted plowPLN-3-35-01 (with front plow) intended for plowing soils for grain and technical crops to a depth of up to 30 cm.
The plow is used in all soil and climatic zones, except for soil clogged with stones, slates and other obstacles, with a specific resistance of the soil of 0.9 kgf/cm2 (0.09 MPa) and a hardness of up to 35 kgf/cm2 (3.5 MPa) and moisture content of up to 27%.
The plow is aggregated with 80-100 hp tractors. (MTZ 80/82, MTZ 1025),right wheels which are in the furrow during operation.

Technical characteristics:
1. The width of the plow is 1.05 m
2. Plowing depth - 20-30 cm
3. The distance from the support plane of the housing to the lower plane of the frame is 720 mm.
4. Mass - 490 kg
5. The working speed of movement during the main operations is 7-9 km/h.
6. Transport speed, no more than 15 km/h.
7. Cover width - 350 mm
8. The width of the front plow - 230 mm
9. Productivity in 1 hour. - 0.735-0.945 ha/h
Overall dimensions, mm:(//tractor-service.com)
length - 2550±100
width - 1350±50
height - 1400±50

Benefits:
1. The front plow, installed in front of each plow body, serves to cut the top layer of the soil and wrap plant remains to a depth of up to 12 cm.
2. The plows are equipped with reinforced semi-screw blades for more efficient circulation of the layer, the field plowed with such a plow has a well loosened, even surface.
3. The plow axle is made of a 50x50 mm square.
4. Clarity, simplicity and ease of adjustment.
5. The plows are equipped with high body racks (10 cm higher than the standard ones)

Announcement from the manufacturer's company.
Any form of payment (cash, non-cash, postpaid).
Shipping across Ukraine is carried out by any courier service.
Self-delivery is possible.
Questions can be asked at the indicated phone number.
