Conveyor belt steam dryer G4- KSK-15, Ivano-Frankivsk region.

Dryer G4-KSK-15 is intended for drying vegetables: potatoes, onions, carrots, beets, cabbage, apples, etc. Dryers can be used for drying mushrooms,pasta products, various types of herbs.

PRICE NEGOTIABLE!!!!

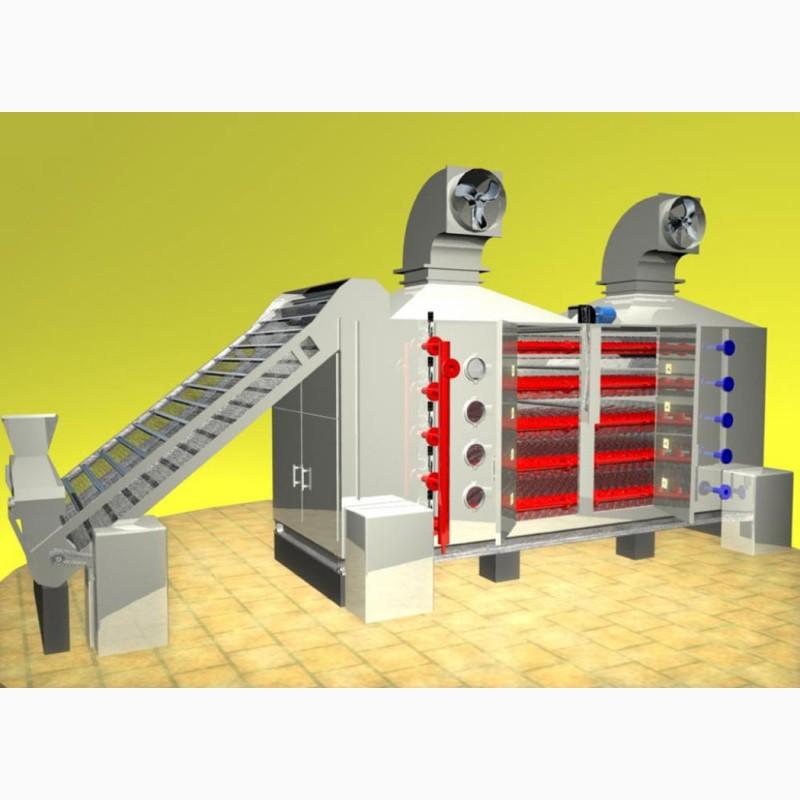

The dryer is a chamber closed with metal shields and doors filled with thermal insulation. For monitoring the drying of the product, taking samples, cleaning the trays and repairing the dryer, its design includes quick-removable shields with glazed hatches and doors. At the beginning and at the end of the dryer, two-leaf doors are provided, intended for inspecting the camera inside from the ends, as well as for cleaning the tapes from the final product. There is also lighting above the four grids at the beginning and end of the drying chamber. Inside the dryer, there are 5 pairs of drums one above the other. An endless stainless steel mesh wire tape is stretched over each pair of drums. Each pair of drums relative to the other is offset along the length, which prevents the raw product from falling into the dry one when it is transferred from one belt to another. Chain variators with a regulation range D=6 are installed on the drive columns, which provide stepless regulation of the speed of conveyor belts.

Agitators are installed in the middle of the dryer above the top three conveyor belts to prevent caking of the product. Scrapers installed on the first, second and third drums are used to clean the drums from the stuck-on product. The diameters of the stars of the leading drums are different, therefore, the speed of movement and the time of product stay in each temperature zone are different.
(//tractor-service.com)
An inclined belt conveyor with a spreader is used to feed the product into the dryer. With its upper part, it is installed on the dryer, the lower part is installed on the foundation with two supports. The belt conveyor consists of the following main parts: a frame, two drums, a conveyor belt, a spreader, a drive column, an upper part and a pallet. The conveyor belt is made of a stainless mesh with scrapers attached to it, designed to keep the product from sliding down. The spreader is a scraper conveyor with a folding board built into it and has loading and unloading hoppers. The folder is attached to the lower part ofbelt conveyor frame. The unloading hopper has a movable flap that provides adjustment of the height of the product layer, which is laid out on the conveyor belt.

The calorific sections of the dryer are supplied with steam from a steam power plant with a pressure of 0.6 MPa (6 kgf/cm2)

To remove moist air from the drying chamber, a ventilation system is used, which consists of exhaust chambers and fans. The performance of exhaust fans can be regulated by valves (remotely from the control panel) through blinds installed on top of the exhaust chambers. The intake of fresh air for supply to the drying chamber is carried out from the room in the opening between the dryer body, the floor and the foundation posts.

The main controlled parameter is the temperature of the circulating air above each of the five conveyor belts. The temperature regulation above each conveyor belt, and accordingly, the supply of steam under each belt is made individually depending on the type of product to be dried, and the air supply is regulated accordingly.
G4-KSK dryers are delivered together with a scraper-type conveyor-folder, designed for evenly spreading the product along the width of the conveyor belt and feeding it to the dryer.
