Used Mobile asphalt concrete plant Ermont-Marini 80-160 hours, Kyiv

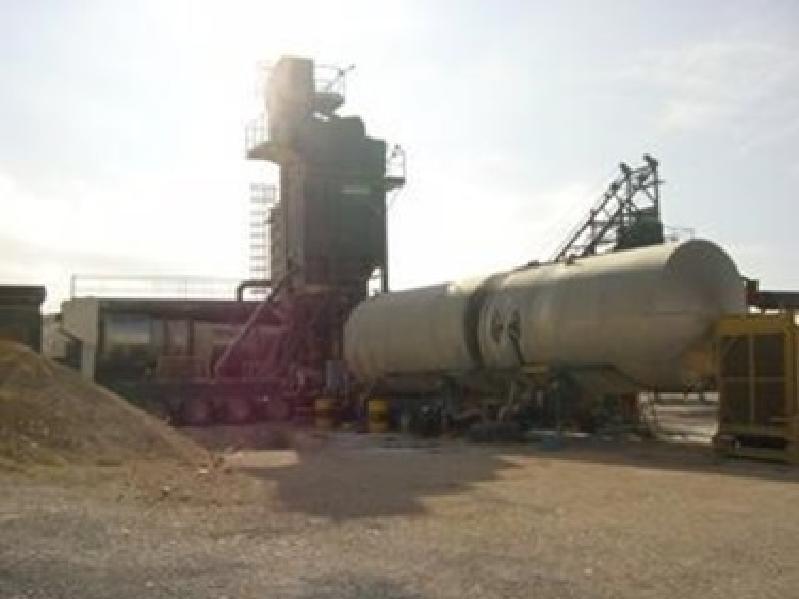

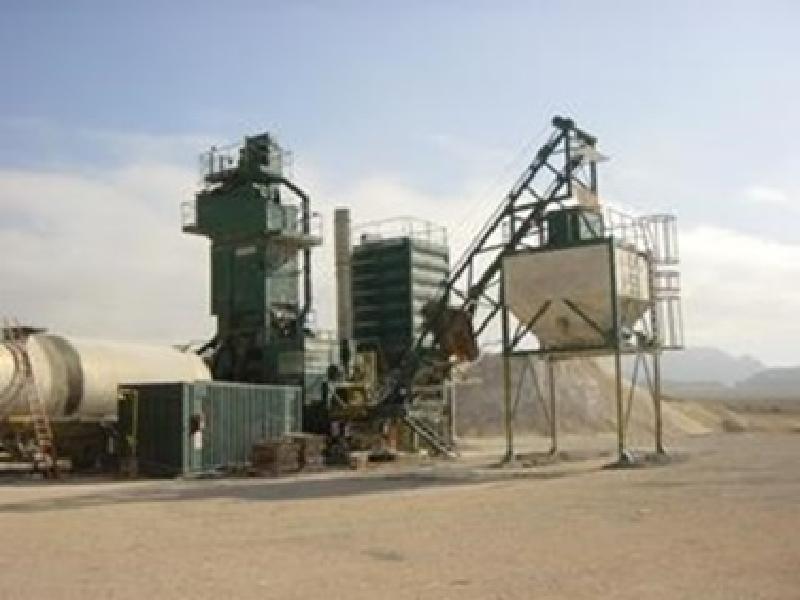

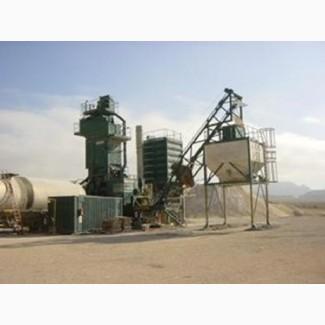

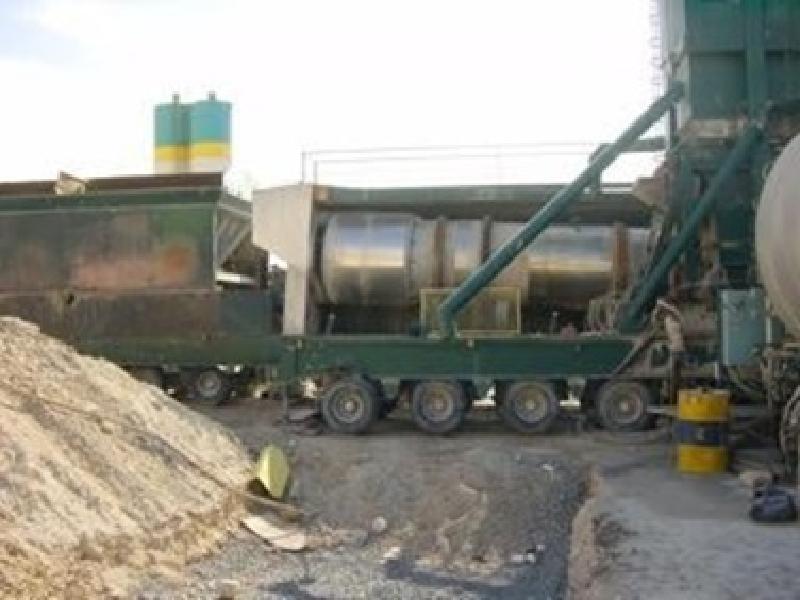

Used Ermont-Marini Roadbatch Mobile asphalt plant RB 160 Major Mobile 70-160 t/h 1998.

Technical characteristics and equipment of the plant:

Ermont-Marini Roadbatch RB 160 Major Mobile 1998

Asphalt production 75 - 160 t / hour.

Full technical service in 2011.

Roadsemi-trailer

Triple fixed axis

6 Telescopic supports

1 Cumulative dosing

4 aggregate compartments 3.5 m x 1.6 m

Load capacity 35 t at 1.6 density.

Voter on a sand compartment

4 volume extractors

The width of the conveyor belt is 400 mm. 4 separate gearboxes.

Variable speed from 8 t/h to 80 t/h

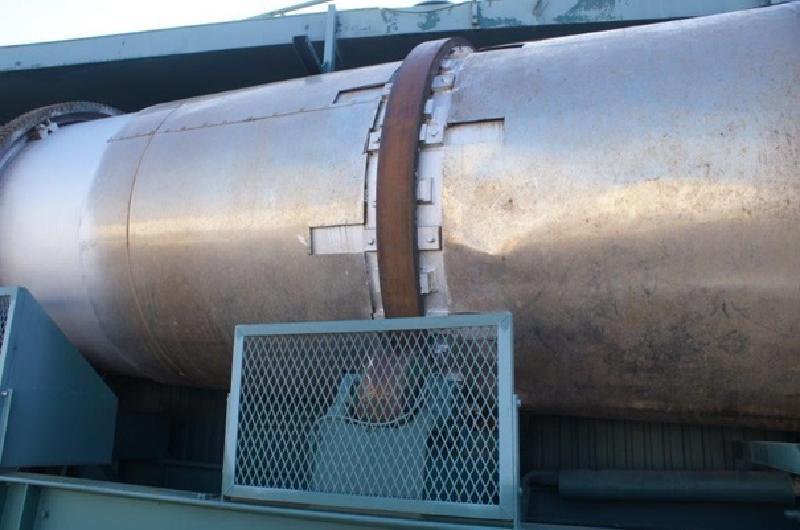

Drum dryer

The nominal productivity is 125 t/h with a humidity of 5% and a temperature of 140 °.

The diameter of the mixing zone is 1.65 m.

Diameter 1.90 m from the drying zone of 4 roller bearings.

2 retaining rollers

Drive by a 30 kW geared engine

Vodka
Heating power 500 kcal / h

Fuel oil No. 2

High pressure pump 30 bar

Combustion range control drive

Fan 12750 m3 / h power 30 kW

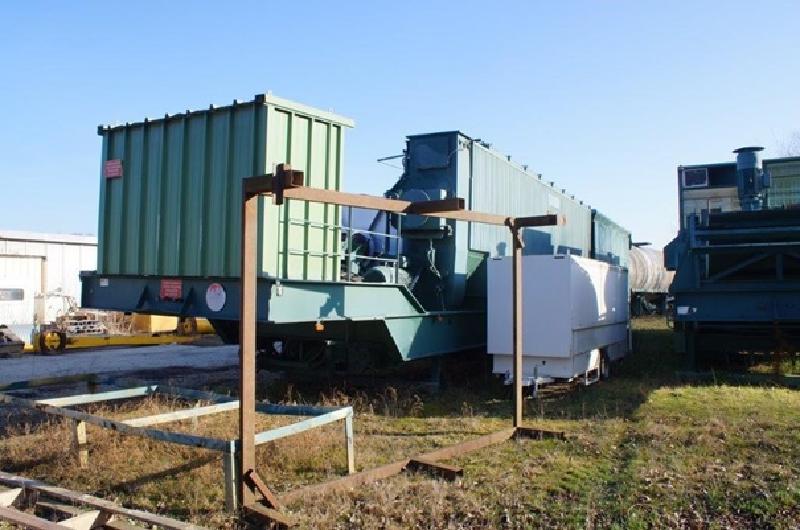

Dust filter

Filtration area: 450 m2

Loading bunker for V-shipping with control doors.

Cleaning the rotor

Power 75 kW / h

Feed system 8 m

1 air compressor

Productivity 57 m3 / h

Power 7.5 kW

1 road semi-trailer

Triple fixed axis

8 Telescopic supports
(//tractor-service.com)
1 hot lift

Mixing tower

Screen, 3 spare bunkers

Reset valve

1 bunker weighing 2 tons, opening two pneumatic doors.

Three weighing strain gauges

1 Mixer with double shaft:

2000 kg / batch - 2 gearbox engines

Dosage of bitumen

200-liter weighing platform installed on 2 strain gauges for injection into a gravity mixer

Productivity of bitumen pump 30 m3 / h

With a power of 7.5 kW

Three-way valve for bitumen injection

1Bucket elevator

1 Loading hopper 1.5

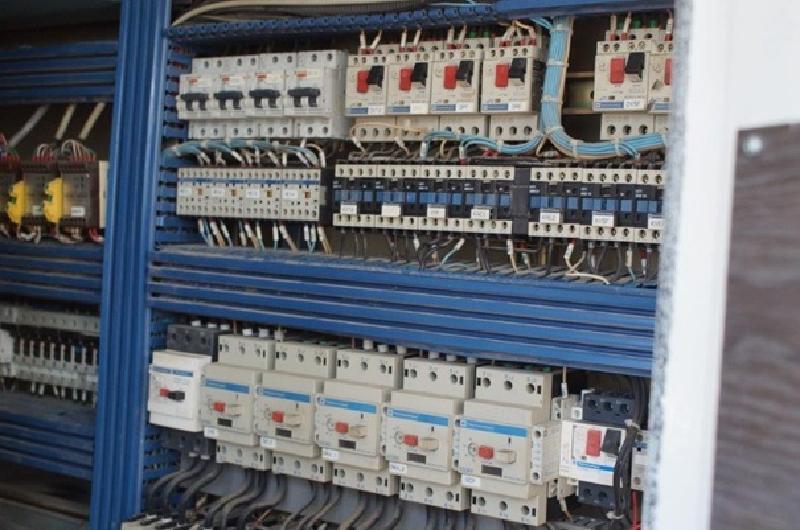

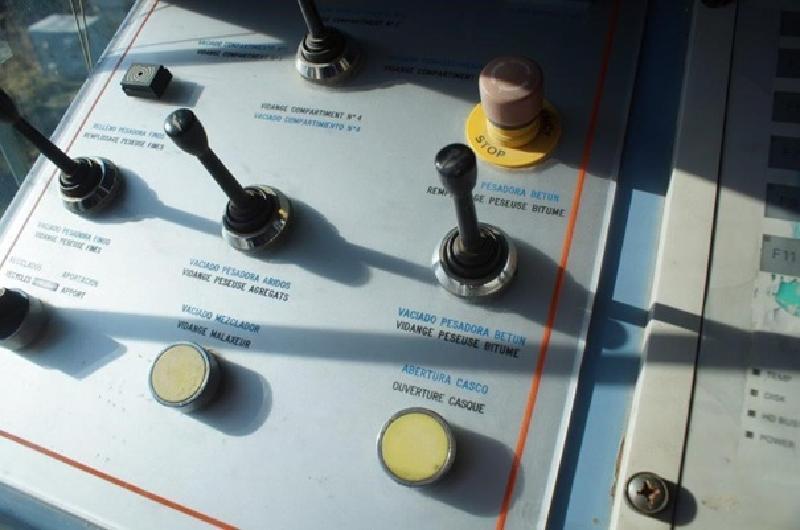

1 Control unit

Size 2.00m x 3.00m

Air conditioner

1 automation system

1 ventilated industrial calculator

1 rack of input and output

1 PC, compatible with the keyboard

1 Screen 20 inches

Complies with CE standards

1 Loading skip

1 Throughput capacity of 2 tons for cycles of 45 seconds

1 power winch 37 kW

1 direct loading

Capacities for storage

1 storage 20 t

Transportable silo with jumper

1 Silo for filler

Two compartments of 27m3

1 Mobile storage tank for bitumen and fuel oil

1 Vodka

1 Bitumen circulation pump

1 Spray pump for bitumen

1 Oil circulation pump

The plant is in excellent working condition, the necessary maintenance and replacement of worn parts has been carried out.
