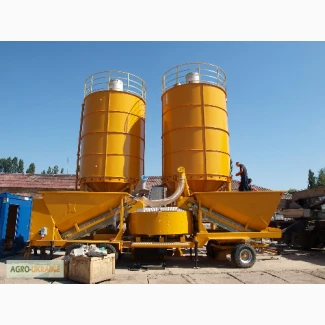

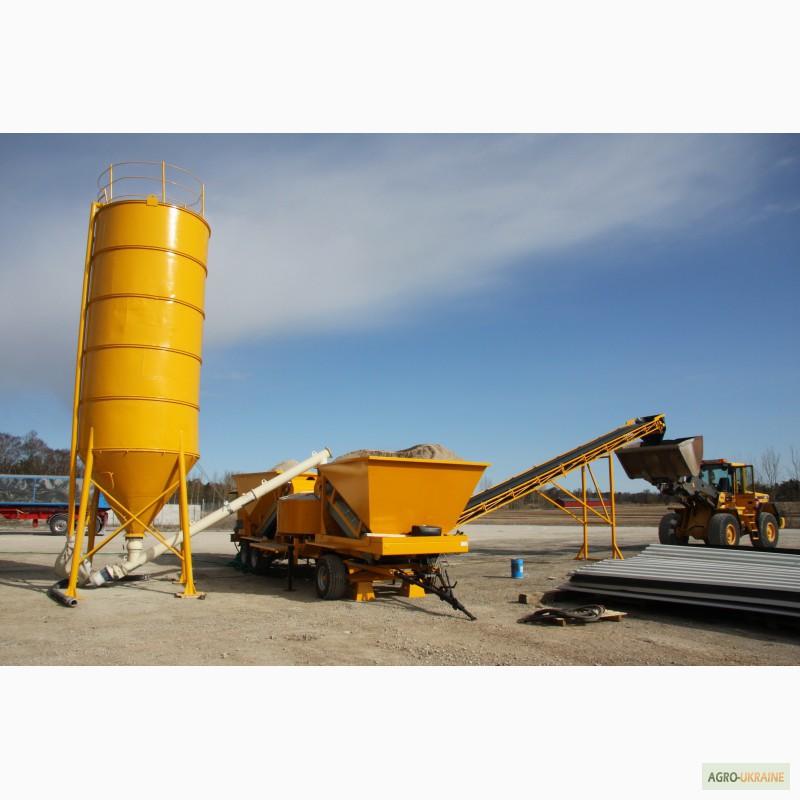

Mobile concrete plant Sumab M-22 (60 m3/h) Sweden, Kyiv

Mobile concrete plant Sumab M-22 (60 m3/h) Sweden.

The main advantages of the Sumab M-22 mobile concrete plant:

Mobile concrete plants have established themselves as reliable and high-quality equipment for the production of any type of concrete and concrete mixtures, ensuring the high quality of the concrete produced.

Concrete production is possible already 3 hours after delivery of the concrete plant to the working site!

Mobile concrete plant can be easily moved from one object to another.

NO FOUNDATION AND APPROVALS ARE REQUIRED to install the plant!

Installation of a concrete plant is possible on any site, the minimum size of which is 15 x 20 m.

The mobile concrete plant is capable of producing more than 50 grades of concrete with a recipe change for each subsequent batch.

Automatic plant management, computer ICON.

TECHNICAL CHARACTERISTICS AND EQUIPMENT OF THE CONCRETE PLANT

The Sumab M-2200 mobile concrete plant is intended for the production of high-quality concrete and concrete mixes, in a volume of 40-60 m3 per hour. The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

The mobile concrete plant is equipped with a convenient control cabin and an automatic plant management system. The modern computer system Icon allows you to produce 50 recipes and types of concrete. It is possible to print out each mixture of the finished mixture in kilograms and percentages of inert materials or cement during the preparation of the concrete mixture.

The basic equipment of the plant includes the following elements:

1. Fully automated mobile concrete plant, capacity 40 - 60 m3 per hour. Located on a chassis with wheels.

2. Bunker of inert materials 4*4 m3(//tractor-service.com)

3. Sensors for weighing inert materials. Located under the planetary mixer. Accuracy

dosages +/- 100 g. SIEMENS - Germany

4. Conveyor for supplying inert materials from hoppers to the mixer, incl. electric motor 4.5 KW Located under the bunkers.

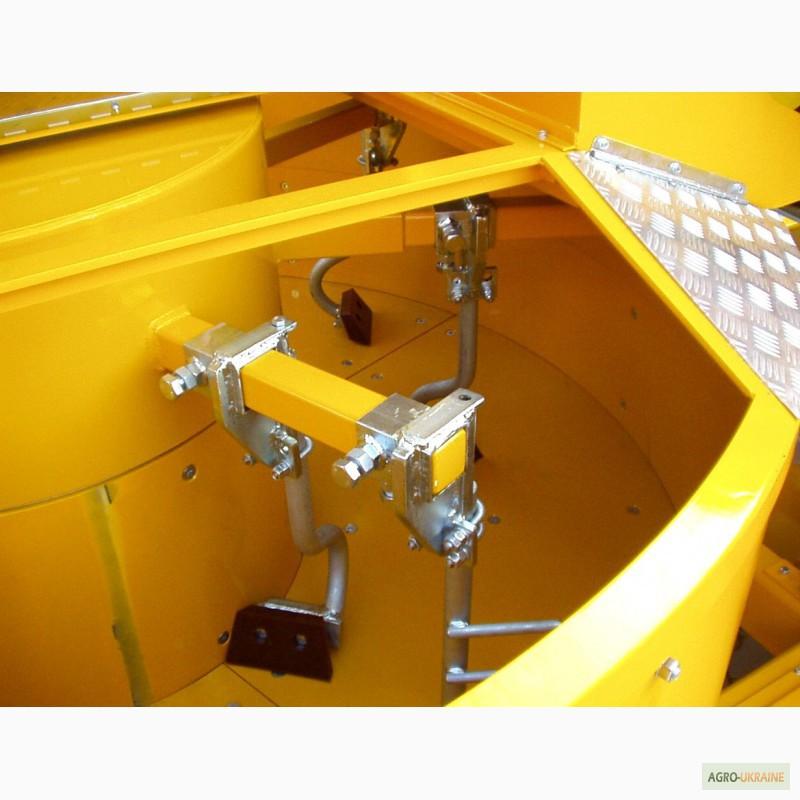

5. Pan-mixer 2200/1450 liters, covered with a 12 mm layer of special steel.

5 quick-removable spatulas with fiberglass tips. Automatic opening valve for the supply of ready-made concrete.

6. Galvanized water tank, 500 liters, with built-in DANFOSS pump and water dispenser

7. Air compressor 10 BAR

8. The control panel of the mobile concrete plant. Manual control keyboard. Easy touch screen of PC SIEMENS automatic plant control. 50 types of concrete with the possibility of changing the brand of concrete before each batch. Printer with a printout of the mixture of the finished dough in KG and %. Indicators for the dough, time, shift, month.

ADDITIONAL OPTIONS (AT THE CLIENT'S REQUEST):

High-pressure compressor 160 BAR for cleaning concrete plant

Cement feeding auger - diameter 220 mm, length 4.5 meters. Electric motor 5.5 KW. Built-in cement dosing sensors

Cementsilo 60-200 tons incl. filter, ladder, MAX-MIN levels, fence, cement supply pipe

Conveyor for feeding ready-mixed concrete from a mixer. Length 12 m, width 1000 mm.

Pump of chemical additives withhose with automatic control from RS.

Warranty 24 months
