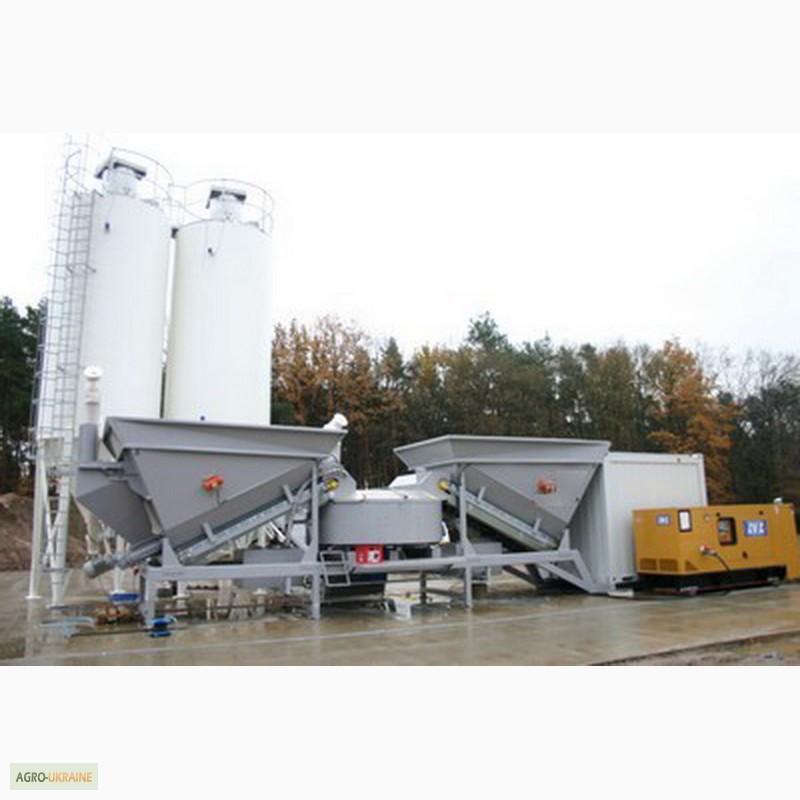

Mobile concrete plant Sumab F-2200 (60 m3/h) Sweden, Kyiv

Mobile concrete plant Sumab F-2200 (60 m3/h) Sweden

TECHNICAL CHARACTERISTICS:

The Sumab F-2200 mobile concrete plant is intended for the production of high-quality concrete and concrete mixtures, in the volume of 40-60 m3 per hour. The exact performance indicators of the plant depend on the type and brand of concrete produced, as well as on the inert materials used in the production of concrete, cement and the amount of chemical additives.

The mobile concrete plant is equipped with a convenient control cabin and an automatic plant control system. The modern computer system Icon allows to produce 25 recipes and types of concrete. It is possible to print out each mixture of the finished mixture in kilograms and percentages of inert materials or cement during the preparation of the concrete mixture.

The basic equipment of the plant includes the following elements

1. Fully automated mobile concrete plant, capacity 40 - 60 m3 per hour. Located on a container frame.

2. Bunker of inert materials 4*4 m3

3. Sensors for weighing inert materials. Located under the planetary mixer. Accuracy

dosages +/- 100 g., SIEMENS - Germany

4. Conveyor for supplying inert materials from hoppers to the mixer, incl. electric motor 4.5 KW Located under the bunkers

5. Pan-mixer 2200/1450 liters, covered with a 12 mm layer of special steel.

5 quick-removable spatulas with fiberglass tips. Automatically opening ready-made concrete feed valve .

6. Galvanized water tank, 500 liters, with built-in DANFOSS pump and water dispenser
(//tractor-service.com)
7. The control panel of the mobile concrete plant. Manual control keyboard. Easy touch screen of PC SIEMENS automatic plant control. 50 types of concrete with the possibility of changing the brand of concrete before each batch. A printer with a printout of the mixture of the finished batch in KG and %. Indicators for the batch, time, shift, month

8. Pump of chemical additives withhose with automatic control from PC

9. High-pressure compressor 160 BAR for cleaning concrete plant

10. Air compressor 10 BAR

ADDITIONAL OPTIONS (AT THE CLIENT'S REQUIREMENT):

Cement feeding auger - diameter 220 mm, length 4.5 meters. Electric motor 5.5 KW. Built-in cement dosing sensors

Cementsilo 60-200 tons incl. filter, ladder, MAX-MIN levels, guardrail, cement supply pipe

Conveyor for feeding ready-mixed concrete from a mixer. Length 12 m, width 1000 mm.

Warranty 24 months.

Thanks to the use of European technologies, our equipment has a high level of durability and reliability.
Delivery of the equipment is carried out exactly on time.
More than 20 years of reliable partnership.
Sumab equipment works in Europe, Ukraine, CIS countries, Kazakhstan, South America, Arab countries and Africa.

Over the period of the company's activity, more than 500 concrete plants and plants for the production of paving slabs, curbs and reinforced concrete with various capacities and components were delivered.

To receive a commercial offer, please send an application to our email address.
