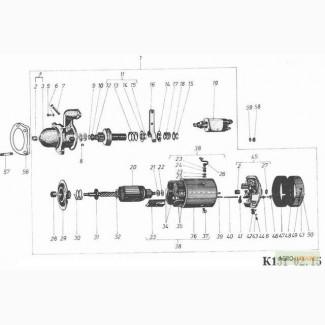

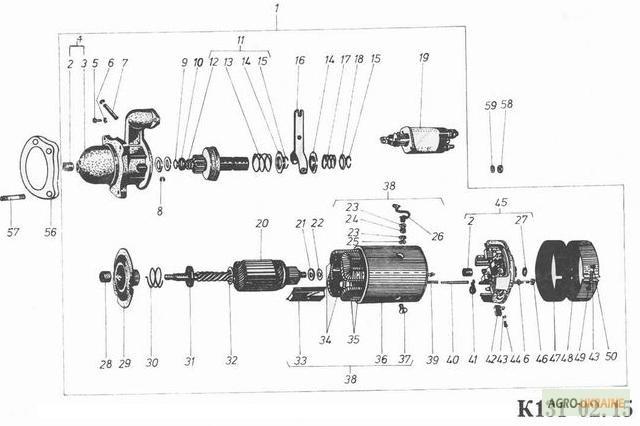

Starter M114/12/30-01 for the D2500k engine on the Balkankar loader, Kharkiv region.

Position No.
Catalog No.
positional number
Name
1
6 458157 4566691026
В2873334
Starter M114/12/30-01
2

22610
Bushing
3

22610
Front shield
4

22610
Front shield
5

Bolt A1 M6x16-8.8 BDS 1230-85/fos.
6
6 239316

Washer 2-6L BDS 833-82/Zn
7

22610.00.07А
Here are the forks
8
6 202950

Splint 2x20 BDS 55-77
9

22610
Safety ring
10

22610
Limiter
11

22610
Free running clutch
12

22610
Bushing
13

22610
Buffer spring
14

22610
Disk
15

22610
Safety ring
16

22610
Fork
17

22610
Spring
18

22610
Locking ring
19

432001
RSP type starter relay
20

22610
Rotor
21

22610
Washer I
22

22610
Washer II
23

22610
Insulation washer
24

22610
Insulation sleeve
25

22610
Pad washer
26

22610
Conclusion (as a whole)
27

22610
Traffic jam
28

22610
Sleeve(//tractor-service.com)
29

22610
Disk with a hub
30

22610
Brake spring
31

22610
Brake plate
32

22610
Disc brake
33

22610
Pole
34

22610
Coil B
35

22610
Coil A
36

22610
Body
37

22610
Screw
38

22610
Stator
39

22610
Pin
40

22610
Insulating pipe
41

22610
Brush spring
42

22610
Brush with output
43
6 233474

Washer 2-4L BDS 833-82/Zn
44

26605
TS screw
45

22610
Shield with brush holders
46

Nut M7-6H BDS 1250-71/5 fos.
47

22610
Tape 0.5x42x340
48

22610
Safety belt
49

26605
TS screw
50

26800
Nut
56
6 403525 4566692863
В37755211
Intermediate body
56
6 463873 4566693594
В37755202
Intermediate body
57
6 441882
В32515128
Pin
57
6 239391

Pin A M10x45-8.8 BDS 1238-87/Zn
57
6 239462

Pin A M10x50-8.8 BDS 1238-87/Zn
58
6 237535

Nut M10-8 BDS 744-83/Zn
59
6 205041

Washer 2-10L BDS 833-82/Zn
