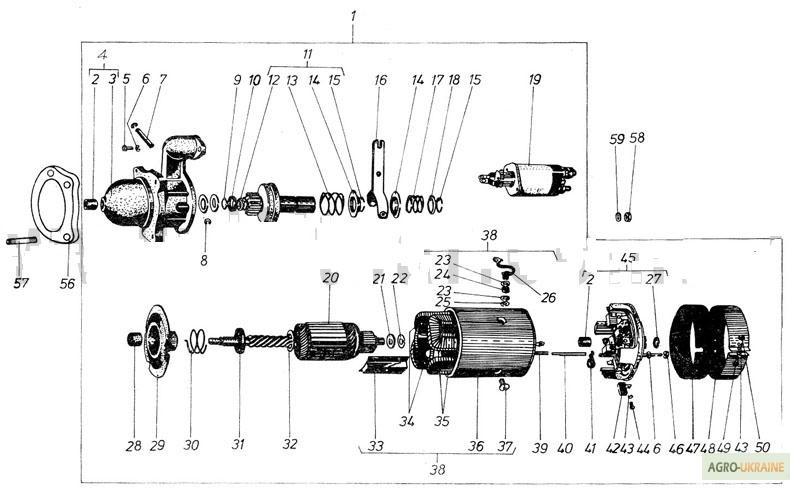

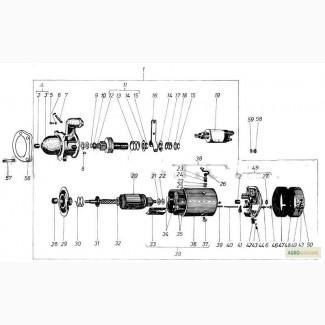

Starter M114/12/30 for Engine D 3900k, Kharkiv region.

Item no.
Catalog No.
positional number
Name
1
В2873334
6 458 157
Starter M114/12/30
2
226 10 31 02

Bushing
3
226 10 50 01

Front shield
4
226 10 50 00

Front Shield
5

Bolt 1 M6x16-6g BDS 1230-72/8.8 phosph.
6

6 239 316
Washer 2-6L BDS 833-82/Zn
7
226 10 00 07А

Here are the forks
8

6,202,950
Splint 2x20 BDS 55-77
9
22610 10 04

Safety ring
10
22610 10 05

Limiter
11
22610 16 00

Free running clutch
12
22610 16 13

Bushing
13
22610 16 02

Buffer spring
14
22610 16 05

Disk
15
22610 16 01

Safety ring
16
22610 60 00

Fork
17
22610 16 03

Spring
18
22610 16 04

Closing ring
19
432001 00 00

Starter relay RSP-12V
20
22610 11 00

Rotor
21
22610 00 08

Washer I
22
22610 00 09

Washer II
23
22610 20 07

Insulation washer
24
22610 20 08

Insulation sleeve(//tractor-service.com)
25
22610 20 06

Pad washer
26
22610 27 00

Conclusion (as a whole)
27
22610 30 15

Traffic jam
28
22610 14 01

Bushing
29
22610 15 00

Disk with a hub
30
22610 10 06

Brake spring
31
22610 10 07

Brake plate
32
22610 10 08

Brake disk
33
22610 20 05

Pole
34
22610 24 00

Coil B (assembled)
35
22610 21 00

Coil A (assembled)
36
22610 20 04

Body
37
22610 20 09

Screw
38
22610 20 00

Stator
39
22610 00 13

Pulling pin
40
22610 00 12

Insulating pipe
41
22610 30 04

Brush spring
42
22610 33 00

Brush with output
43

6 233 474
Washer 2-4L BDS 833-82/Zn
44
26605 05 11

TS screw
45
22610 30 00

Shield with brush holders and brushes
46

Nut I M7-6H BDS 1250-71/5. phosph.
47
22610 00 11

Tape 0.5x42x340
48
22610 00 10

Safety belt
49
26605 05 11

Vint TS
