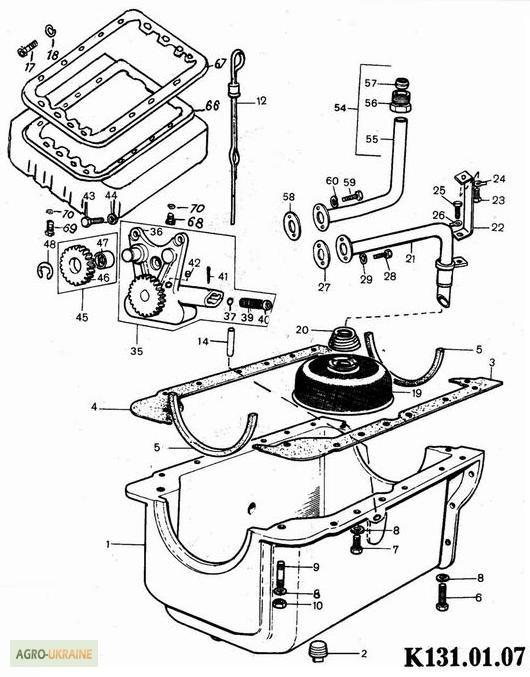

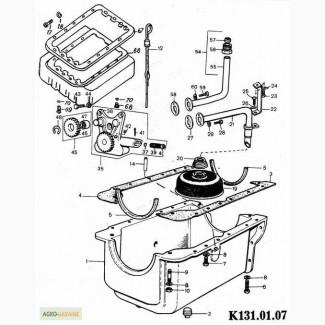

Oil bath for D2500 engine for Balkankar loader, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
6 473390 4566693383
В37171813
Oil bath
1
6 472195 4566693384
В37171812
Oil bath
1
6 480397 4566693385
В37171201
Oil bath
2
6 230512

Plug II con. 1/2" BDS 2527-71/6.8 Zn
3
6 445866
В36815338
Sealing, left side
4
6 445872
В36815337
Seal, right side
5
6 440911
36884112
Sealing of the oil bath
6
6 236296

Bolt A1 M8x80-8.8 BDS 1232-86/fos.
7
6 230961

Bolt A1 M8x20-8.8 BDS 1232-86/fos.
8
6 205035

Washer 2-8L BDS 833-82/Zn
9
6 233290

Pin A M8x50-8.8 BDS 1232-86/Zn
10
6 224106

Nut M8-8 BDS 744-83/fos.
12
8 473357 4566693775
В31782278
Oil-indicating dipstick
12
8 457853 4566693776
В31782275
Oil-indicating dipstick
14
6 433597 4566692173
В31358115
Bushing
14
6 473342 4566693795
В33143613
Oil gauge pipe
17
6 238490

Bolt A2 M10x28-8.8 BDS 1232-86/Zn
18
6 205041

Washer 2-10L BDS 833-82/Zn
19
8 432015 4566692719
В377255434
Vacuum cleaner
20
6 402883 4566699230
В31747115
Spring
21
8 403807 4566692849
В35737250
Suction pipeline
21
8 480854 4566693797
В35721881
Suction pipeline
22
6 430698 4566692450
В37328161
Bracket
23
6 236417

Bolt A1 M6x14-6.8 BDS 1230-85/fos.
24
6 239316

Washer 2-6L BDS 833-82/Zn
25
6 235100

Bolt A1 M8x16-8.8 BDS 1232-86/fos.
26
6 231687(//tractor-service.com)

Protective washer 2x8.5 BDS 1975-74/fos.
27
6 432295 4566692932
36831108
Sealing
28
6 236402

Bolt A1 M6x18-6.8 BDS 1230-85/fos.
29
6 239316

Washer 2-6L BDS 833-82/Zn
35
8 402927 4566692613
В41314140
Oil pump
36
6 403552 4566693784
В37714821
The body of the oilpump
37
6 223963

Ball 13.494 mm IV BDS 4885-75
39
6 403068 4566692631
В31742132
Spring
40
6 418284 4566692142
В33525051
Adjusting screw
41
6 233480

Cotter pin 3.2x32 BDS 55-77
42
6 468808 4566692622
В32163073
Traffic jam
43
6 446541 4566693378
В32142203
Bolt
44
6 433008 4566694230
В33156231
Safety washer
45
8 429168 4566692421
В41115025
Intermediate gear
47
6 445676 4566692142
URB31134102
Bushing
48
6 234208

Ring E12x1.2 BDS 9227-71
54
8 437144 4566692847
В34711195
Oil pipeline
55
6 461067 4566693799
В34711130
Trumpet
56
6 418102 4566692221
В33532121
Stop nut
57
6 419256 4566692984
В33171085
Conical seal
58
6 432295 4566692932
36831108
Sealing
59
6 236402

Bolt A1 M6x18-6.8 BDS 1230-85/fos.
60
6 239316

Washer 2-6L BDS 833-82/Zn
66
6 480382 4566693766
В37221161
Oil bath cover
67
6 480405 4566694236
В36844161
Sealing
68
6 481164 4566693379
В32142271
Bolt
69
6 239527

Bolt A1 M8x22-8.8 BDS 1232-86/Zn
70
6 205035

Washer 2-8L BDS 833-82/Zn
