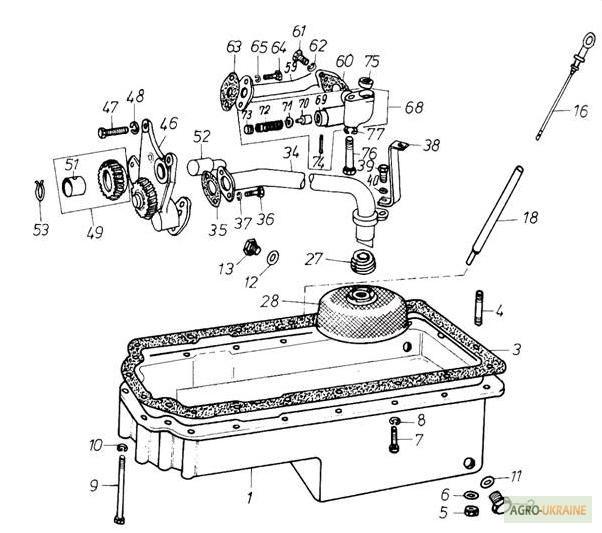

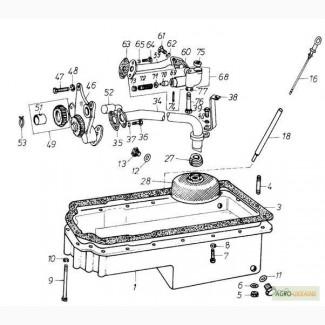

Oil bath for Engine D 3900k, Kharkiv region.

Position no.
Catalog No.
positional number
Name
1
В37171331
6 465 318
Oil bath
2
В32163037
6 499 561
Traffic jam
3
36815705
6 432 675
Sealing
3
36815706
6 518 716
Sealing
4
В32513211
6 433 891
Pin
5

6 235 798
Nut M8-8 BDS 74483/Zn
6

6 205 035
Washer 2-8L BDS 833-82/Zn
7

6 237 598
Bolt A1 M8x20-8.8 BDS 1232-86/Zn
8

6 205 035
Washer 2-8L BDS 833-82/Zn
9

6 224 478
Bolt A1 M8x85-8.8 BDS 1232-86/Zn
10

6 230 391
Ring I A8x14 AI 99.5 BDS 3609-73
11

6 241 275
Ring A20x26 Cu 99.5 BDS 3609-73
16
В31782281
8 478 803
Oil dipstick
17
33811407
6 432 422
Sealing
18
В33143614
6 478 780
Oil gauge pipe
27
В31747115
6 402 883
Spring
28
В37725434
6 432 015
Vacuum cleaner
34
В35732173
6 403 980
Suction pipeline
35
36832122
6 432 654
Sealing
36

6 230 961
Bolt A1 M6x20-8.8 BDS 1232-86/fos.
37

6 205 035
Washer 2-8L BDS 833-82/Zn
38
В36534116
6 431 108
Bracket
39
(//tractor-service.com)
6 235 100
Bolt A1 M8x16-8.8 BDS 1232-86/fos.
40

6 230 034
Safety washer 8-2 BDS 1975-74/fos.
46
В41314130
8 402 933
Maslyanypump (assembled)
47

6 230 961
Bolt A1 M8x20-8.8 BDS 1232-86/fos.
48

6 205 035
Washer 2-8L BDS 833-82/Zn
49
В41115161
8 443 473
Intermediate gear
51
URB 31358143
6 445 037
Bushing
52
В32716117
6 431 367
Here is the intermediate gear
53

6 230 560
Ring B222x1.2 DIN 471
59
В35551509
8 419 473
Injection pipeline
60
36831108
6 432 295
Sealing
60
36831109
6 518 770
Sealing
61

6 230 955
Bolt A1 M6x16-5.8 BDS 1232-86/fos.
62

6 239 319
Washer 2-6L BDS 833-82/Zn
68
В41371418
8 461 278
Oil safety valvepump (assembled)
69
В37756529
6 461 257
Safety valve housing
70
В32712218
6 461 290
Plunger
71
В33114211
6 461 762
Washer washer
72
В31742167
6 461 263
Spring
73
В33111125
6 461 284
Plate
74

6 241 402
Splint 3.2x28 BDS 55-64
75
В33137405
6 440 505
Centering sleeve
76

6 236 640
Bolt A1 B10x70-8.8 BDS 1232-86/fos.
77

6 205 041
Washer 2-10L BDS 833-82/Zn
