Lifting device for H=3300mm lifting cylinder for a Balkancar EB 687 loader, Kharkiv region.

Position No.
Catalog No.
Name
Pieces

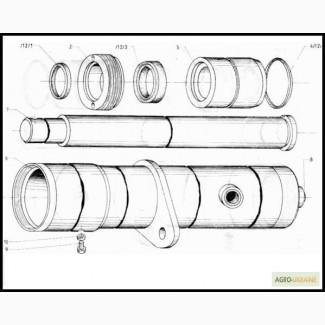

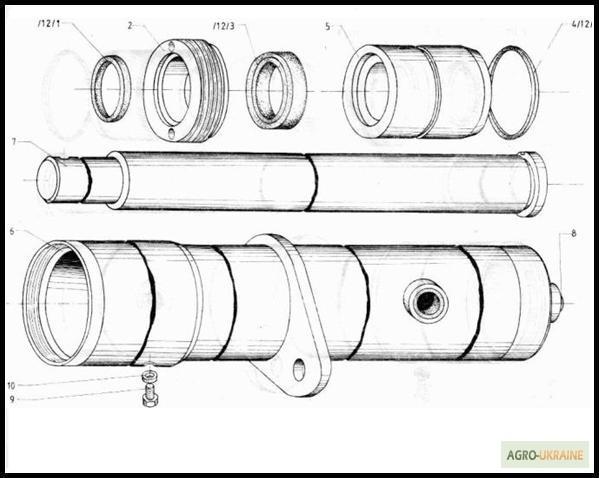

LIFTING DEVICE AT H=3300

_1
327871/327872/ 2915.1 00.00-05
Hydraulic plunger cylinder TPS5 (50x1660)
1
_2
338113/338114/ 2915.1 00.00-05SY
Hydraulic plunger cylinder TPS5 (50х1660)
1
1
284518/284518/ ON-04 58952-82
Oil removal ring E50
1

251965 2505 00.03
Nut
1
3 1
158607 2865 01.00
Cuff M2B 50x58x12

3 2
158607 2865 01.00
Cuff M2B 50x58x12

4
217646 BDS 7947-83(//tractor-service.com)
"o" ring 60x3-1-70

5 1
338115 2505.1 00.08
Special bushing

338117/338118/ 2915.1 00.00-05
Cylinder (general view)

7
338129 2910 02.00M-09
Plunger (general view)
1
8
173615 ON-04 64821-76
Traffic jam 7
1
9
219429/217274/ BDS 1230-72/6.6
Bolt I M8x6-6g
1
10
208785 BDS 3609-73М1
Ring I A8x12
1
11 2
338127 2505.1 00.16
Special bushing
1
12
326765/326766/ 2915.1 00.00
Fast-wearing spare parts for TPS5 (50x1260)
1
