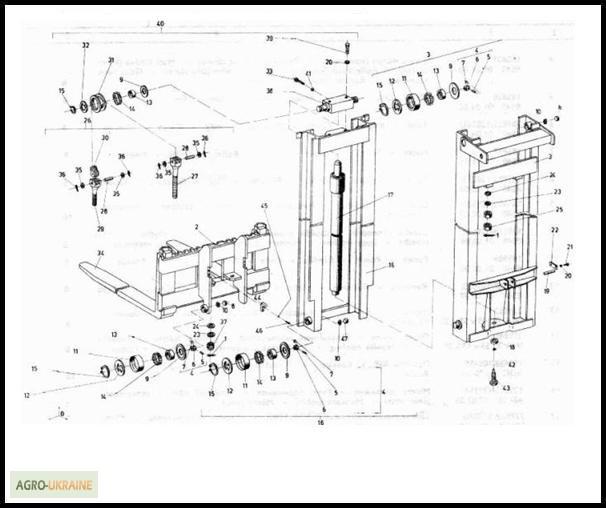

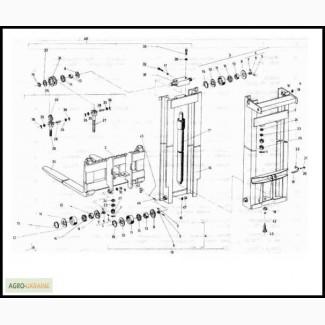

Lift device for H=2500mm for Balkankar EB 687 loader, Kharkiv region.

Position no.
Catalog No.
Name
Pieces
LIFTING DEVICE AT H=2500

13 1
129308 687.25 07.00.00
Lifting device
1
1
109420/109421/ BDS 55-64
Cotter pin 4x36
4
2
129301/129302/ 687.33 05/17/00
Vertical carriage
1
3
129309/129310/ 687.25 07.01.00
Fixed frame
1
4
185807 8540 01.04.00
Small roller (assembled)
8
5
185826 8540 01.04.02
Here
8
6
185825/120261/ 8540 01.04.01
Body
8
7
185827 8540 01.04.03
Video clip
8
8
185813/120273/ 8540 01.00.04
Traffic jam
6
9
185812/129631/ 8540 01.00.03
Washer
10
10
129519/129520/ 8540 01.00.08
Lock washer
8
11
185986 8540 01.00.02
Video clip
8
12
185987/129633/ 8540 01.00.07
Cover
8
13
221162 INA IR 45x55x22
Bushing
8
14
219945 INA К55x63x20
Needle bearing
8
15
109458/109459/ BDS 2170-75
Ring B45
10
16
129313/129314/ 687.25 07.02.00
Movable frame
1
17
327869/327870/ 2915.1 00.08-04
Plunger cylinder TPS5 (50х1260)
1
17*
338123/338124/ 2915.1 00.00.04Cu
Plunger cylinder TPS5 (50х1260) (special version)
1
18
129708 687.33 17.00.01
=Washer
1
19
129517 687.33 07.01.04
Here
1
20
103161/103162/ BDS 833-71
Spring washer 10N
4
21
118515/118516/ BDS 1232-72/5,6
Bolt I M10x22
2
22
222137 BDS 2348-74
Stop bar 36(//tractor-service.com)
1
23
109441/109442/ BDS 2327-73
Washer Сf16
4
24
109443/109444/ BDS 2327-73
Conical washer 16
4
25
108873/108874/ BDS 744-72/5
Nut M16
4
26
129254/129255/ 8571 00.01.00
Chain (assembled)
2
27
129525/129526/ 687.33 07.03.02
Long bolt
2
28
185929 7004 00.00.166
Here
2
29
129522/129523/ 687.33 07.00.01
The bolt is short
2
30
221939 BDS 4717-72
Plate chain A-79x20(4+4)-A
2
31
266148 8544 00.00.06
Chain roller
2
32
253121/127347/ 8560 00.00.02
Washer
2
33
122358/122359/ BDS 1366-73/5,6
Screw M12x40
1
34
127655/127656/ 9974.4 00.00.00
Pitchfork fang (assembled)
2
35
103272/103273/ BDS 206-73
Washer normal NM6
8
36
118040/118041/ BDS 55-64
Cotter pin 1.6x14
8
37
109445/109446/ BDS 745-73/5
Nut II M16
2
38
129712 687.25 07 04 01
Bearing beam
1
39
115321/115322/ BDS 1232-72/5,6
Bolt I M10x28
2
40
129316/129317/ 687.25 04.07.00
Carrying beam (assembled)
1
41
122160/122161/ BDS 744-72/5
Nut M12
1
42
103219/103220/ BDS 833-71
Spring washer 12N
1
43
222977/222978/ BDS 1232-72/5,6
Bolt I M12x1.5x16
1
44
108050/108051/ 7004 00 00 103
Limiter
1
45
103264/103265/ BDS 833-71
Spring washer 8H
2
46
120519/120520/ BDS 1232-72/5,6
Bolt I M8x30-6g
2
47
185833/127141/ 8540 02 00 06
Traffic jam
2
